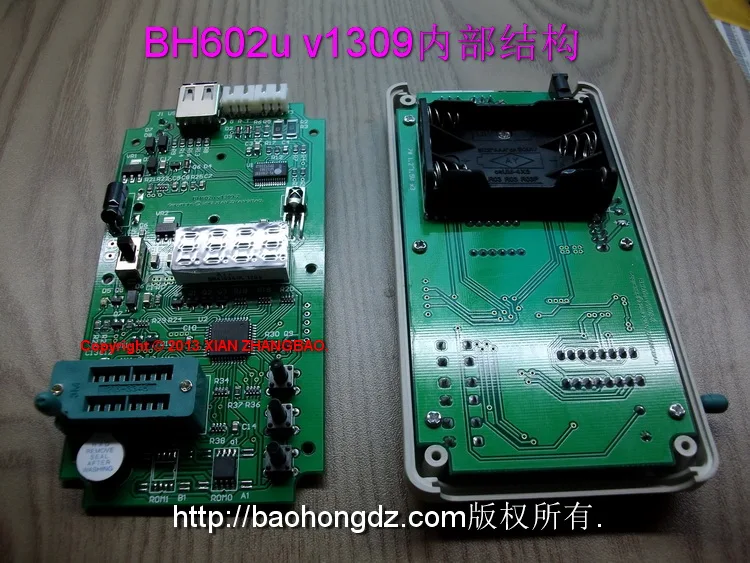

BH602u— v1309 version storage multifunction programmer

SupportDVD, HD, flat color TV.25 series FLASH

Storage programmer (Reader) of 24\\93\\85 series EEPROM

This instrument is for the majority of household appliances maintenance technicians to use, in the maintenance of color TV, color display, DVD, used to read, write, store 24/85/93 series EEprom data. Add online reading and writing 25 series FLASH function. At the same time, it also adapts to more applications, such as automotive circuits, audio, communications, etc. need to read, write, store the above EEprom data - hellip; & hellip;

Features of BH-602u_v1309 version:

New functions:

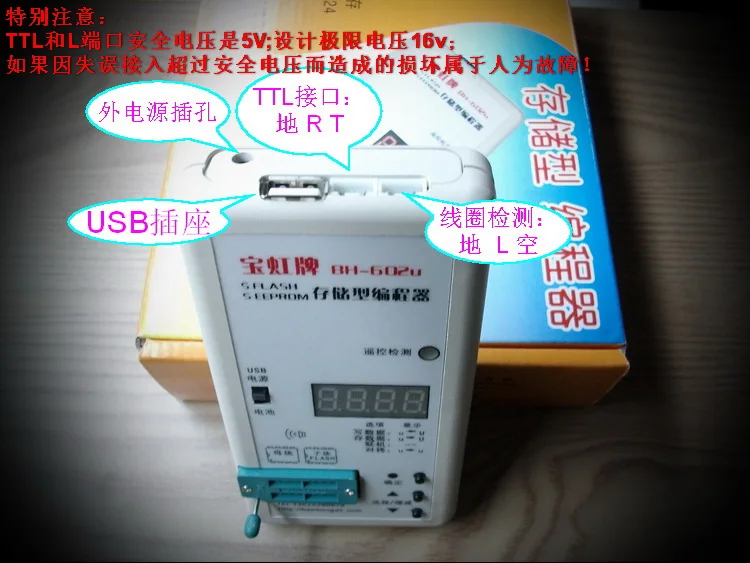

TTL upgrade the small board interface (save the purchase upgrade board);

Digital display line output coil short-circuit detection;

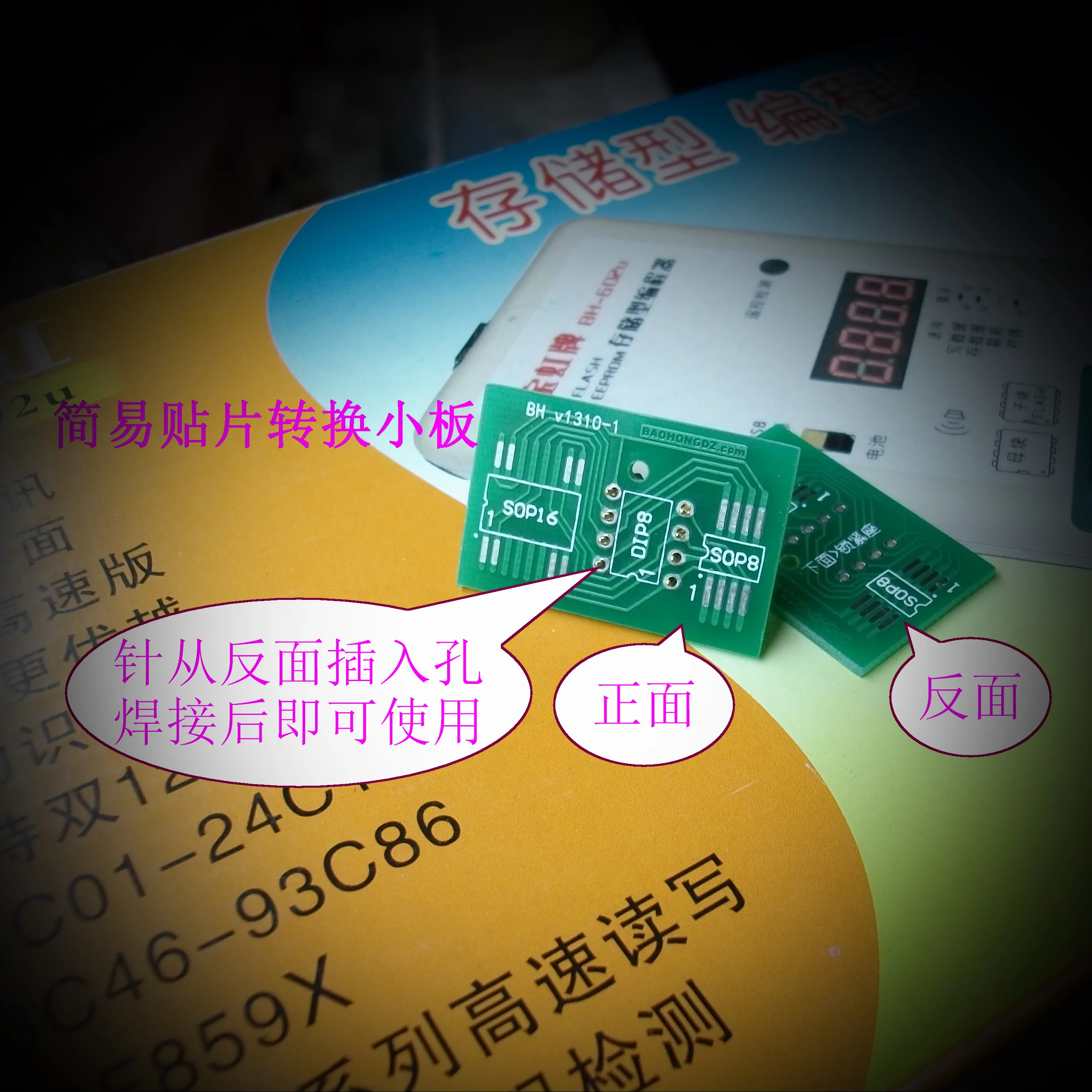

Simple patch conversion board adoptedDouble-sided plateThe redesign is equivalent to two small panels.

Constant speed 65S reads and writes 25T80; fast reads (15s) and writes (30s);

There are about 2800 kinds of commonly used color TV data in the factory.

Online infrared remote control waveform display and code detection function

1. v1309 new editionFundamentallySolved 08.Version 09 for 25, 24 voltage compatibility issues, better suited to battery power (a single battery voltage down to 0.98v machine can still work); support 3V and 5V devices (for 5V device battery power should not be less than 3.8v);

2.Out of the factoryThousands of color TV data have been stored, and data can be written and stored without computers.And retain EEPROM's copy function and infrared.Remote detection function, on-line infrared remote control waveform display, code detection function

3. on lineChinese software, the interface is clear and easy to use.The function is increasing.Support Win98SE/ME/2000/XP/2003/VISTA/win7 and other operating systems
4., we use block partition management like computer partition, and allocate data size and storage location freely. Data can be increased or deleted.
5. hardware reserved to increase memory ROM vacancy, data and memory capacity can be increased.
6. online offline.Automatic identification typeAt the same time, support manual selection of models. Automatically judge the 7 foot potential of the 24 and 85 series. Use area code numberAutomatic filtering technologyThe operation is more convenient.

Product model: BH-602u v1309 Edition
USB interface communication, working voltage 3.3V.Support battery and external power supply, online USB power supply..
Storage capacity (bit, note: 8bit=1 bytes):
A.Optional memoryConfiguration: 16M/32M/64M/128M has ROM vacancy and can be increased.
B. maximum capacity: double 128M = 256M; (Note: 256/8=32M byte);
C. reference capacity: 24C08 capacity is 8Kb, that is, 128M can store more than 16000 24C08 data.
D. memory increased: capacity less than 256M can increase or replace ROM.
Support type:
1. 24C01 to 24C16, 24C32 to 24C1024; 24Wxx (storage maximum support 24c256)
2. PCF8582, PCF8594, PCF8598, PCF85916; (readable and writable)
3. 93C46/57/56/66/86, 93LCxx A/B/C. (suffix A:8 bit; B:16 bit; C:8 bit and 16 bits. )
4.EON EN25T / B / Fxx, Huabang W25Xxx, Wanghong MX25Lx05, MAIC A25Lxx, ST M25Pxx, PS25LVxx & hellip, etc.. For example, ST25P10, 20, 40, 80, 16, 32, 64.
1:24 and 93 are brand names based on AT.
Note 2:24, 93, 85 support online, offline, storage; 25 series only supports online reading and writing.

Power supply mode:
1. battery: 3 or 7 alkaline or ordinary dry battery can be placed in the machine.V1309 version can be operated with 1.2V rechargeable battery.
2. external power supply: voltage regulator 6 ~ 12V; rectifier power supply: 6 ~ 12V (no load is higher than 12V), 3.5 plug core;
3.USB power collection: power switch to “ USB power ”
Note: battery poweredMinimum working voltage: 2.94v;(for read and write 5V devices, the voltage of the battery should be no less than 3.8V).

Random accessories:
1. use instruction / data manual;
2. software installation CD (including data and maintenance information);
3. USB interface data line;
4. simple patch IC conversion direct insertion panel;
5. non commitment annexes (for example: DuPont line));

Offline - no computer function.
A. copy — — copy the parent data → copy to the sub block.
B. writes data - the instrument memory data → writes to the sub block.
C. stores data - the parent block data &rarr, stored in the instrument memory.
D. infrared signal detection.

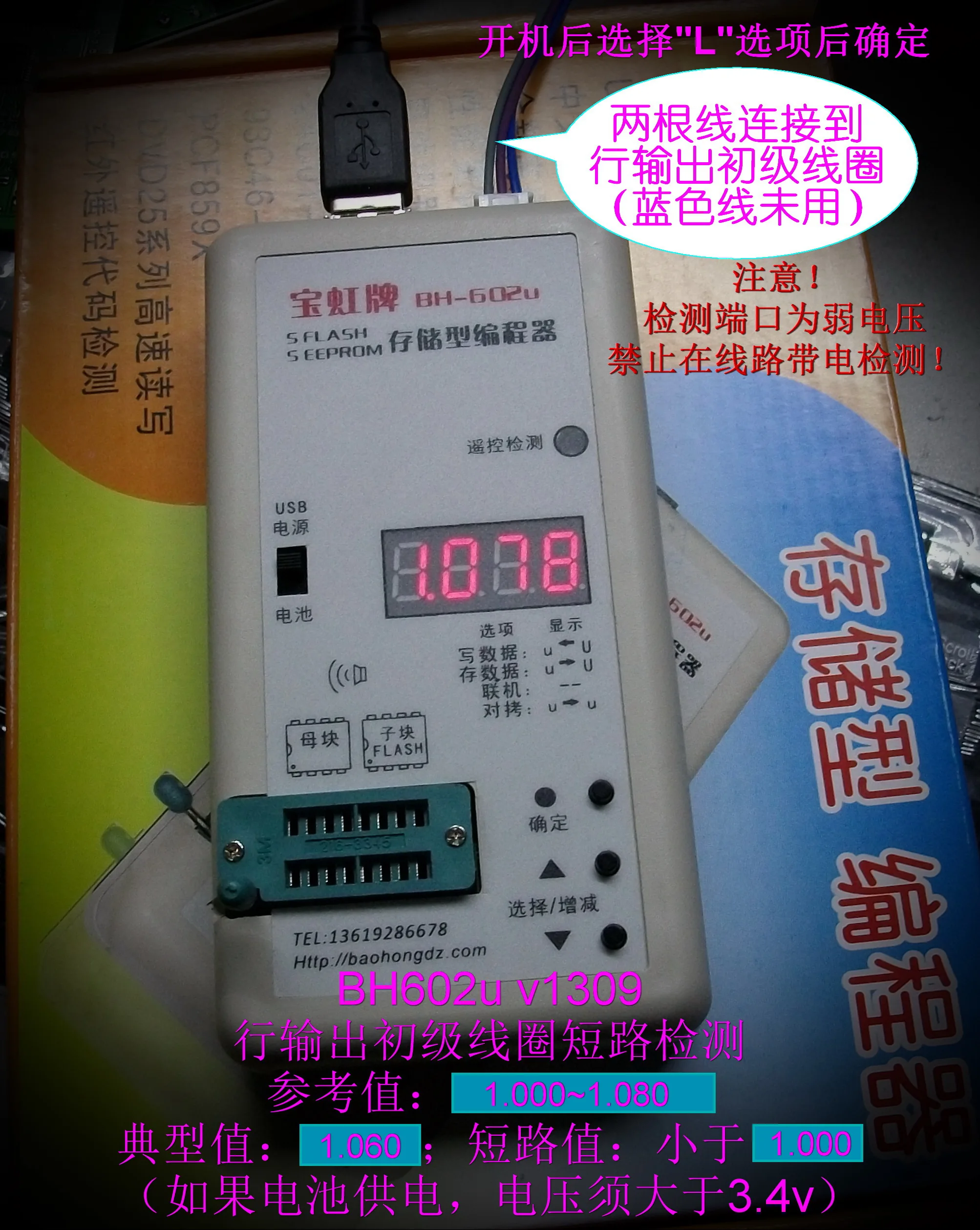

d.Line output primary coil detection.
E. temperature detection interface (need to cooperate)DS18B20 temperature probe can work, not equipped at random..

Online connection computer function
1.EEprom option

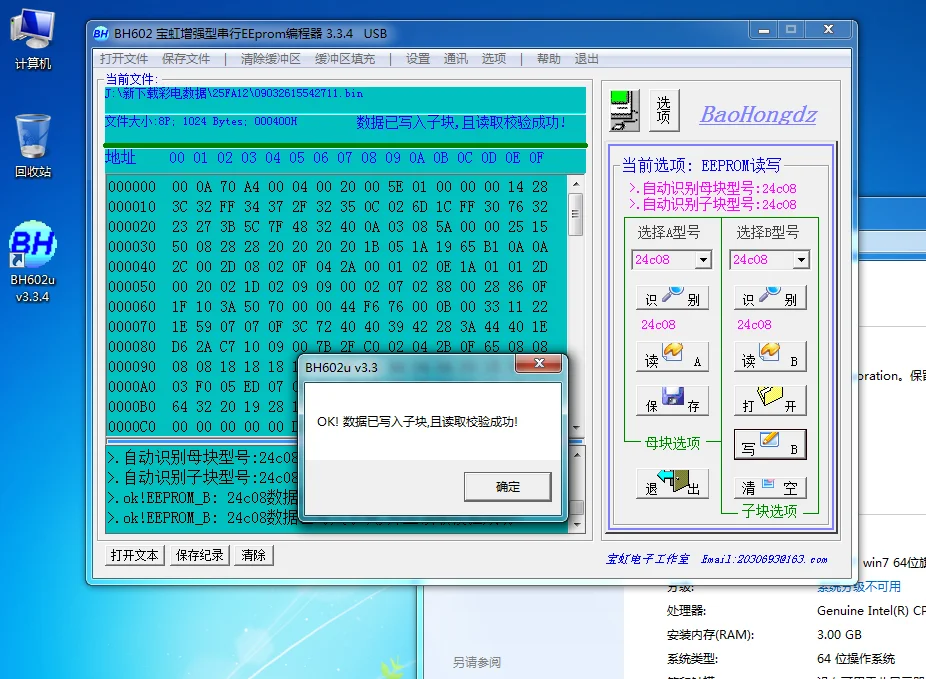

A. reads data - reads EEprom data → buffer displays → saves to computer.
B. writes data - opens the data &rarr stored in the computer; the buffer displays → writes the sub block.
Two.Instrument memory ROM options

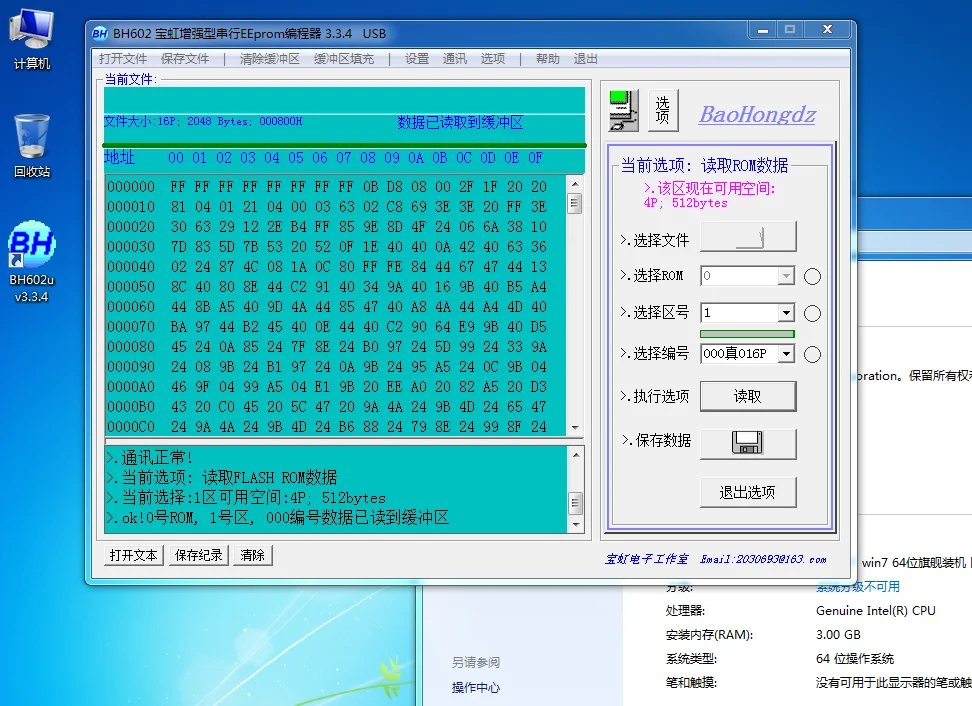

A.ROM read-select area code & rarr; single read memory data & rarr; buffer display & rarr; save to computer
B.ROM write-open data in the computer & rarr; display & rarr; select area code, number & rarr; write to instrument memory
C. the whole area read-select area code → read out the whole area data → buffer display → save to the computer backup.
D. Write-Open the whole data stored in the computer-rarr; Buffer display-rarr; Write the whole data into the instrument memory
E. Delete Data - Delete any instrument memory data (128M requires v3.3.4 follow-up support), delete whole area data, delete whole memory data

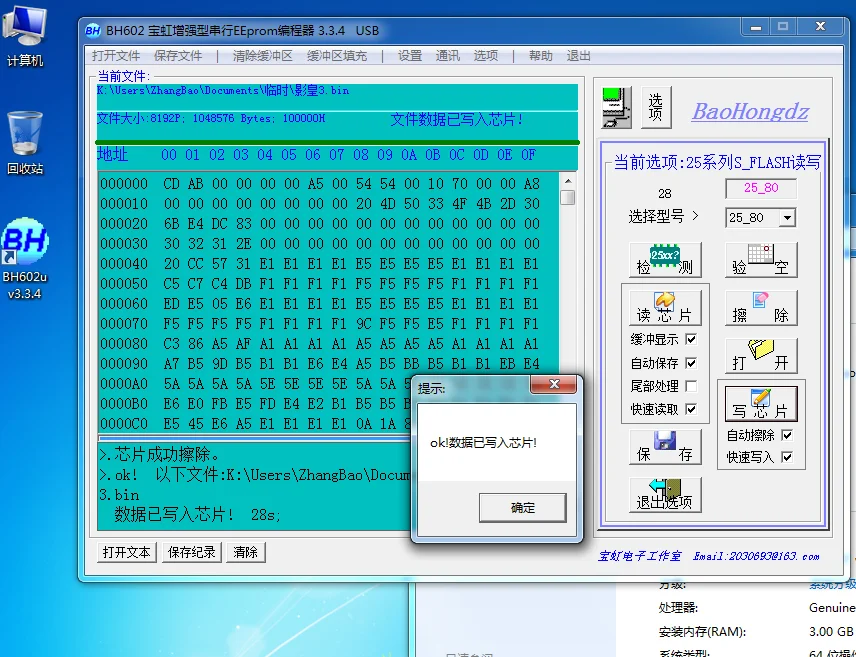

Three.25 series FLASH data read and write
A) detect, read chips, save, check, erase, write chips.

Compatibility model example:Because there are many kinds of equipment, here are some examples.
A41DC, A51DC, A81DC;
UPD6252, uPD6253, uPD6254;
S130, S220, S330;
85c52 and so on

Online operation:USB interface communication
Additional functions:Infrared remote control detection - used to detect the waveform and code of remote control.

Digital display line output primary coil short-circuit detection; (new function)

TTL serial port upgrades small board port;(added function)

Digital display temperature detection; (need temperature probe, random not match);(added function)
Shell size:13.3cm*6.8cm*2.5cm
