When the cold water is interrupted, the mixing valve can automatically turn off the hot water within a few seconds to play a safety protection role.working principle:At the mixing outlet of the thermostatic mixing valve, a thermal element is mounted, which uses the characteristics of the temperature sensing element to push the valve body of the valve body to move, plugging or opening the water inlet of the hot and cold water.
When the cold water is blocked, the hot water is turned on. When the temperature adjustment knob is set to a certain temperature, the proportion of the hot and cold water entering the water outlet changes accordingly, regardless of the temperature of the cold and hot water inlet water and the pressure.
The outlet water temperature is always constant, the temperature adjustment knob can be arbitrarily set within the specified temperature range of the product, and the constant temperature mixing valve will automatically maintain the outlet water temperature.(5 Celsius / min), the water temperature fluctuations within +/- 2 Celsius.
The thermostatic mixing valve is an accessory product specially developed for hot water systems. The outlet water temperature is stable: when the inlet water temperature is constant, the cold and hot water pressures are arbitrarily changed by 50%, and the outlet water temperature is within +/-2 Celsius; when the inlet water pressure is constant, the hot water supply temperature is increased by 60 Celsius by 75 Celsius.
Accurate temperature: first set the required temperature, you can reach the temperature you need within 5s after the water is discharged, and the water temperature fluctuates within +/-1 Celsius.
Type:Faucet Cartridges
thermostat temperature:Chrome Finish
thermostatic cartridge:valve ducha
water tap adapter:Thermostatic Mixing Valve
valve hand shower:shower mixer valve
thermostatic mixer:pieces tap
thermostat cartridge:faucet hose
ceramic faucet cartridge:shower faucet parts
shower control valve :cartridge for shower
shower diverter valve :ceramic cartridge
With temperature adjustment
Easy to Install
1. Working pressure: 0.05Mpa - 1Mpa.
2. Ideal pressure: 0.1Mpa-0.5Mpa, more than 0.5MPa should be installed with a pressure reducing valve.
3. Standard pressure: Dynamic pressure 0.3+/-0.02Mpa.
4. Cold water supply temperature: 4-29 Celsius, hot water supply temperature: 50-95 Celsius, the recommended normal use temperature is 60-70 Celsius.
5. Constant temperature water temperature range: 20-50 Celsius.
6. Set the safety button temperature: 38 Celsius.
7. Safety anti-scalding: When cold water accidentally loses supply, the mixed water flow rate is rapidly reduced from the time of closing.
colour:Silver
Material:Copper + ABS

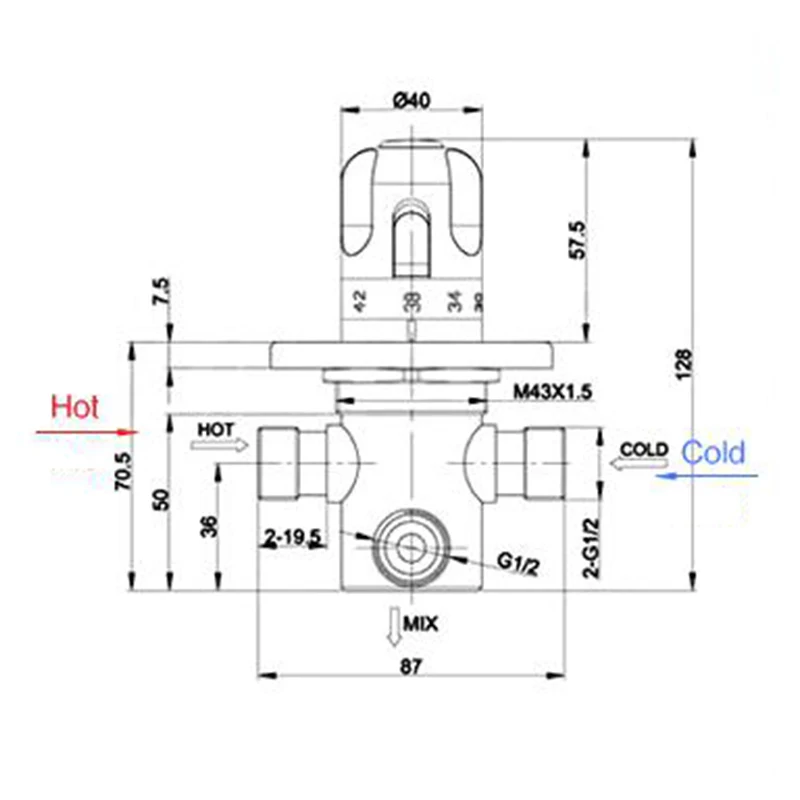

size:Product size: about 12.8 * 8.7cm
Package Contents:
1*Concealed mixing valve
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
