1 Пара 10/100Мбит/с Одномодовый SC Быстрый медиа-конвертер Ethernet + 10/100М Оптический конвертер 4 порта RJ45 на 1 волокно.

1 Пара 10/100Мбит/с Одномодовый SC Быстрый медиа-конвертер Ethernet + 10/100М Оптический конвертер 4 порта RJ45 на волокно.

Brand NameFanakmConnector TypeSC/UPCCompatibleIntelCompatibleHuaweiCompatibleTransition NetworksCompatibleAlcatel-lucentCompatibleplanetCompatibleTP-linkCompatibleExtremeCompatibleSupermicroCompatibleMoxaCompatibleEricssonCompatibleBrocadeCompatibleCiscoCompatibleArubaCompatibleFOUNDRYCompatibleMikrotikCompatibleHPCompatibleUbiquitiCompatibleEnterasysCompatibleZyxelCompatibleTrendnetCompatibleNetgearCompatibleIBMCompatibleF5 NetworksCompatibleH3CCompatibleAVAGOCompatibleCustomized BrandsCompatibleAristaCompatibleMellanoxCompatibleAvayaCompatibleDell Force10CompatibleDellCompatibleHirschmannCompatibleOpen SwitchCompatibleFinisarCompatibleCienaCompatibleJuniperCompatibleSMCCompatibleLinksysCompatibleAlliedCompatibleD-LinkFiber TypeSingle ModeMeasurement unitpairEach pack1Transmission Distance25KMFiber ConnectorSCPowerExternal power5 403,32 ₽-9%5 403,32 ₽-9%4 917,22 ₽4 917,22 ₽Add to CartBuy now4 917,22 ₽loader

Description

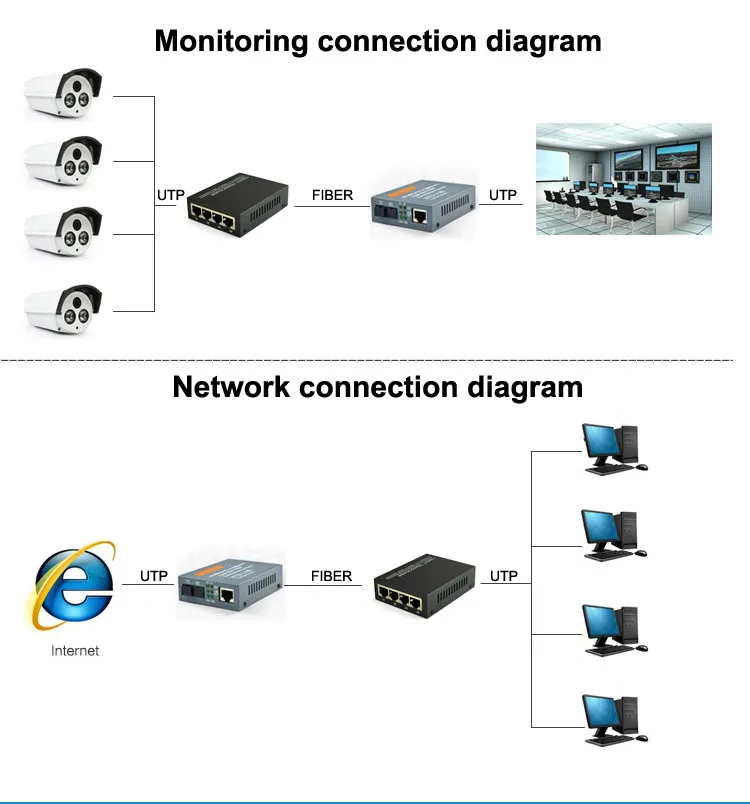

10/100 Rate Converting to Fiber Media Converters transparently connect 10/100 Ethernet to fiber. 10/100 converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices

Network Administrators can "see-everything" with  the advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Remote Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make our 10/100 ethernet media converters the smart choice for IT professionals.

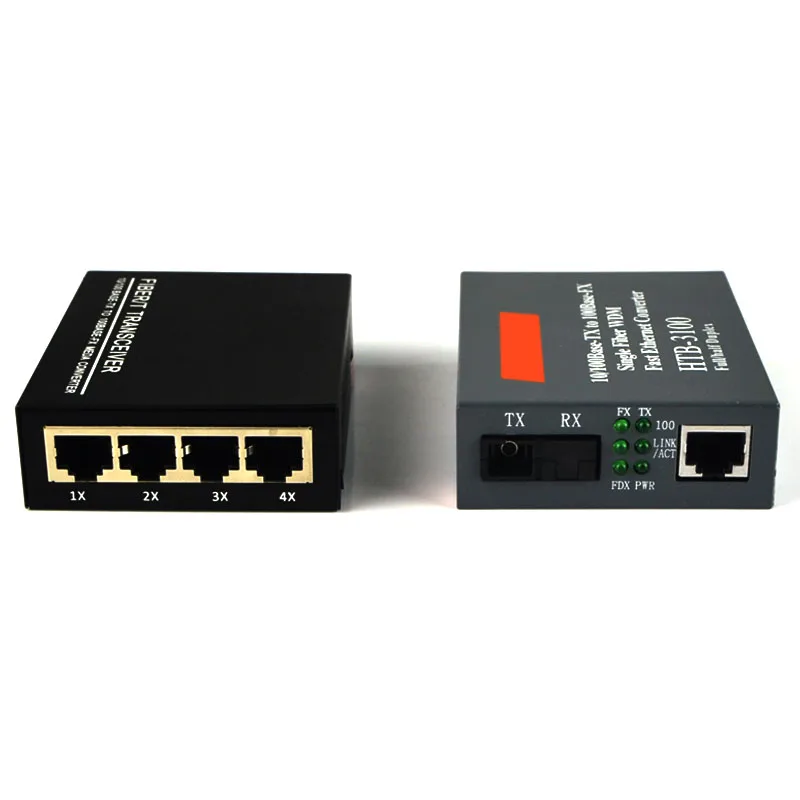

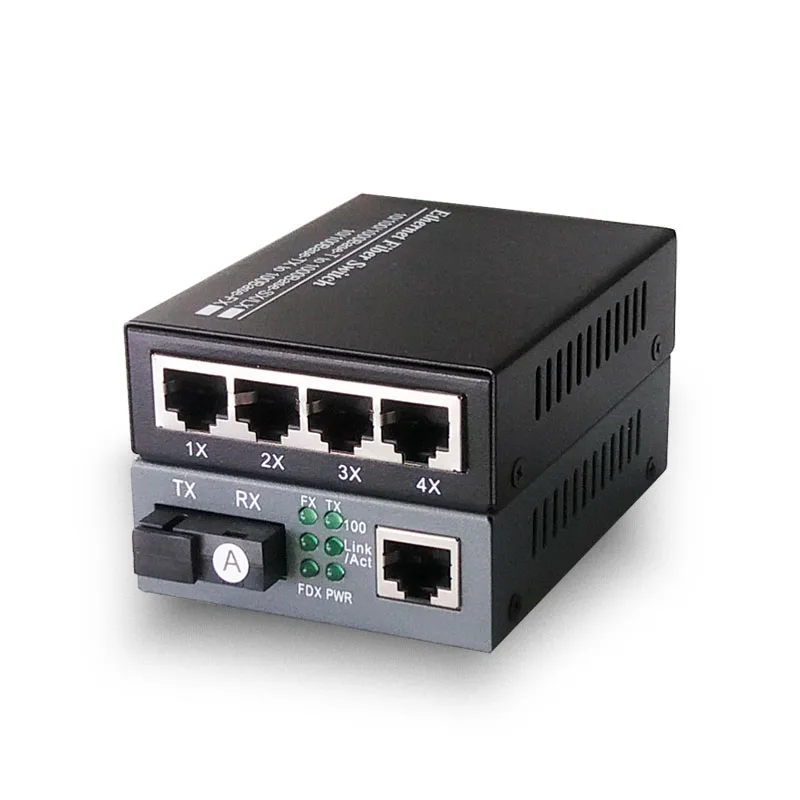

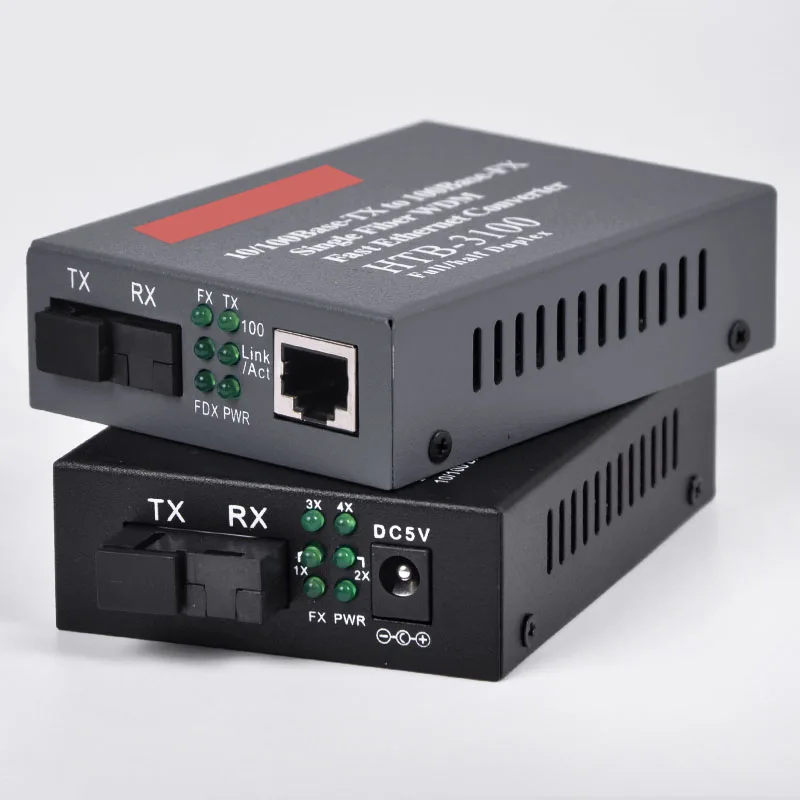

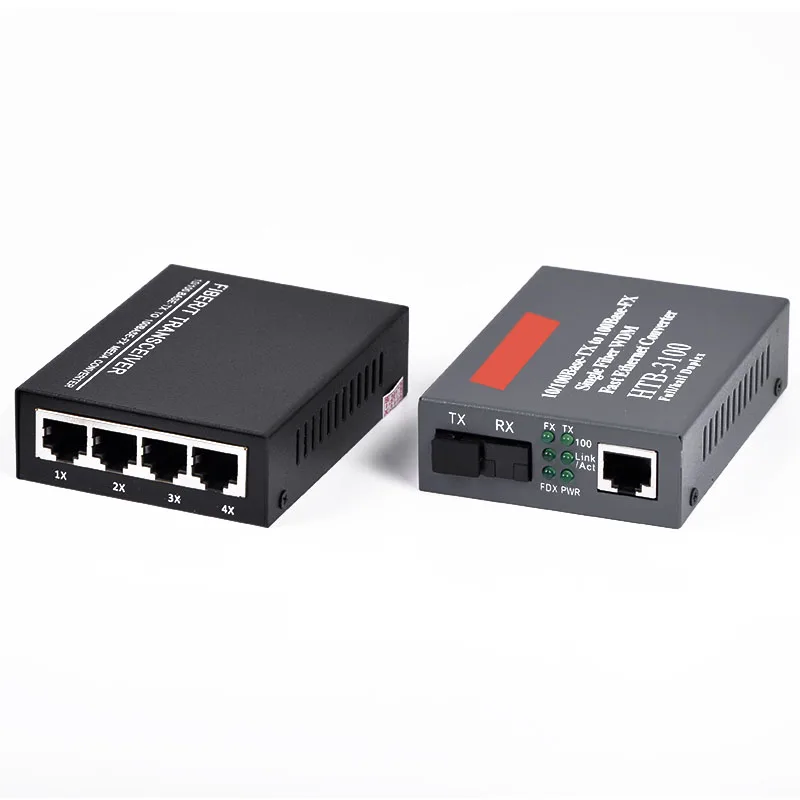

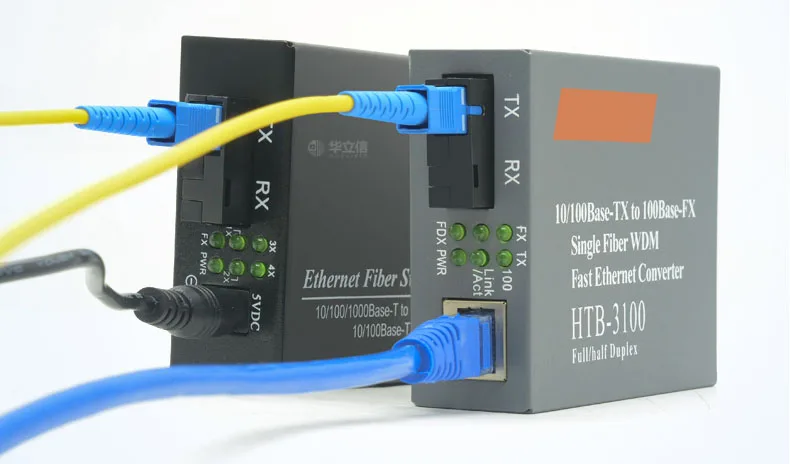

The Fast Ethernet Media Converter is 4  ports 10/100Mbps RJ45 to one port 100M Single Fiber SM, SC, up to 20km.Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.

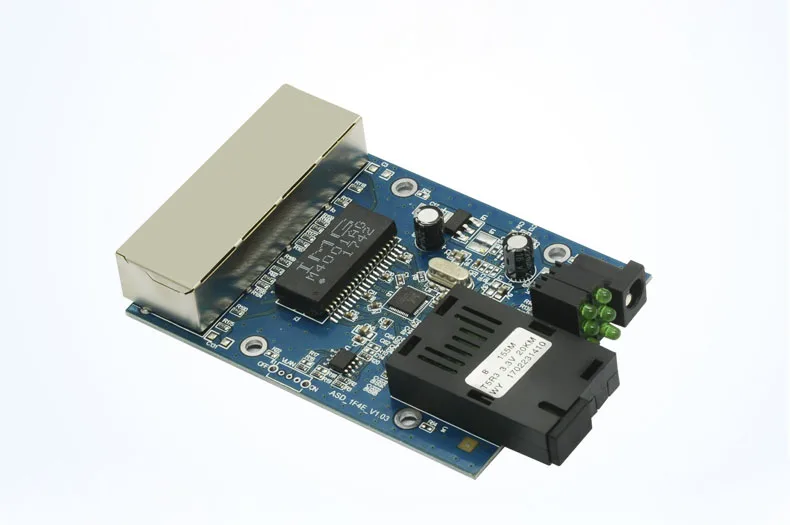

The Transceiver provides one 100M optical fiber ports and four 10/100M UTP ports. The 4 UTP ports can be support VLAN, and works as backup. HD Series complies with IEEE802.3, IEEE802.3u, IEEE802.3x standards, it is designed to convert data signal between 10/100Base-Tx and 100Bas-Fx Fast Ethernet. It can transmit the traditional 100M up to 2km by multimode fiber cable or 20km by single mode fiber cable. The compact size can be mounted in our 14/16 slots rack chassis.

Features:

Optical Port: 100Mbps, Single SC singlemode fiber, support 100M Ethernet.

RJ45 Port: CAT5E/CAT6 10M/100M, Full Duplex or Half Duplex; Supports MDI/MDI-X auto crossover.

128 K's data buffer RAM

Support for low-delay time pure data transmission and full/half-duplex flow control

Built-in watch-dog timer to monitor any error in internal data exchange

Complies with IEEE IEEE 802.3/802.3u/802.3af.

Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.

Optical Port:

1310nm Single mode

Transfer Distance: up to 25km

Connectors: Single SC connector

Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber

Optical Power (dBm): -15~ -8

Receiving Sensitivity (dBm): ≤-34



Ethernet Port:

Standard: IEEE 802.3, IEEE 802.3u

Available speed: auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation

Connectors: RJ-45 connector; MDI/MDI-X connection auto-sensing



LED Indicators:

FX, TX, Link/Act(Left/Right), FDX, PWR

FX: Light on when fiber speed is 100Mbps, while “OFF” means the rate is 10 Mbps

TX: Light on when TP speed is 100Mbps, while “OFF” means the rate is 10 Mbps

Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving

FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active

PWR: Light on when DC power on, else light off

Power Requirement:

Output voltage: DC5V 2A

Power dissipation: ≤1 watts

Environmental Limits:

Operating Temperature: 0°C to 60°C

Storage Temperature: -20°C to 70°C

Humidity: 5% to 90% RH

Checklist:

Before you installing the Converter,verify that the package contains the following:

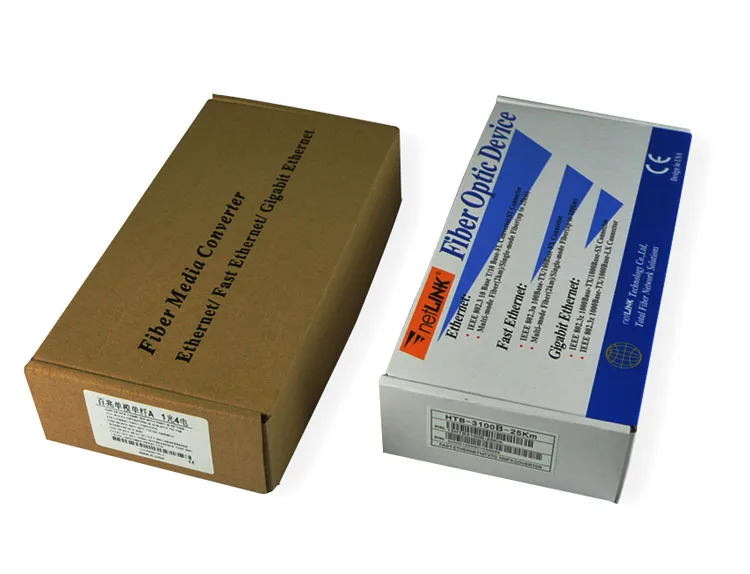

1.The Ethernet Media Converters 1 RJ45 1 SC + AC/DC Power Adapter+User’s Manual

2.The Ethernet Media Converters 4 RJ45 1 SC + AC/DC Power Adapter+User’s Manual

​

​
