BYHUBYENG Wireless Queue System Management FM Technology CE FCC Certification Number Calling |

BYHUBYENG Wireless Queue System Management FM Technology CE FCC Certification Number Calling |

    This Queue Management System is mainly used in bank, restaurant, hospital, clinic, Service Centre ect.

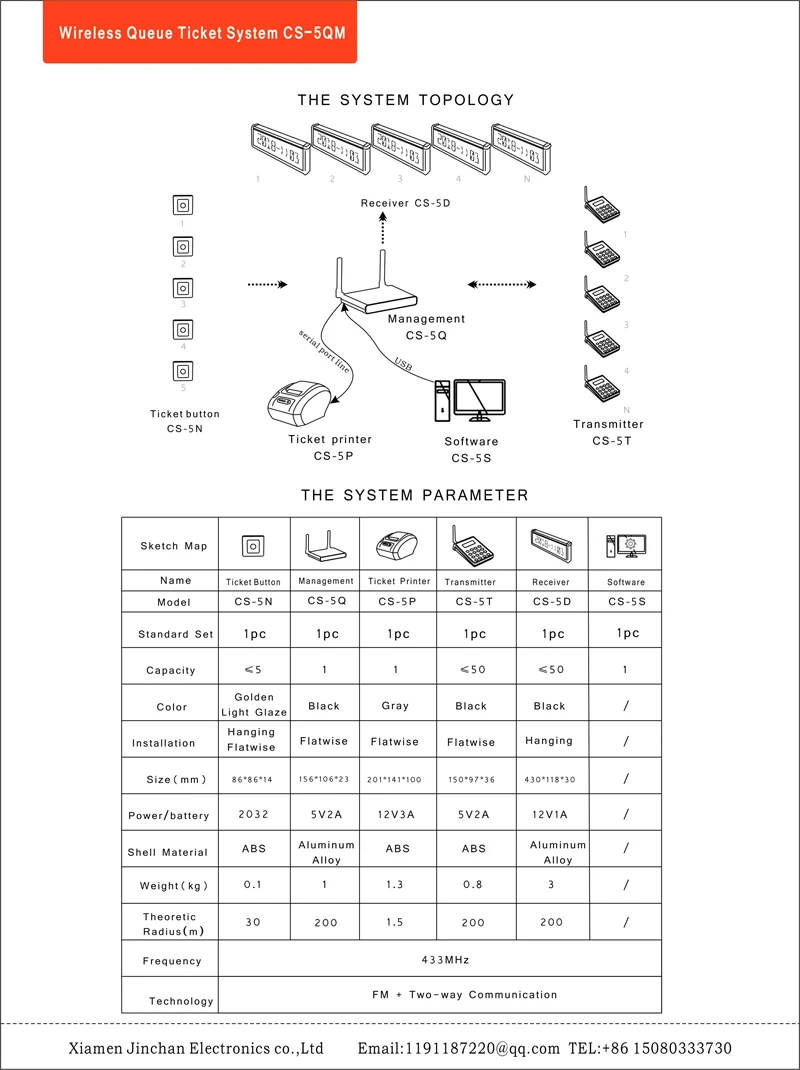

    The system perfect for clinic 、dental clinic,medical center、government office  、bank with long line and helping with flow of customers. The system mainly composed of the wireless receiving display screen、ticket button、wireless transceiver controller and ticket printer , set to take number、print、queue and broadcast at a suit.

    The System used FM technology ,long difference receive 、Anti -interference 、 management center remove control、two way communication 、functionality 、stable and reliable,Simple operation、easy usage、beautiful and fashionable appearance、high-grade、generous and well-made.

HOW TO USE

1. Customer go to the Service station and take a number ticket by ticket printer.

2. Customer wait for their service.

3. When it is their turn, the counter worker will press the corresponding number on the keyboard transmitter to call.

4. The number will show on the display screen with counter number and customer's number, so that customer know which counter they should attend.

​

characteristics

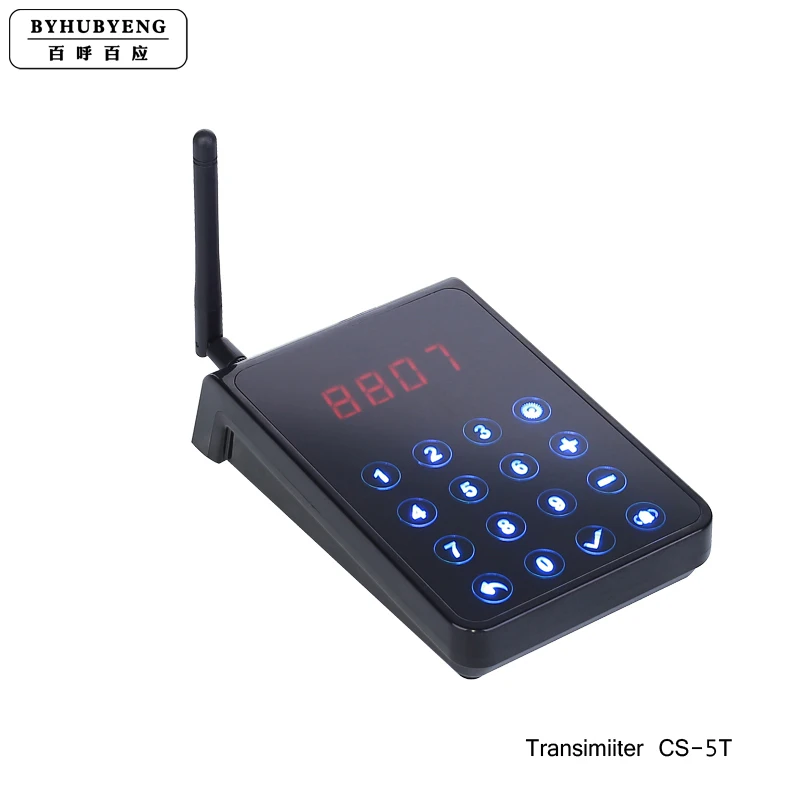

1. Model :                     CS-5T

2.  Displayed digital :     LED highlight numerical display

3. Power supply:           5V/2A

4. Frequency :              433.92

5. Color:                        black

6. Service life:               5 year

7. Size(mm):                 150*97*36

​

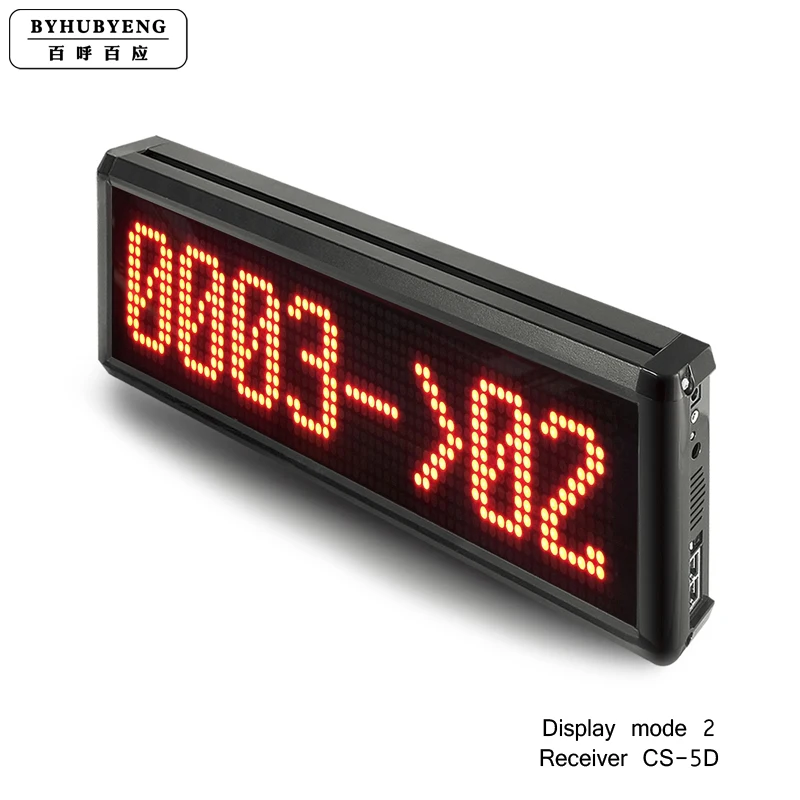

B、Wireless LED display screen （Receiver）

1. Model:                               CS-5D

2.  Audio output mode:           Chinese or English broadcast or customized

3. Power supply:                   12V/1A

4. Emission range(m):           >200

5. Color:                                 black

6. Shell meterial:                    aluminum alloy + ABS shell

7. Size(mm):                          430*118*30mm

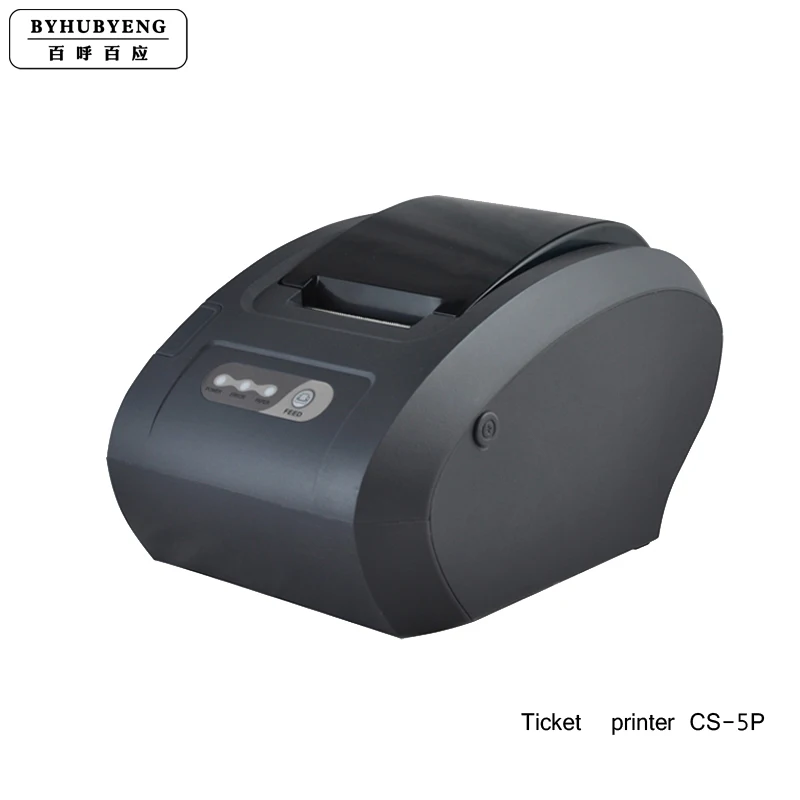

1. Model:                               CS-5P

2. Power supply:                   12V/3A

3. Color:                                 Gray

4. Shell meterial:                    High quality ABS shell

5. Size(mm):                          201*141*100

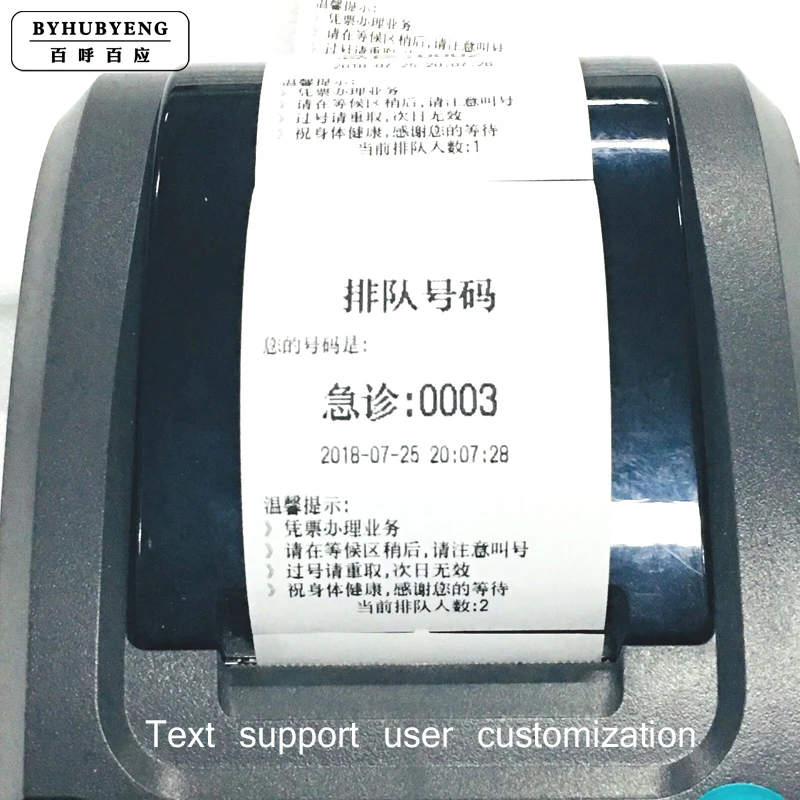

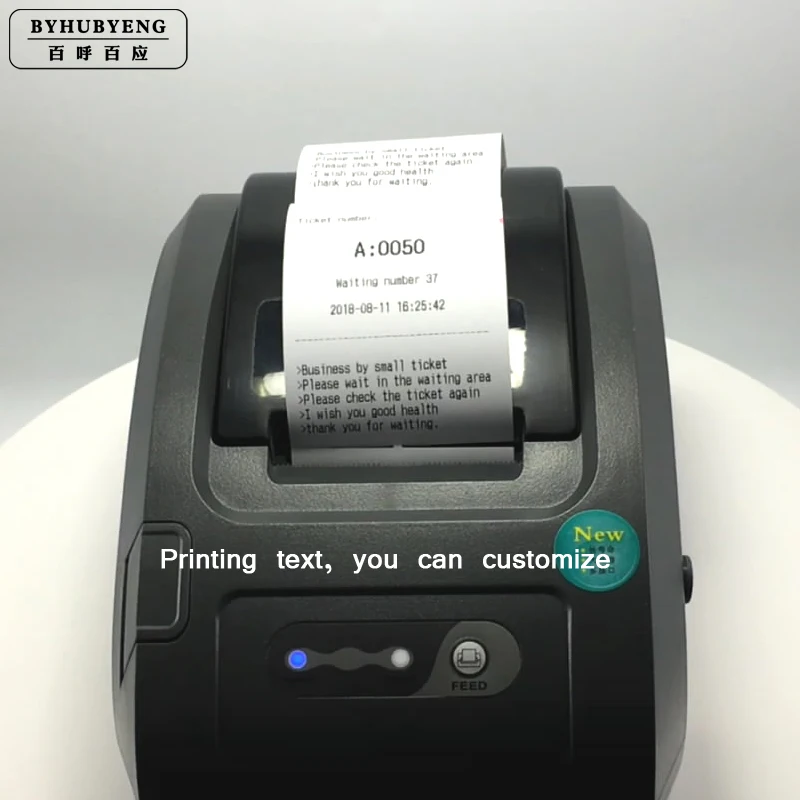

6. ​Ticket information:             Set information via software

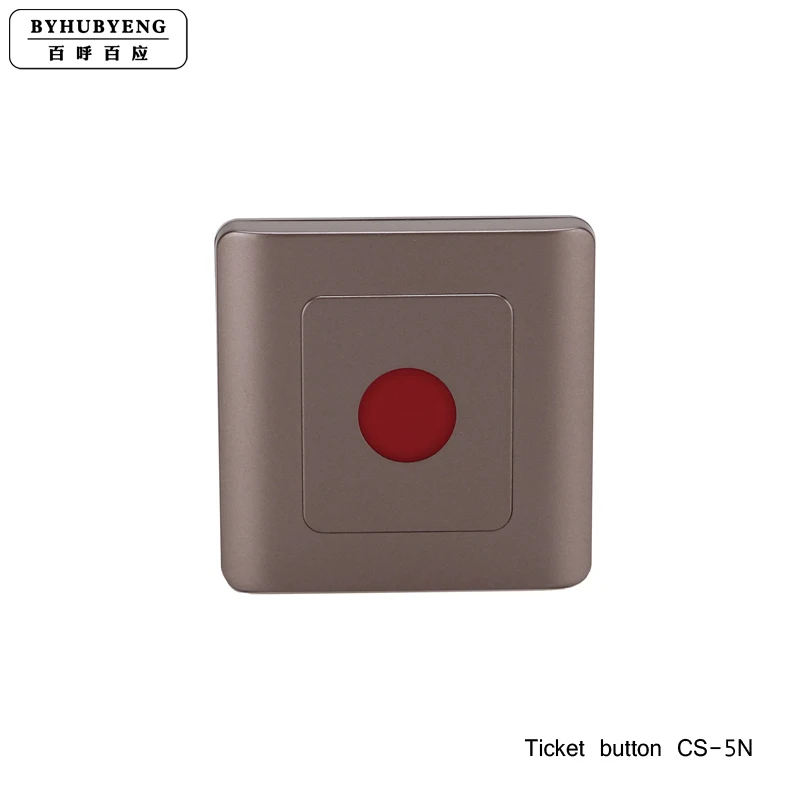

1. Model:                               CS-5N

2. Power supply:                   6V(2032*2)

3. Color:                                 Gold

4. Shell meterial:                    High quality ABS shell

5. Size(mm):                          86*86*15

1. Model:                               CS-5Q

2. Power supply:                   5V/1A

3. Color:                                 Black

4. Shell meterial:                    Aluminum alloy

5. Size(mm):                          156*106*23

1. Model:                               CS-5S

2. Language:                        中文/English

Package included

1. Keyboard *1                            (Transmitter)

2. LED display screen *1            (Receiver)

3. Power supply *4                      (Plug of EU, US, UK, CN ect for option)

4. Mini tricket printer *1

5. Tricket button *1

6. Management *1

7. Sofeware

8. Instruction *1

Weight and volume are only estimates, not accurate,Your shipping costs may be overcharged.You can put it in the shopping cart first, don't pay, and then pay after we change the price.

FAQ

Q: How long is the effective range of the wireless calling system?

A: The effective range is about 200m in open field.

Q: Do you accept the small order? For example we just buy one mobile receiver and one button?

A: Yes, you can contact with us.
Q: Can we put our logo on your products

A: Yes, we support customized your logo. But the quantity of the items have special requirements.

Q: What certifications do your products have?

A: CE, FCC ect .

Q: How long is the guarantee?
A: Our items enjoy one year warranty and maintenance for life.

Q: Do you provide technical support?
A: Yes, technical support is available after sales.

Q: What is the delivery time ?
A:Normally, it is shipped with a week after payment received.

Q: How about if I do not know much about this item, and could not install it?
A: This item has full function but easy to operate, the only thing you need to do is to set this item as the instructions sent to you, and if you still feel confused, you could leave a message to us, and we are willing to help you solve any kinds of questions.

Thanks in advance for your kindly attention! Any inquires pls do not hesitate to contact me in your earliest convenience!

Your kindly support and cooperation are highly appreciated!
