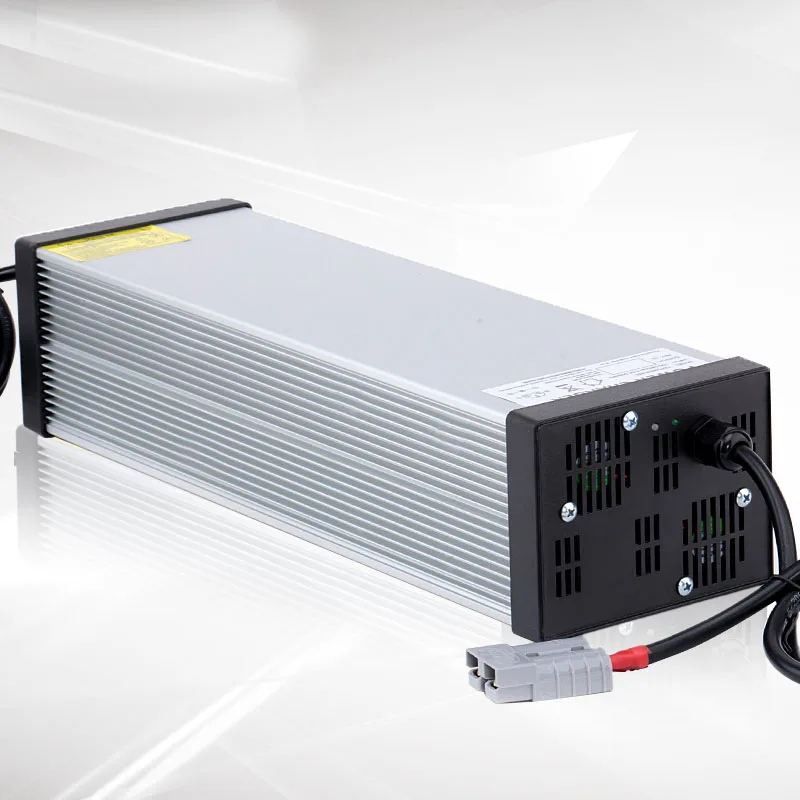

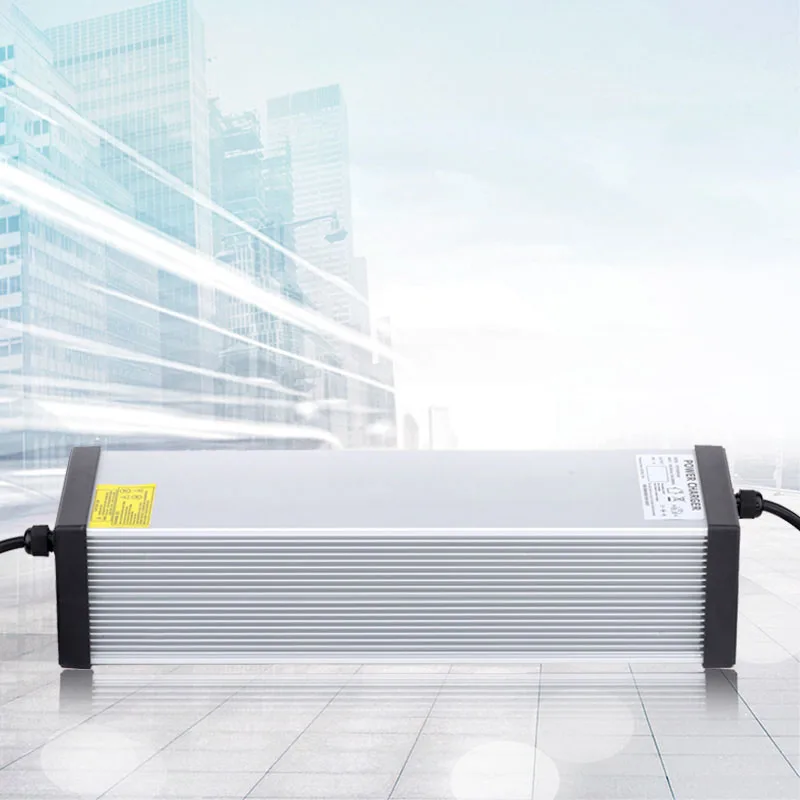

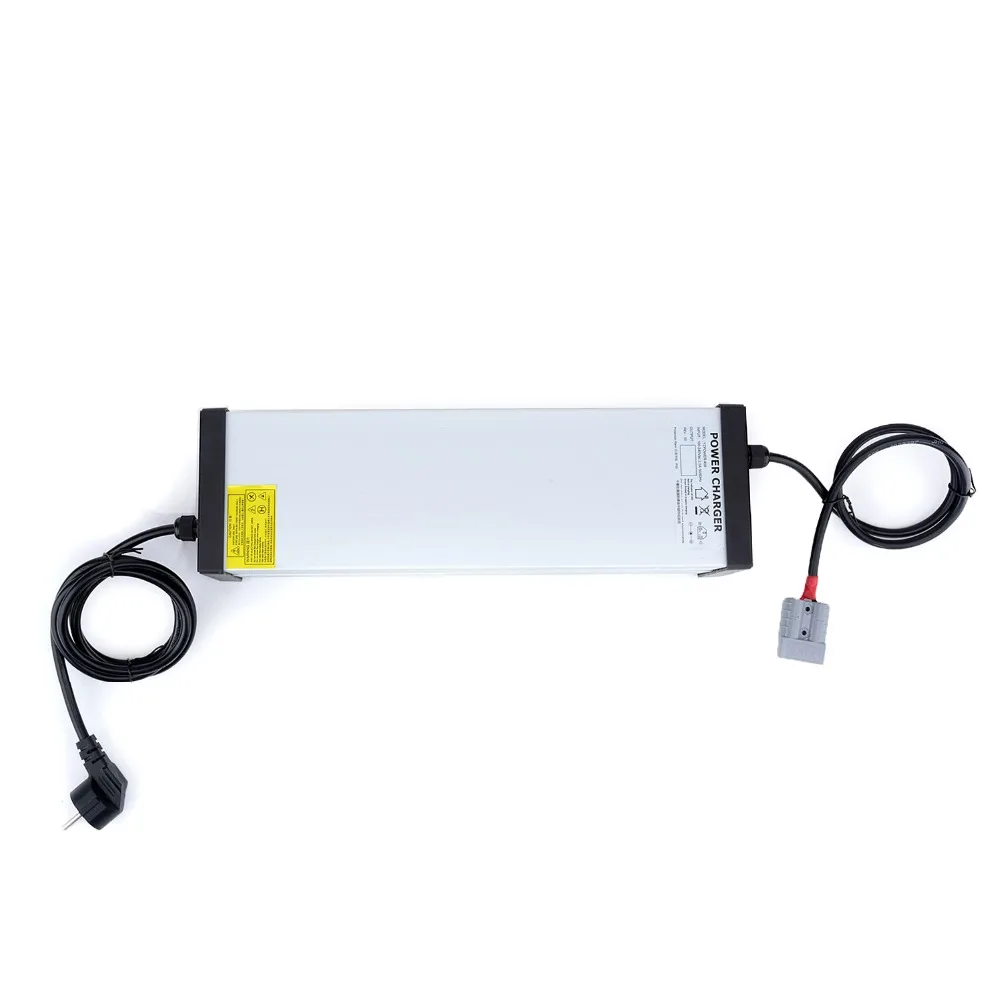

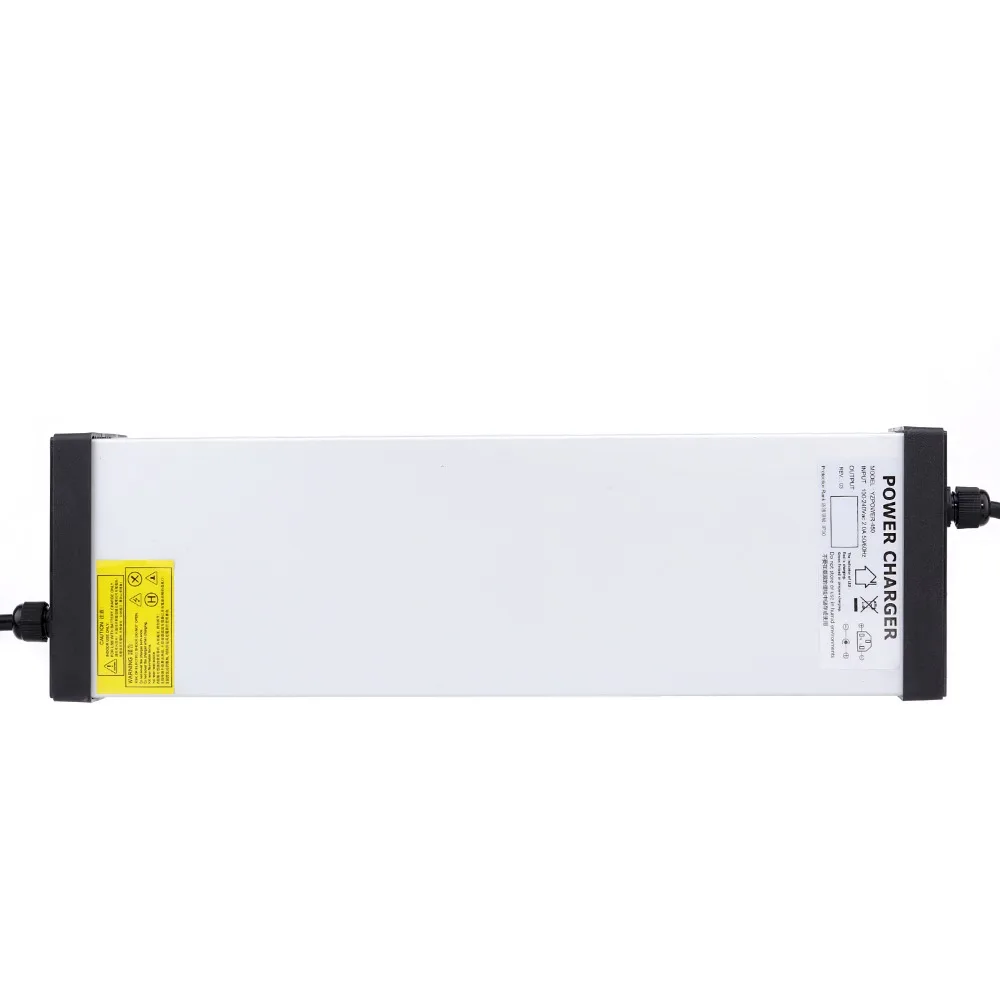

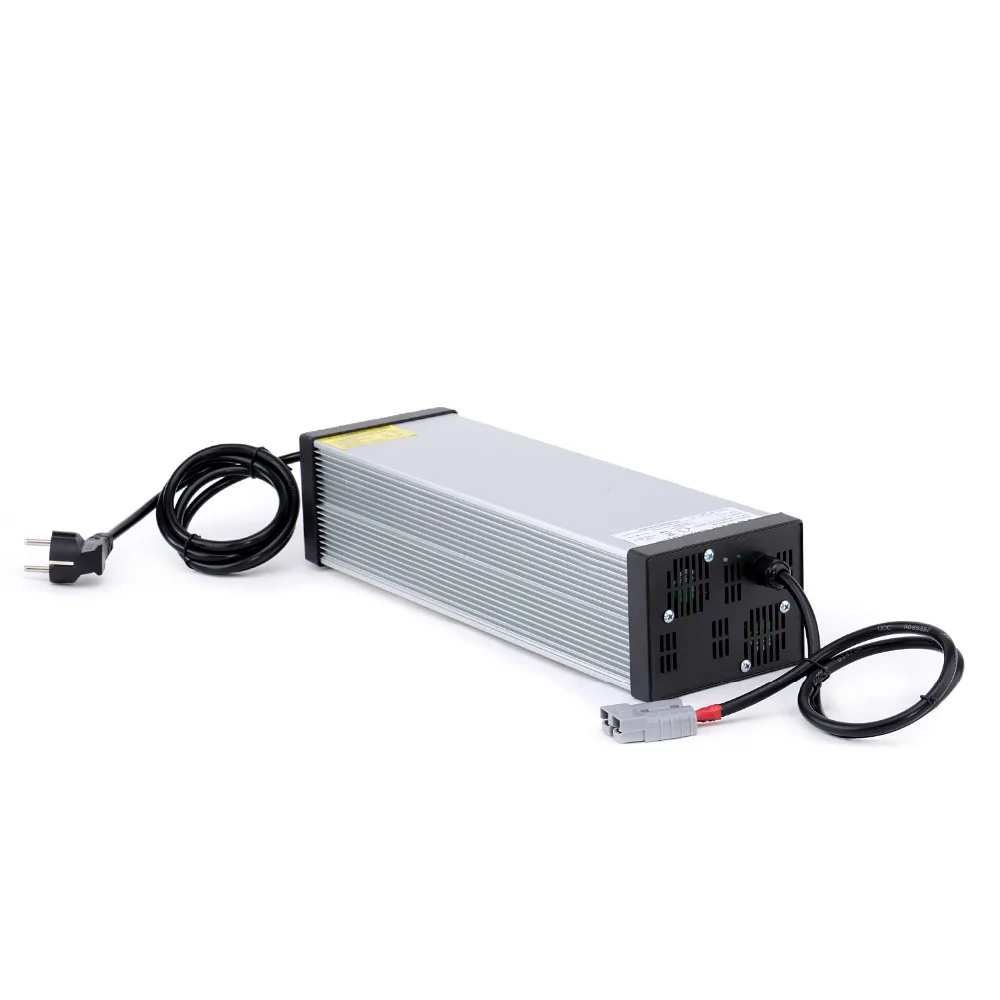

Yangtze 54.6V 30A Lithium Battery Charger For 48V 5A E-bikeo Tool for Electric bicycle | Электроника

Yangtze 54.6V 30A Lithium Battery Charger For 48V 5A E-bikeo Tool for Electric bicycle | Электроника

Specification

Input Voltage :                110-240Vac

Frequency/current:   47-63Hz / 6.5A

Charge voltage:              54.6 V

Charge current:                  30 A

Charge method:               CC/CV

Working Temperature:  0°C to 45°C

Storage Temperature:   -20°C to 50°C

Charging voltage  rated :  54.6± 0.3 V

Charging Current  rated :  5 ± 0.5 A

Input pulg/Output pulg : Refer to the following plug pictures

******Charge Voltage and Current can be customized by Customers requirement.

If you cannot find what you need,Please Leave Words of Input AC Plug And Output DC Plug,

Like: 'AC:Number 5,DC:G',Thank You!!!

Input plug

 Output plug

 Applications type:

Rechargeable Battery, Lead acid/LifePO4/Li-ion Battery,Electric Tools,Garden Power Tools,Cleaning machine,Ebike,Golf cart ,

Electric Scooter,ntelligent Balance Car Folding Bicycle ,UPS Power Supply etc.

 Feature:

YZPOWER

● Stable MTBF:> 30000 H,

● Excellent reliability,Dual current sharing scheme employed, the way in which when damaged,

  only half the charging current, can continue to use.

● Small Size: 205 * 121 * 50mm

● Light Weight: 1.2kg

● Delivery Time: 2-5 working days

● Material:Metal Aluminium Case

● After-sales service: 36months Warranty

● Protection function: Over voltage / Over temperature / Over current / Short circuit and Polarity

● The indicator of LED: Red is charging, green is charge finished or prepare charging

● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged

and avoid over charge

  FIG charging curve

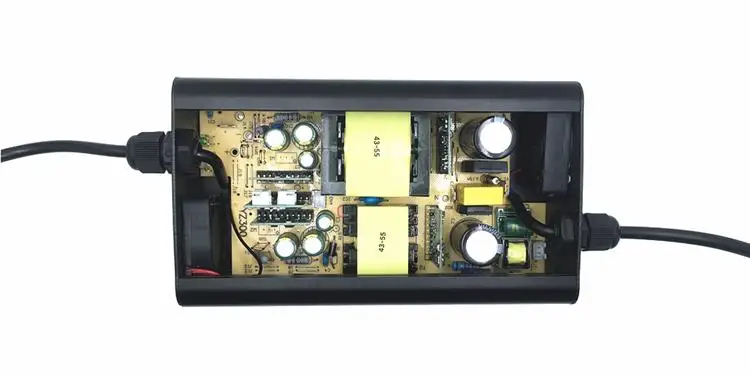

 Detailed Images                                                                                                   YZPOWER

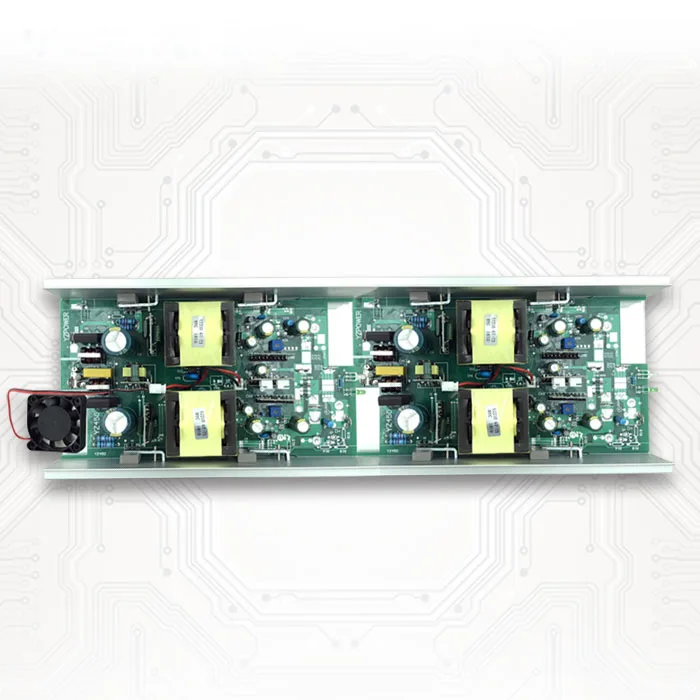

	Main Parts        1) Input and output filter electrolytic capacitor use withstand temperatures -40 to +105℃,with Low Impedance ,High reliability,Long useful life, High rip-ple  capability,etc features. 2)  Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A,peak forward surge current 130A,Bl-ocking Voltage 600VDC
3) The main power transformer adopts EC40 core,  PC40 material,High efficiency, low iron loss, Enough power capacity,Have sufficient power margin. 4) Using aluminum heat sink,Good thermal design, can better cool the power device, Consistent with the principle of hot air flow,extend the service life.

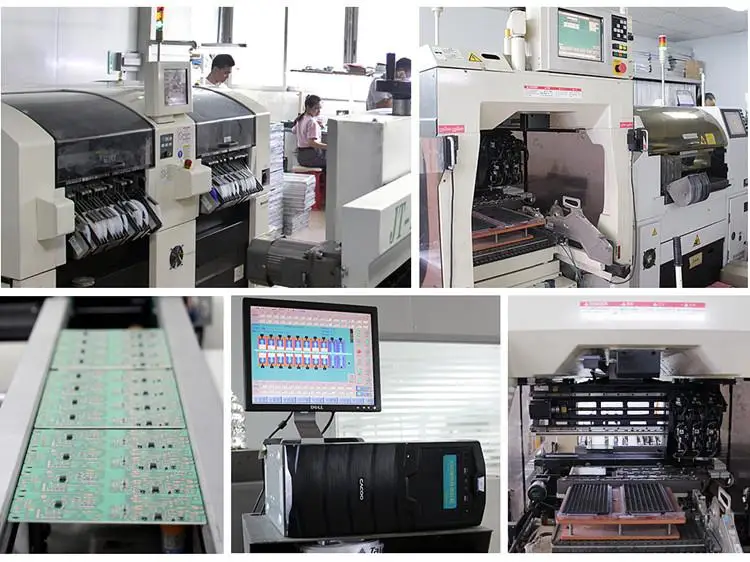

	PCB Parts       Using SMD components,automated mass production by machine,Reduce manual errors, improveproduct quality.Voltage conversion parts, With Cycle-by-Cycle Current Limiting, soft start function, with ESD Protection. Charge control circuit,Using precision voltage comparator, Precise control of the charging voltage and current, With overcharge protection,over current protection, as well as output short circuit protection.

 Certifications                                                                                                        ‍

YZPOWER

 Our Service

Pre-Sales Service Tell us about your battery type, features, Professional sales manager for you Offer, transport, delivery period and other issues. Let our professional engineers recommend the right charger for you.	After-Sales Service   Products provide three-year warranty.   <8 hours response to customer complaints.   < 24 hours to propose a solution.   Professional engineers, unlimited number of   technical advice.
