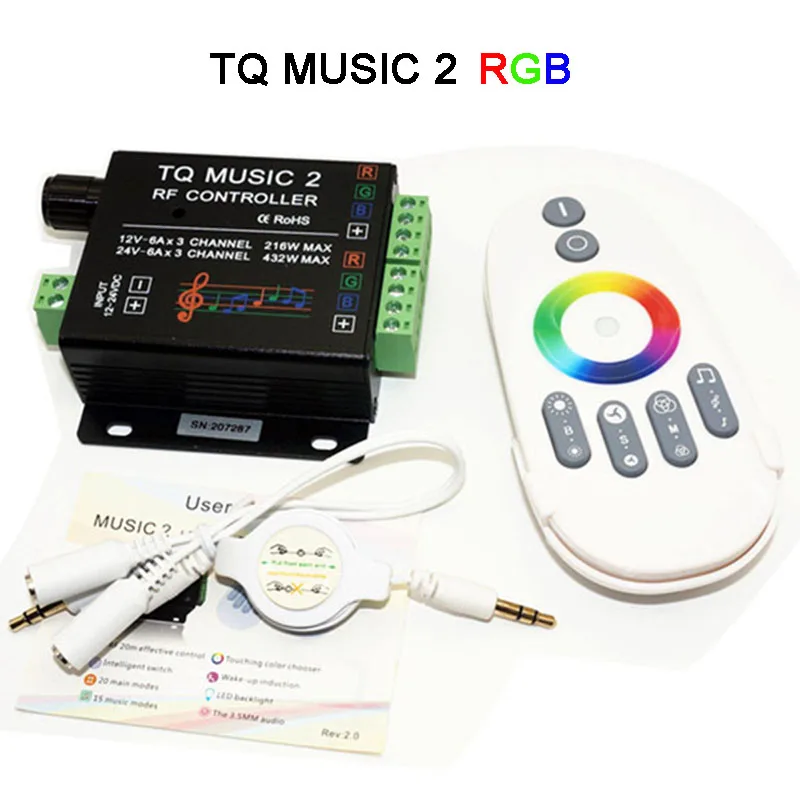

Wholesale 20 Keys 24 2.4G music controller DC12-24V RGB Sound Sensitive remote 2 for 5050 3528 led strip light lamp | Лампы и

Connection description
Power input interface
(adopt the 2 hole plastic green connection seat, with screws on it)

Load output interface
(Three parallel output,4 hole plastic gray connection seat, with card holder function)
Sensitivity adjustment port, to adjust induction sensitivity to sound under the sound-control mode

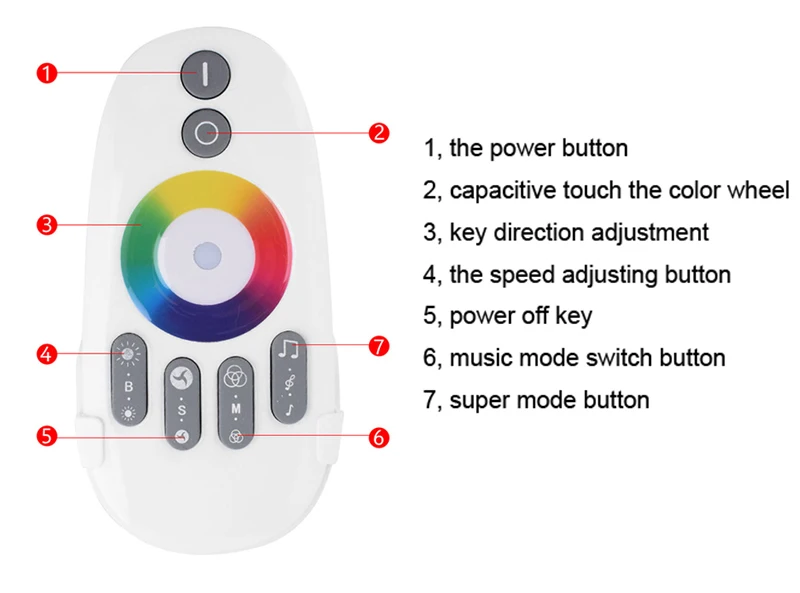

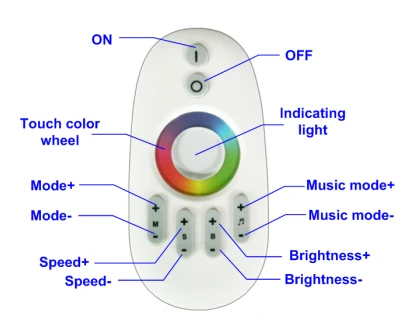

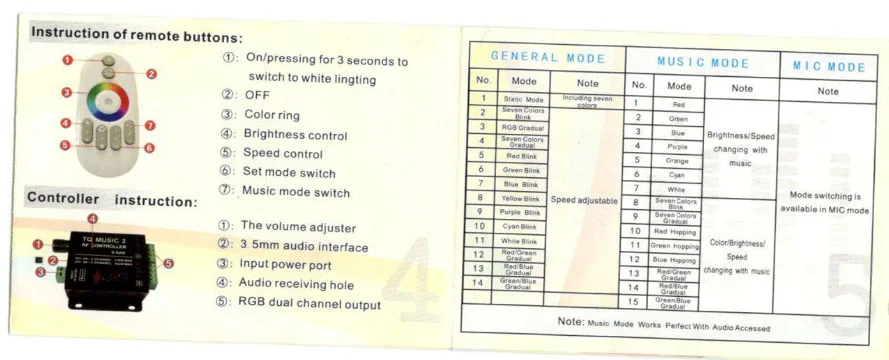

Remoter button Description

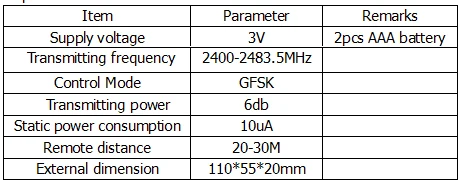

The Remote control parameter are as below table:

Direction for use
●Function introduction:
1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light's color temperature smoothly .

● Operation method:

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
  2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function)

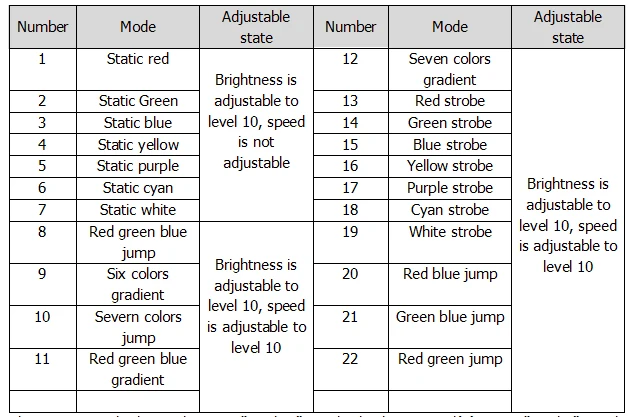

  3,After start up,press"Mode+""Mode-"can realize 22 kinds of effect mode selection.The mode is shown in the table below :

4,When it is in Cyclical  mode, press "mode+", can be back Static red(1), press "mode-", can be back Red green jump(22).
5,When it is in color wheel adjusting mode, press"mode+" or"mode-",will be back the last selected mode.
6,When it is in music mode,  press"mode+" or"mode-",will be back the last selected mode.
7,Long press "speed+","speed-""brightness+""brightness-", can adjust the speed and brightness.

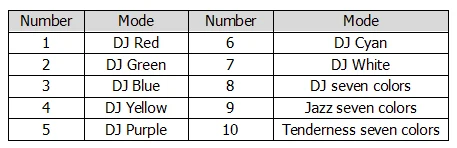

8,Press"Music mode+" or "Music mode-",the controller go into voice controlling statue, the output will be changed following the music rhythm. There are 10 change effects available as following:

●Music mode supplemental instruction :
1)DJ music mode: all colors will strobe change following the music/sound rhythm. If no music/sound input or sensed, all colors off.
2)Active music mode: all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, current colors keep lighting.
3)Tenderness music mode: all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will gradually change.

● Match code and clean code Instruction:
For a new combination, the remote must to match code withe the receiver then it can be used normally. Before match code, you must ensure the LED Controller, power supply and led light are connected correctly, then cut off the power ,and re-power it again.
Match code:Please press the "ON" Button for 5 times within 8 seconds after power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group,he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the "OFF " Button for 5 times within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks:The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.

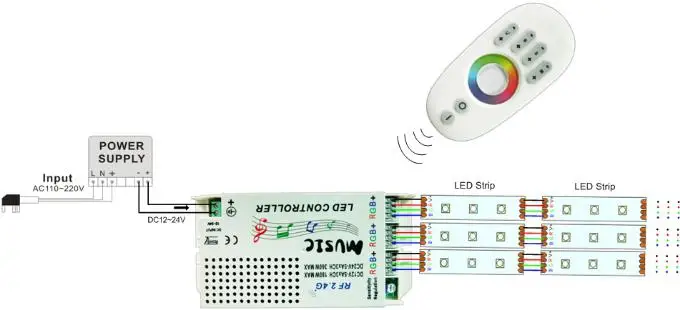

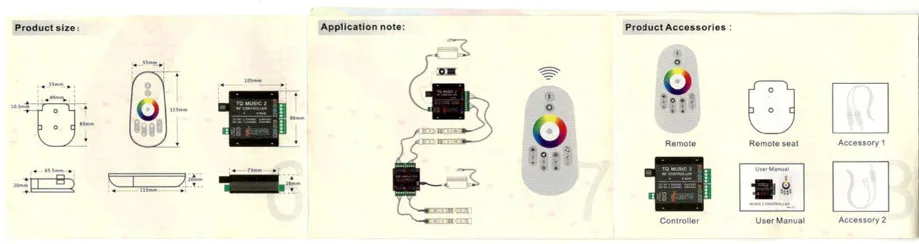

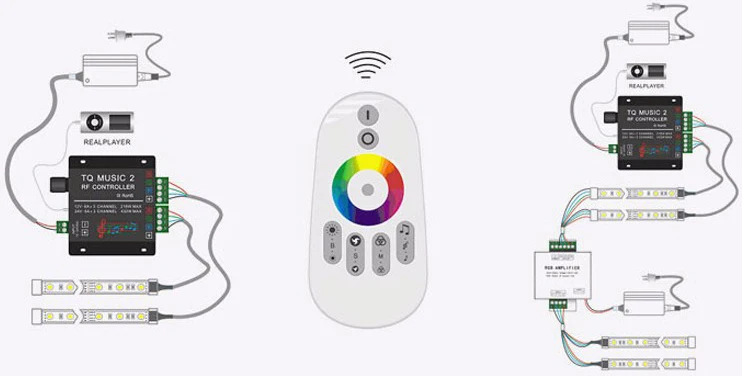

Typical Application

Application:

Club, bar, corridor, room, hotel, museum, etc.; Plaza, commercial buildings, parks, scenic spot, evening location, etc

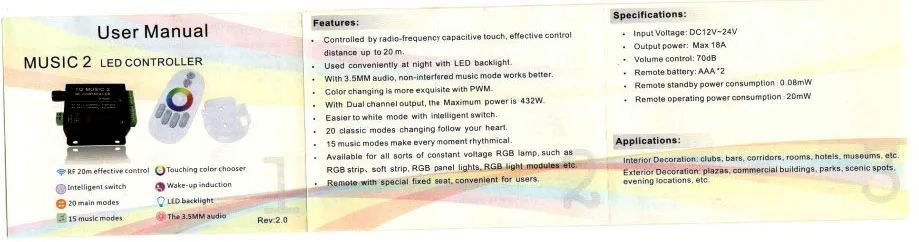

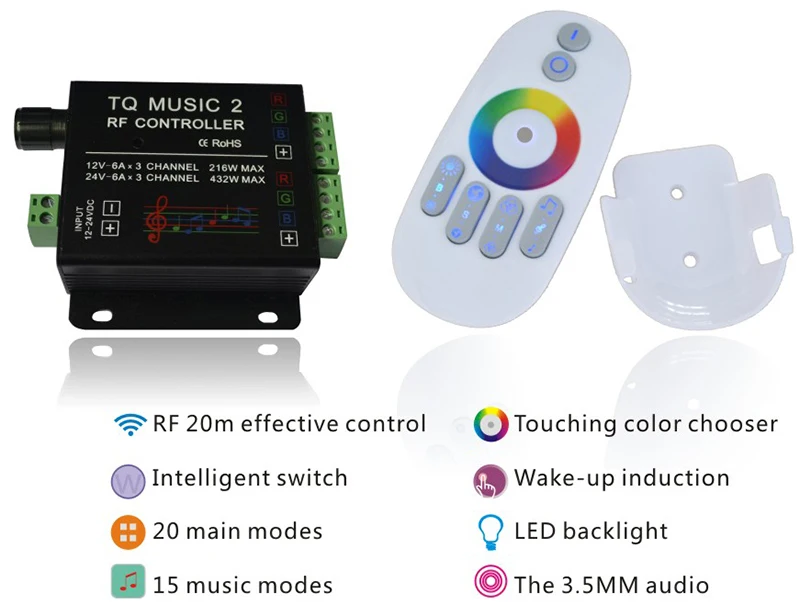

Feature:

Controlled by radio-frequency capacitive touch, effective control distance up to 20 m

Used convenient at night with LED backlight

With 3.5MM audio, non-interfered music mode works better.

Color changing is more exquisite with PWM.

With Dual channel output, the maximum power is 432W

Easier to white mode with intelligent switch.

20 classic modes changing follow your heart.

15 music modes make every moment rhythmical

Available for all sorts of constant voltage RGB lamps, such as RGB strip\soft strip, RGB panel lights, RGB light modules etc.

Remote with special fixed seat, convenient for users

Specification:

Input Voltage: DC12V~24V

Output power: Max 18A

Volume control: 70dB

Remote battery: AAA *2

Remote standby power consumption: 0.08mW

Remote operating power consumption: 20mW

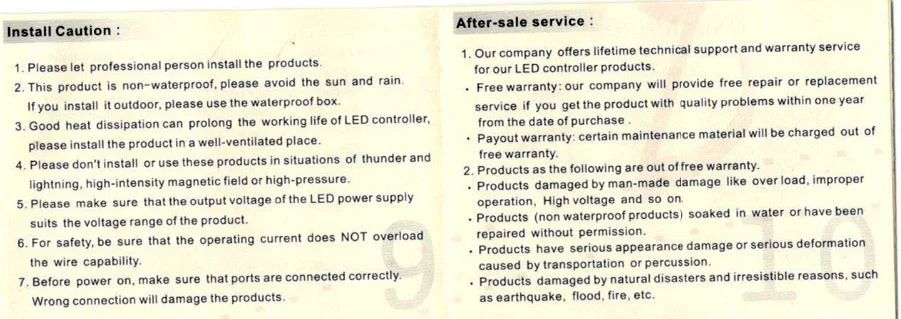

Install Caution:

-This product is non-waterproof, please avoid the sun and rain. If you install it outdoor, please use the waterproof box.

-Good heat dissipation can prolong the working life of LED controller, please install the product in a well-ventilated place.

-Please don't install or use these products in situations of thunder and lightning, high-intensity magnetic field or high-pressure.

-Please make sure that the output voltage of the LED power supply complies with the voltage range of the product.

-For safety, be sure that the operating current does NOT overload the wire capability.

-Before power on, make sure that ports are connected correctly. Wrong connection will damage the products.

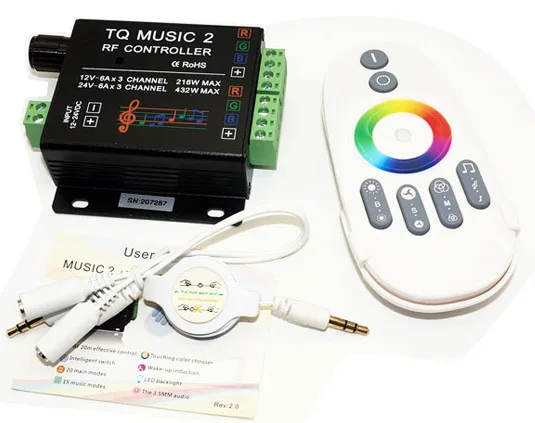

Package included:
1pcs Remote controller (Without Battery)
