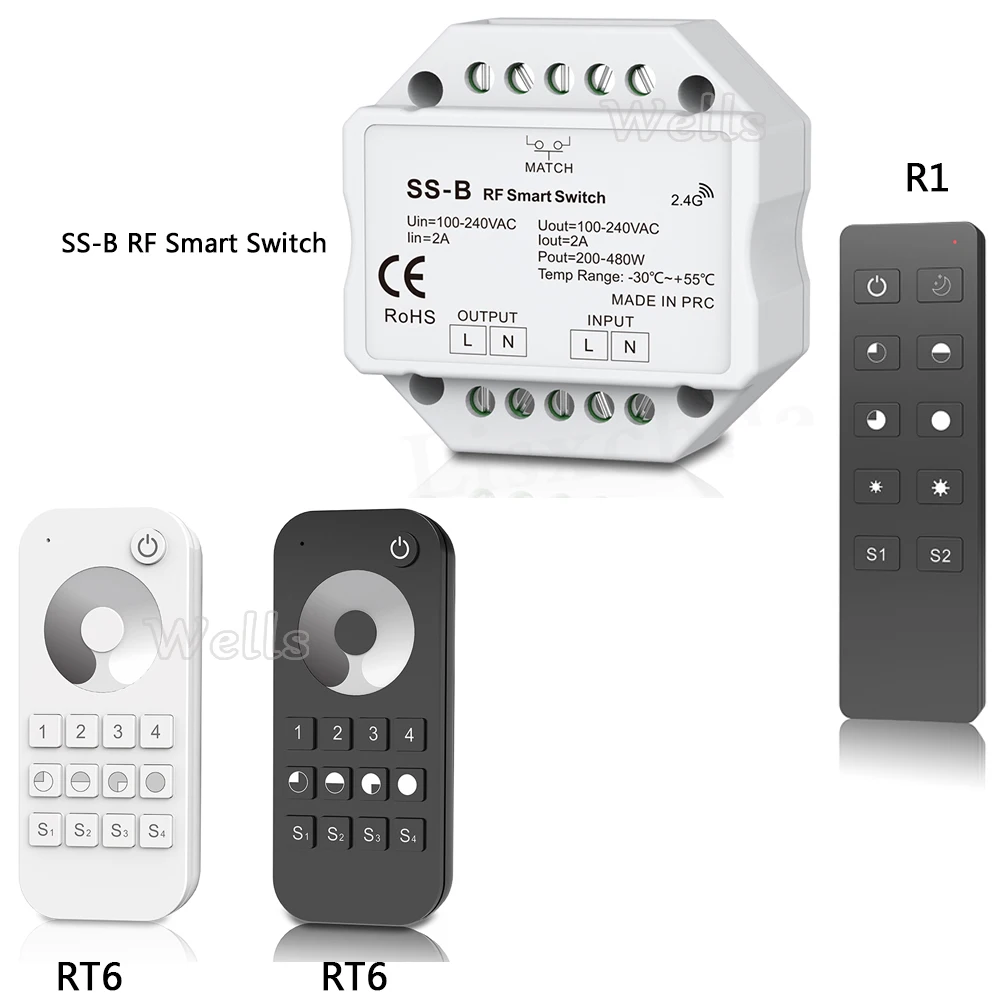

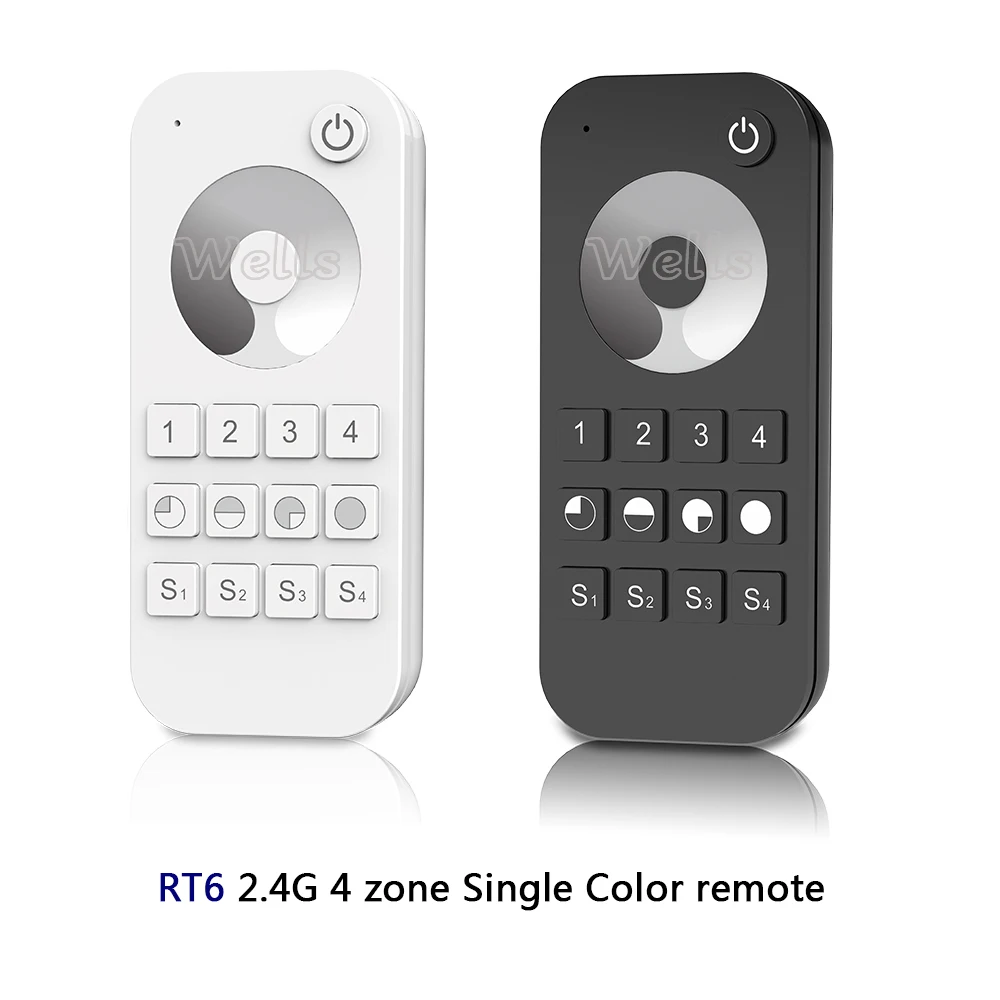

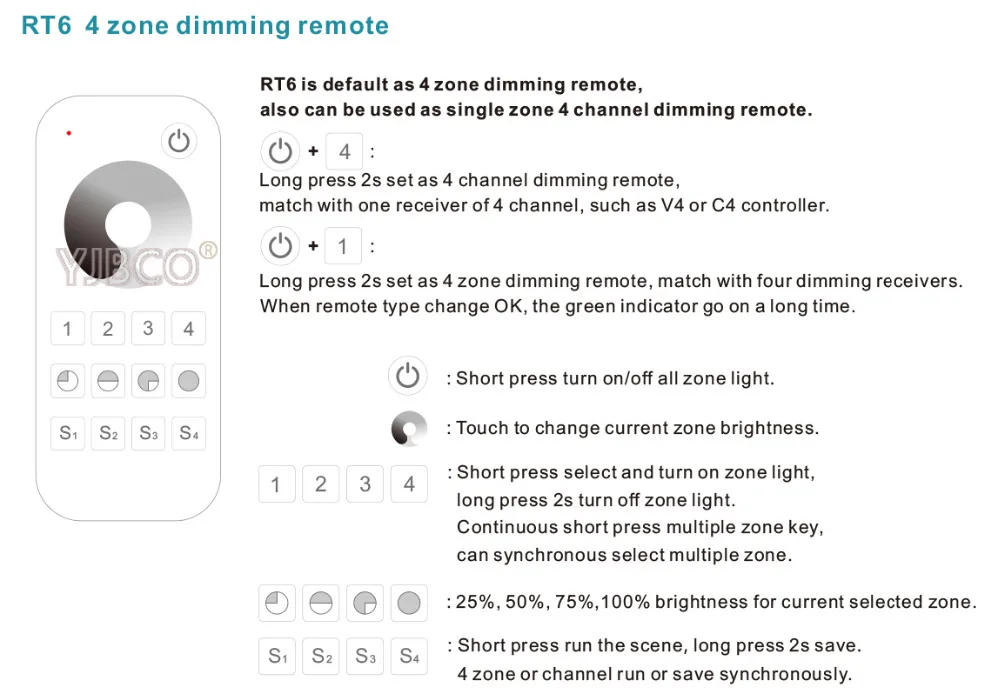

  Note: SS-B can be used with R1, RT6 remote control   RT6

Summary
● Ultra sensitive color adjustment touch wheel.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Each remote can match one or more receiver.
● Battery powered (2 x AAA).
● Operate with LED indicator light
Technical parameter
● Working voltage: 3VDC(AAA*2pcs)
● Working current: ＜20mA
● Standby current: ＜10μA
● Standby time: 12 months
● Remote distance: 30m
● Working temperature: -30℃~55℃

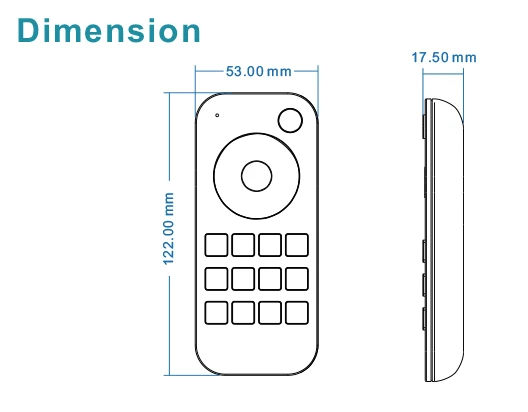

● Dimension: L122×W53×H17.5mm
● Weight: 60g

Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel, the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life, no touch or press key operation after a few seconds,
 the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.

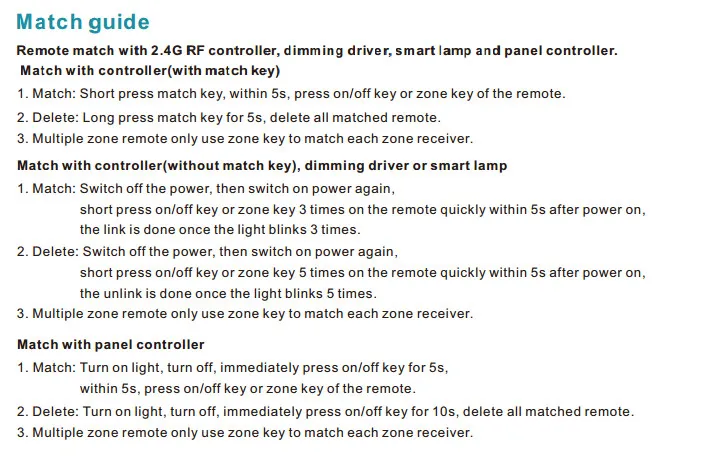

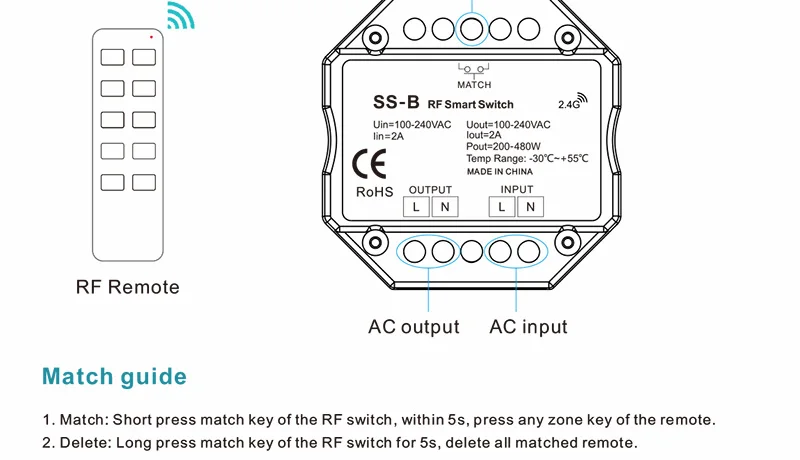

Match guide
Remote match with 2.4G RF controller, dimming driver, smart lamp and panel controller.
1. Match: Short press match key, within 5s, press on/off key or zone key of the remote.
2. Delete: Long press match key for 5s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone receiver.
Match with controller(without match key), dimming driver or smart lamp
1. Match: Switch off the power, then switch on power again,
 short press on/off key or zone key 3 times on the remote quickly within 5s after power on,
 the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
 short press on/off key or zone key 5 times on the remote quickly within 5s after power on,
 the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver
Match with panel controller
1. Match: Turn on light, turn off, immediately press on/off key for 5s,
 within 5s, press on/off key or zone key of the remote.
2. Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone receiver.

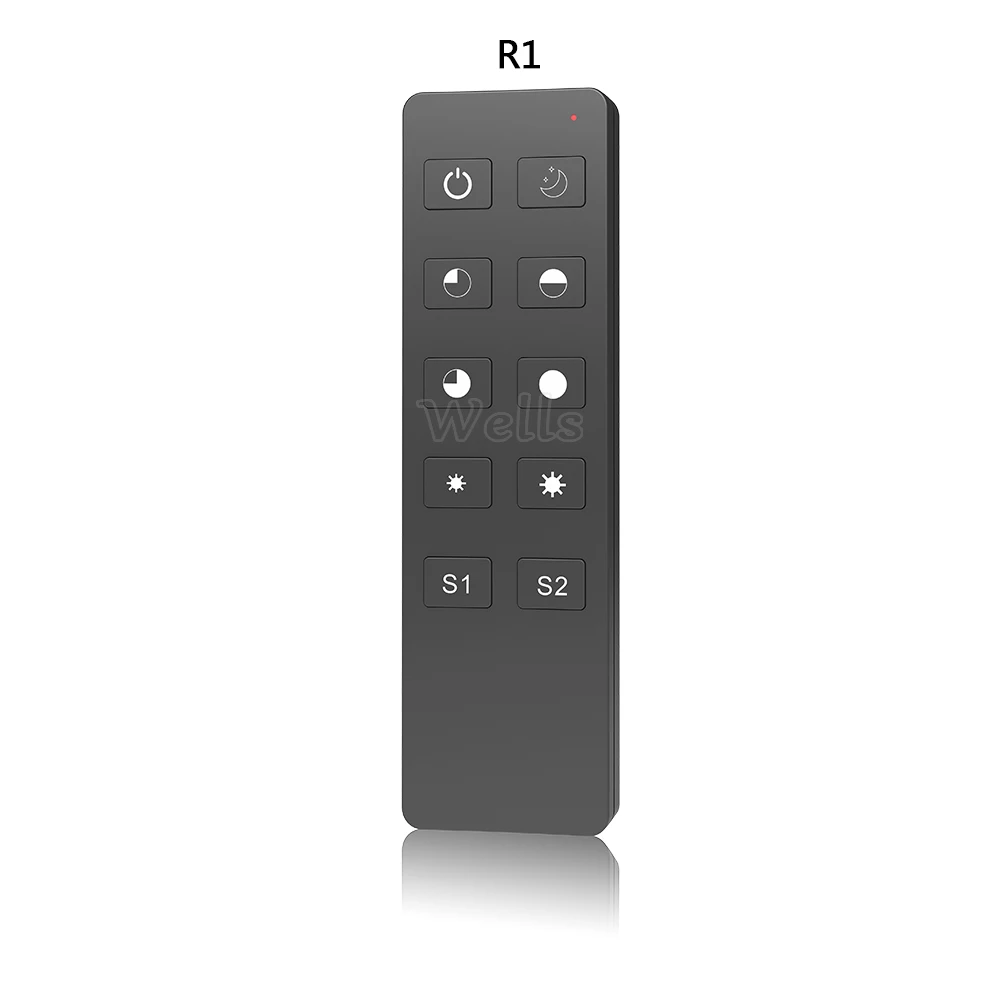

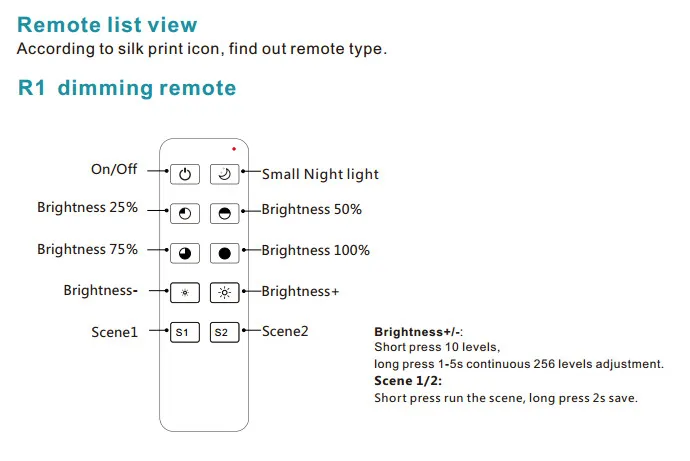

R1

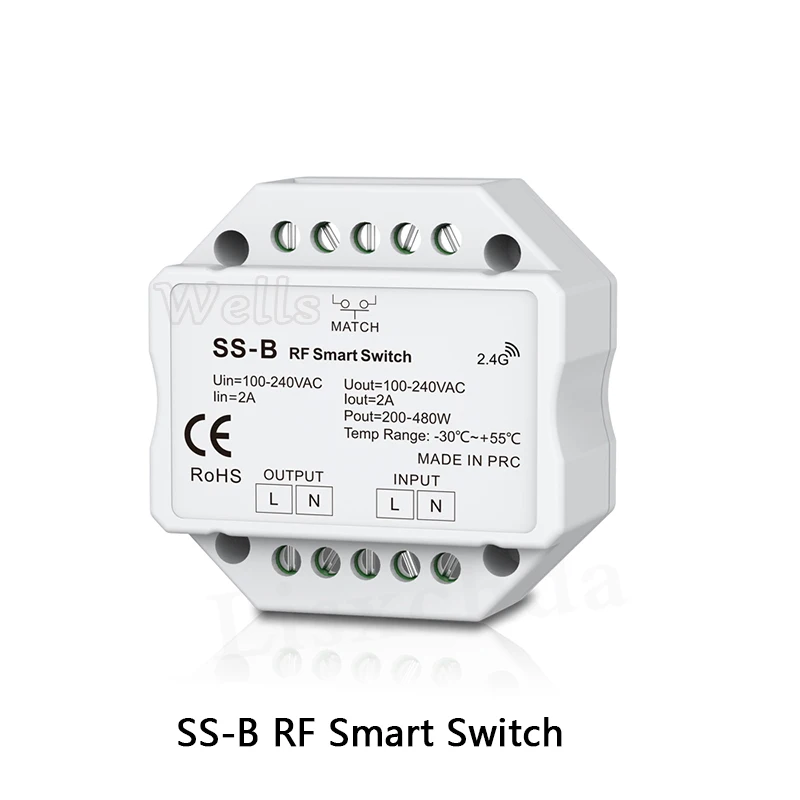

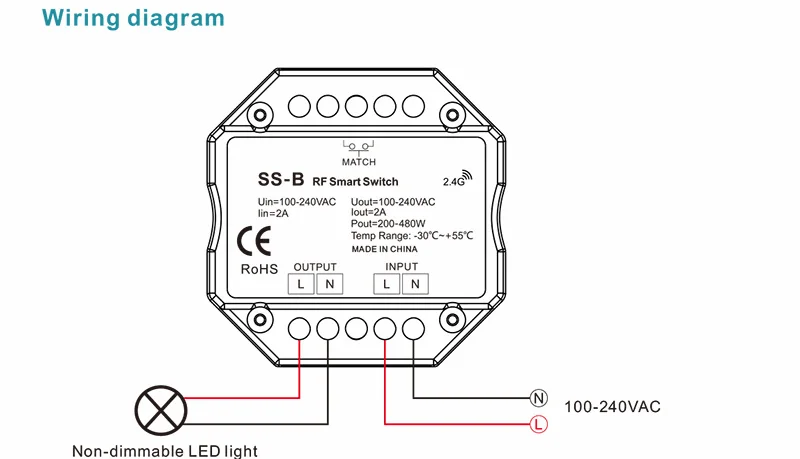

SS-B
