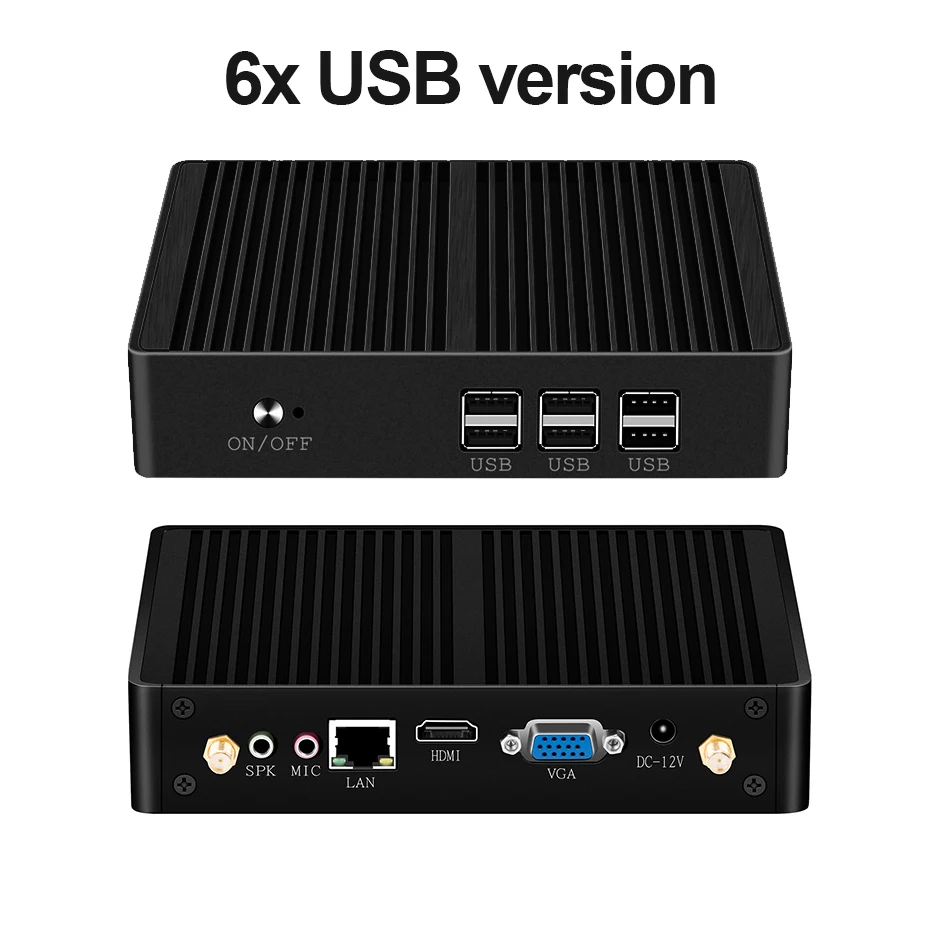

Мини-ПК XCY безвентиляторный Intel Core i7 4500U i5 5200U i3 7100U 300 Мбит/с Wi-Fi гигабитный Ethernet VGA HDMI

Processors

Intel Core i3-4010Y, 2 cores 4 threads, 1.30GHz

Intel Core i3-4005U/4010U, 2 cores 4 threads, 1.70GHz

Intel Core i3-5005U, 2 cores 4 threads, 2.0GHz

Intel Core i3-7100U, 2 cores 4 threads, 2.40GHz

Intel Core i5-4200U, 2 cores 4 threads, 1.60GHz, up to 2.60GHz

Intel Core i5-5200U, 2 cores 4 threads, 2.20GHz, up to 2.70GHz

Intel Core i7-4500U, 2 cores 4 threads, 1.80GHz, up to 3.0GHz

Memory Types

SODIMM DDR3L 1333/1600MHz,

max support to 8GB

1x slot of RAM

Storage

mSATA SSD

( Can support expand 1x 2.5inch HDD/SSD )

Graphics

i3-4010Y: intel HD Graphics 4000

i3-4010U/i5-4200U/i7-4500U: intel HD Graphics 4400

i5-5200U: intel HD Graphics 5500

i3-7100U: intel UHD Graphics 620

Network Interfaces

GbE RJ45 Realtek 8111E, support WOL,PXE

Expansion

1x Mini PCI-E slot for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7

Windows 8.1, Windows 10

Windows Embedded,

Windows 10 IOT,

Linux/Ubuntu

USB Ports

4x USB3.0,

2x USB2.0 (4x USB2.0)

Wake on LAN

Yes, support

Restore on AC power loss

Yes, support

Display Port

1x VGA,

1x HDMI

Support two monitors independently display

Audio Ports

Version 1: 3.5mm combo audio jack

Version 2: 3.5mm Speaker and Microphone In jack

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

174x127x45mm

Netweight

1.2Kg

Operating Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A

What in the Package

1x Mini PC X32

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cables

1x User manual
