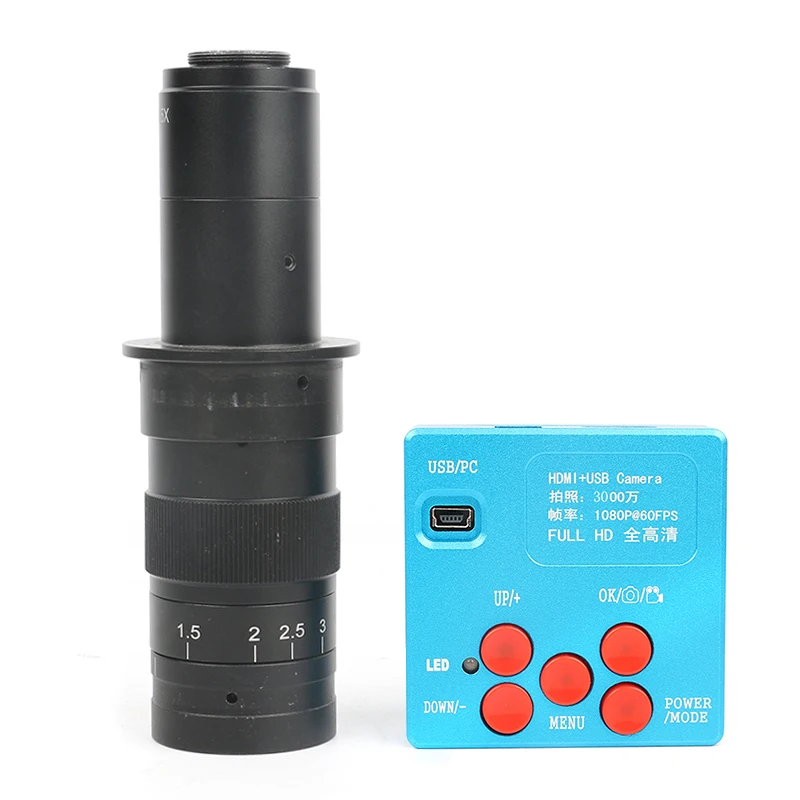

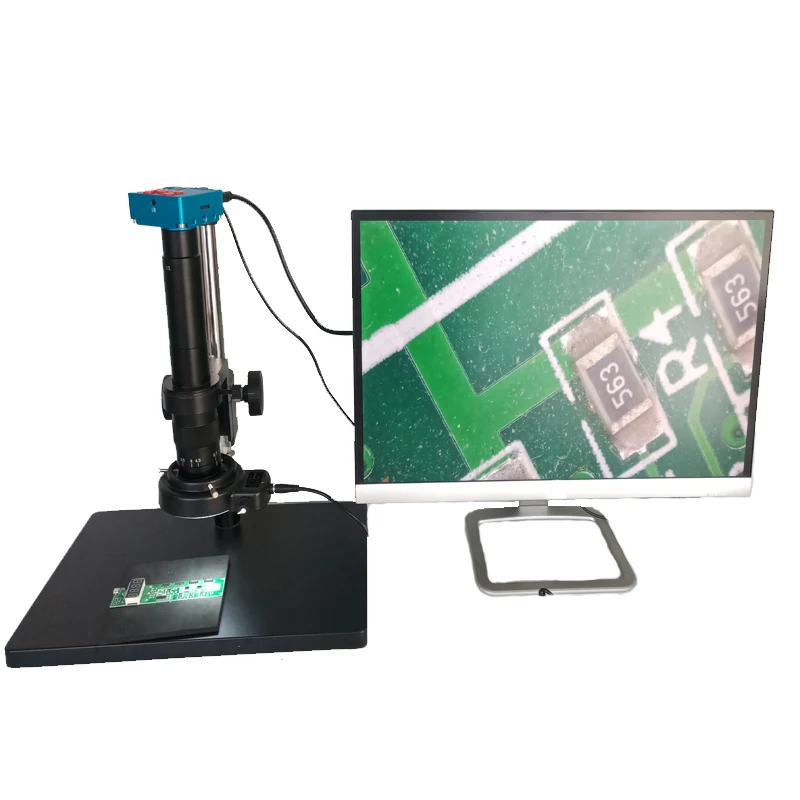

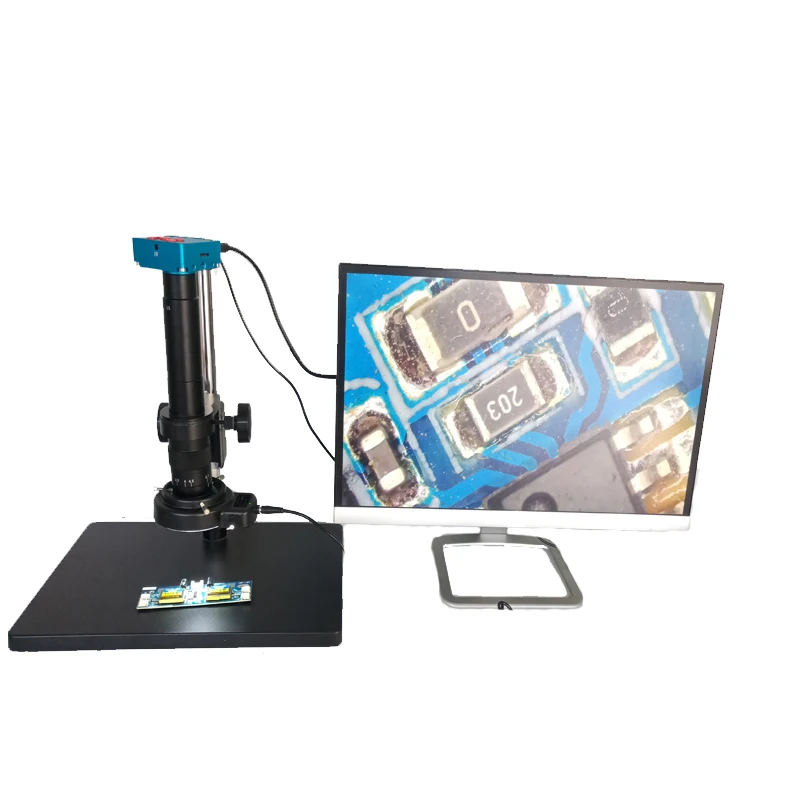

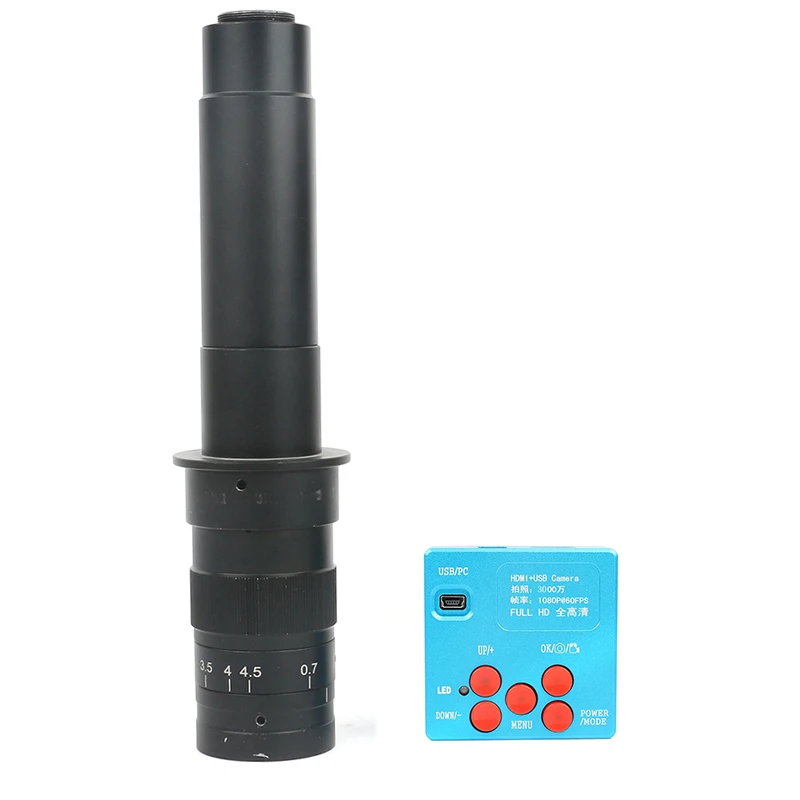

30MP 2K 1080P HDMI Digital USB Video Microscope Camera +180X 300X C-Mount lens +Big boom microscope stand +144 Led ring lights |

30MP 2K 1080P HDMI Digital USB Video Microscope Camera +180X 300X C-Mount lens +Big boom microscope stand +144 Led ring lights |

unction：   Picture Pixel:7360×4140 30MP TF Card: Video Recorder Grid line:8 horizontal lines, 8 vertical lines Video Frame Rate: 2K 24fps/1080P 60fps/720P 60fps Image format: JPG Video format: MP4 TF card:4GB (Up to 32GB max） CMOS Senser:1/2.33 inch Cross line:Overlap or Cancel CMOS pixel:1.33um x 1.33um Lens jack:C-mount Color setting:Auto  Power:12V/1A White balance:Auto/one button calibration/Manual Size:64x64x35mm EV:Auto/Manual Weight:165g Language:Chinese, English Camera mode:HDMI output 2K 24fps/1080P 60fps/720P 60fps Working temperature:0-70℃   USB/PC Interface:  1.connect the camera to your computer with USB cable, then power on,  if a SD card available in camera, then you will enter U disk mode and can prereview the pictures/videos from camera SD card or copy to your computer. 2.If no SD card in camera, you will enter PC-CAM mode to view pictures from your computer directly, and no driver needed here.   Note: DC/12V interface is for camera with 5V-12V/1A input power adapter, and unsuited adapters can’t be used, otherwise the camera will be burned broken then HDMI Interface: connect camera to a monitor with HDMI interface,  please use 16:9 wide monitor.     POWER/MODE:  This camera is plug-in to power on, long press the button for 3 seconds to power off, then short press for 1 second to power on. Power on  success if you hear ticking with red indicator light on. After power on,  short press for 1 second to change to video mode, press one more  second to change to picture/video playback mode, one more press  back to camera mode.   MENU： Short press the button for 1 second and enter menu setting page. Use UP/DOWN button to select related funtions and press OK button to enter submenu. a)Chinese/English language settings: use UP/DOWN button to select and press OK button to confirm; b)Grid line settings: press UP/DOWN to select line and press OK button to enter, press UP/DOWN to open/close 10 grid lines rulers, to open/close 8 grid lines, every line’s direction, position, color or width, then press OK to change the line’s direction, position, color or width. Press MENU button again to return to upper level menu;  c)Exposure setting: press UP/DOWN to select auto/manual exposure mode, then press OK to confirm; d)EV settings: under auto exposure mode, enter to select +-0.3/0.7/1.0/1.3/1.7/2.0 exposure value as needed; e)White balance settings: can select auto, manual or one-button-calibration mode after entering, there might be color deviation if you change the light, then you can put a white paper and select one-button-calibration to calibrate the color. You can also adjust the red and green value manually for special use; f)Color setting: can select colorful or white/black mode as needed; g)Light frequency settings: can select 50Hz/60Hz as needed; h)Acutance settings: options for strength/standard/soft; i)Contrast settings: high/middle/low options as needed; j)Video size: 3 options for 2K24fps/1080P60fps/720P60fps can be used as needed; k)Mirror function: vertical/horizonal mirror functions in option; l)Format: it can be used for new card or even defected card before taking photos in memory; m)Regain default settings: regain all your settings to original default settings; n)System information: it’s original software version, repress MENU button to exit;   OK/CAPTURE/RECORD: Under camera mode, short press OK button to take a photo; under video  mode, short press to start or stop recording; under MENU mode, it’s confirm button, for line’s open/close and vertical/horizonal change,  position adjust, and also line color/width change. UP/+: under camera mode, short press this button to increase EV. DOWN/-: under camera mode, short press this button to decrease EV.     C-MOUNT Lens:
Working distance: 95mm

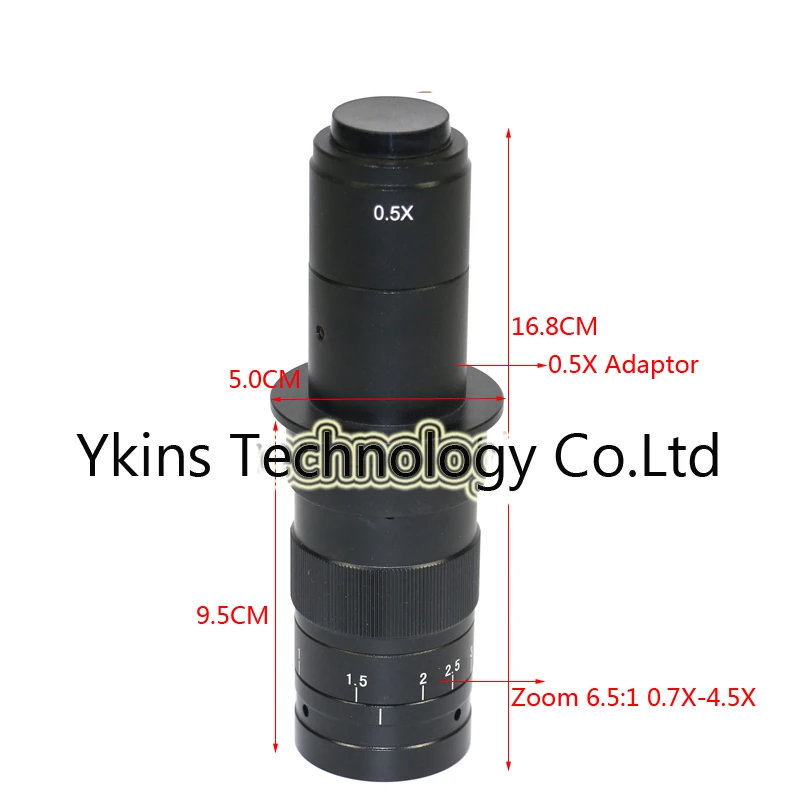

Zoom c-mount Lens

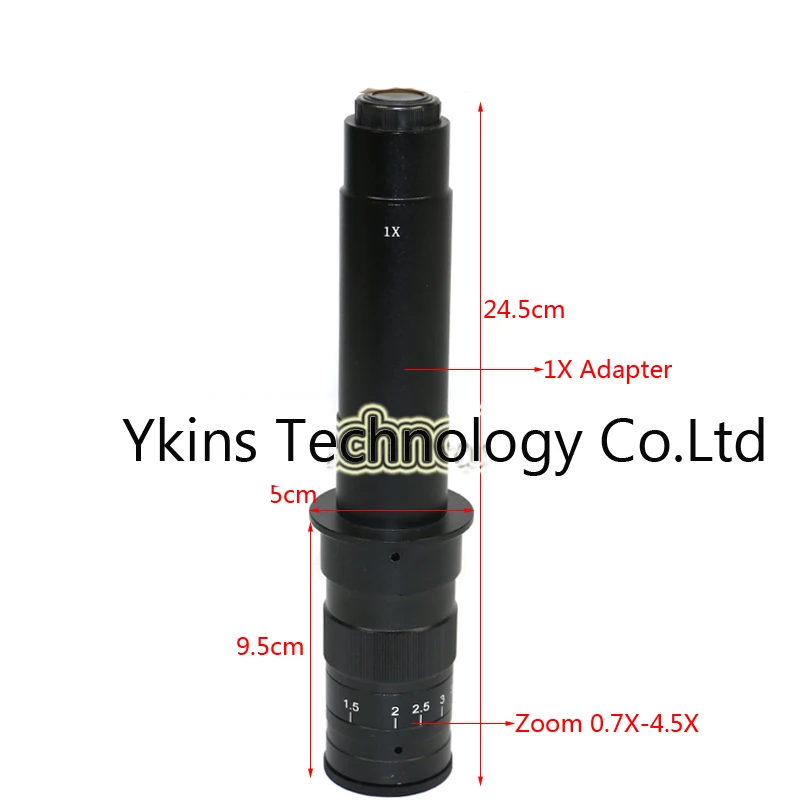

1.0X C-mount adapter
Zoom ratios:
Objective Magnification Power by 0.7X - 4.5X(about 10X- 300X on the display)
Size: 24.5mm(L) * 50mm(DIA)

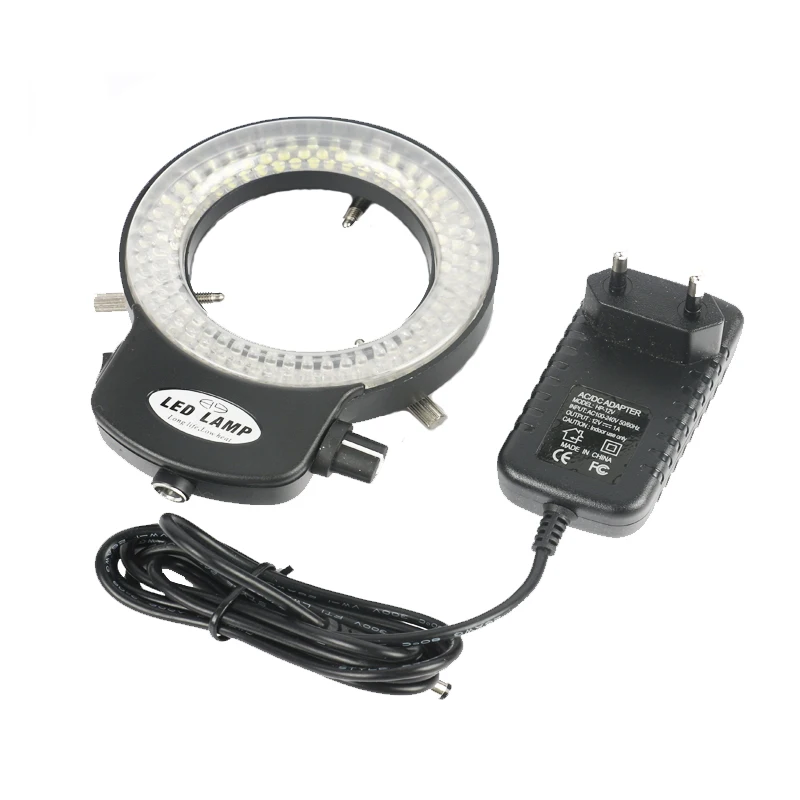

Weight: 630g   144 LED Adjustable Compact Microscope Ring Light:   Provides intense and focused shadow-free illumination 144 bright white LED bulbs Lighting direction changeable Variable intensity control Intense and focused shadow-free illumination 100,000 hours of life Power input: 100-240V, 50-60HZ, auto switching Inside diameter of the ring light: 1.0" (27mm) Overall outside diameter: 1.77" (45mm) Working Distance: 27mm-45mm   Package list   1X 30MP Microscope camera 1X 180X /300X C-Mount lens 1X Remote control  1X Power supply (US /AU/EU adapter) 1X HDMI Cable 1X USB Cable  1X 144 Led lights 1X Microscope stand 1X 4GB TF card

p

Microscope stand /Screen are not including
