8mp ip camera cctv video surveillance security PoE DS-2CD2185FWD-IS Audio for hikvision dahua DVR HIK-Connect iVM4200 Camcorder |

8mp ip camera cctv video surveillance security PoE DS-2CD2185FWD-IS Audio for hikvision dahua DVR HIK-Connect iVM4200 Camcorder |

Original Pure Enlish version(USA firmware) with english color box, English firmware  Upgradeable

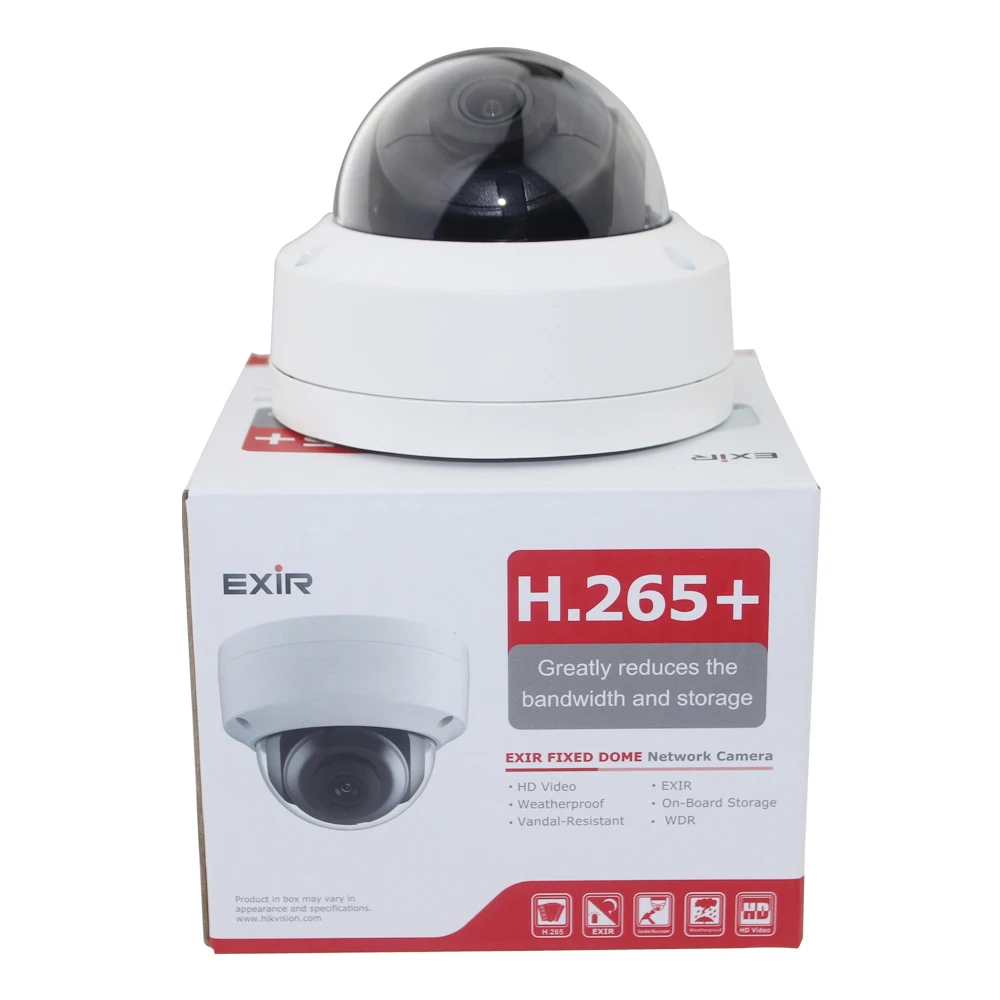

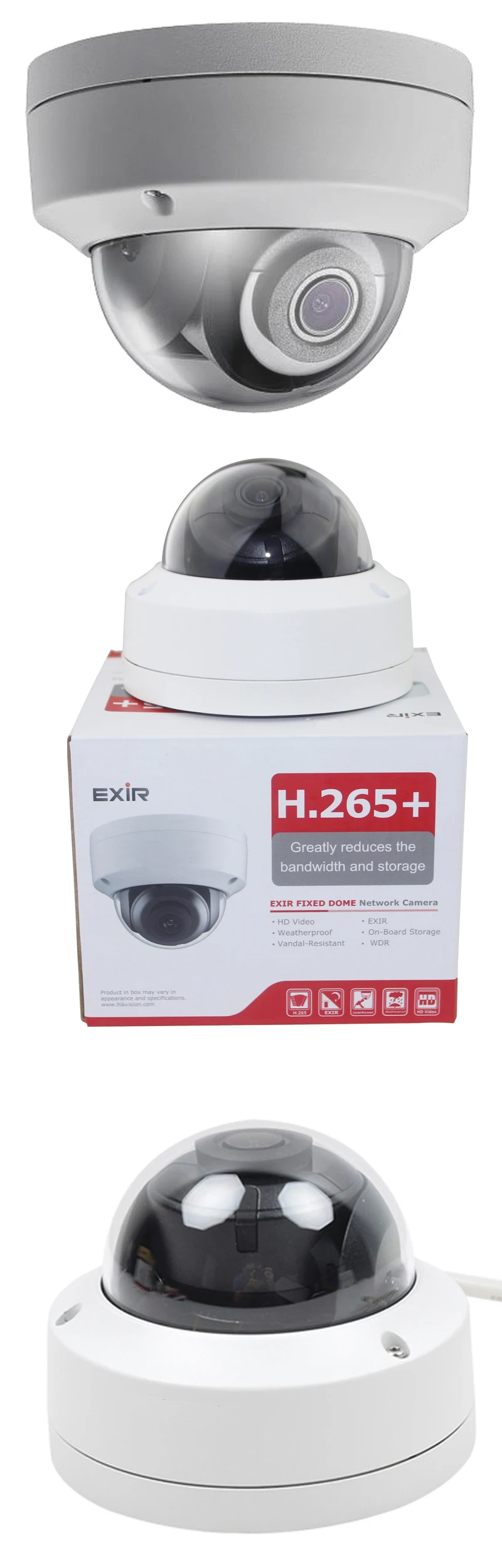

8MP WDR Fixed Dome Network Camera

IP camera:   DS-2CD2185FWD-IS  With Audio,Alarm. Hikvision 4K IR Dome

                     DS-2CD2183G0-IS     With Audio,Alarm. Hikvision 4K IR Dome

With POE;  and Audio,120db WDR,3D NVR, IR LED  upto 30m night vision

supported CMS iVM4200 and following models NVR:

• DS-7604NI-K1
• DS-7608NI-K2
• DS-7616NI-K2
• DS-7604NI-K1/4P
• DS-7608NI-K2/8P
• DS-7716NI-K4
• DS-7732NI-K4
• DS-7616NI-K2/16P
• DS-7716NI-K4/16P
• DS-7608NI-I2/8P
• DS-7616NI-I2/16P
• DS-7716NI-I4/16P
• DS-7732NI-I4/16P
• DS-7732NI-K4/16P

Camera

• Signal System: NTSC/PAL
• Min. Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
• Shutter time: 1/3 s to 1/100,000 s
• Slow shutter: Support
• Lens: 2.8 mm, horizontal field of view: 102°
• Lens Mount: M12
• Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
• Day& Night: IR cut filter with auto switch
• Wide Dynamic Range: 120 dB
• Digital noise reduction: 3D DNR

Compression Standard

• Video bit rate: 32Kbps~16Mbps
• Triple Streams: Yes


• Frame Rate: 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream: 60Hz: 30fps (640 × 360, 352 × 240)
• Third Stream: 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Image Enhancement: BLC/3D DNR
• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• Regional Cropping: Support
• ROI: Support 1 fixed region for each stream, and face dynamic tracking
• Day/Night Switch: Auto/Scheduled

Network

• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
• General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
• System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

• Communication Interface: 1 RJ45 10M / 100M Ethernet interface
• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set

• Line Crossing Detection: Cross a pre-defined virtual line

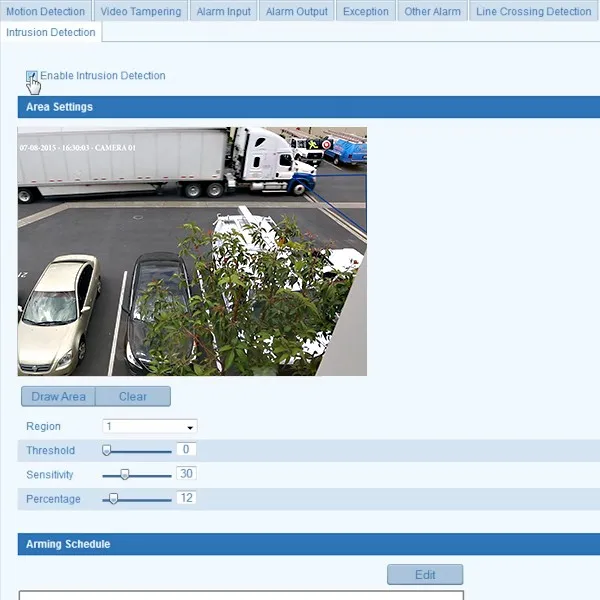

• Intrusion Detection: Enter and loiter in a pre-defined virtual region
• Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.

General

• Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
• Power Consumption: 12 VDC ± 25%, 6.2W PoE(802.3af, class 3), 9W
• Impact Protection: IK10
• Weather Proof: IP67
• IR Range: Up to 30m
• Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
• Weight: 500 g (1.1 lb.)
