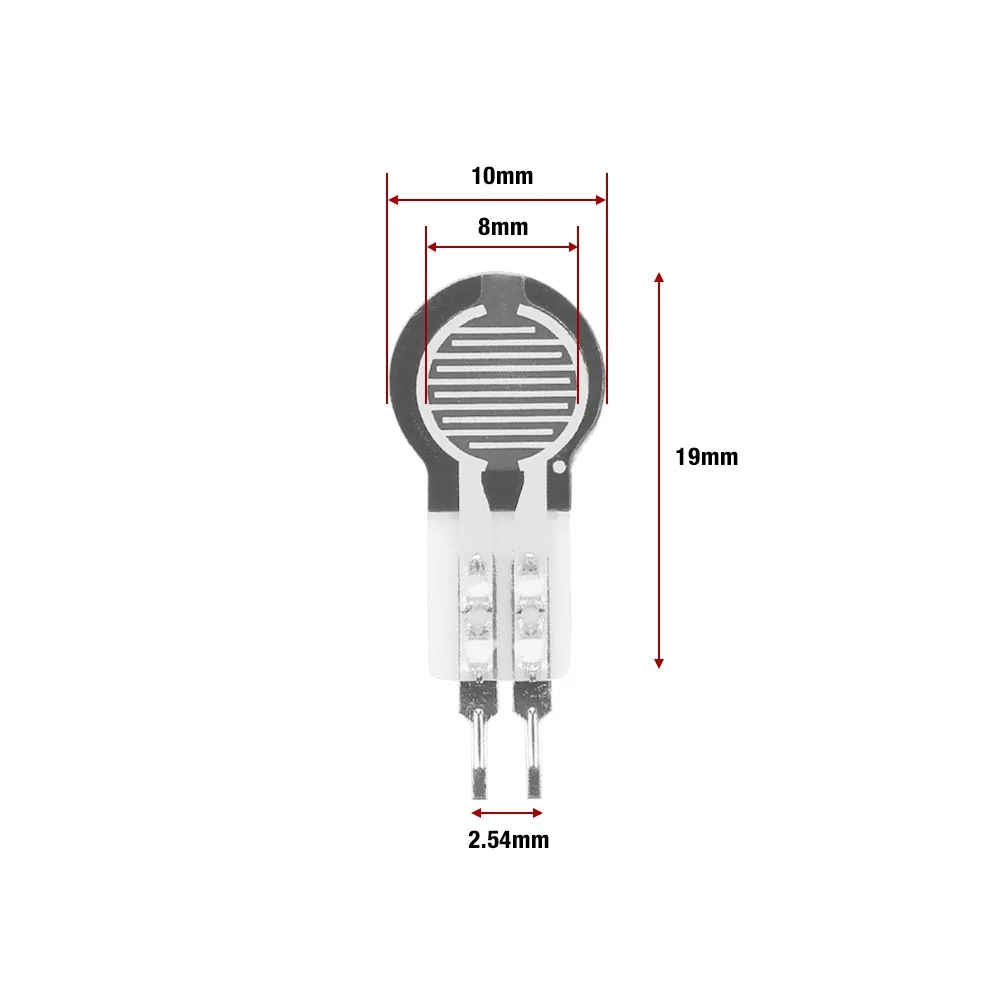

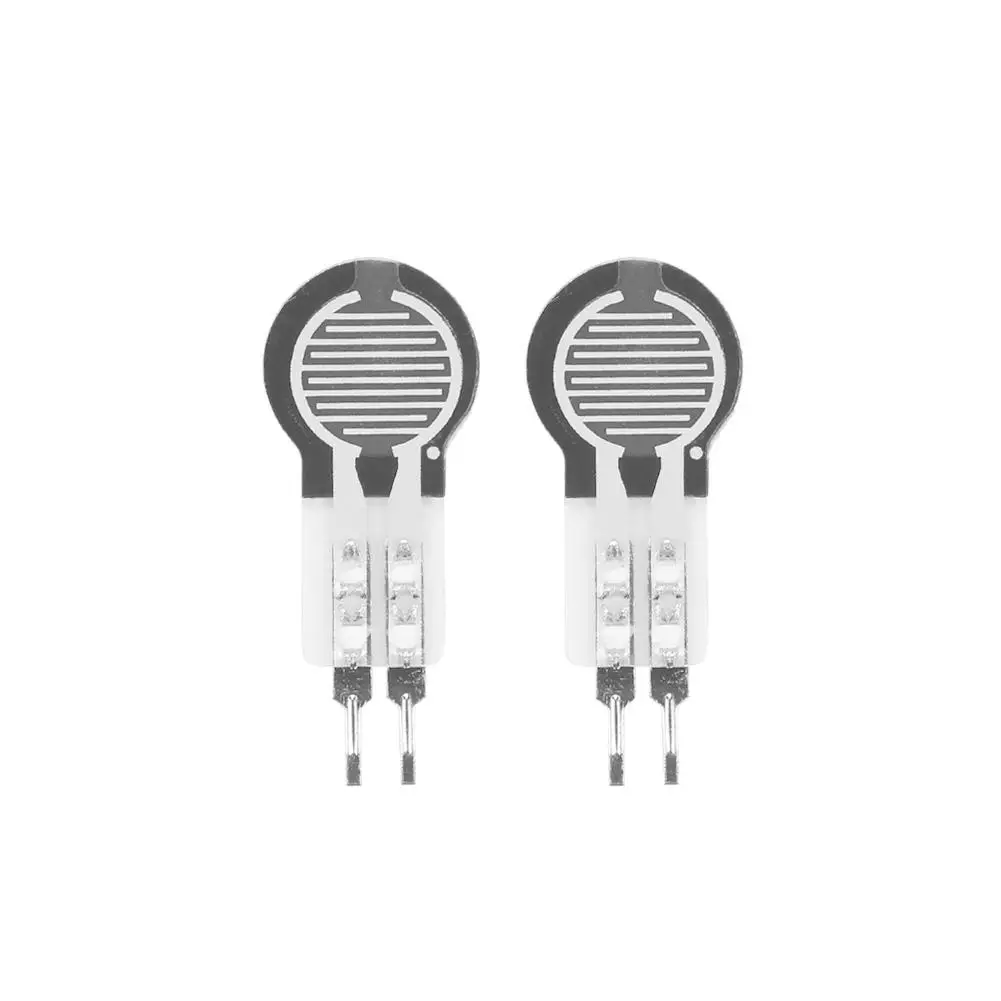

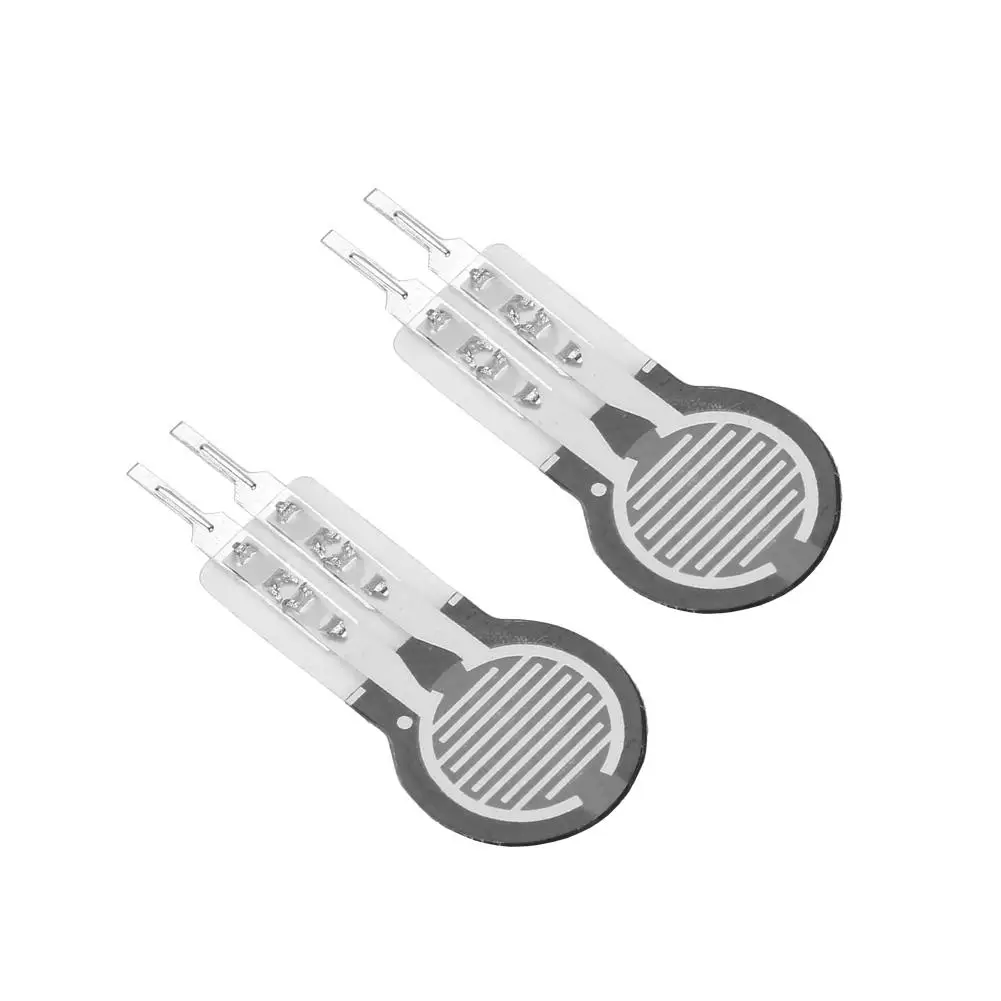

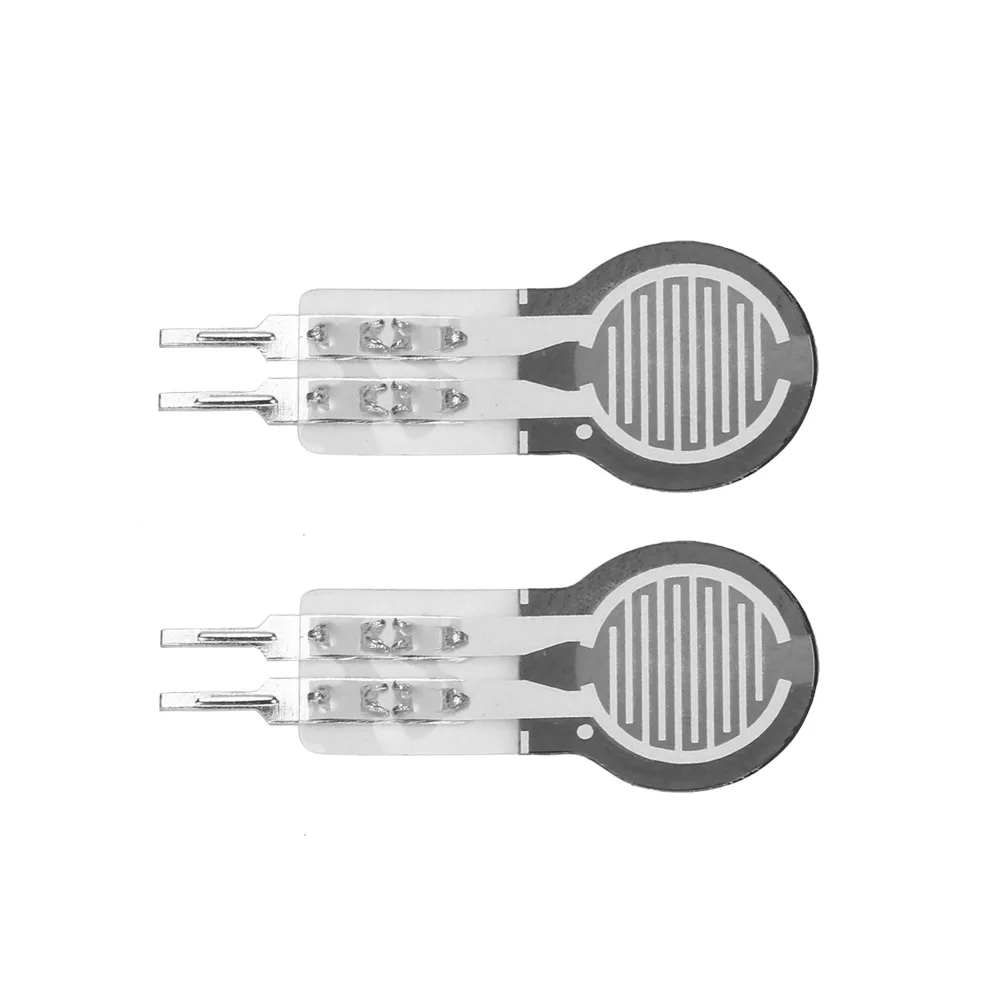

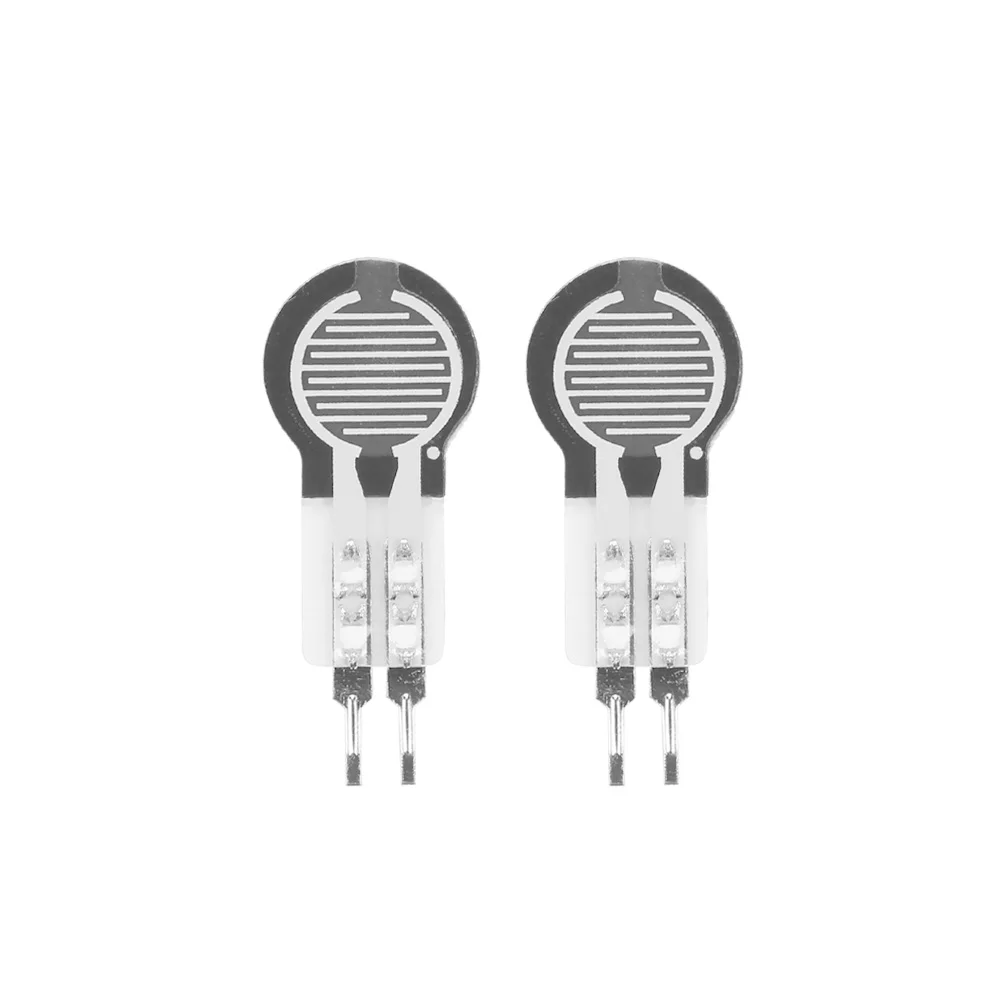

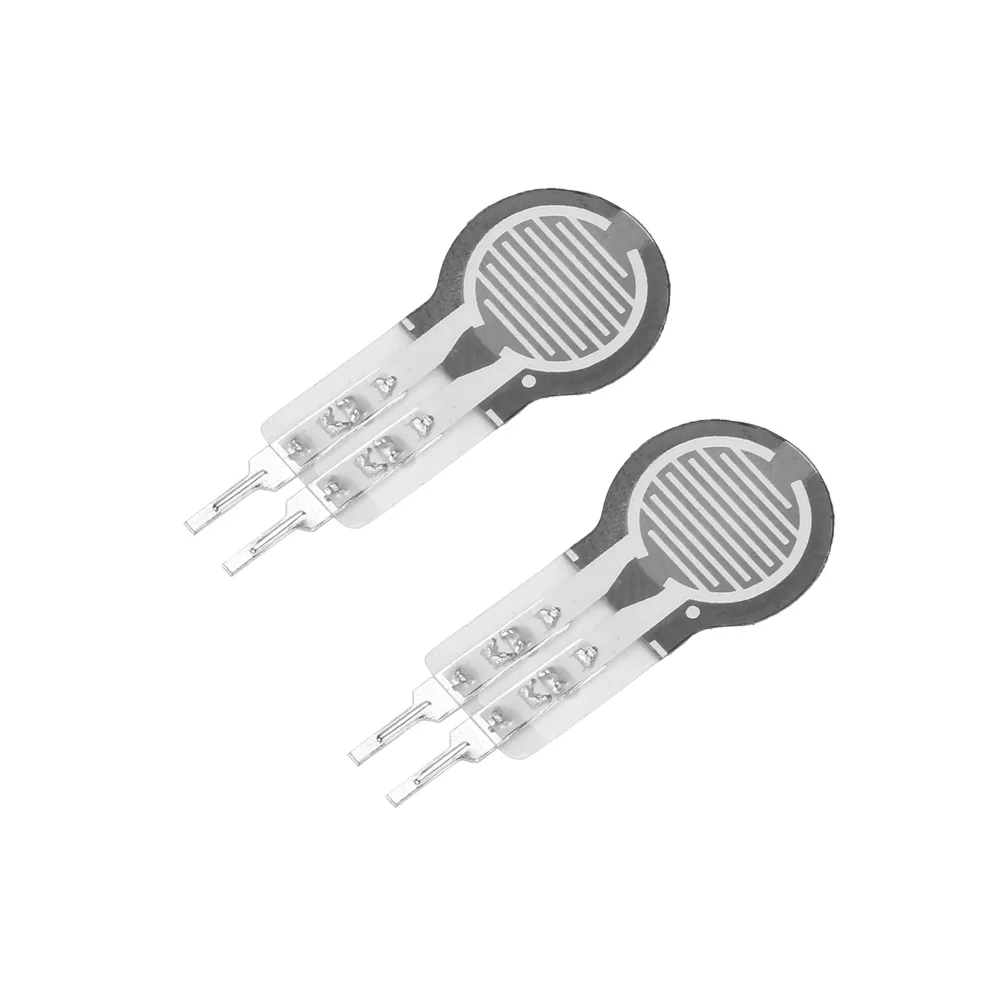

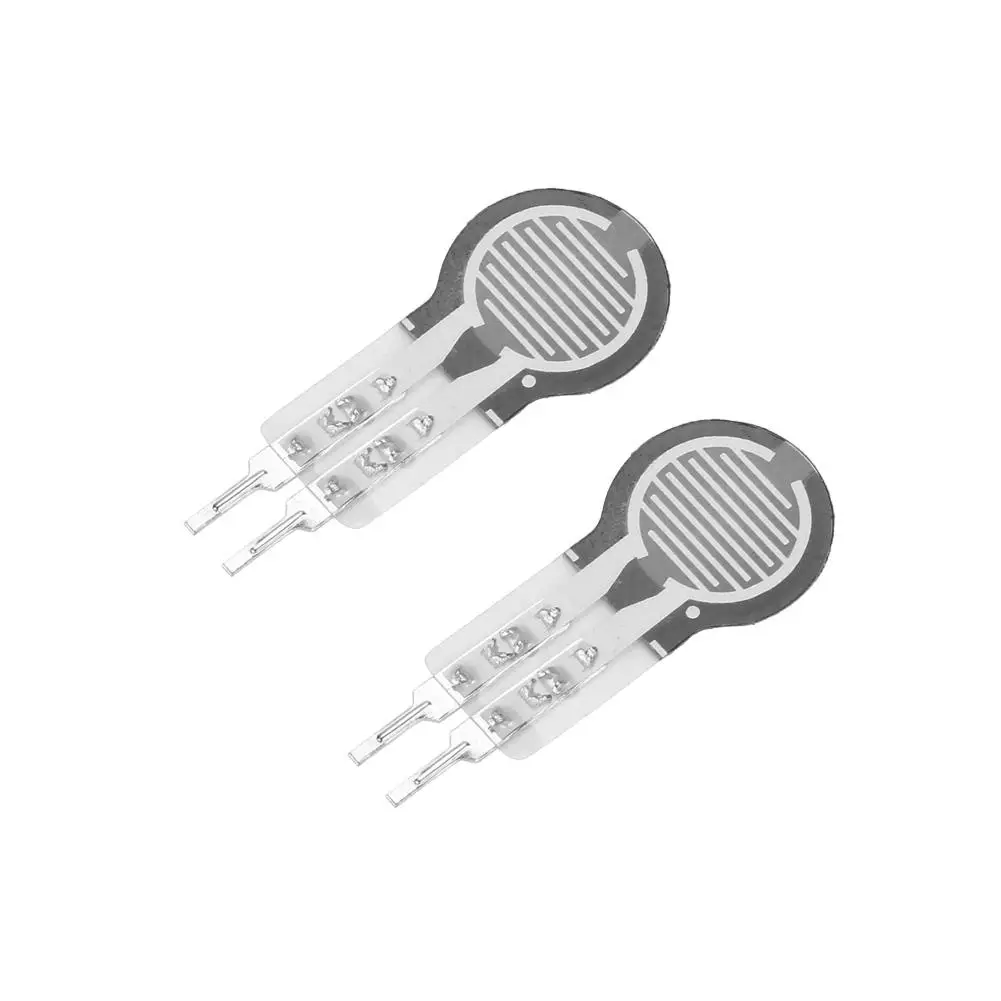

2pcs 20g~2kg RP-C10-ST High Precise Resistance-type Thin Film Pressure Sensor Force Sensor

The RP-C flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer above, the bottom is a flexible film and conductive circuit above.Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output resistance of the port changes along with pressure.

Features:

• The RP-C resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases.

• Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.

• The pressure sensor supports static/dynamic pressure sensing, and has fast response speed.

• Made of high quality material, the sensor is durable and has long service life.

• Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment.

Specification:

Model: RP-C10-ST

Thickness: 0.4 mm

Trigger force: 20 g, triggered when resistance is less than 200 kΩ by default
Pressure sensing range: 20 g ~ 2 kg
Pressure action mode: Static or dynamic (frequency within 10 Hz)
Non-trigger resistance: More than 10 MΩ
Activation time: less than 0.01 S
Operating temperature: -40 ℃ ~ +85 ℃
Lag: +10%, (RF+ - RF-)/FR+, 1000g force
Response time: < 10 ms
Drifting: <5%, 1Kg force static load 24H

Weight: 1g / 0.04oz (approx.)

Package list:

2 * Pressure Sensors
