Dahua Pro 32CH NVR NVR5232-16P-4KS2E с 16CH PoE портом поддержка двухстороннего разговора e-POE 800 м

Dahua Original Pro NVR NVR5216-16P-4KS2E NVR5232-16P-4KS2E 16CH PoE Port 8CH 800m e-POE Max 320Mbps Network Video Recorder For CCTV System Security Kit.

1. About this NVR:

This model is 100% original Dahua NVR ,it support firmware updating !

2. About service :

Please contact our customer service if any doubt , We can support Skype/WhatsApp/WeChat , please contact our customer service to get the ID because we can't leave any contact information here as the rule of aliexpress .

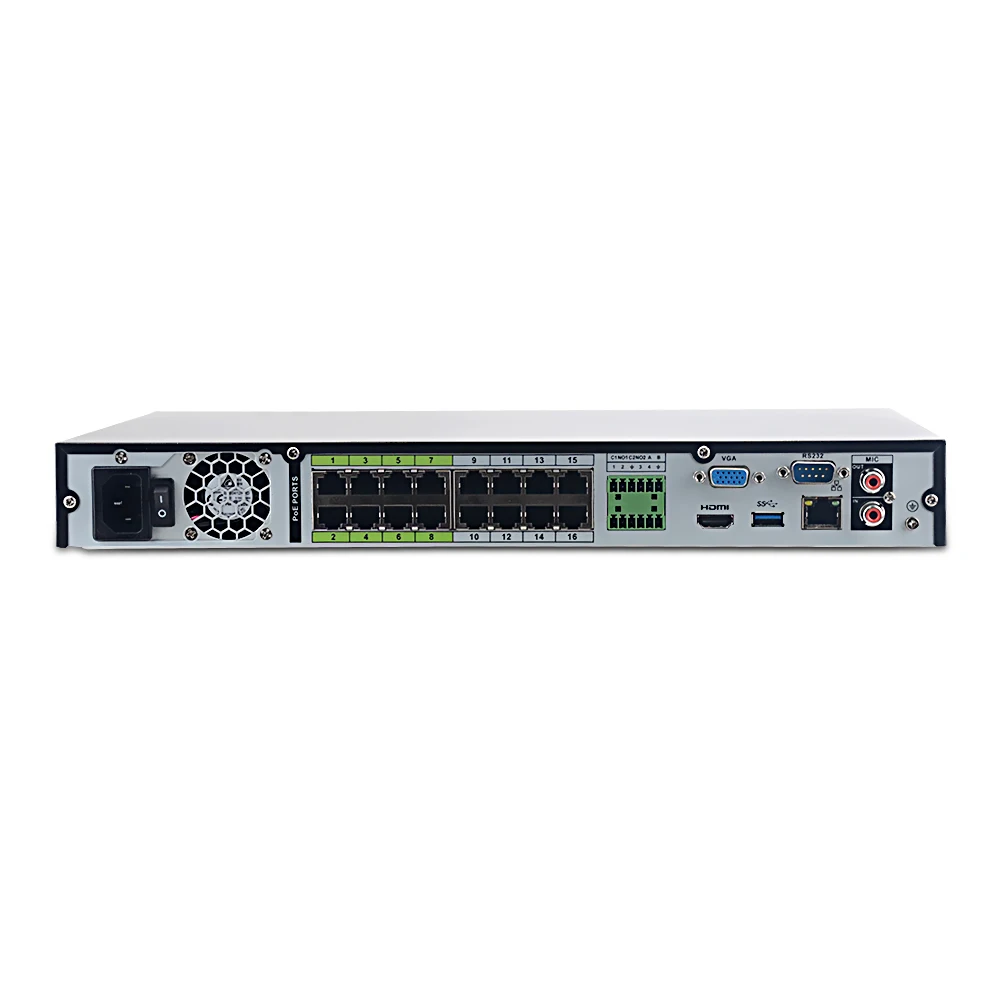

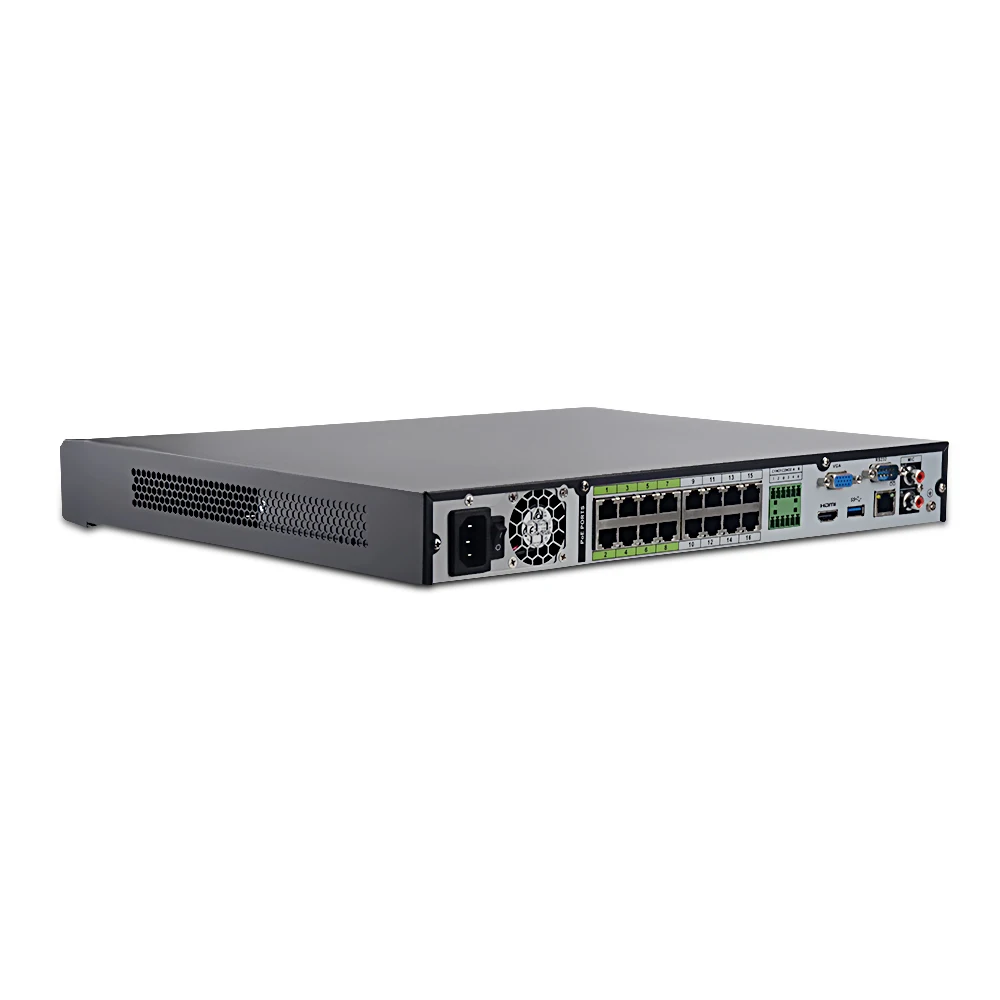

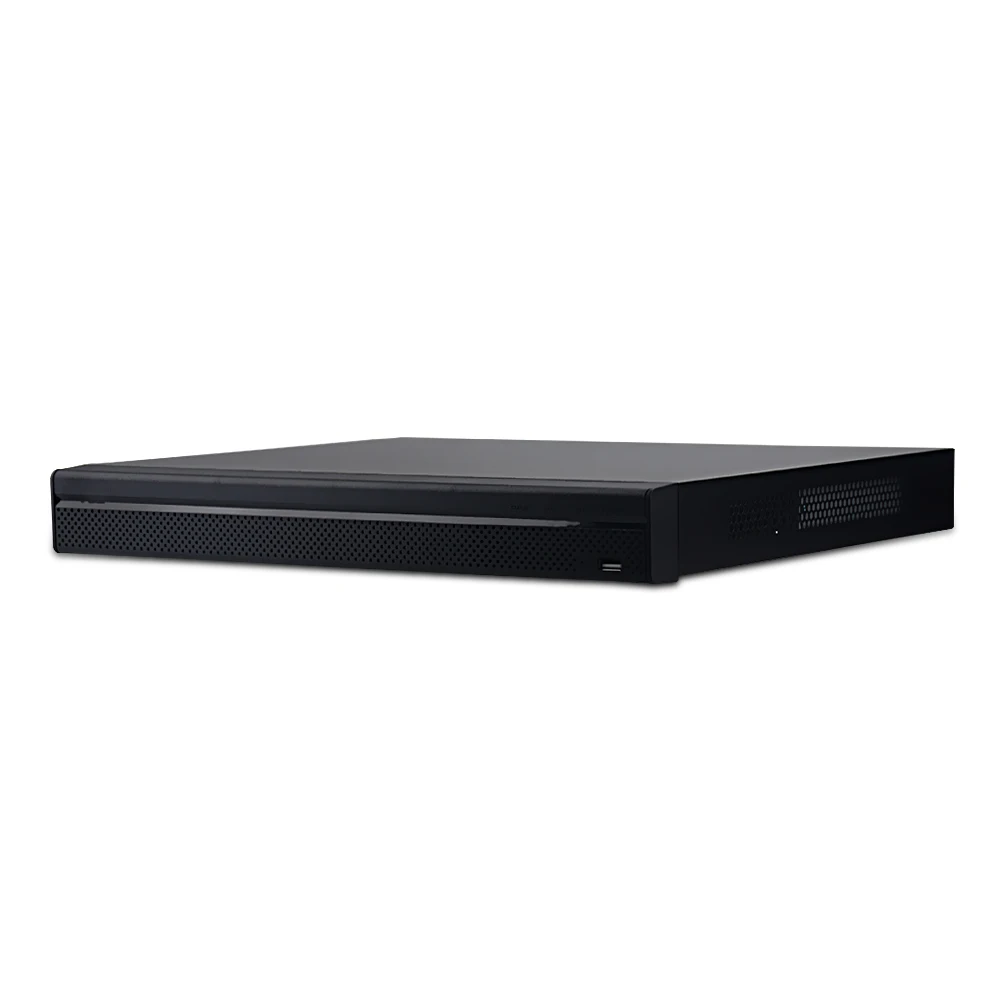

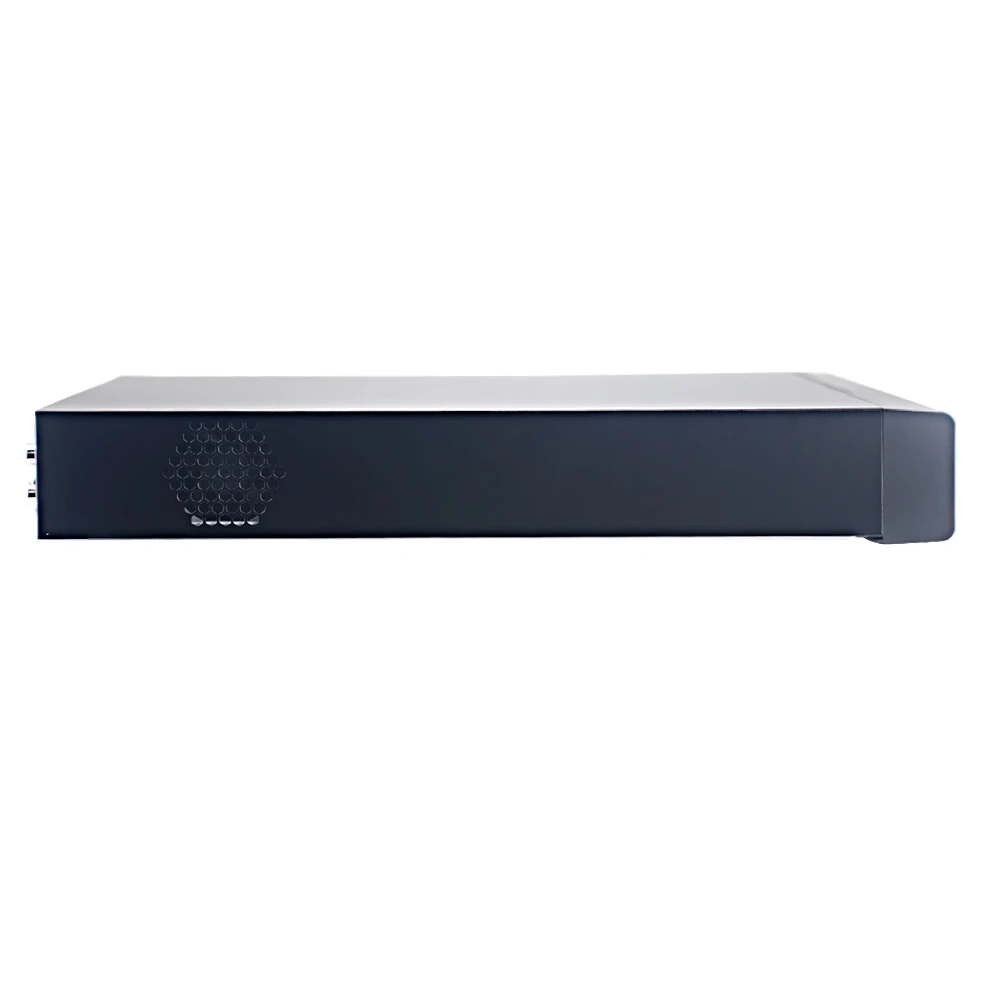

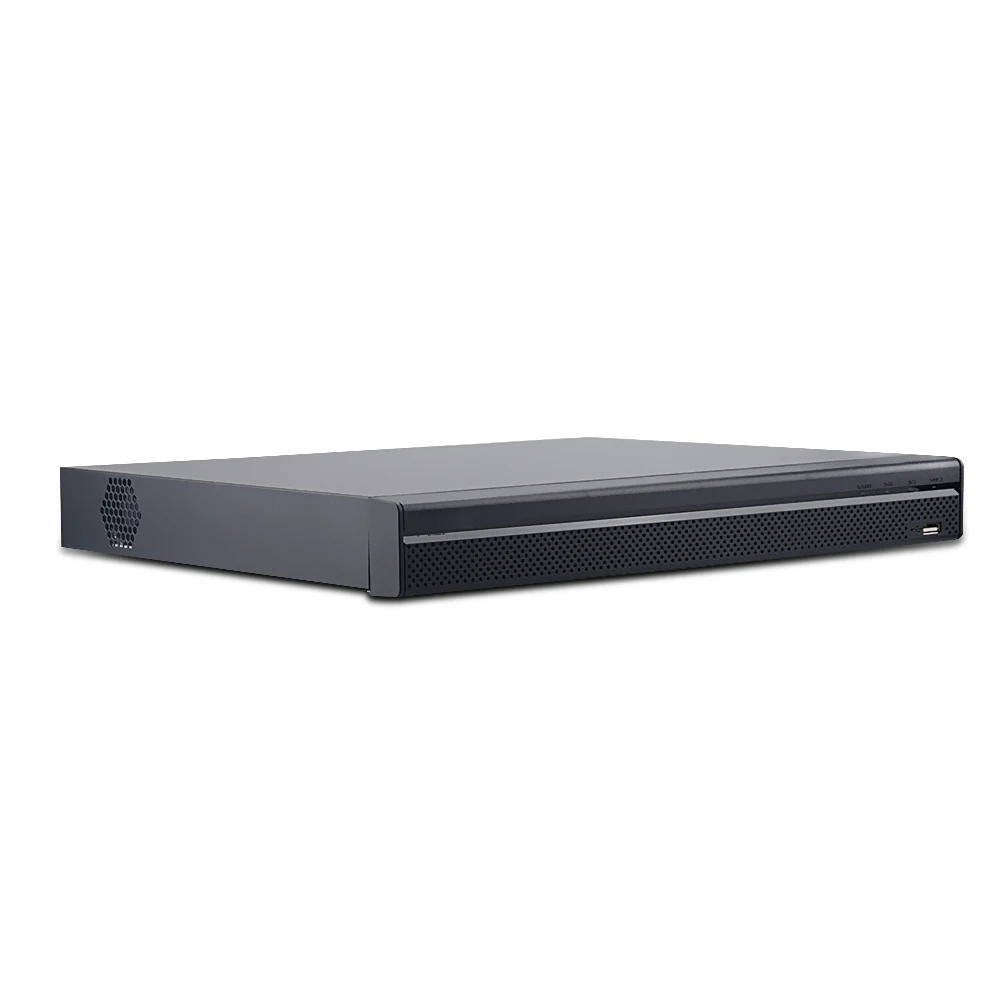

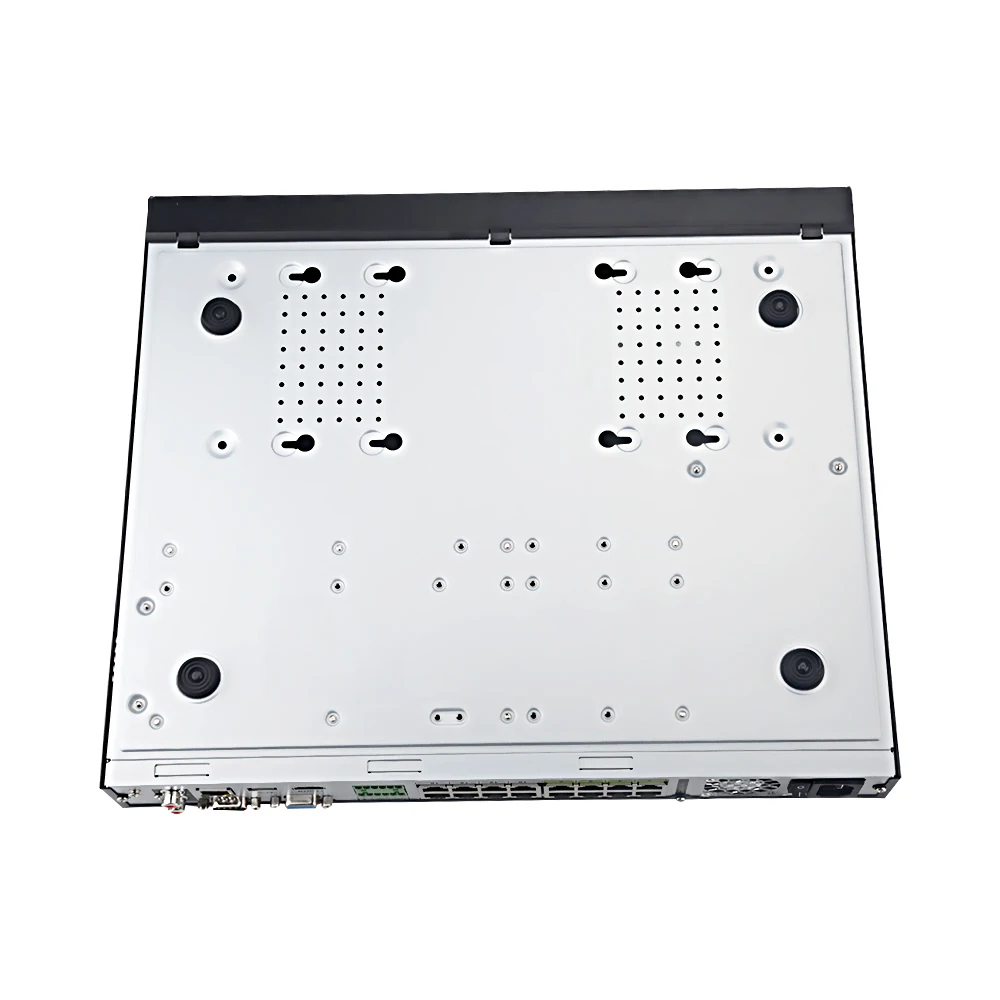

16/32 Channel 1U 16PoE 4K&H.265 Pro Network Video Recorder

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> 1-8 PoE Ports Support 800m ePoE & EoC

Model:  NVR5216/32-16P-4KS2E

1.System:
Main Processor:  Quad-core embedded processor
Operating System:  Embedded LINUX

2.Audio and Video:
IP Camera Input:  16/32 Channel
Two-way Talk:  1 Channel Input, 1 Channel Output, RCA

3.Display:
Interface:  1 HDMI, 1 VGA
Resolution:  HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,
 1280 × 720 , 1024 × 768
 VGA: 1920 × 1080 , 1280 × 1024,
 1280 × 720 , 1024 × 768
Decoding Capability:  4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display:  16CH: 1/4/8/9/16  32CH: 1/4/8/9/16/25/36
OSD:  Camera title, Time, Camera lock, Motion detection, Recording

4.Recording:
Compression:  Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution:  12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate:  16Kbps ~ 20Mbps Per Channel
Record Mode:  Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval:  1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

5.Video Detection and Alarm:
Trigger Events:  Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection:  Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input:  4 Channel
Relay Output:  2 Channel

6.Playback and Backup:
Sync Playback:  1/4/9/16
Search Mode:  Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function:  Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode:  USB Device/Network

7.Third-party Support:
Third-party Support:  Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

8.Network:
Interface:  1 RJ-45 Ports (10/100/1000Mbps)
PoE:  16 ports (IEEE802.3af/at)
 1-8 ports support ePoE & EoC
Network Function:  HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), Easy4IP
Max. User Access:  128 users
Smart Phone:  iPhone, iPad, Android
Interoperability:  ONVIF 2.4, SDK, CGI

9.Storage:
Internal HDD:  2 SATA III Ports, Up to 10 TB capacity for each HDD
eSATA:  N/A

10.Auxiliary Interface:
USB:  2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS232:  1 Port, for PC Communication and Keyboard
RS485:  1 Port, for PTZ control

11.Electrical:
Power Supply:  Single, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption:  NVR: <15.2W (Without HDD)
 PoE: Max 25.5W for single port
 130W total rated power, 80% control for protection
Fan:  Smart fan, automatically adjust running speed

12.Environmental:
Operating Conditions:  -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions:  -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

13.Construction:
Dimensions:  1U, 375mm x 326.5mm x 53mm ;
 (14.8" x 12.9" x 2.1")
Net Weight:  2.7kg (6.0 lb) (without HDD)
Gross Weight:  4kg (8.8 lb) (without HDD)

14.Certifications:
CE:  EN55032, EN55024, EN50130-4, EN60950-1
FCC:  Part 15 Subpart B, ANSI C63.4-2014
UL:  UL 60950-1

1. Original NVR NVR5216-16P-4KS2E or NVR5232-16P-4KS2E*1

2. Original Accessories
