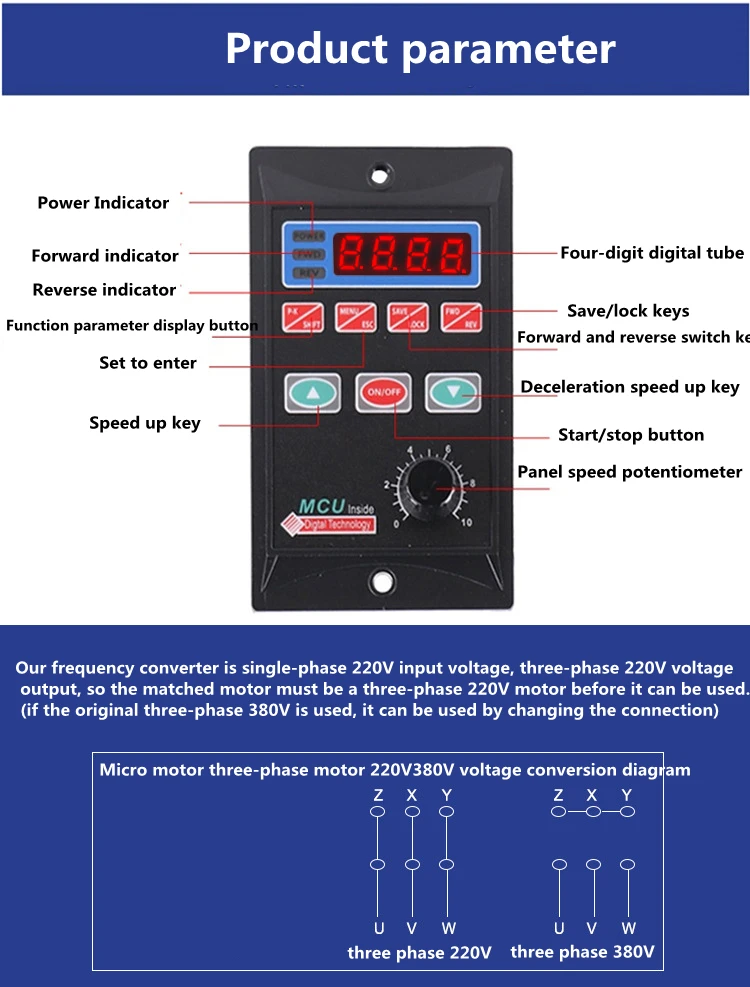

120W 200W 400W 750W Frequency converter MCU T13-200W-12-H T13-400W T13-750W Single-phase Power Supply Three-phase Motor Driver |
2 913,49 - 3 695,16 руб.
Новое поступление
Electrical Vibrating Motor 150W Single Phase AC 110V 3000rpm Aluminum Alloy Vibrators for VibrationTable | Обустройство дома
5 272,26 - 6 036,35 руб.

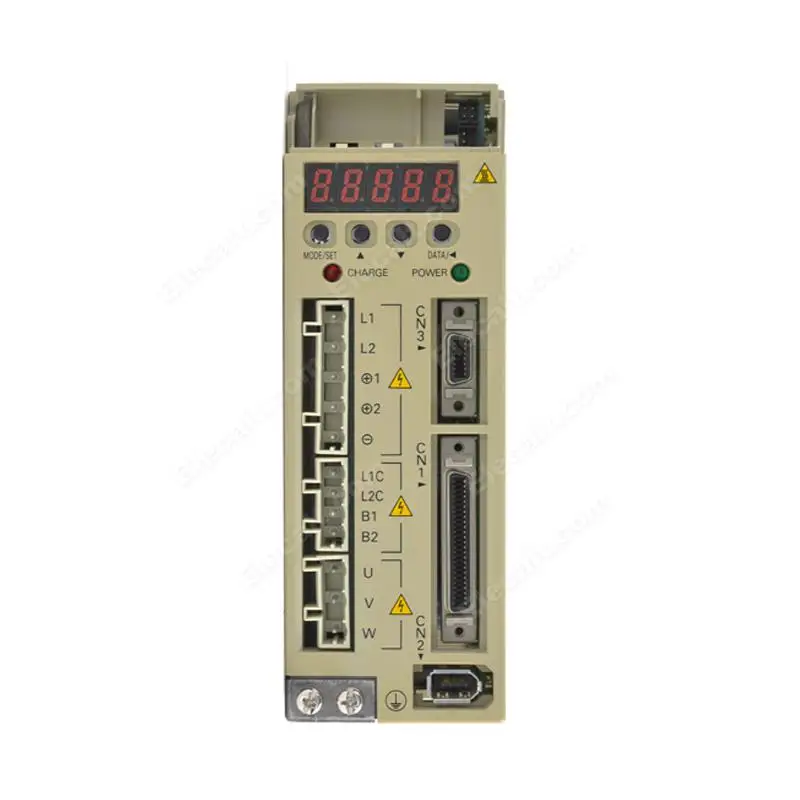

Servo Driver SGDM Series SGDM-01ADA SGDM-02ADA SGDM-04ADA SGDM-08ADA SGDM-10ADA SGDM-15ADA SGDM-20ADA SGDM-30ADA Original | Обустройство
16 680,19 - 63 140,23 руб.

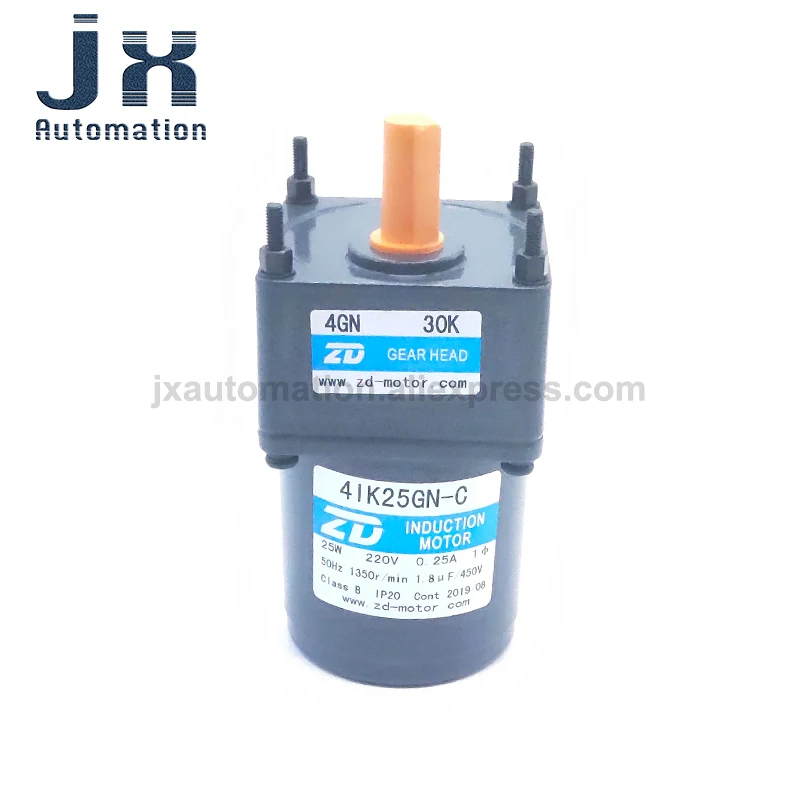

ZD 25W/220V AC Gear motor 4IK25RGN-C 4GN30K Fixed Speed Damping Motor | Обустройство дома
1 337,17 - 8 317,17 руб.
1Pcs 450V CBB60 Polypropylene Film Capacitor AC Motor For Fridge Washing Machine | Обустройство дома
106,21 - 218,53 руб.
Регулятор скорости для двигатели переменного тока 220 в 2000 Вт тиристорный
Мотор переменного тока 220V-240V 50Hz CW/CCW синхронный микроволновый виниловый

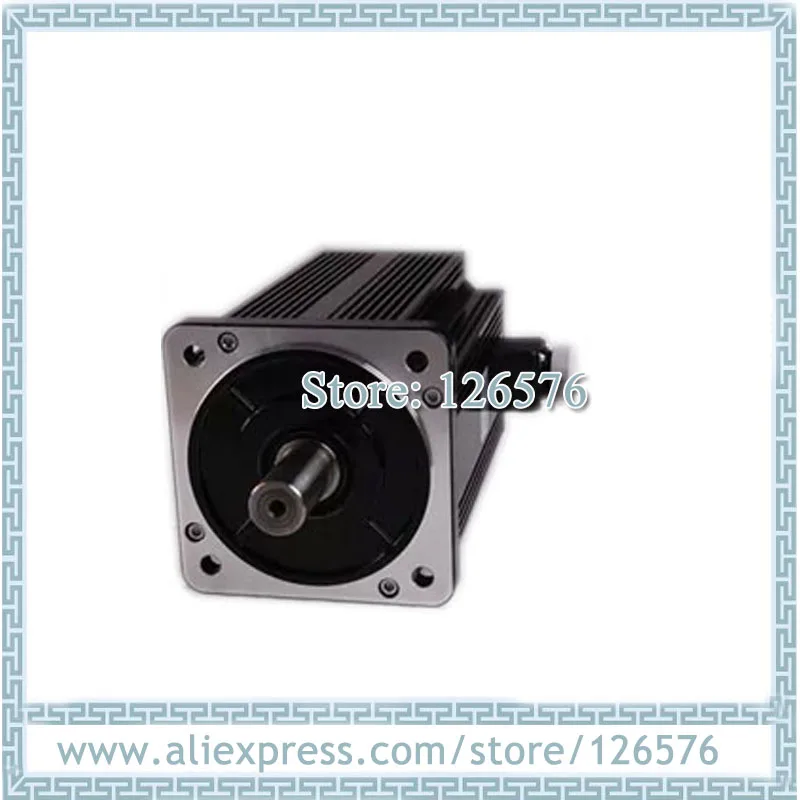

AC Servo motor 130ST-M15025 130ST Motor 15N.M 3.8KW 2500rpm AC220V | Обустройство дома
US $260.12 - 272.94
InGreat Store
Магазина InGreat Store работает с 20.01.2019. его рейтинг составлет 96.44 баллов из 100. В избранное добавили 1289 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 1659 наименований товаров, успешно доставлено 998 заказов. 253 покупателей оставили отзывы о продавце.
Характеристики
Delta 750W AC Servo Motor Driver Kit ASD-B2-0721-B ECMA-C20807RS ECMA-C20807SS Brake 0.75KW 2.39NM 3000rpm 80MM & 3m Cable |
История изменения цены
*Текущая стоимость 12 823,71 - 41 379,72 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 16285.42 руб. | 16611.96 руб. | 16448 руб. |
| Jan-18-2026 | 13208.19 руб. | 13472.77 руб. | 13340 руб. |
| Dec-18-2025 | 16029.25 руб. | 16350.15 руб. | 16189.5 руб. |
| Nov-18-2025 | 15901.26 руб. | 16219.34 руб. | 16060 руб. |
| Oct-18-2025 | 12695.84 руб. | 12949.40 руб. | 12822 руб. |
| Sep-18-2025 | 15644.93 руб. | 15957.59 руб. | 15800.5 руб. |
| Aug-18-2025 | 15516.91 руб. | 15826.6 руб. | 15671 руб. |
| Jul-18-2025 | 15388.73 руб. | 15696.71 руб. | 15542 руб. |
Описание товара
Please choose the model according to your needs :-)

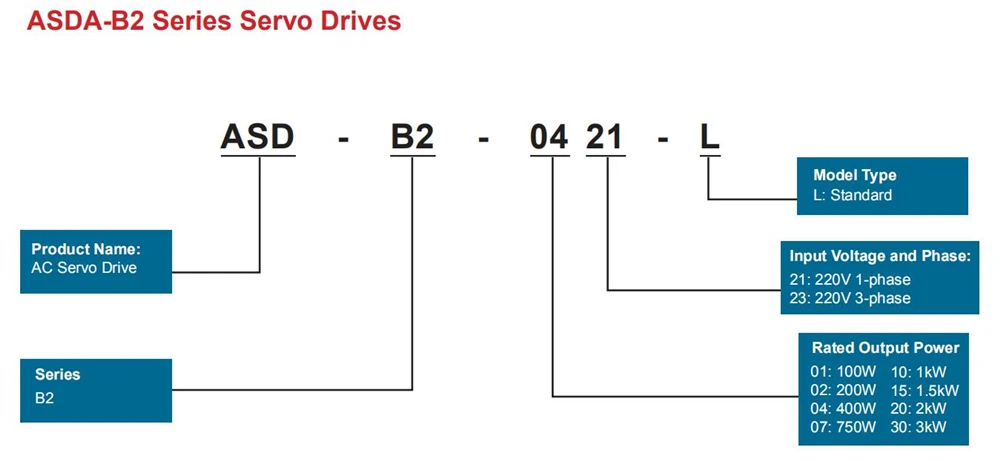

Driver only: only ASD-B2-0721-B Driver (without cable)
Motor only: only ECMA-C20807RS Motor (without cable)
Brake Motor only: only ECMA-C20807SS Motor (without cable)

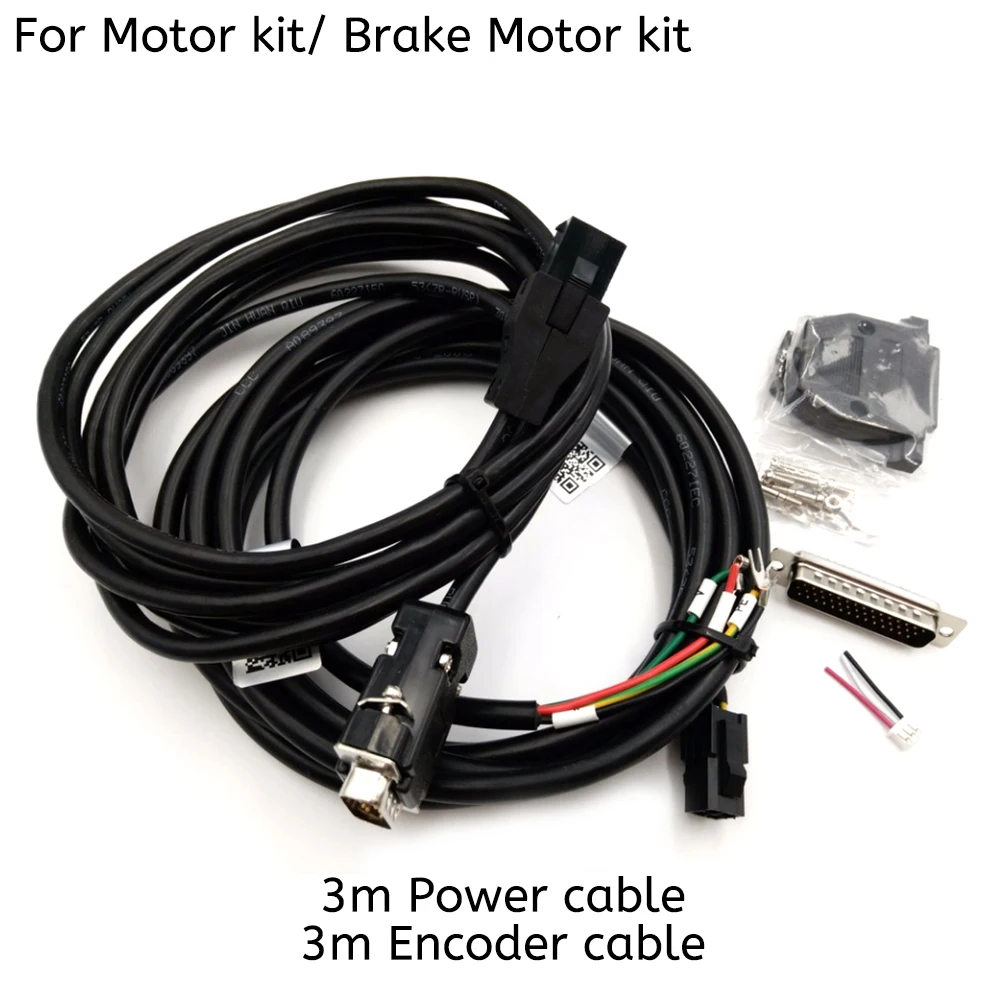

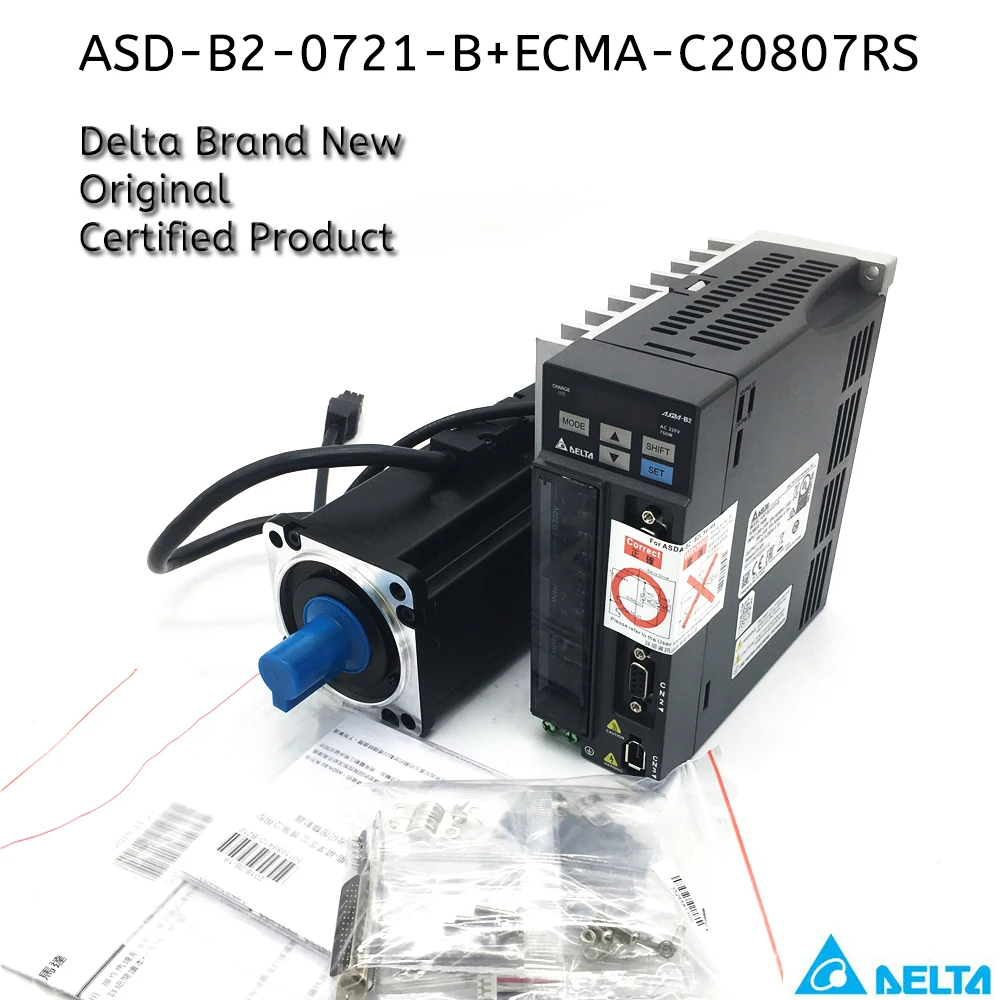

Motor kit: ASD-B2-0721-B+ECMA-C20807RS (with 3m power cable and 3m encoder cable)
Brake Motor kit: ASD-B2-0721-B+ECMA-C20807SS (with 3m power cable and 3m encoder cable)
To get the English manual, please click here.
positioning control and stable operation at lower speeds. ► Applying the encoder with a higher resolution can reduce the cogging torque and improve the motor's precision. 2500ppr of Torque Ripple 17-bit of Torque Ripple
► Outstanding performance with higher speed: Up to 550Hz frequency response and settling time is below 1ms.
► 10ms acceleration time from -3000r/min to 3000r/min when running without load.
Example: Servo motor frame sizes 60mm and 400W
(Speed and Torque mode canbe controlled by internal parameters or analog voltage.) ► High-speed differential command (up to 4Mpps) for high precision positioning control. ► Three notch fifilters are provided to suppress the mechanical resonance effificiently
and make the system operate more smoothly. ► Lead friction compensation parameter is specifified for the application of circular interpolation,
Z-axis motion and ball screw to reduce the loading of the controller. ► For bar feeders and other equipment requiring high torque output, motor protection parameters are offered to protect the mechanical system.

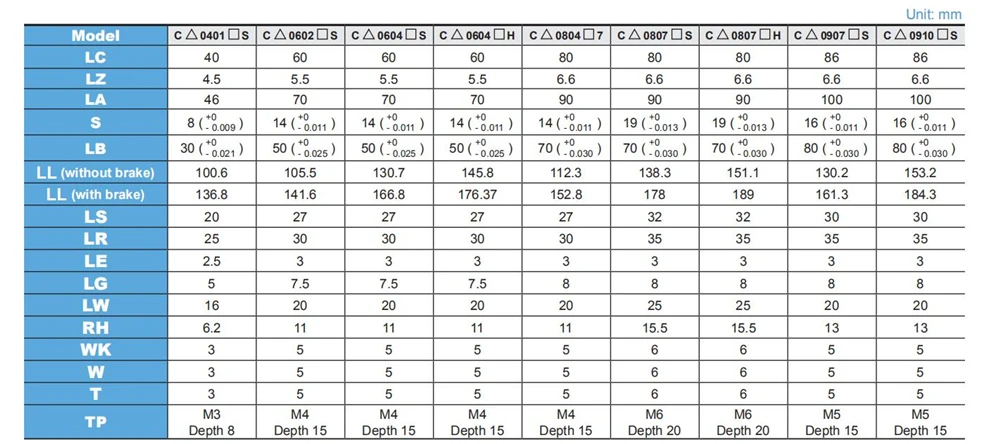

Motor Specifications

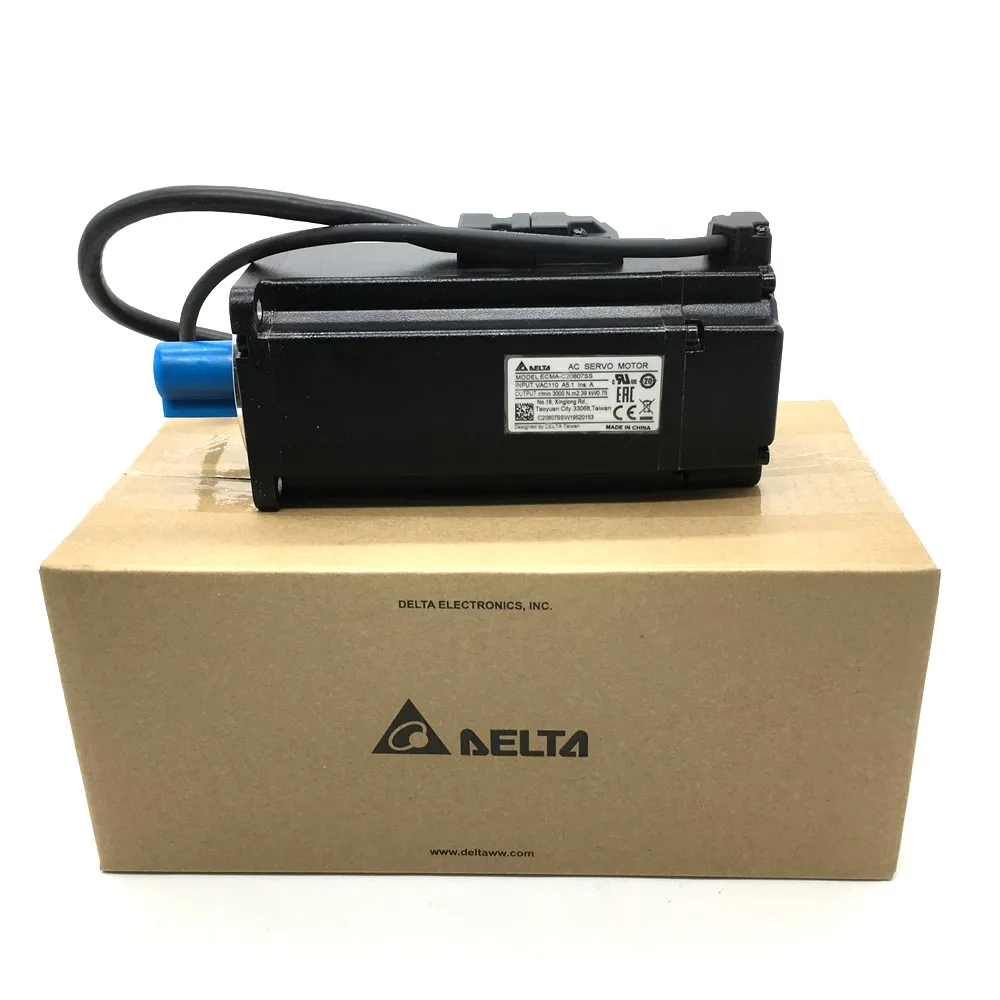

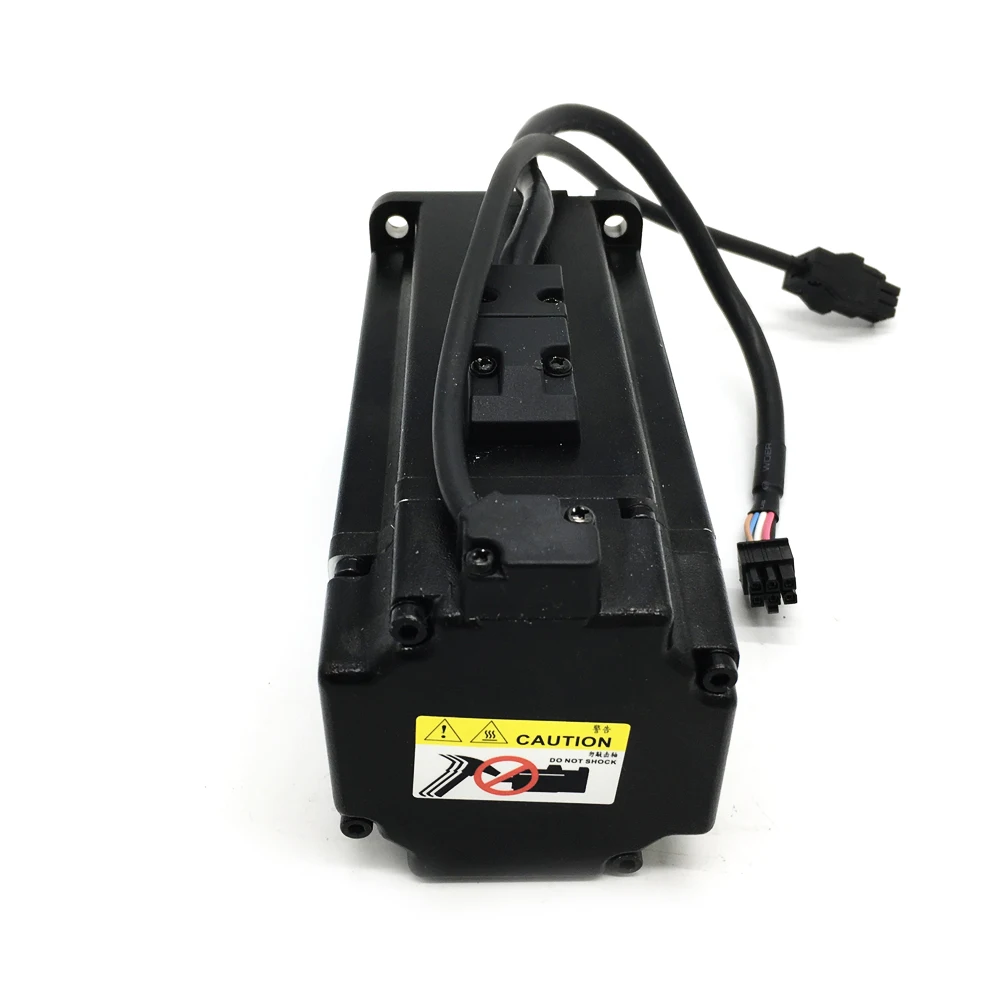

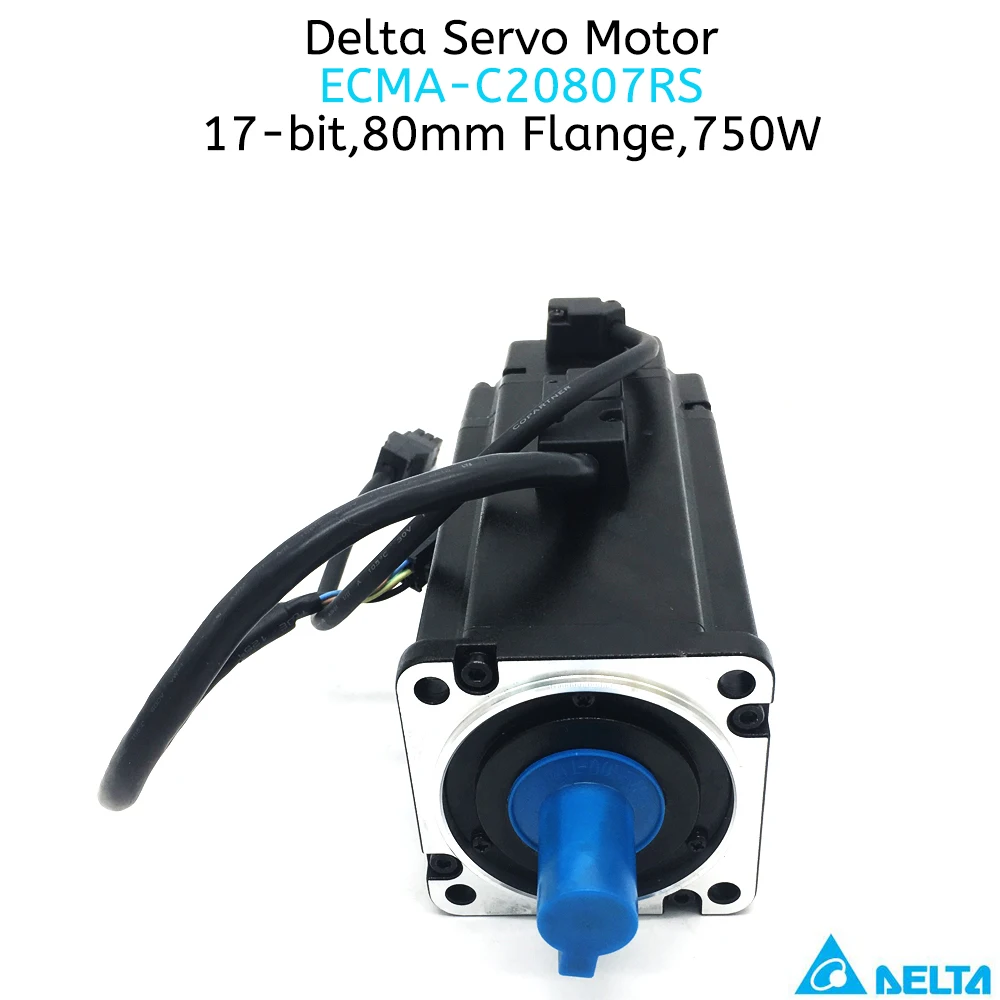

●Model: ECMA-C20807RS/ ECMA-C20807SS(with Brake)
●Power: 750 W
●Rated torque: 2.39 N.m
●Maximum torque: 7.16 N.m
●Rated speed: 3000 r/min
●Maximum speed: 5000 r/min
●Rated current: 5.1 A
●Maximum current: 15.3 A
●Power rating: 50.4 kW/s
●Insulation class: Class A (UL), Class B (CE)
●Max. radial shaft load: 245 N
●Max. thrust shaft load: 98 N
●Vibration capacity: 2.5 G

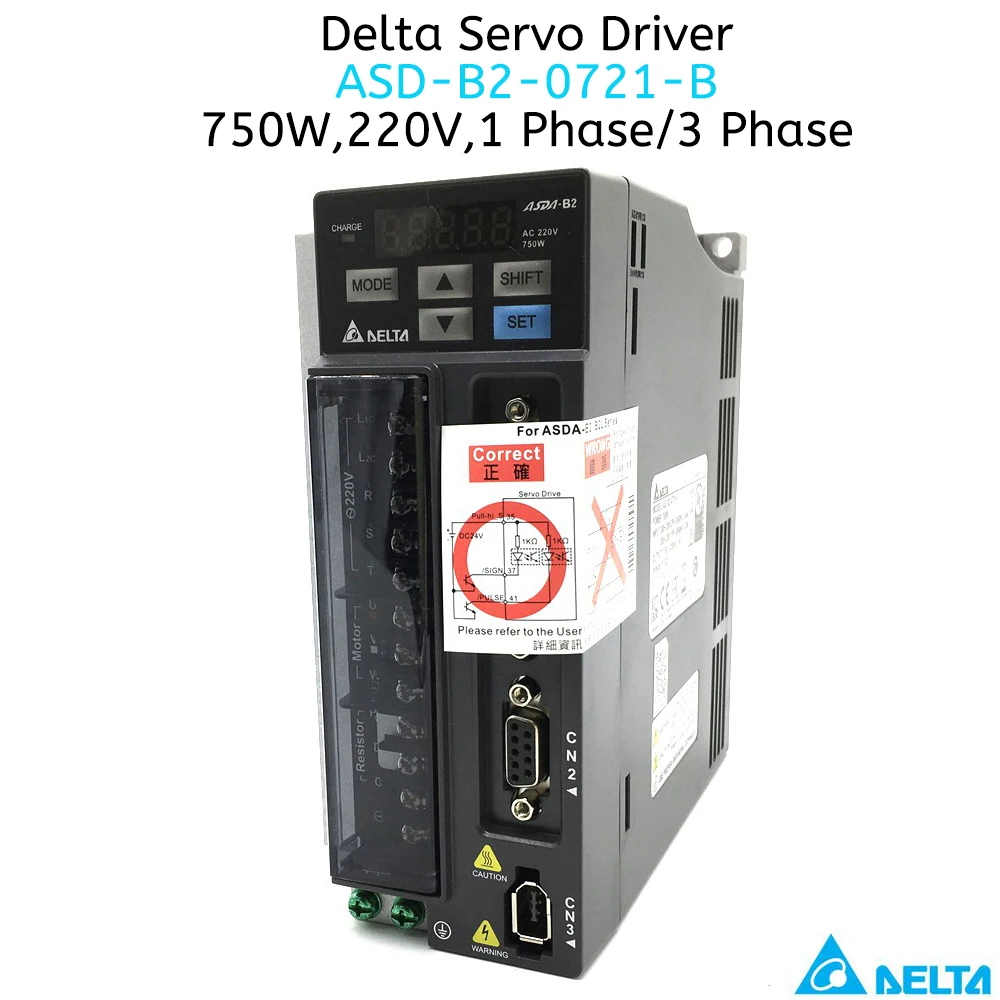

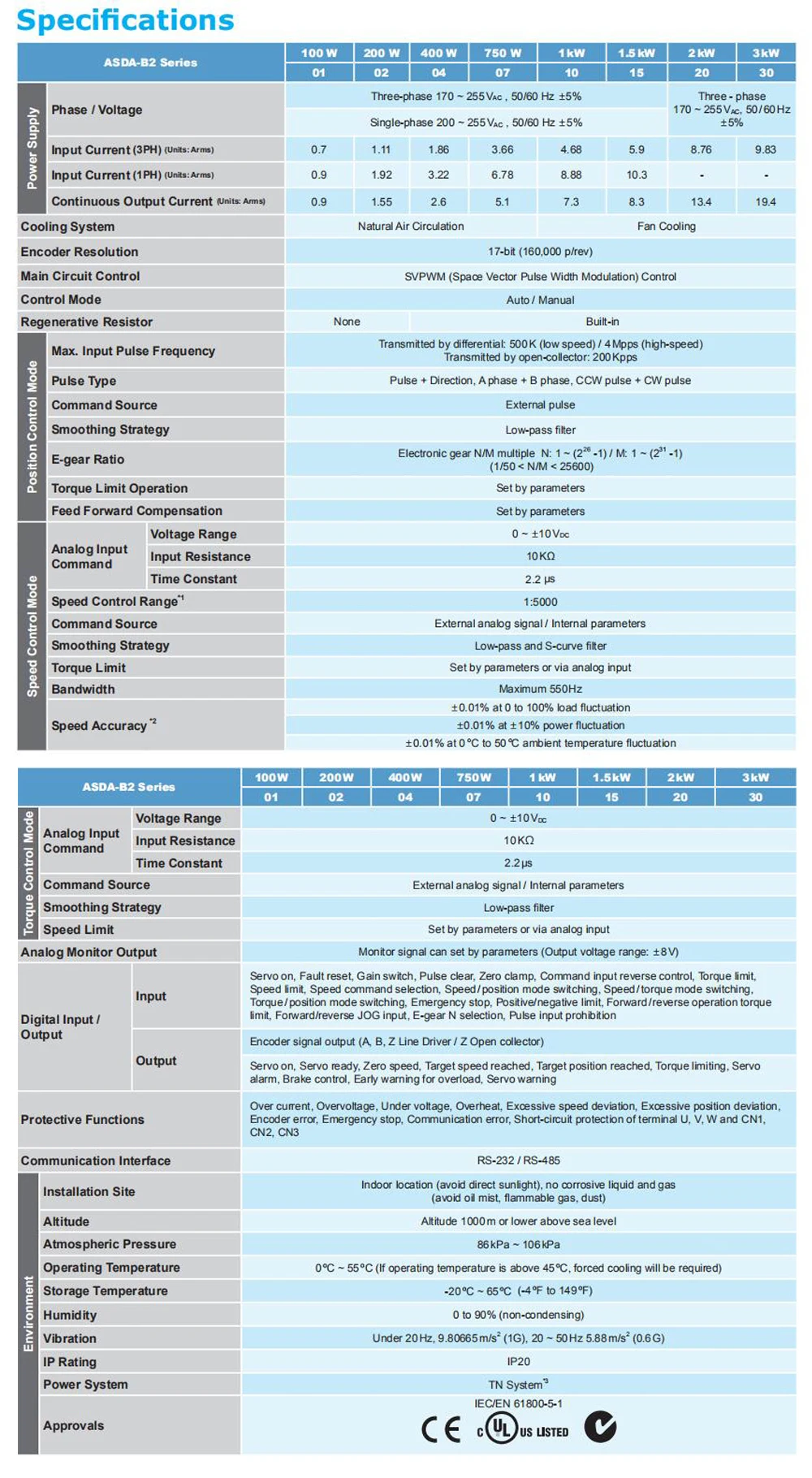

Driver Specifications:
●Power: 750 W
●Power Supply Phase / Voltage:
3-phase: 170 ~ 255 V AC, 50/60 Hz ±5%
Single-phase: 200 ~ 255 V AC, 50/60 Hz ±5%
●Input voltage: AC 220V, using single-phase/3 phase input
●Cooling System: Natural Air Circulation ●Communication Interface: RS-232 / RS-485 ●Encoder Resolution: 17-bit (160,000 p/rev)
●Main Circuit Control: SVPWM (Space Vector Pulse Width Modulation) Control
●Control Mode: Auto / Manual
●Regenerative Resistor: Built-in
●Receiving optical ruler and encoder signal support fully closed loop control
●Incremental rotary encoder 20-bit resolution, suitable for highprecision applications
●Providing high-speed communications networks
●The extension module can design a variety of functions to meetthe needs of customized products
●Builtin motion control function (powerful internal position mode)
●Electronic CAM function can set the optimal movement path of machinery;
Maximum planning 720 point position (for food processorsand sealers)
●Built-in Longmen Synchronous function (CNC wire Cutting GElectronic Industry machine)
