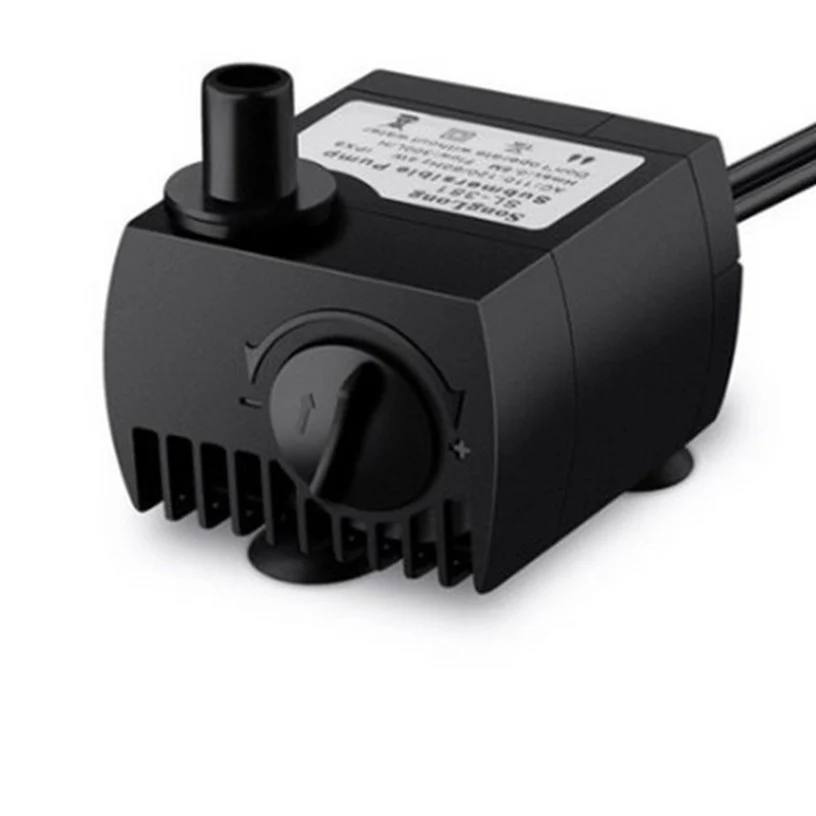

New Arrival 2PCS AC 220-240V/50Hz 0.8M 300L/H Submersible Water Pump High Quality Mini Electric Waterpump | Обустройство дома

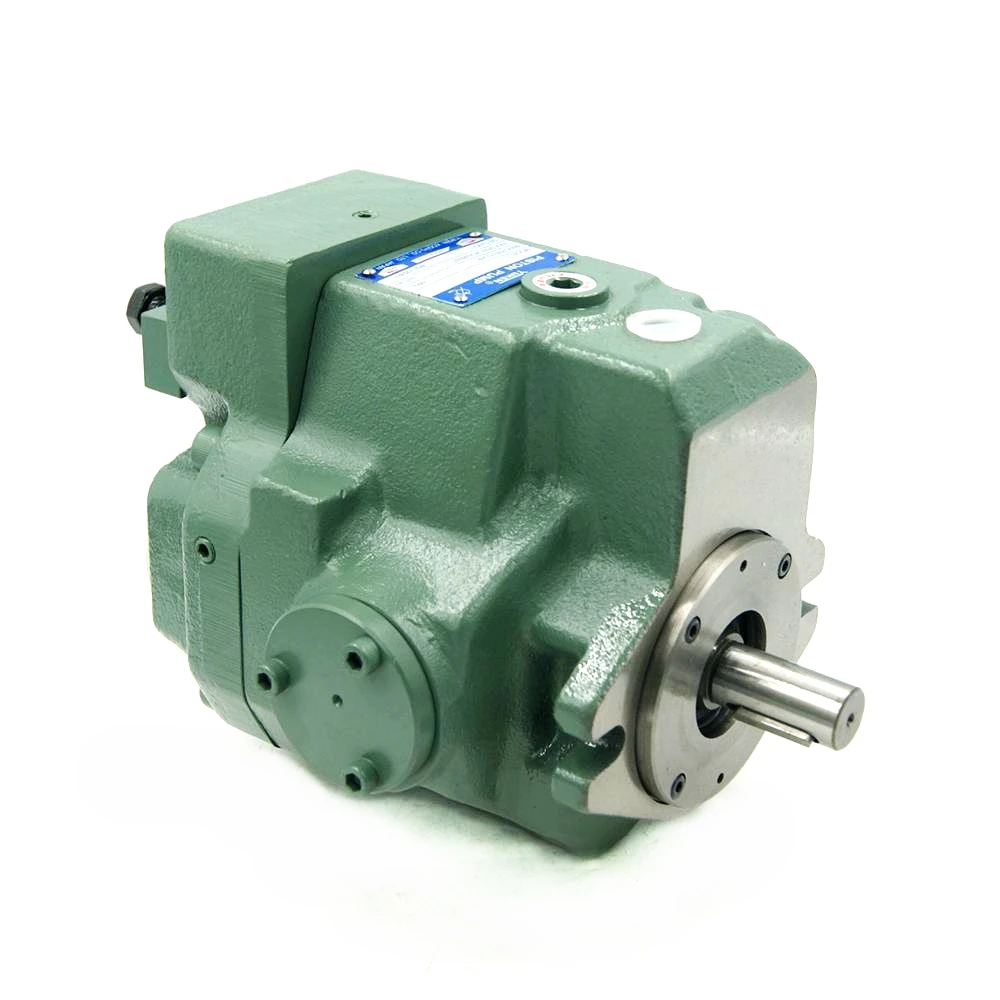

Поршневой насос A16 A16-FR01BK-32 A16-FR01CK-32 A16-FR01HK-32 Гидравлический поршневой с переменным
29 702,40 руб.
XD-020 rotary vane vacuum pumps suction pump machine motor 220v/380v | Обустройство дома
15 505,18 - 17 359,87 руб.
RUNZE Fluid Store
Магазина RUNZE Fluid Store работает с 27.12.2016. его рейтинг составлет 98.18 баллов из 100. В избранное добавили 379 покупателя. Средний рейтинг торваров продавца 4.9 в продаже представленно 248 наименований товаров, успешно доставлено 277 заказов. 55 покупателей оставили отзывы о продавце.
Характеристики

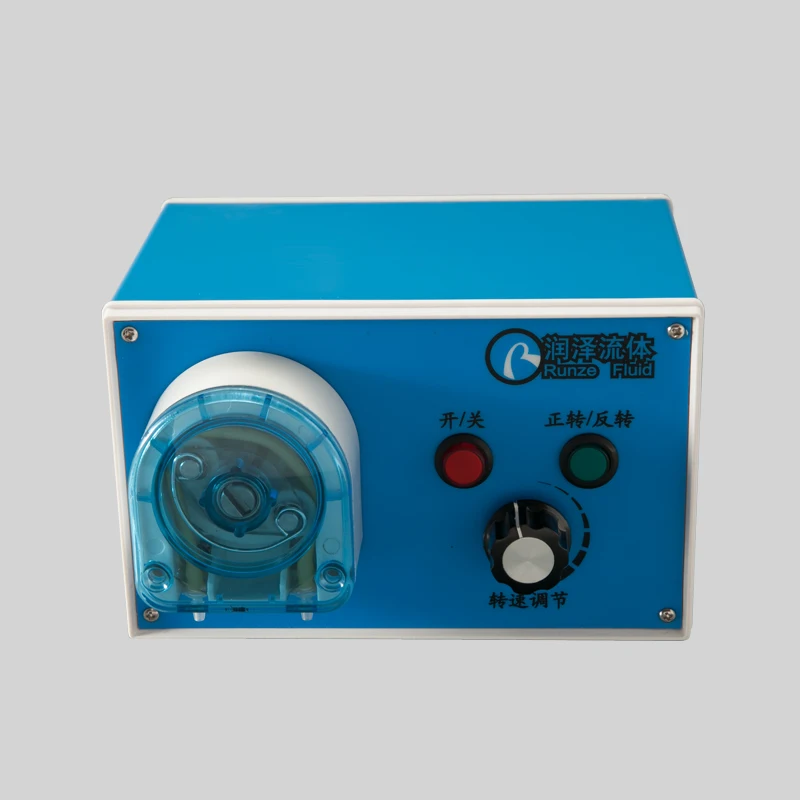

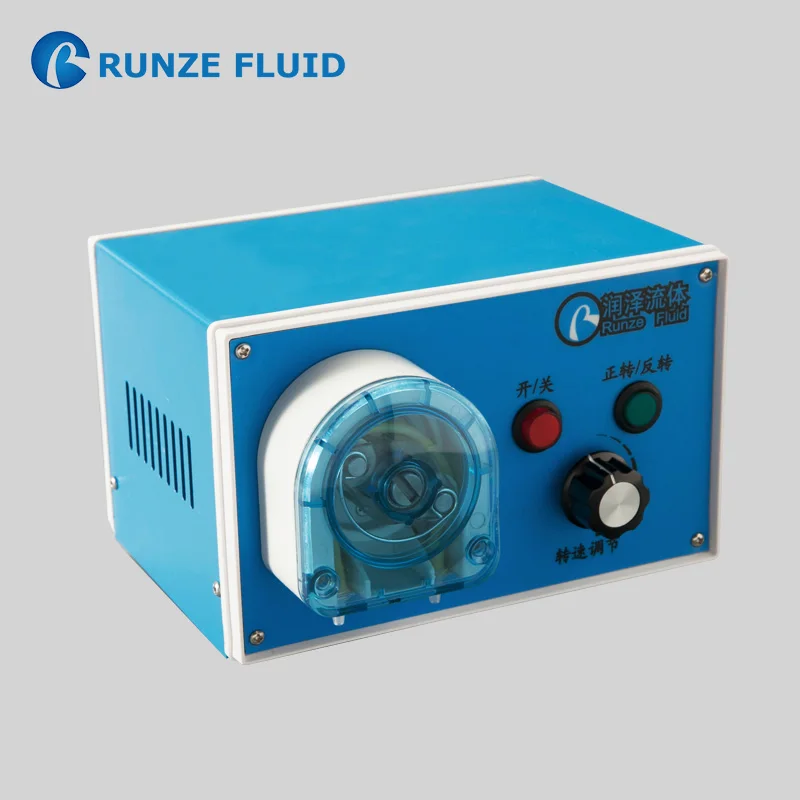

Micro Liquid Small Dosing Peristaltic Pumps Hand Operated Easy Operation Good Quality AC100-240V Power Supply EU US CN Plugs |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.40 руб. | 0.2 руб. | 0 руб. |
| Feb-18-2026 | 0.23 руб. | 0.42 руб. | 0 руб. |
| Jan-18-2026 | 0.10 руб. | 0.32 руб. | 0 руб. |
| Dec-18-2025 | 0.57 руб. | 0.82 руб. | 0 руб. |
| Nov-18-2025 | 0.49 руб. | 0.41 руб. | 0 руб. |
| Oct-18-2025 | 0.47 руб. | 0.20 руб. | 0 руб. |
| Sep-18-2025 | 0.15 руб. | 0.21 руб. | 0 руб. |
| Aug-18-2025 | 0.59 руб. | 0.5 руб. | 0 руб. |
| Jul-18-2025 | 0.77 руб. | 0.44 руб. | 0 руб. |
Описание товара
Product Features
- Compact structure
- MINEBEA Japan step motor for high reliability performance and long service life
- Motor speed and flow rate adjustable
- Flowing direction reversible
- Plug and play
- Single/double channel for option
- Works for micro flow liquid transfer
Tubing Replacement Steps
Dimension (unit:mm)
Technical Parameter
|
Model No. |
SR100-RZ1010-2D (single channel) SR100-RZ1010-2S (double channel) |
|

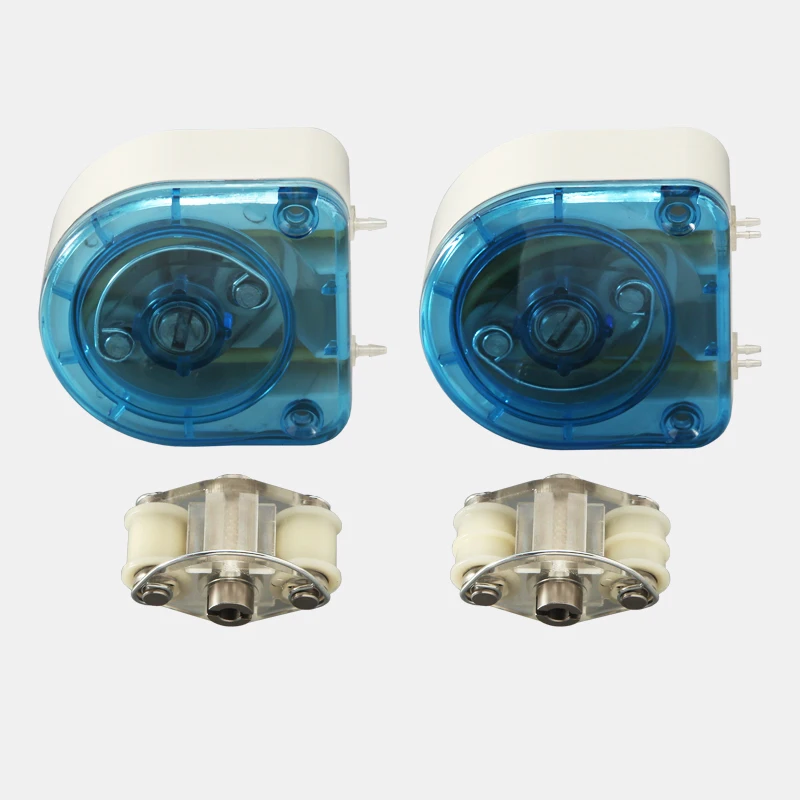

Roller |
2 rollers |
|
Roller material |
ABS |
|
Pump head material |
ABS+PC |
|
Housing material |
Metal |
|
Motor type |
NMB 42 step motor |
|
Motor speed |
1-400rpm |
|
Flow rate |
0-339ml/min (single channel) 0-120ml/min (double channel, each channel 0-60ml/min) |
|
Tube size |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
|
Tubing type |
Rubber/Silicon/Viton |
|

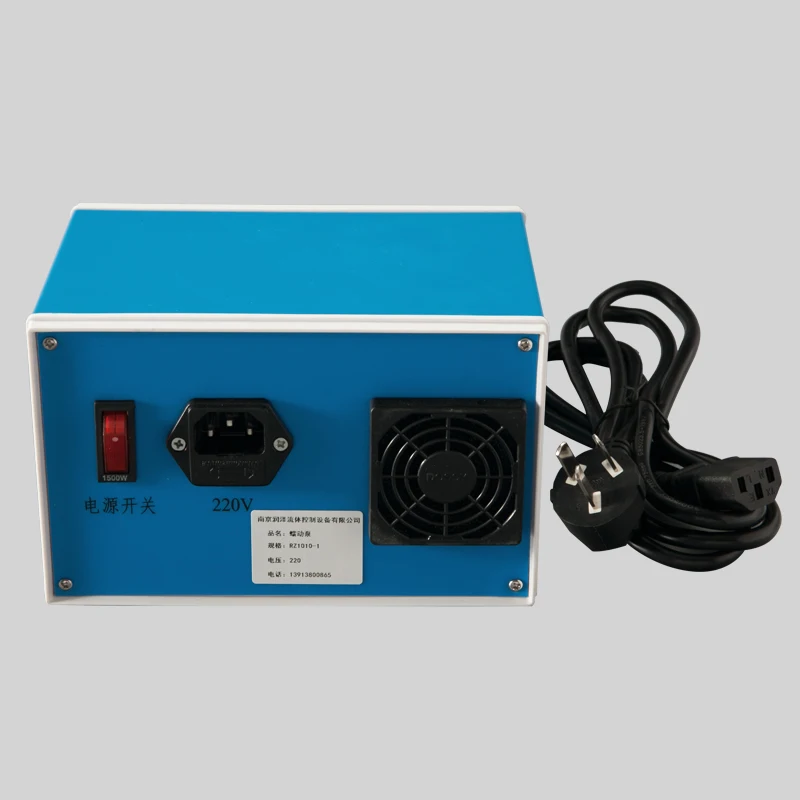

Power supply |
AC100-240V |
|

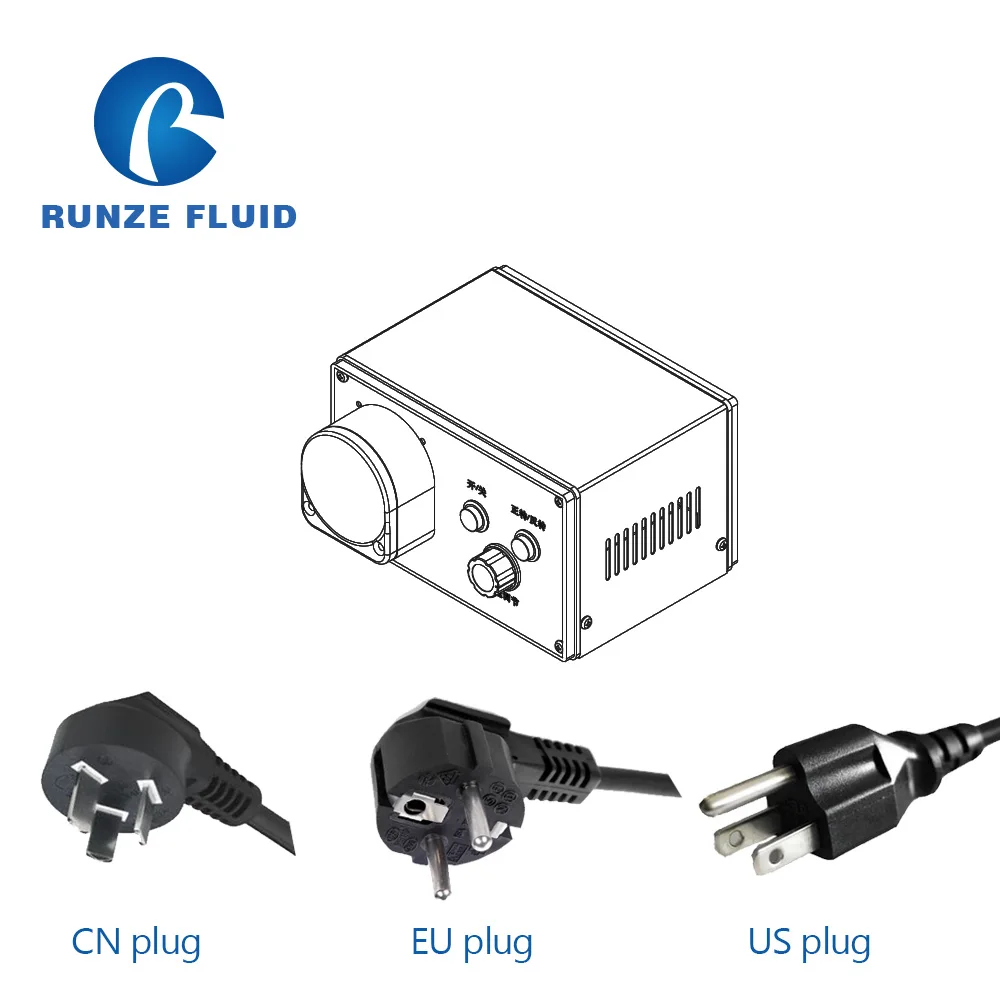

Power plug |
US/EU/CN plug for option |
|
Working temperature |
0-40℃ |
|
Working humidity |
＜80% relative humidity, non-condensing |
|
Working Max. DB |
65db |
|
Dimension |
178.5*169.2*120mm |
|
Net Weight |
2117g |
Flow Rate Table
|
Pump Tube |
Tube size (ID*WT: mm) |
SR100-RZ1010-2D (ml/min) |
SR100-RZ1010-2S ml/min) |
|
Rubber tube |
0.64*0.8 |
0-18 |
0-36 |
|
0.76*0.8 |
0-26 |
0-52 |
|
|
0.89*0.8 |
0-32 |
0-64 |
|
|
1.02*0.8 |
0-40 |
0-80 |
|
|
1.14*0.8 |
0-60 |
0-120 |
|
|
1.30*0.8 |
0-68 |
NA |
|
|
1.42*0.8 |
0-83 |
NA |
|
|
1.52*0.8 |
0-99 |
NA |
|
|
1.65*0.8 |
0-106 |
NA |
|
|
1.85*0.8 |
0-144 |
NA |
|
|
2.06*0.8 |
0-158 |
NA |
|
|
2.29*0.8 |
0-195 |
NA |
|
|
2.54*0.8 |
0-292 |
NA |
|
|
2.79*0.8 |
0-339 |
NA |
|
|
Silicon tube |
1*1 |
0-41 |
0-80 |
|
2*1 |
0-150 |
NA |
Application Note
1. These data are generated under room temperature without extra pressure, test media is water. Your final test results may vary depending on variables such as solvent, material and size of tubing, temperature, pressure, humidity, voltage, current etc.
2. SR100-RZ1010 peristaltic pump works for low viscosity liquid
3. SR100-RZ1010 peristaltic pump works for corrosive and non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. 2 pieces connectors are necessary when equip tube into pump head, or pump tube will get slide when working, we will standardly equip 12.5cm tubing and 2 pieces straight connectors for each pump of your order, if you need more tubes and connectors for spare use, you may order from our store.
5. SR100-RZ1010-2D needs 1 pieces 12.5cm pump tube and 2 pieces straight connectors
SR100-RZ1010-2S needs 2 pieces 12.5cm pump tube and 2 pieces duplex connectors
6. SR100-RZ1010 was designed with basic functions of ON/OFF, SPEED, CW/CCW control, so it is only used for liquid transfer, not workable for bottle filling which need to preset filling volume, filling time and interval time.
7. Please switch CW and CCW under low speed
Important Shopping Guidance
1. Unit price is for 1pcs SR100-RZ1010 peristaltic pump
2. Each pump will be well packed by thick foam and outer carton
3. SR100-RZ1010 was equipped step motor with magnetism, we only ship by TNT, UPS or FedEx with 4-7working days to most countries.
4. For customers from Russia and Kazakhstan, we will ship by CDEK or PONY or SPSR line.
5. For customers from Brazil, Chile and Argentina, please leave us your tax number when ordering which is required by shipping agent.
6. Please leave your correct receiver name, shipping address, zip code, phone number with country code for timely shipment.
7. For big orders, please contact customer service to get better price.
8. If you need group of items, please add them to your shopping cart, then forward the order but NOT pay it, we will combine shipping cost.
9. Any questions, please leave us messages, we will handle it ASAP, greatly appreciated if you can talk to us before open an issues.
10. Greatly appreciated if you could leave us 5 star positive feedbacks when satisfied with our products which will encourage us to do better in future cooperation.
