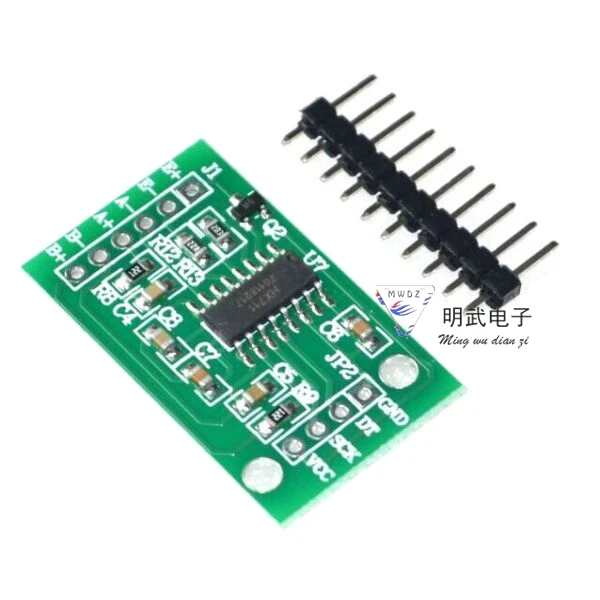

Датчик веса с двойным каналом и разрешением 24 бита Dual Channel HX711 для электронных весов на arduino с разъемом.

Датчик веса с двойным каналом и разрешением 24 бита Dual Channel HX711 для электронных весов на arduino разъемом.

Brand NameNoneModel NumberHX711Measurement unitpiece/piecesEach pack1

Unavailable in

Description

• 1.Two selectable differential input channels
• 2.On-chip active low noise PGA with selectable gain of 32, 64 and 128
• 3.On-chip power supply regulator for load-cell and ADC analog power supply
• 4.On-chip oscillator requiring no external component with optional external crystal
• 5.On-chip power-on-reset
• 6.Simple digital control and serial interface: pin-driven controls, no programming needed
• 7.Selectable 10SPS or 80SPS output data rate
• 8.Simultaneous 50 and 60Hz supply rejection
• 9.Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
• 10.Operation supply voltage range: 2.6 ~ 5.5V
• 11.Operating Temperature Range:-20 degree ~ +85 degree
