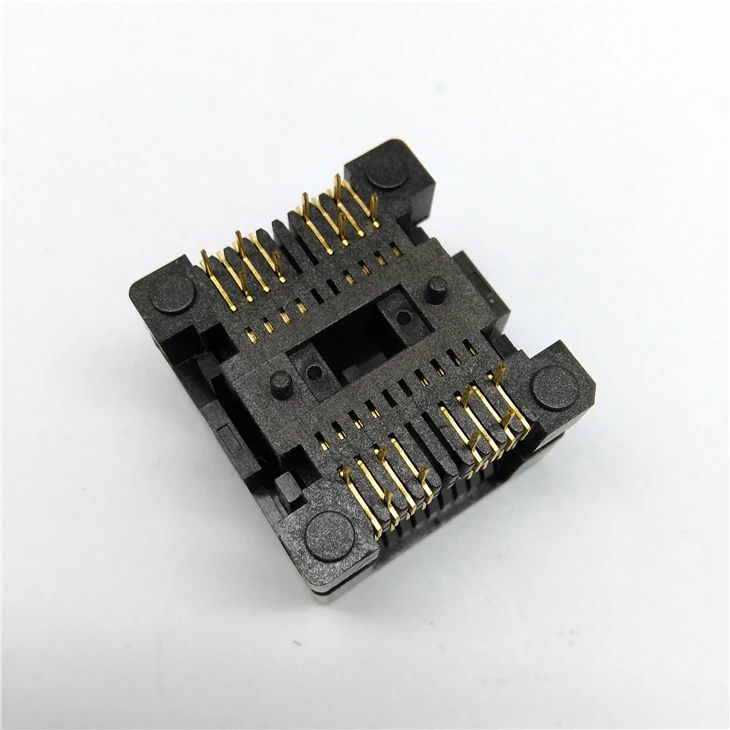

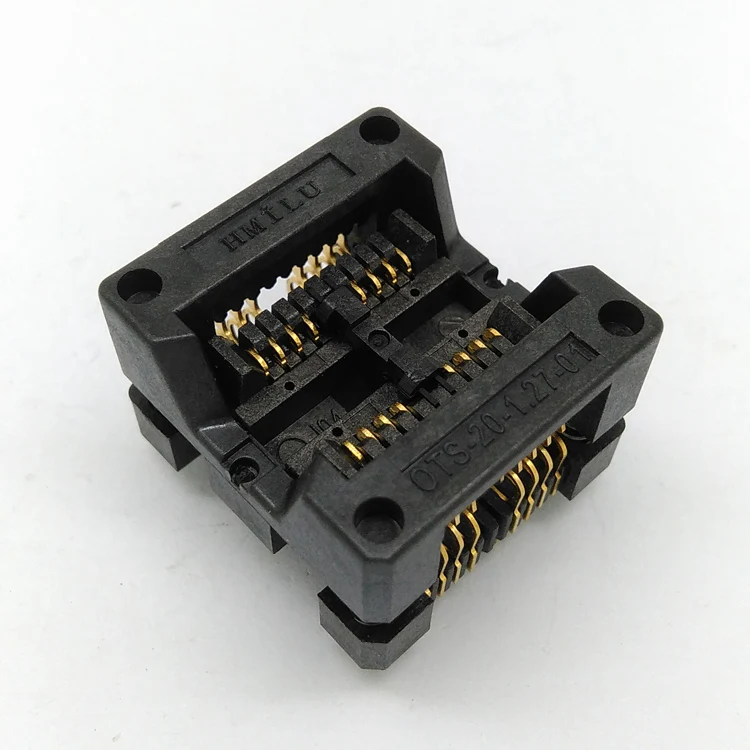

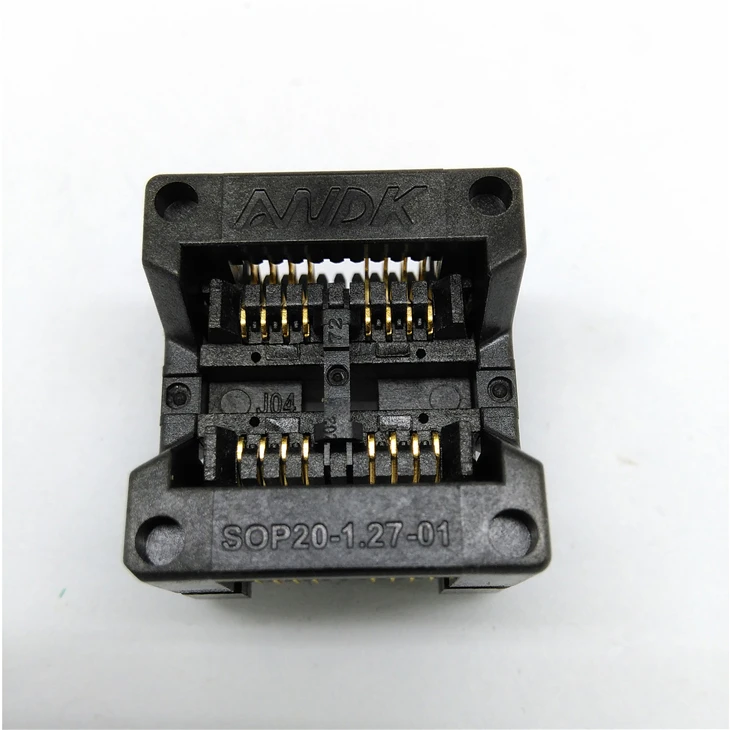

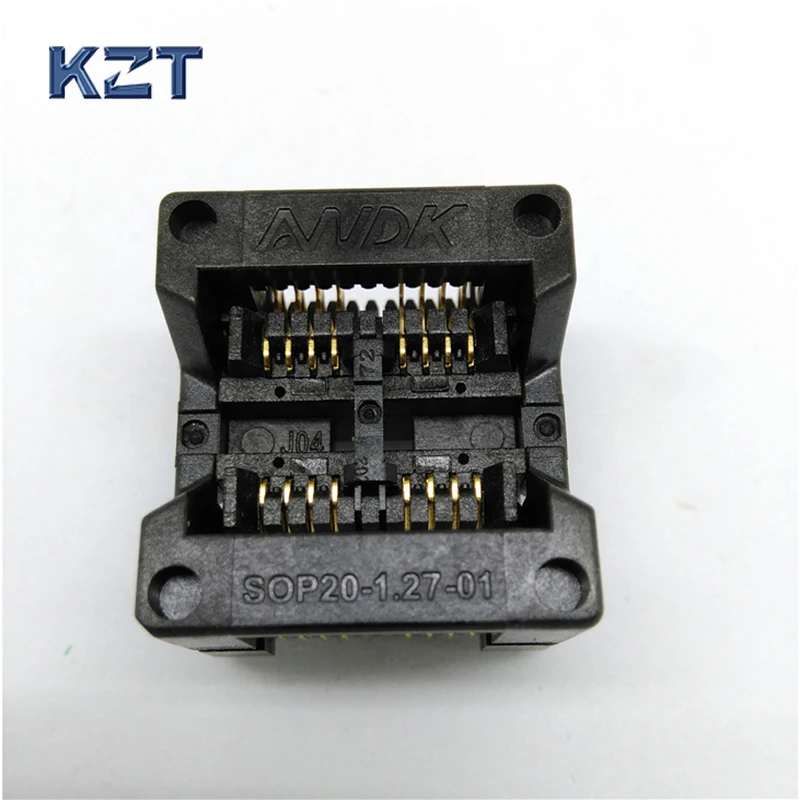

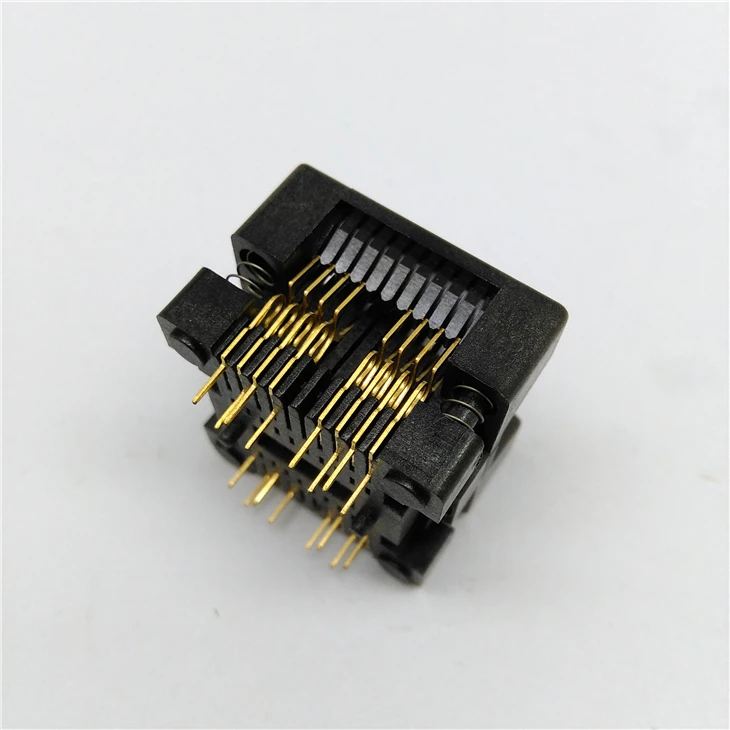

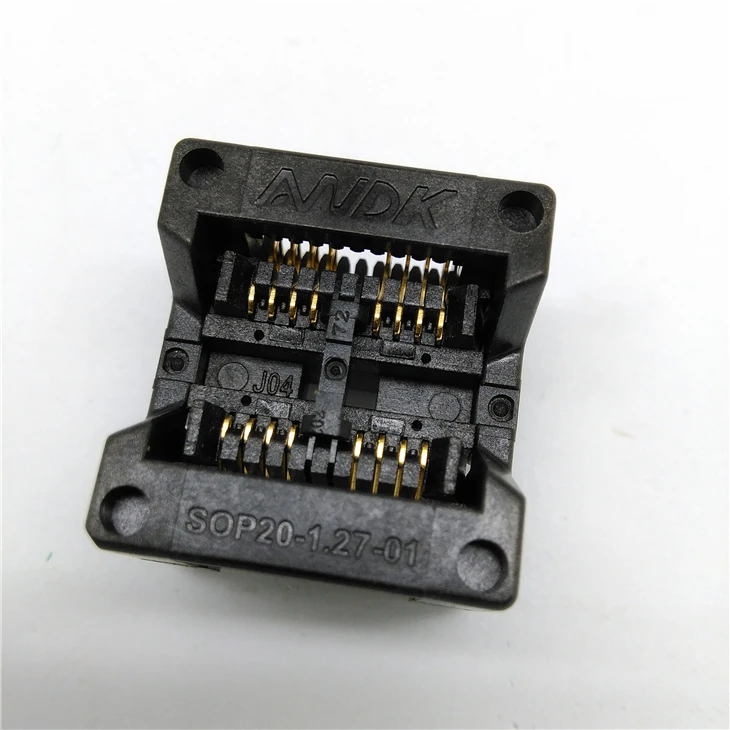

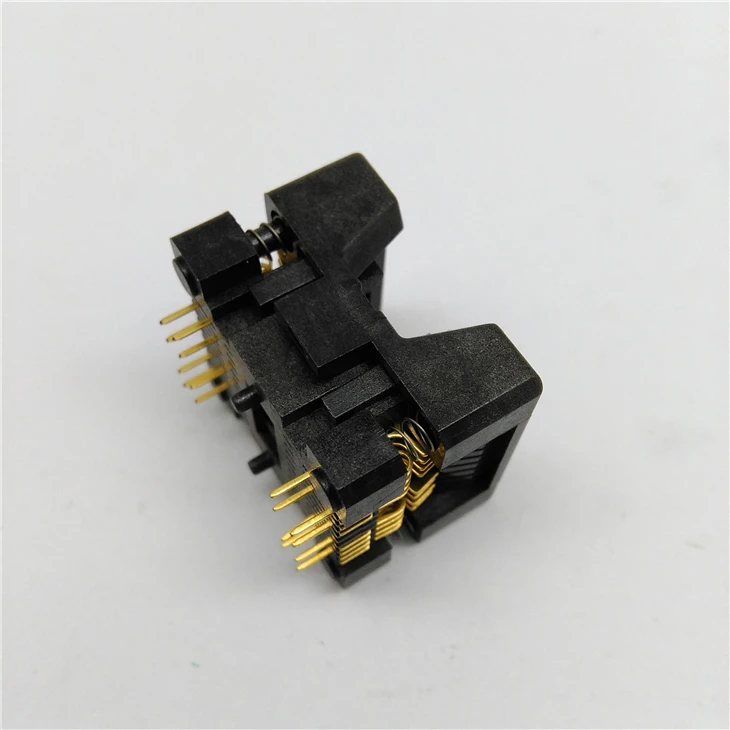

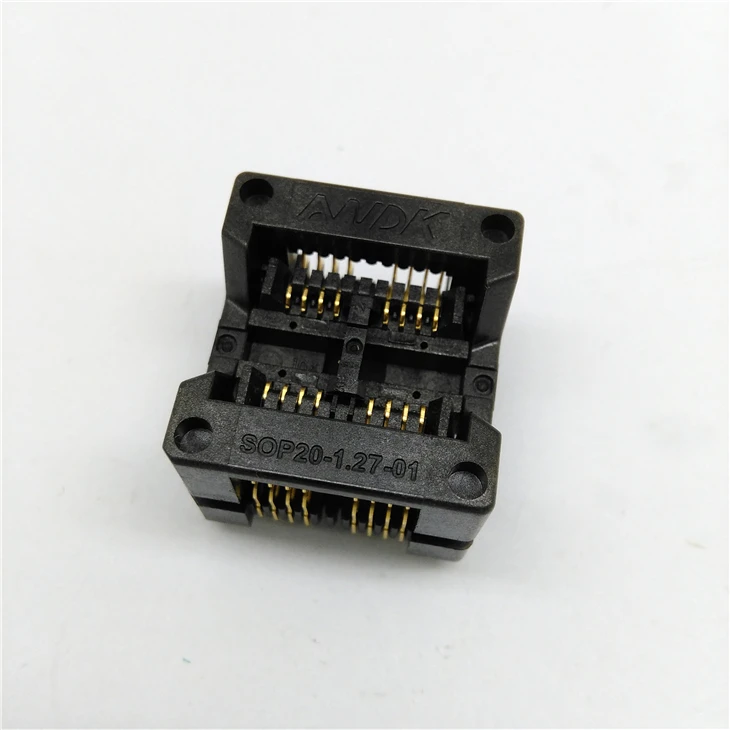

Double SOP8 Burn in Socket Chip Test Socket Test Socket

OTS-20-1.27-01

Product Feature :

1. Use double contact technology , contact more stable ,

2. The socket shell use special engineering plastic , high strength , long mechanical life ,

3. The shapnel use import beryllium copper , small impedance , good flexibility ,

4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance :

1. Material :

a) Insulator , PEI , PPS

b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

2. Electrical Specification :

a) Insulation resistance : 1000m Min,At DC 500V

b) Voltage resistance : voltage resistance

c) Contact resistance : exceed 25m

d) PIN feet stretch : 55g/PIN(Normal)

e) Mechanical life : 100000Times

f) Operating temperature : Minus 65 degree to 55 degress

g) Operating force : exceed 0.9kg Max

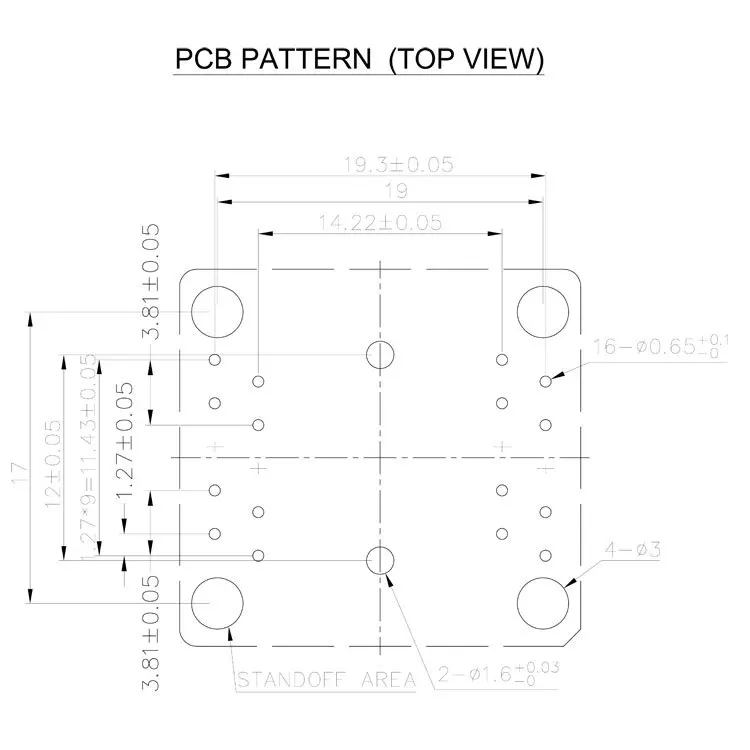

3. Specification and Dimension

a) Type : SOP 8*2 (20)-1.27 ( This type burn in socket can have 2 piece sop8 chips meanwhile )

b) Pin pitch : 1.27mm

c) Pin Count : 16

d) Applicable IC body width : 5.4mm

We\\\\\\\'re the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed . If you want batch purchase , please contact us for inquiry , we can offer you a cheaper price ! !

HMILU Thoery life: 5,000 times(Mechanical)
