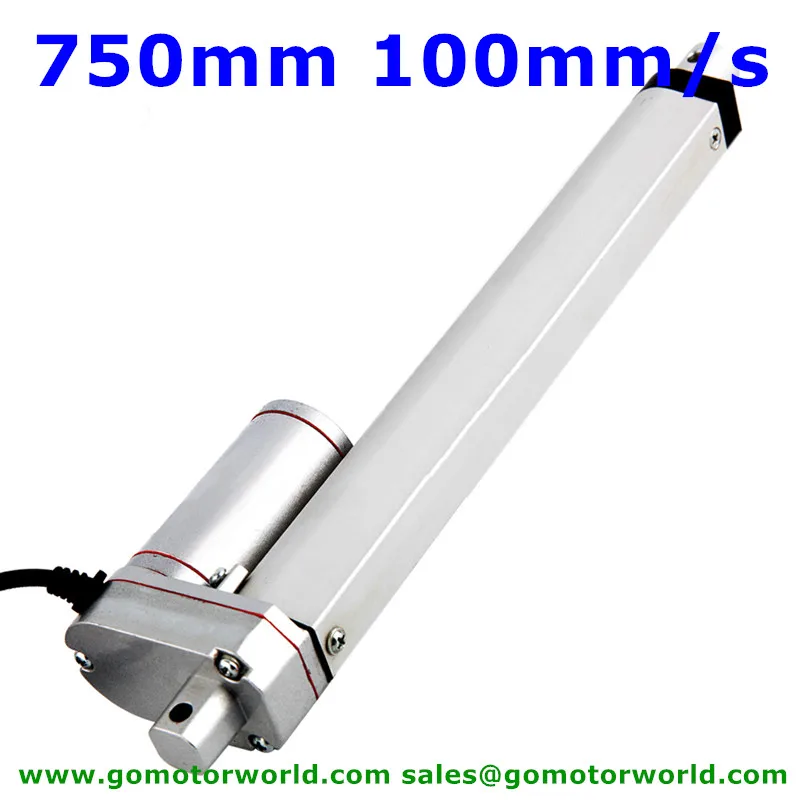

Micro Linear Actuator 12V 24V 750mm Stroke 1600N load 160mm/s speed linear actuator manufacturer | Обустройство дома
История изменения цены
*Текущая стоимость US $39.00 - 80.12 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 50.59 руб. | 51.88 руб. | 50.5 руб. |
| Jul-18-2025 | 40.2 руб. | 41.39 руб. | 40.5 руб. |
| Jun-18-2025 | 49.79 руб. | 50.71 руб. | 49.5 руб. |
| May-18-2025 | 48.76 руб. | 49.76 руб. | 48.5 руб. |
| Apr-18-2025 | 39.83 руб. | 40.87 руб. | 39.5 руб. |
| Mar-18-2025 | 48.87 руб. | 49.44 руб. | 48.5 руб. |
| Feb-18-2025 | 47.41 руб. | 48.91 руб. | 47.5 руб. |
| Jan-18-2025 | 47.57 руб. | 48.44 руб. | 47.5 руб. |
Описание товара
Spec:

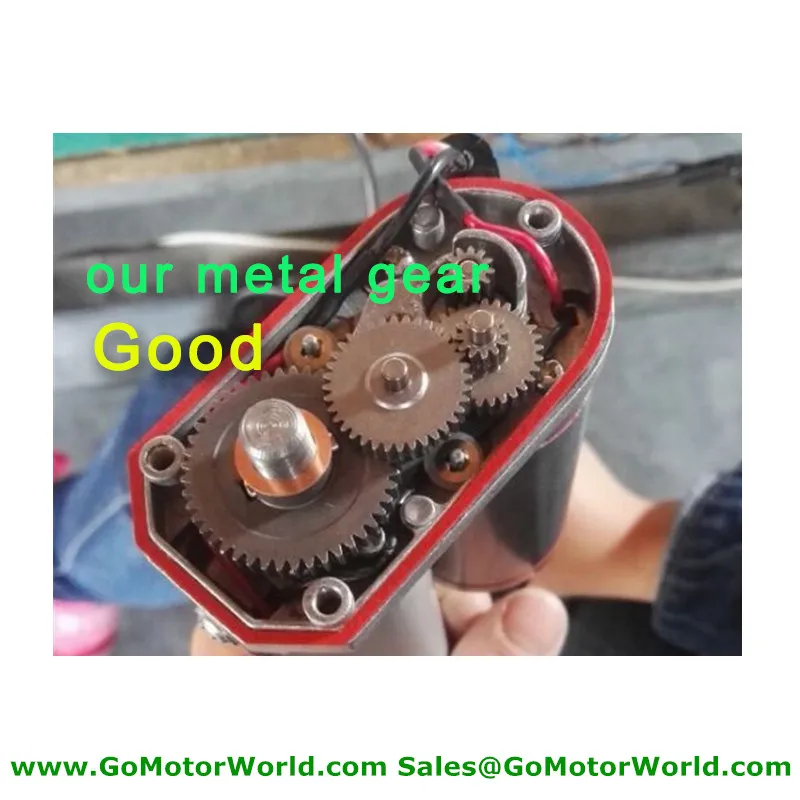

LA10 is Mirco and well design linear actuator,Width 74mm/2.96inch,Height 40mm/1.6inch,Length refers to stroke.So it is good idea for project where space is limited. The max speed is 160mm/s 6.4inch/second. The gear is made of by metal material,steady and strongger.
The Normal IP protection is IP54,for customized IP class,please contact with sales before ordering. The LA10 mini linear actuator can lift max 1600N/160KG/352LBS weight,with max stroke 2000MM/80INCH. The normal retracted length between center of head and rear mounting hole is 105MM+stroke length,the normal extended length from center of head and rear mounting hole is 105MM+2*stroke length. For customized retracted and extended length,please contact with our online engineer service. If you have DC power 12V or 24V,you can change + and - cable by yourself or a switch,to make motor forward and reverse and linear actuator will retract or extend.If you use AC power,110V-240V,you need a adapter to change 110-240VAC into 12V or 24V firstly.
LA10 is compact,highly rated and intelligent linear actuator,it can be with hall sensor,encoder,potentiometer,overload protection,retract or extend signal feedback,free drive when no power and other advanced function. It can be designed to meet your customized requirements. The mini actuator is commonly found in marine, automotive,Outdoor,Agriculture,Track,Robotics and home automation. We also provide adapter,control boxes,wire and wireless switch,mounting brackets and other accessories.
1. Type LA10
2. Input 12V 24V DC
2. Load/Thrust/Force capacity Max 1600N
3. Speed Max 160mm/s
4. Limited switch With
5. Duty cycle 25%
6. House material metal
7. Inner tube material Aluminum Alloy
8. Color Silver
9. Operation temperature -26 ~ +65 degree
10 Stroke Max 1000mm
Drawing
1. Retracted length/From center of mounting holes=Lmin=130+Stroke=130+750=880mm=35.2inch
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop by itself.
2. Stroke means the movement length of linear actuator.
3. Extended length/From center of mounting holes
Lmax=Lmin+Stroke=880+750=1630mm=65.2inch
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop by itself.
Built limited switch prevents over-retracting and over extending,safety.
Questions
1 Can you supply customized installation hole and Lmin size? Yes
2 Can you supply black color? Yes
3 For limited switch Is it adjustable? Sorry,it is not.
4 Can you provide control unit or adapter or hand switch or remote? Yes.
5 Can you provide special cable connector? Yes.
6 Do you have bracket and rubber protector? Yes
7 For head connector,I want U type and drill customized hole. Yes
8 Can you add hall sensor,encoder or potentiometer? Yes.
8 We supply free spare parts for after-sales-service as we are manufacturer.
Similar product link
Other product link
What can we do

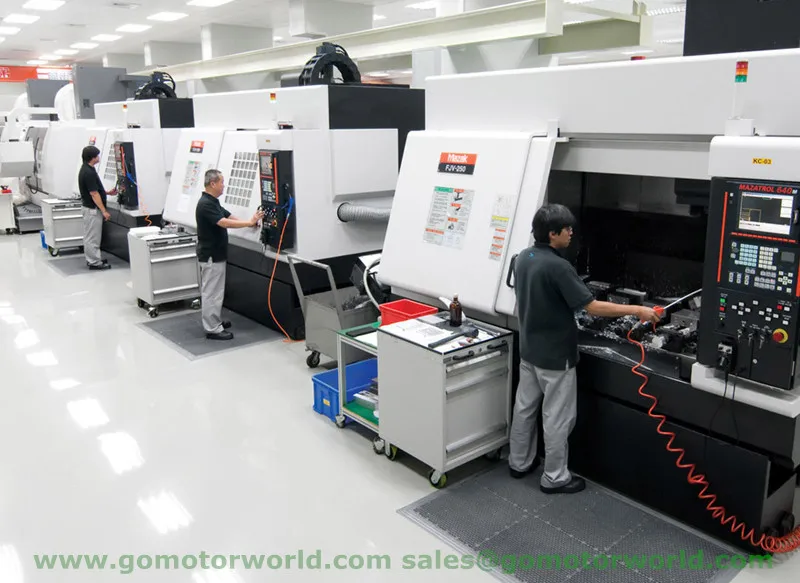

15 years ago,we have started to design and produce linear actuator,Control system,lifting column and accessories. We are located in Shanghai,one of the biggest and most famous city in China. We have 2 factory,35 engineers and 220 workers. Our team manufacture linear actuator,lifting columns,tv lift,standing up office desk,control system,accessories and ship globally. The linear actuators are 6V,12V or 24VDC power,with load range from 30N/3KG/6.6LBS to 60000N/6000KG/13200LBS,stroke variety from 10mm/0.4inch to 2500mm/100inch,speed options from 3mm/second to 230mm/second.
We are manufactuer,not trader or wholesaler or retailer,we focus on linear actuator. For advanced linear actuators,engineers can install hall sensor,encoder,potentiometer,overload protection,over-voltage protection,over heating protection,reed switch,free drive when no power,only push,no pull and other customized requirements. The spare parts are from experienced and professional supplier,we test 100% of them before and after assembling. In the past 15 years,we have been working hard for perfect quality linear actuator to customer.
Warranty
1. If you do not receive product, we will full refund you.
2. If the product has quality problem, we will full refund you.
3. If the product is damaged by express company, we will full refund you.
Payment
1. We accept paypal, Escrow,Western union and bank transfer.
Shipping
1. Order will be delivered soon after confirmation.
2. Please make sure your address and phone is correct.
Thanks for visiting my store. Any help,please contact with engineer sales.
Please do not leave negative feedback,as it may be not our problem. For any question,please contact with us and we will try our best to solve it.
