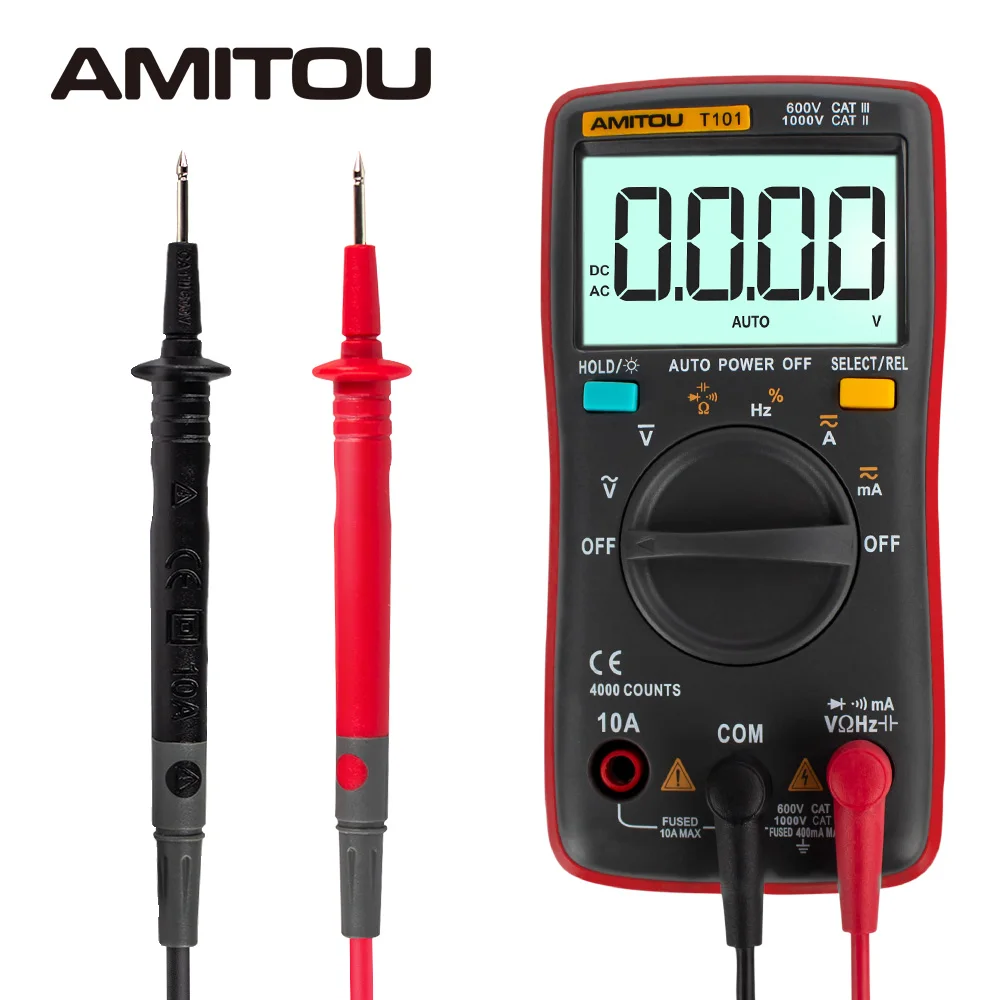

AMITOU T101 Portable Digital Multimeter 4000 Counts LCD Display Auto Range AC/DC Voltage Ammeter With Storage Bag | Инструменты

AMITOU T101 Portable Digital Multimeter 4000 Counts LCD Display Auto Range AC/DC Voltage Ammeter With Storage Bag | Инструменты

AMITOU T101 Portable Digital Multimeter LCD Display 4000 Counts Retroilluminazione AC/DC Ammeter Voltmeter Ohm Meter Tester

Features:

• 100% brand new and high quality!
• Auto ranges.
• 550V protection in resistance, capacitance and frequency ranges.

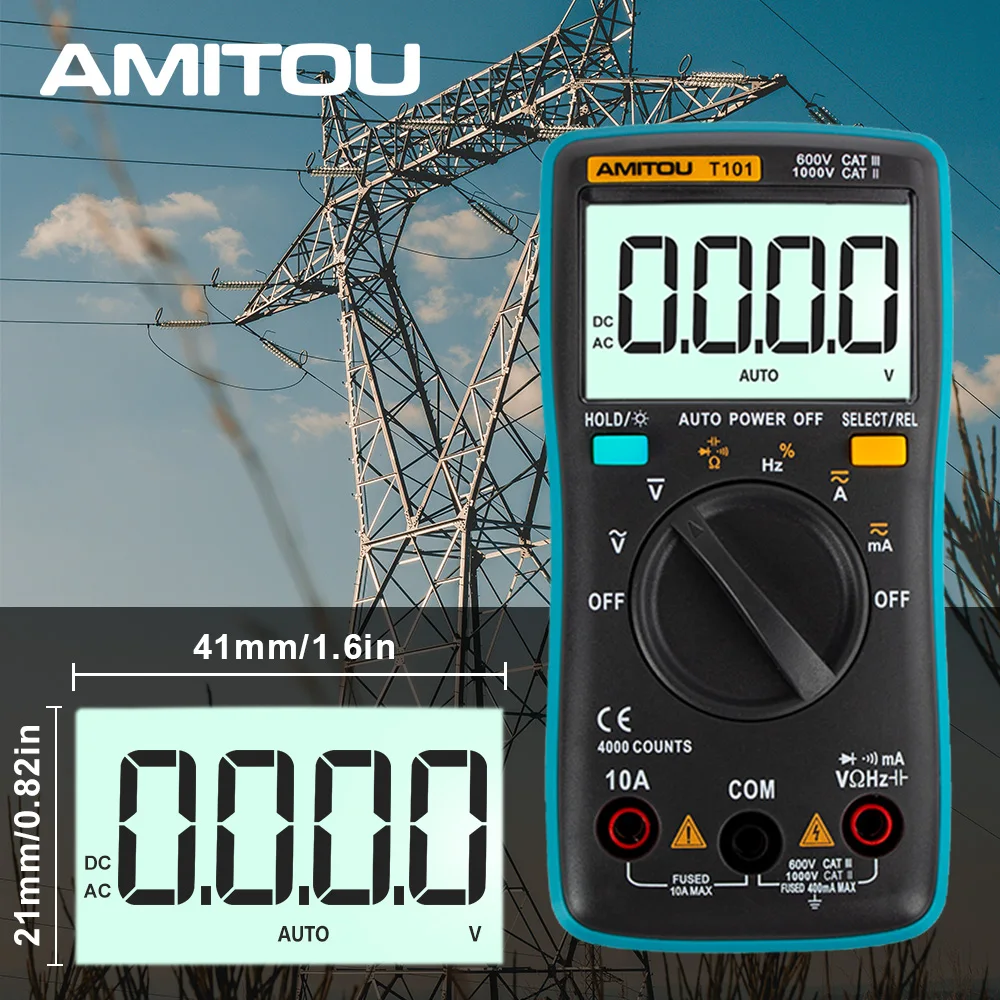

• Large LCD display, MAX display 4000 counts.
• Sample rate:3 times per second.
• 10A high current and low current measurement.
• Auto power off.
• Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, continuity testing, frequency and duty cycle.

Descriptions:

• Capacitance: 4nF(plusmn5.0%+4),40nF(plusmn2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(plusmn3.5%+4)
• DC volts: 400mV/4V/40V(plusmn0.5%+4),400V/600V(plusmn0.8%+4)
• AC volts: 400mV(plusmn1.5%+4), 4V/40V/400V(plusmn1.2%+4),600V(plusmn1.5%+4)
• DC current: 40mA/400mA(plusmn1.0%+4),10A(plusmn1.5%+4)
• AC current: 40mA/400mA/10A(plusmn2.0%+4 ,50-200Hz)
• Resistance: 400Omega/4K/40K/400K/4M(plusmn0.8%+4),40MOmega(plusmn2.0%+4)
• Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (plusmn0.08%+2)
• Duty cycle: 0.1% to 99.9%(plusmn0.08%+2)
• Measurement mode: mode
• Over range indication: OL
• Working environment: 0~40deg, relative humidity< 80%
• Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included)

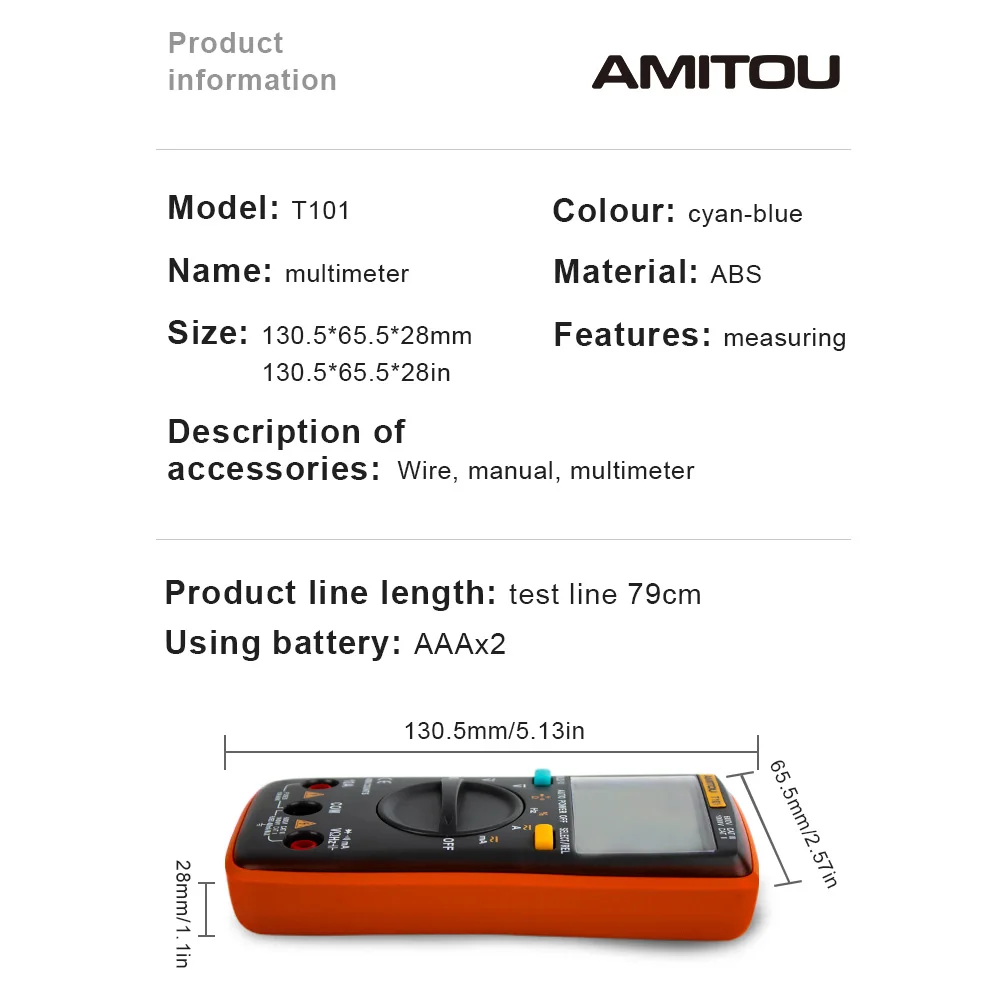

Specification:

• Material: plastic
• Color: Black
• Size: 65x130x32mm
• Frequency: 1Hz to 10MHz
• Capacitance : 10pF to 4000uF
• AC volts: 0.1mV to 750V
• DC volts: 0.1mV to 1000V
• AC current: 0.1uA to 10A
• DC current: 0.1uA to 10A
• Resistanc: 0.1Omega to 40MOmega
• Duty cycle: 1% to 99%

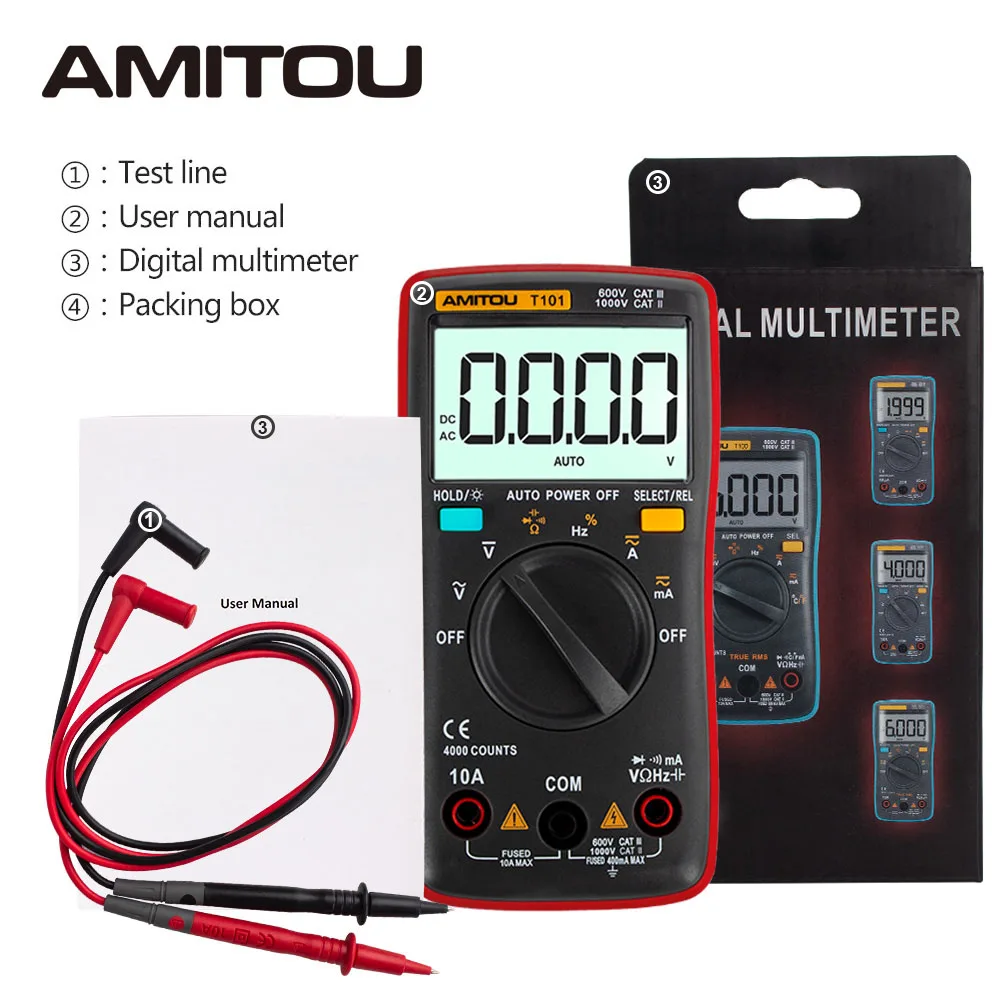

Package Includes:

• 1 x AMITOU T101 Multimeter
• 2 x Test Pen
• 1 x User Manual
• ​1 x Storage Box

The display of the multimeter mV file is not zero, mainly the following:

1: If the ambient temperature and humidity in the air change too much, it will not return to zero;

2: There is a strong electric field or magnetic field disturbance around.

3: The multimeter itself is faulty.

When the multimeter does not return to zero, it can be judged as follows:

Dial the multimeter to the mV file, insert the corresponding black and black pen line into the corresponding input hole, and short the red and black pen line. At this time, the multimeter displays “0000” to judge that the non-return phenomenon of the multimeter is due to environmental factors. Does not return to zero, does not affect the use of the multimeter, but it is recommended to eliminate environmental interference factors, so as not to affect the measurement accuracy to produce erroneous measurement results.
