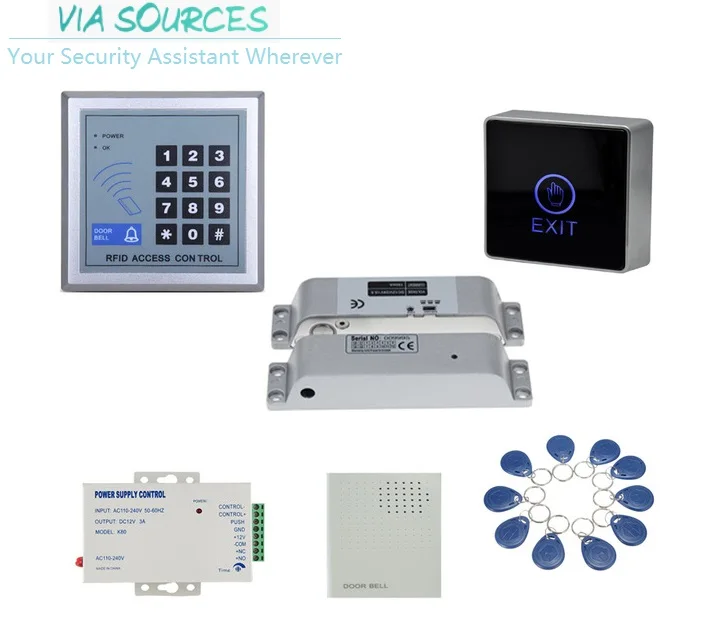

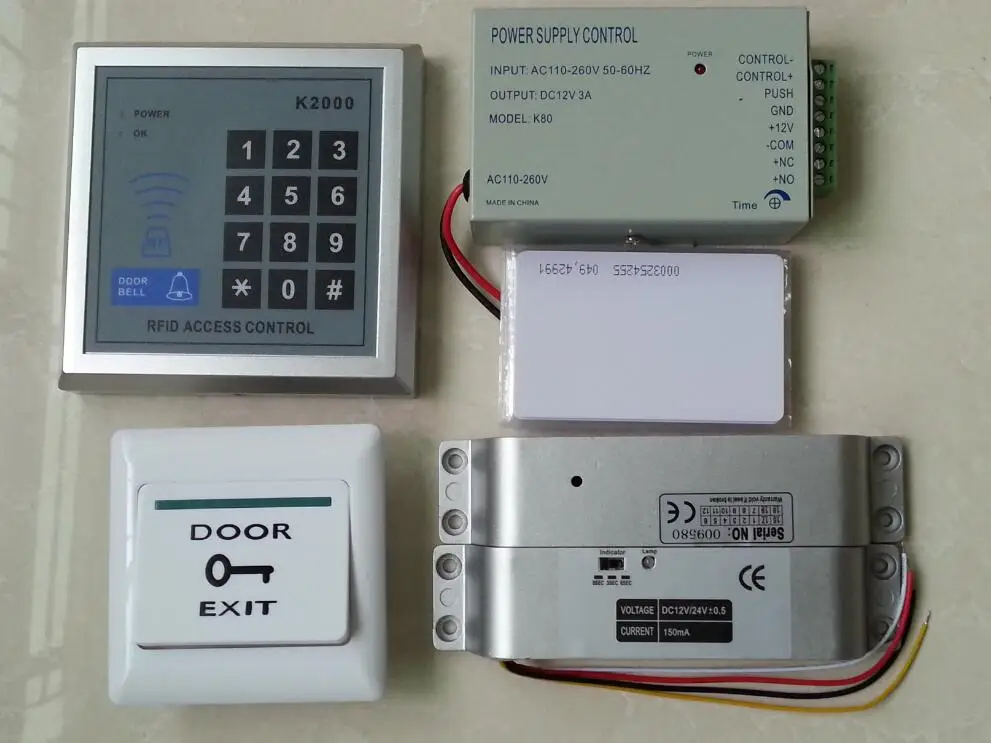

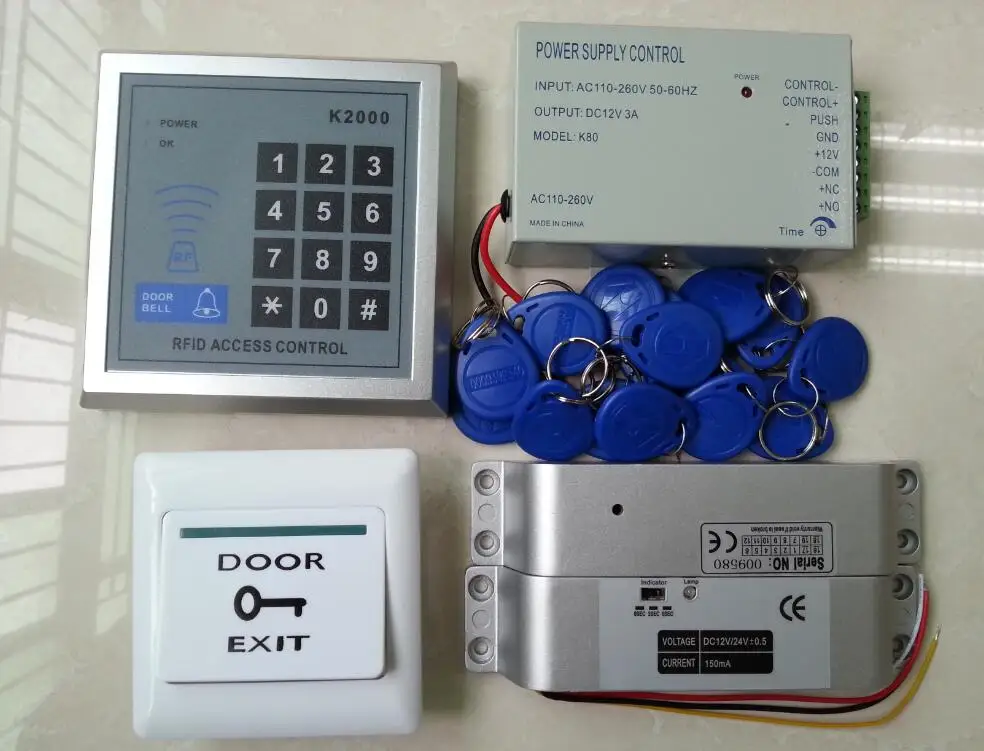

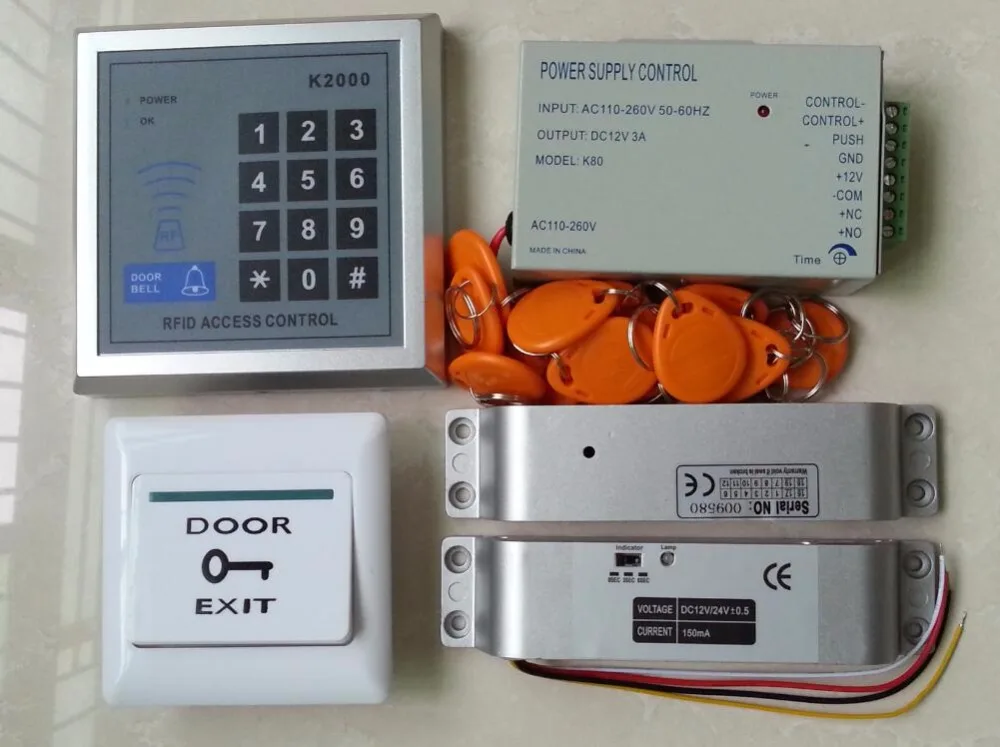

Direct Factory access control kit with drop bolt electric magnet lock power supply keypad tags doorbell RFID glass wooden door |

Direct Factory access control kit with drop bolt electric magnet lock power supply keypad tags doorbell RFID glass wooden door |

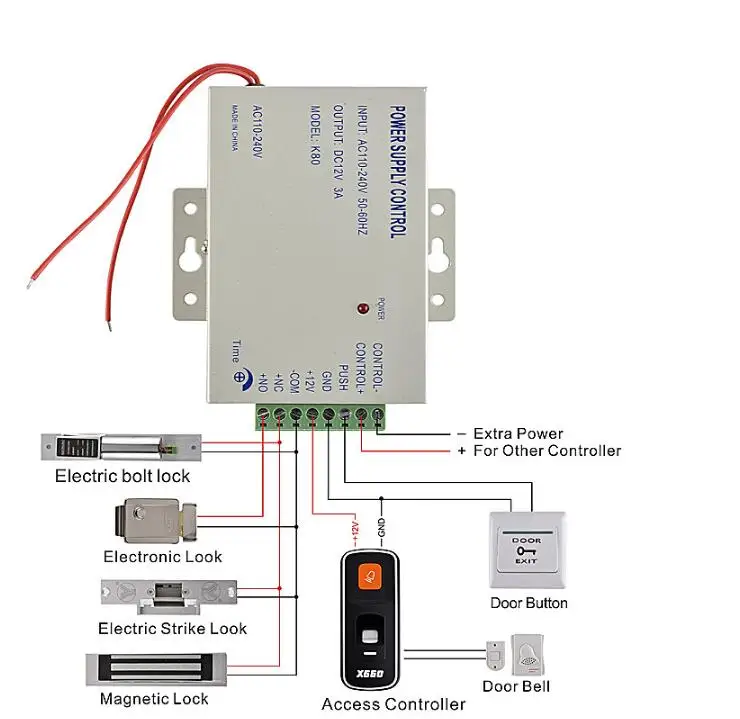

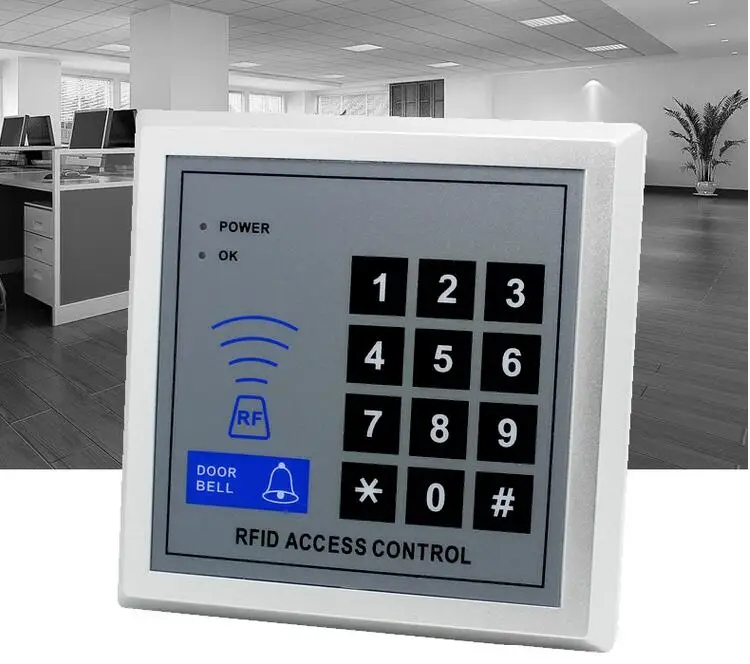

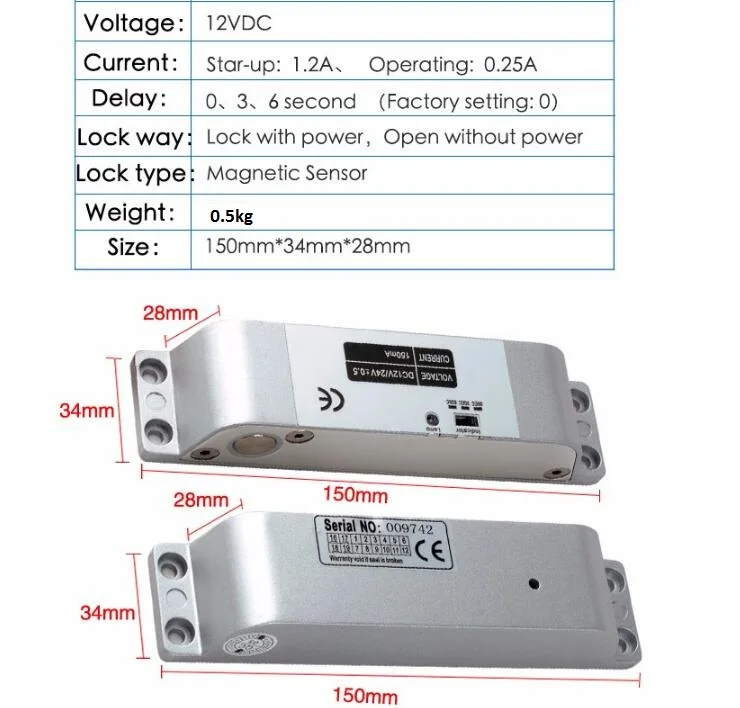

Door Access Control Kit   Electric Magnetic lock Specifications:     Power Supply Specifications:   Small and exquisite, easy installation. Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, lock temperature rising reduces greatly (compared with power frequency supply). AC input: Standard AC100V-240V 50-60HZ 36W DC output: Stabilization DC12V/ 3 A It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable) Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit Outside iron shell dimension:120mm*95 mm*38mm Set NC / NO outputs, can control various types of electric locks Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.   RFID keypad Specifications:     Dimension:116mm*116mm*20mm Memory capacity:500 user cards or 50 door opening passwords Working distance:5-15CM Card Type: EM or EM compatible cards   Push Release Button Exit Switch Specifications:   Dimensions: 86Lx86Wx20H(mm) Suitable for Door: Hollow Door Operating temp:10-55(14-131F) Operating Humidity: 0-95% (non- condensing) Panel Material: Fireproof Material   Package Contents   1x Magnetic Door Lock main body 180kg Strong Force 1x Armature faceplate 1 x Access Control Power Supply 1x Push Release Button (there are two versions of buttons, price differs) 1x RFID Proximity Door Entry keypad 10x RFID Key Fobs

'
