FRSKY R9M 900МГц модуль передатчика дальнего действия и комбо R9 MM Slim+ с антеннами T-стиля для RC модели мультикоптера.

note: according to frsky factory manufacture plan, the newest version to you .thanks

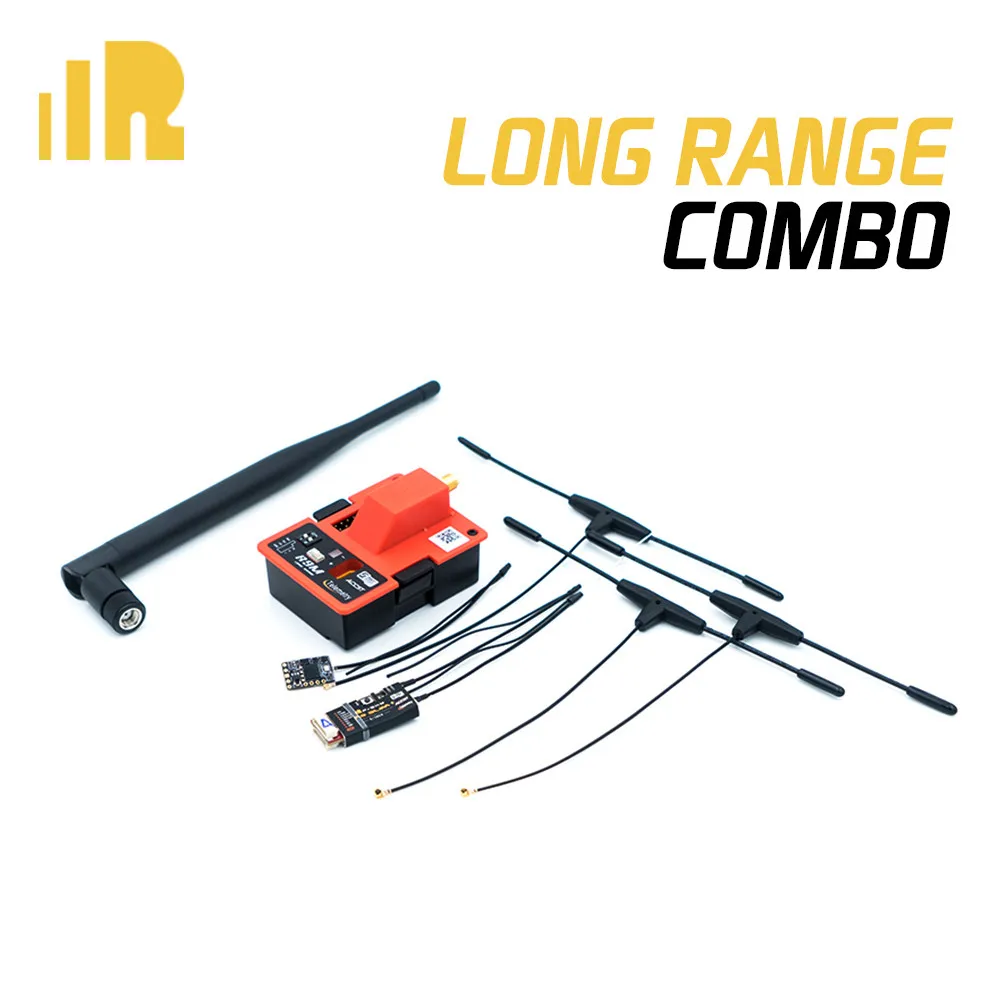

FrSky R9M 900MHz Long Range Transmitter Module & 3X R9 MM 4/16CH Receiver with R9MM T Antenna Combo

R9M Description( R9M 2019 version for you,thanks)

FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs to so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

For external batteries, suggest to use 2S or below!

Specifications :
Compatibility : R9 series
Vin Voltage Range:4V-12.6V
External Power Supply: 4V~12V (2s Li-Battery is recommended )
(*3s Li-Battery is not recommended as external power supply, or it will damage)
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Modulations: PXX or CPPM (auto-detected)

Feature :
900MHz/868MHz working mode
Long range, low latency and high precision RC system
4 Optional RF power (Non-EU Version)
RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels)
Smart Port enabled and support telemetry data transmission

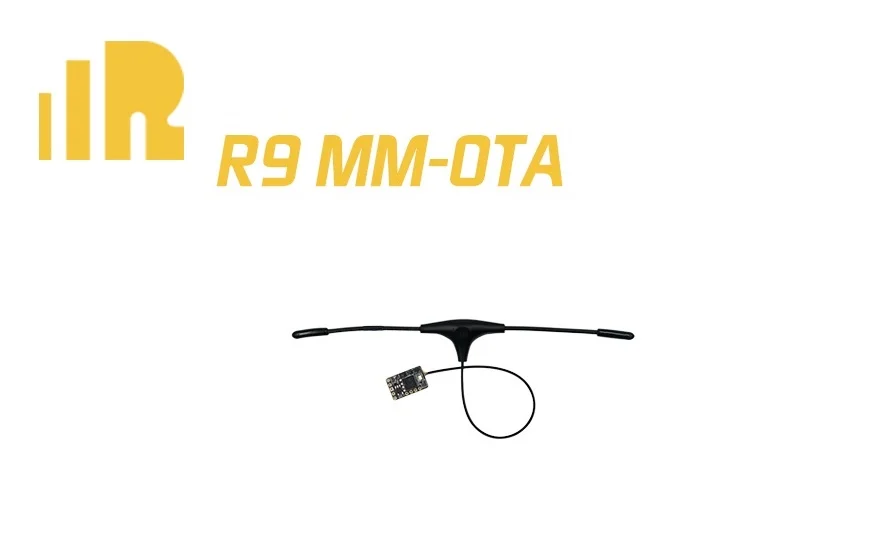

R9 MM Description
The FrSky R9 MM is the latest 900MHz mini receiver in the long-range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.

SPECIFICATIONS
Dimension: 16*10*2.8mm (L×W×H)
Weight: 1.1g (including antenna)
Number of Channels:
Non-EU Version: 4/16CH (Telemetry)
Operating Voltage Range: DC 3.5V – 10V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9M and R9M Lite


FEATURES
915MHz (Non-EU Version)
Mini size and super light-weight
Inverted S.Port enabled
S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
Low latency and high precision
With RSSI output in SBUS
Battery voltage detection supported
Detachable Ipex connector antenna

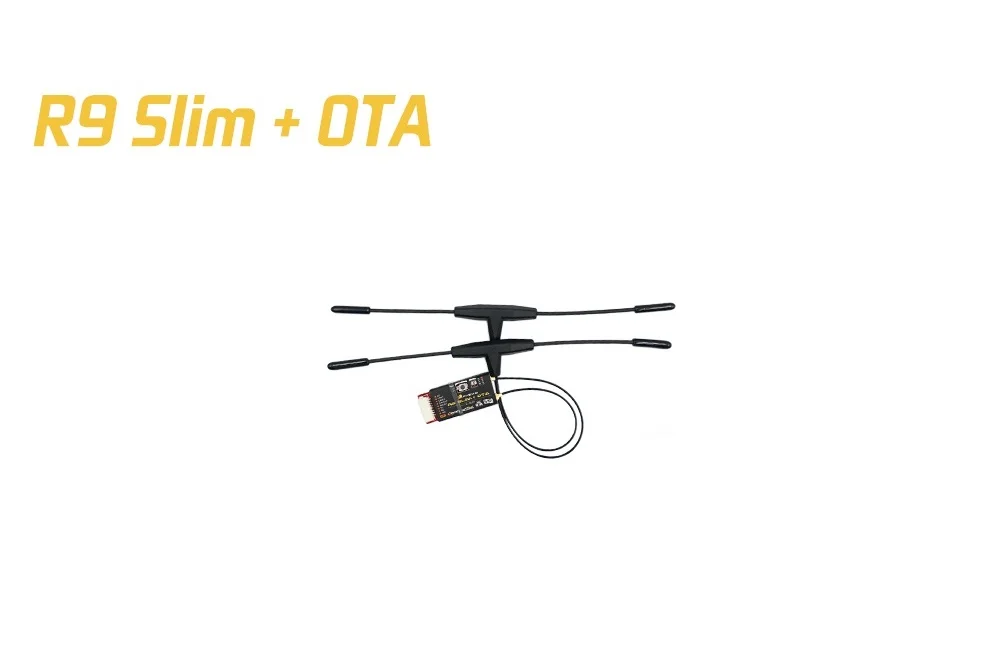

The FrSky R9 Slim+ receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim+ has all the features of the R9 Slim with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.

Specifications :

• Dimension: 32*13.5*5mm (L × W × H)

• Weight: 4.3g (with antennas)

• Number of Channels:

• Non-EU Version: 6/16CH (Telemetry)

• EU Version: 6/8CH (Telemetry) / 6/16CH (Telemetry) / 6/16CH (No Telemetry)

• With RSSI Output: Analog 0~3.3V

• Operating Voltage Range: DC 3.5V~12.6V(3s Li-Battery)

• Operating Current: 100mA@5V

• Operating Range: Up to 10km or above

• Firmware Upgradable

• Compatibility: R9M and R9M Lite

• 915MHz (Non-EU Version)

• Performance optimized

• 2 detachable ipex connector antennas

• Small and conveniently setup

• Low latency and high precision

• Support redundancy function

• Smart Port enabled and support telemetry data transmission

• Battery voltage detection

• With RSSI output

• With inverted SBUS and S.Port outputs

Including:

as your choice
