It enables you to control who has access to your building

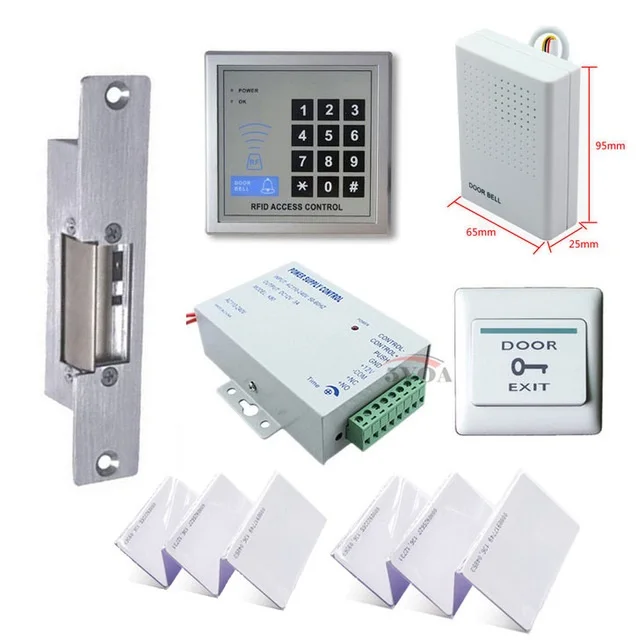

Power Supply +Electric Strike Lock +5 ID cards +5 ID Keyfobs +Exit buttonDIY RFID Access Control System Kit Set with Electric Strike Lock

RFID Access control:
This is a NEW RFID Reader Access Control Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!

• Contactless RFID transponder technology
• Full programming from the keypad
• Support Card, PIN, Card + PIN
• Connection for external release button(Exit button)
• Build in RFID reader
• User capacity: 500users (each card only can add one password)
• Does not need to connect on the computer, it can work alone.

Specification:

• Wiring connection: Electric Lock, Exit Button
• Working Voltage: DC 12V
• Card Type: ID card
• Frequency: 125Khz
• Reading distance: 4-15mm
• Dimension: 88mm×88mm×18mm

Power supply controller:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

• It controls electric lock directly;
• Help to reduce overload for access controller;
• Automatic protection function for unexpected short circuit or power off;
• NC/NO output modes selectable for various types of electric locks.

Specification:

• AC input: AC110V-240V
• DC output: DC12V/3A
• Package Dimension: 117mmx67mm8x32mm.

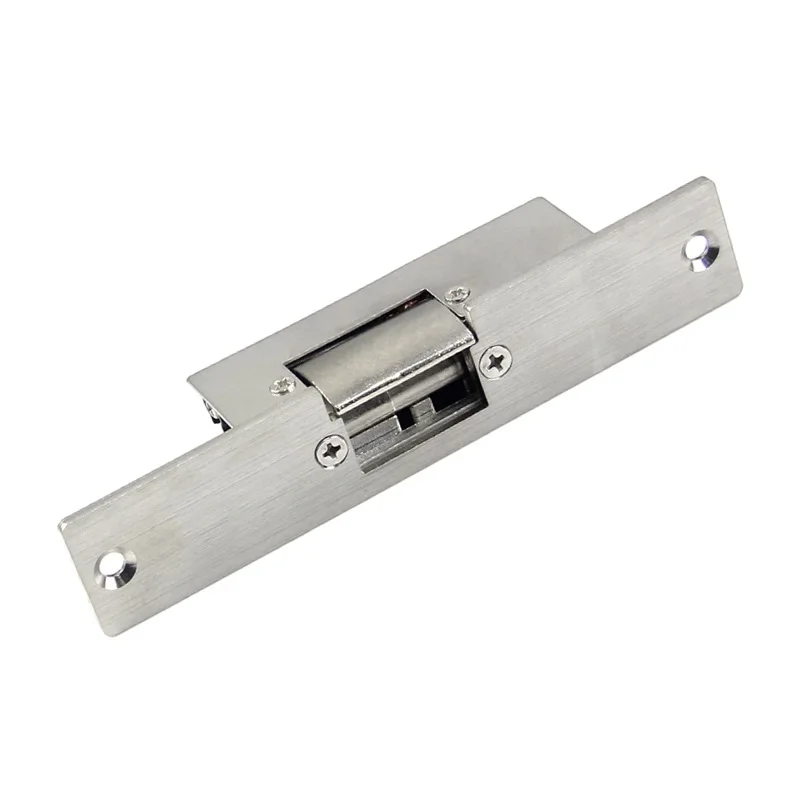

Electric Strike Lock:

• Made of Stainless Steel

• Performance Testing: 1000000 times aging test

• Opening Mode: 90 degree swinging door

• Authority Certification: CE & MA Approved

Specification :

• Application: wood door
• Working Voltage: 12VDC

• Working Current: 0.2-0.45A

• Weight: 400g

• Pack includes: One electric strike lock.

RFID Card:

This is the 125KHz RFID Proximity Card, it can work with the product which has the RFID card reader.

• Operation Frequency: 125KHz
• Detecting distance: 8-10cm
• Thickness: 0.8mm
• Size:55mm x 86mm x 0.8mm
• Each card pre-programmed with a uniqe ID, which is printed on it.

Specification:

• Detecting distance: 8-10cm
• Dimension: 55mmx86mmx0.8mm
• Thickness: 0.8mm

Exit button:

This is a plastic Exit button, it is widely used in the door access control system. If you want to go out, you just need to press this Exit Button, then you can go out:

• Support both NC Mode (Fail Safe Mode) and NO Mode (Fail Secure Mode)
• Performance Testing: 1000000 times aging test
• Material: Hard Plastic.

Specification:

• Working voltage: DC12V
• Working current: 3A
• Faceplate Dimension: 85mmx85mm

Contents:

• 1 x RFID Access Control device
• 1 x Special Power supply
• 1 x Strike door lock
• 1 x Exit button
• 10 x RFID cards
• 1 x User Manual
• Note: Not include the connection wire, you can use the common wire to connect them togther.
