AmScope Supplies 5.0MP Microscope USB Camera Windows & Mac OS X + Calibration Kit

This is a brand new 5MP high resolution color digital camera for microscopes. Different from other sellers' models, this camera comes with a standalone design that optimizes real-time acquisition, and fine-tunes exposure and white balance settings to achieve the best balance between resolution and contrast.

This digital system accurately displays the images of the observed specimen or samples on computer screen. Working perfectly with all kinds of optical microscopes, including biological, metallurgical and stereo, it will be able to turn any microscope into a modern digital one that will enable you to take high resolution pictures and further analyze your images. This camera is comprised of a color 5MP CMOS sensor interfacing with a computer via high-speed USB2.0, easy-to-use Windows XP/Vista/7/8, Mac OS X and Linux compatible software, step-by-step user's instructions, and 23mm, 30mm, 30.5mm, and C-mount adapters. Its built-in reduction lens gives your computer screen the same field of view as the one you see through the eyepiece. Capable of streaming live video, this 5MP imaging system offers full-screen displays and the best resolution your computer monitor can offer.

In addition, the multi-functional software and the calibration kit included allow you to preview live images, record videos, capture still pictures, edit captures, or save them in BMP, TIFF, JPG, PICT, PTL or other formats very easily, as well as conduct precise measurements for length, angle, area, and etc. This product is very simple to use, one end plugs into your computer's USB port the other fits on the ocular tube or standard trinocular tube. It is ideal for medical, educational, and engineering uses. It comes with a one-year full-coverage warranty and a life-time of free software upgrades. We have no doubt you will be impressed by the superb resolution and wide range of applications that this newest USB model offers you.

Specifications:

• Image Sensor: 1/2.5” Color CMOS (Micron)
• Pixel Size:2.2 micron x 2.2 micron
• Hardware Resolution: 2592x1944 pixels
• Imaging Resolution:5.0 MP
• File Format: BMP, TIFF, JPG and others
• Frame Rate: 30 f/s @ 640x480,8 f/s @ 2592x1944 pixels
• Sensitivity: 0.53V/lux-sec @ 550nm
• Speed: Low/high adjustable
• White Balance: Auto/Manual
• Exposure Time: 1ms to 0.3s
• Exposure Control: Auto/Manual
• Scan Mode: Progressive
• Shutter: Electronic Rolling Shutter
• S/N Ratio: 40.5 dB
• Dynamic Range: 60 dB
• Filter: RGB Bayer Pattern
• Parameter: Gain (1~40), Gamma (0.1~2.50)
• Mount: 23mm Photo Port, C CS-Mount (Ring Adapter Included)
• Camera Body: Cast Aluminum
• Power Supply: Via USB 2.0 connector
• System Required: Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up
  with USB 2.0 port
• Dimension: 2.5" x 3-3/8" x 1-7/16" (65 x 86 x 37 mm)
• Net Weight:0.48 lbs (220g)
• Shipping Weight: 2 lbs

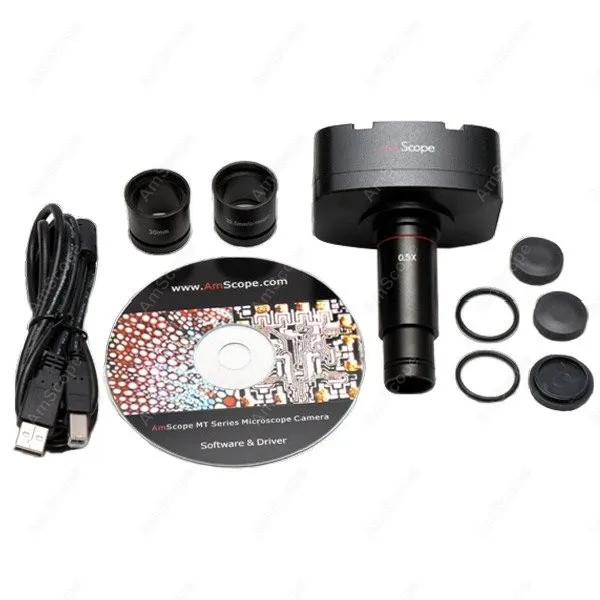

Packing List:

• One 5.0MP Color Digital Camera
• One 0.5X C-mount Relay Lens
• One Microscopy Measurement Calibration Kit
• One 6' (1.8m) USB Cable
• Two Eyepiece Adapters, 30.0mm 30.5mm
• Two Rubber Seal Rings
• One CD with Software, Driver and User's Instructions
