Feature:

1.It is a component widely used in automatic control industry for detecting, controlling,

and noncontact switching. When proximity switch is close to some target object, it will send out

control signal.

2.It is widely used in machine, paper making, light industry for limiting station, orientation taking

count, speeding trial ect.

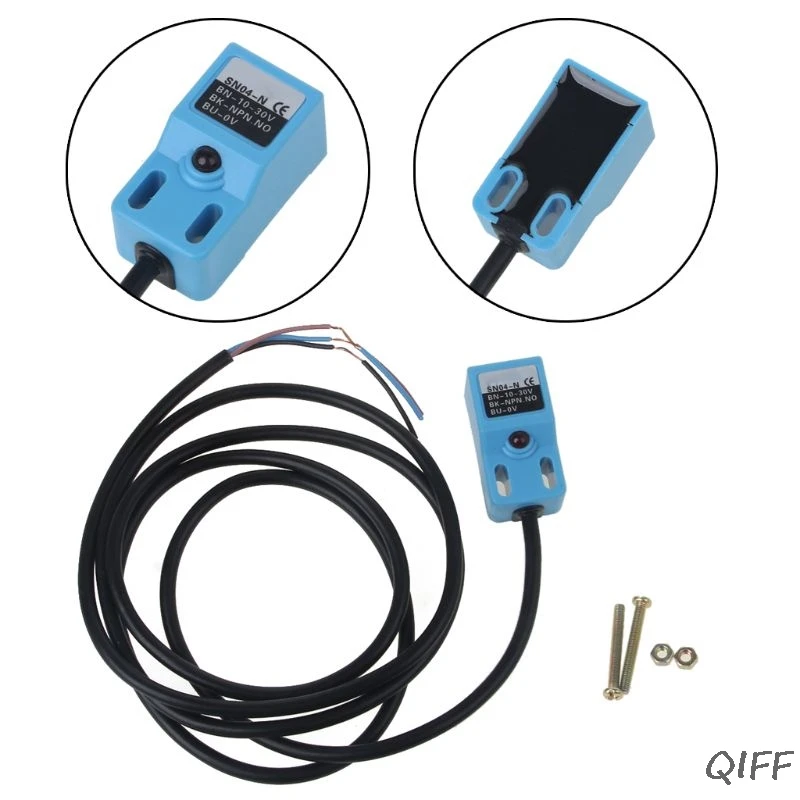

Material: ABS;

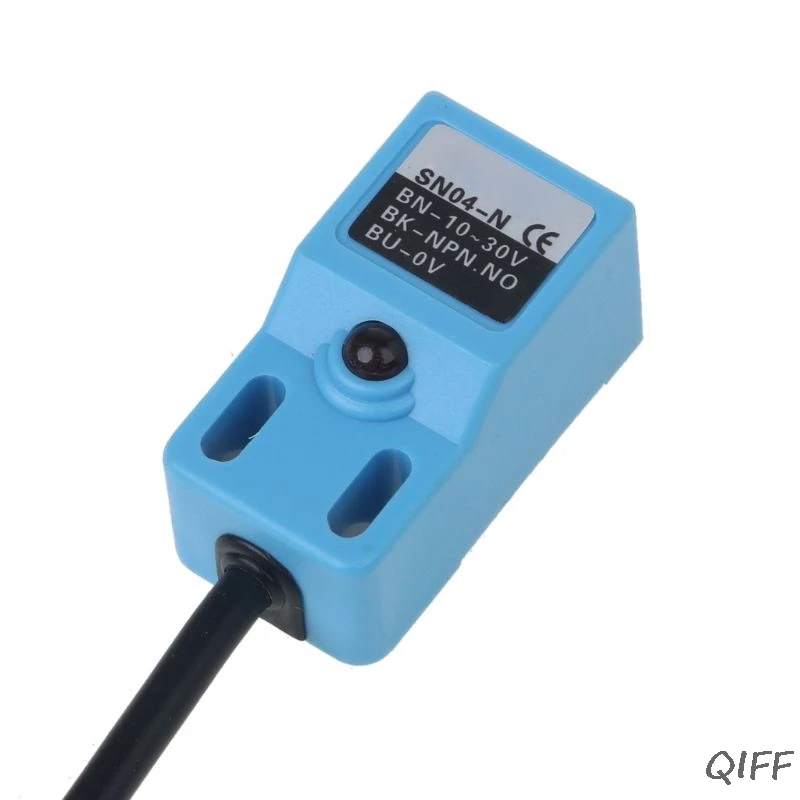

Model: SN04-N;

Main Color: Blue, Black;

Switch Size: 3.6 x 1.8 x 1.8 cm / 1.4" x 0.7" x 0.7" (L*W*H);

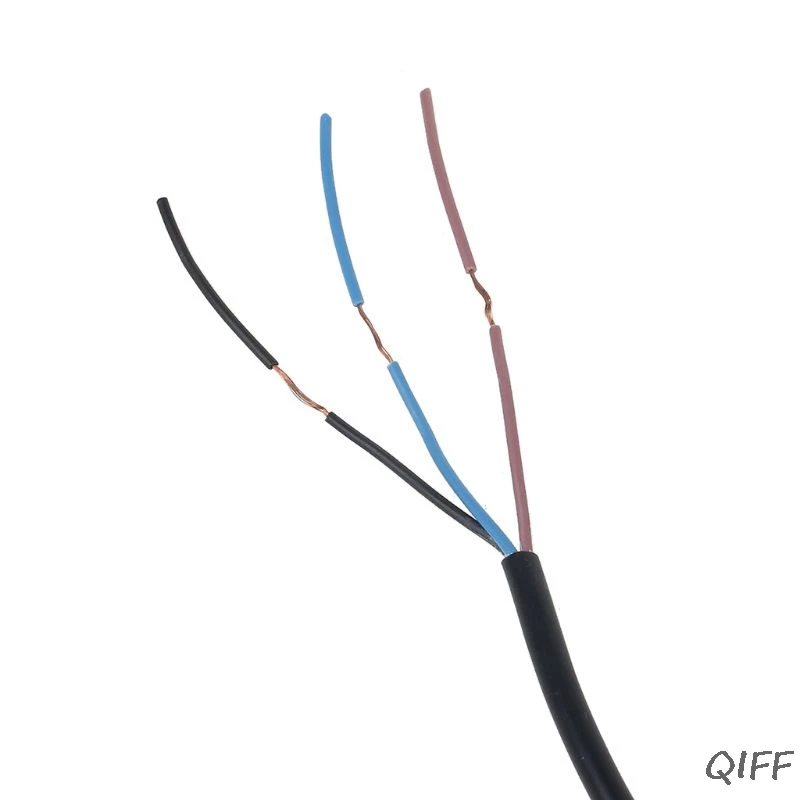

Wire Type: DC 3 Wire Type (Black, Brown, Blue);

Switch Appearance Type: Rectangular Type;

Theory: Inductive Sensor;

Output Type: NPN NO(Nomal Open)

Detecting Distance: 5mm;

Supply Voltage: DC 10-30V;

Current Output: 200mA;

Detect Object: Iron

Operating Temperature: -25C to +65C (Non-freezing Condition);

Cable Length: 1.2M / 3.9ft;

Action Display Light Color: Red

Note:

1.The Optimum voltage range is DC 10-30V.

2.It is recommended that the actual detection distance is less than 70% of the detection distance

on the name plate.

3.When wiring, do not energized, strictly according to the wiring diagram.

4.Only metal objects can be detected, especially for iron metal can be better detected, but the

choice of non-iron metal, the detection distance will be greatly reduced.

Package Included:

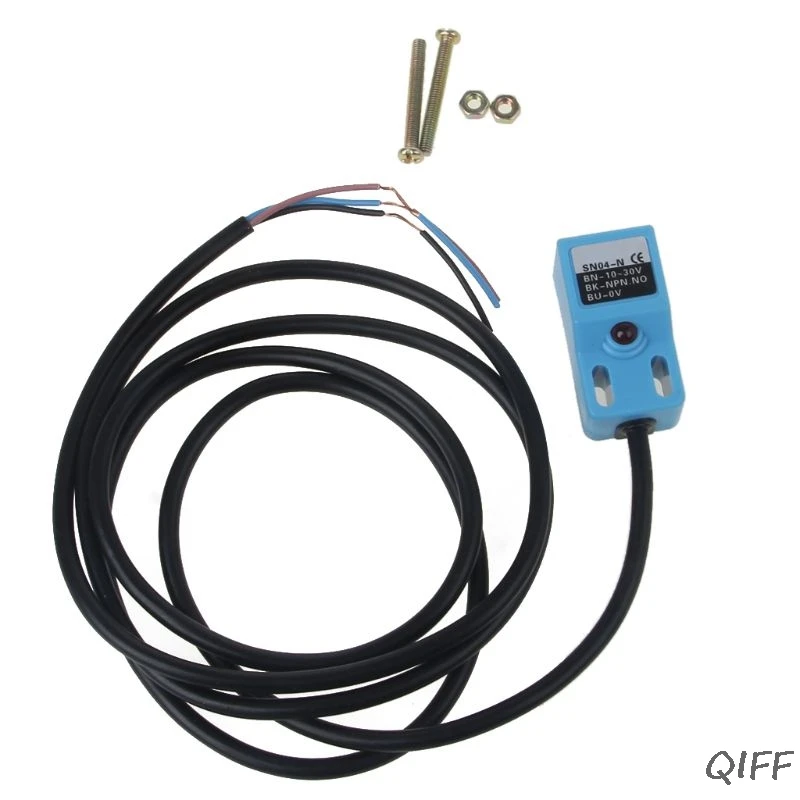

1 Pc Inductive Proximity Sensor Switch.
