Altera Cyclone Board EP4CE6 EP4CE6E22C8N ALTERA Cyclone IV FPGA Development Board Kit All I/Os = OpenEP4CE6-C Standard

FPGA development board designed for ALTERA Cyclone IV series, features the EP4CE6 onboard, and integrates various standard interfaces, pretty easy for peripheral expansions.

Overview

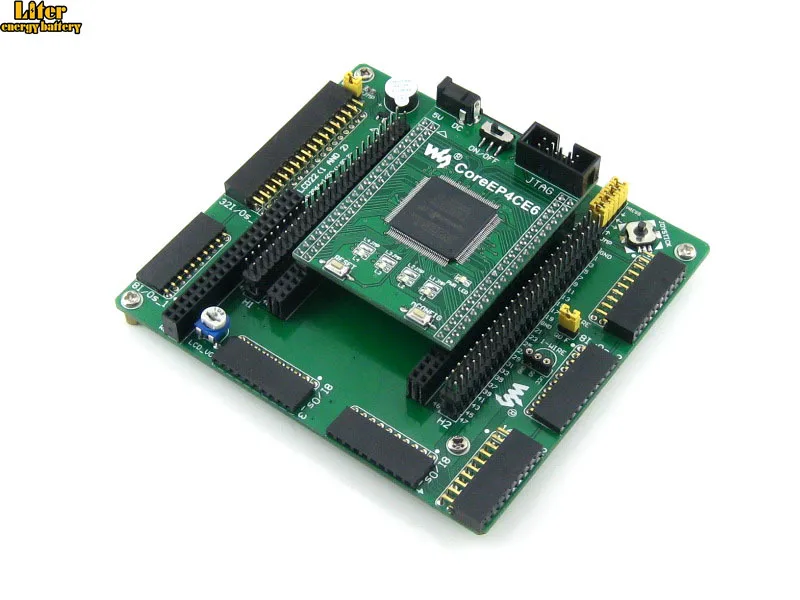

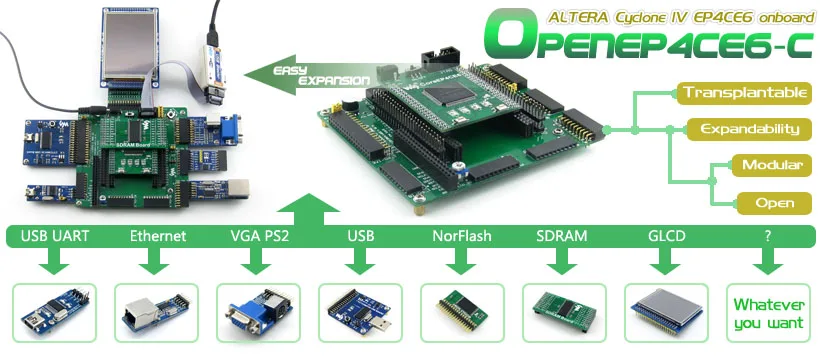

OpenEP4CE6-C is an FPGA development board that consists of the mother board DVK601 and the FPGA core board CoreEP4CE6.

OpenEP4CE6-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with ALTERA Cyclone IV series FPGA devices. OpenEP4CE6-C enables you to start your design with the Nios II processor easily and quickly.

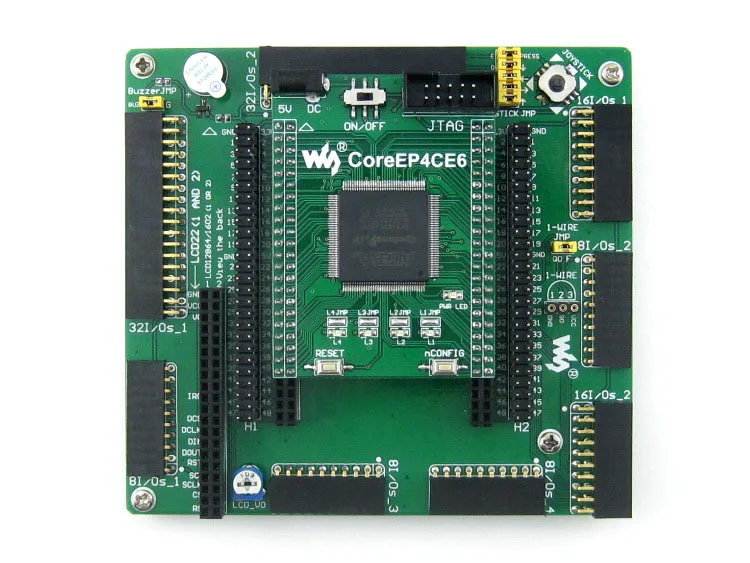

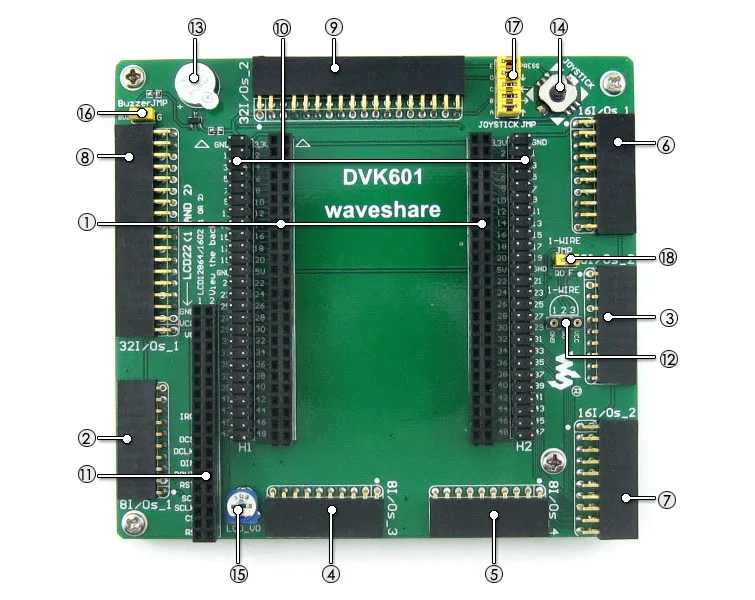

What's on the mother board

1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
2. 8I/Os_1 interface, for connecting accessory boards/modules
3. 8I/Os_2 interface, for connecting accessory boards/modules
4. 8I/Os_3 interface, for connecting accessory boards/modules
5. 8I/Os_4 interface, for connecting accessory boards/modules
6. 16I/Os_1 interface, for connecting accessory boards/modules
7. 16I/Os_2 interface, for connecting accessory boards/modules
8. 32I/Os_1 interface, for connecting accessory boards/modules
9. 32I/Os_2 interface, for connecting accessory boards/modules

All the I/O interfaces above:

• capable of being simulated as USART, I2C, SPI, PS/2, etc.
• capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.

1. FPGA expansion connectors
   • FPGA pins are accessible on expansion connectors
   • for connecting SDRAM accessory board
2. LCD interface, for connecting LCD22, LCD12864, LCD1602
3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
4. Buzzer
5. Joystick: five positions
6. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
7. Buzzer jumper
8. Joystick jumper
9. ONE-WIRE jumper

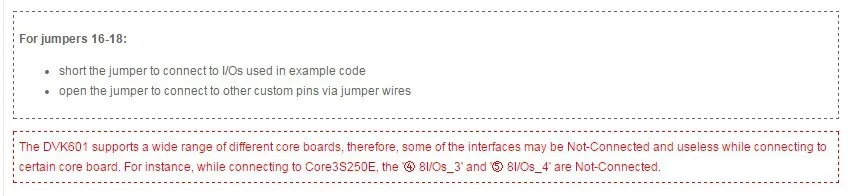

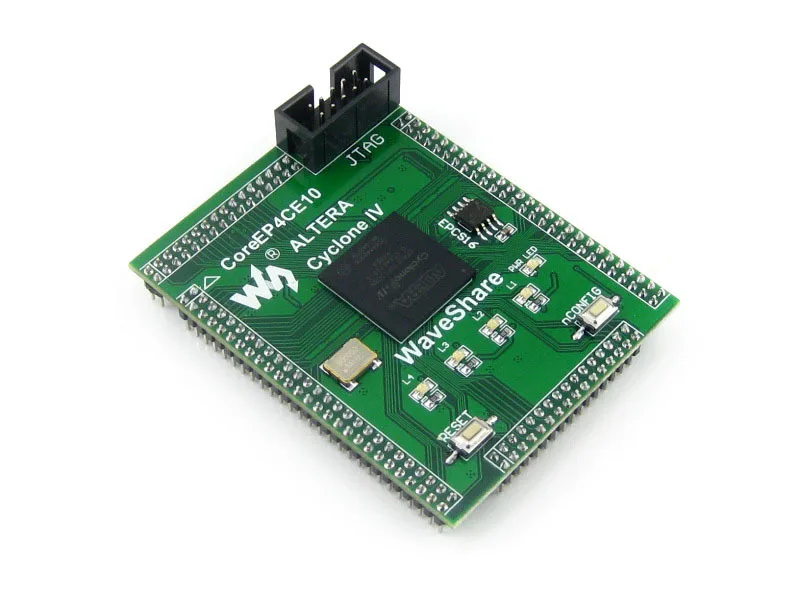

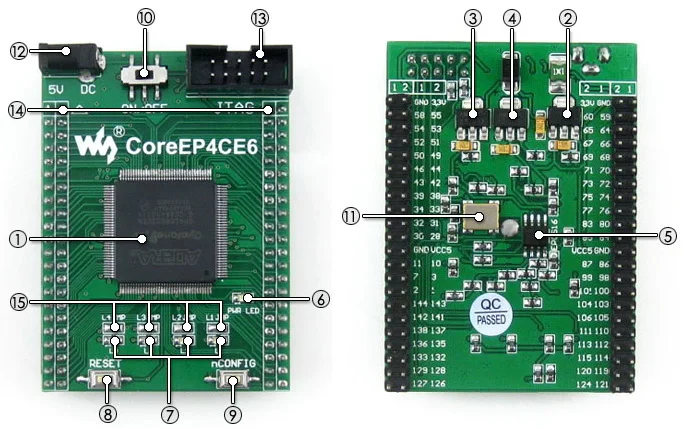

What's on the CoreEP4CE6

1. EP4CE6E22C8N: the ALTERA Cyclone IV FPGA device which features:
   • Operating Frequency: 50MHz
   • Operating Voltage: 1.15V-3.465V
   • Package: QFP144
   • I/Os: 80
   • LEs: 6K
   • RAM: 270kb
   • PLLs: 2
   • Debugging/Programming: supports JTAG
2. AMS1117-3.3, 3.3V voltage regulator
3. AMS1117-2.5, 2.5V voltage regulator
4. AMS1117-1.2, 1.2V voltage regulator
5. EPCS16, onboard serial FLASH memory, for storing code
6. Power indicator
7. LEDs
8. Reset button
9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
10. Power switch
11. 50M active crystal oscillator
12. 5V DC jack
13. JTAG interface: for debugging/programming
14. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
15. LED jumpers

Photos

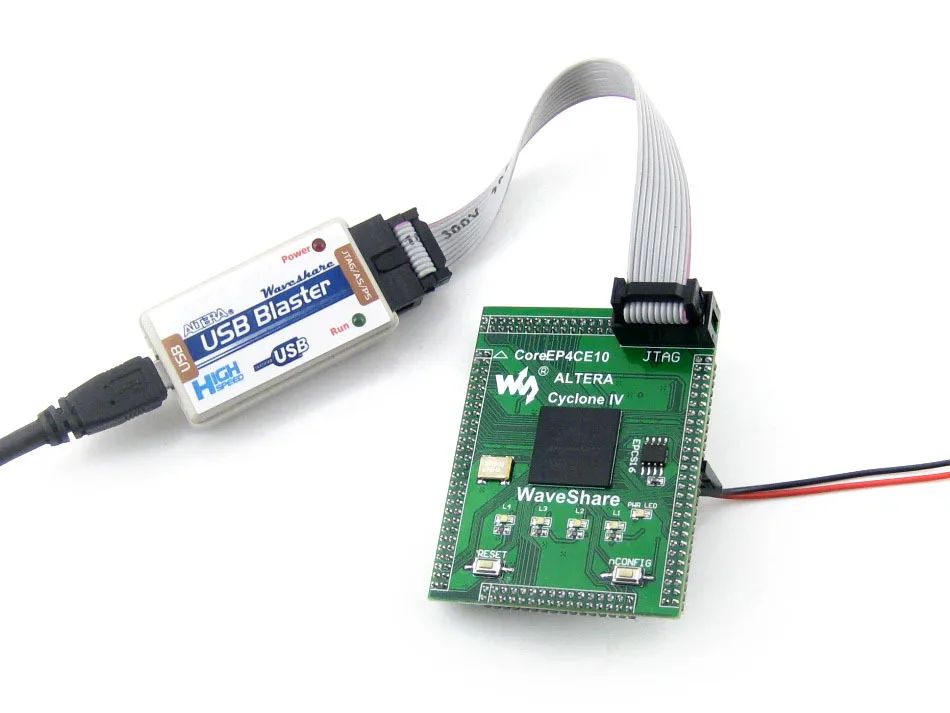

Note: The OpenEP4CE6-C does NOT integrate any programming/debugging function, a programmer/debugger is required.

Examples

The OpenEP4CE6-C FPGA development board comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

Debugging/Programming Interface

The OpenEP4CE6-C FPGA development board integrates JTAG interface for programming/debugging.

JTAG Signal Names & Description

JTAG Header Pinout

Development Resources

• Related Software (Quaters II, NIOS II etc.)
• Demo Code (Verilog, VHDL and NIOS II C)
• Schematic (PDF)
• FPGA Development Documentations (Datasheets etc.)
• Wiki: www.waveshare.com/wiki/OpenEP4CE6-C

Package Contains

1. OpenEP4CE6-C development board x 1

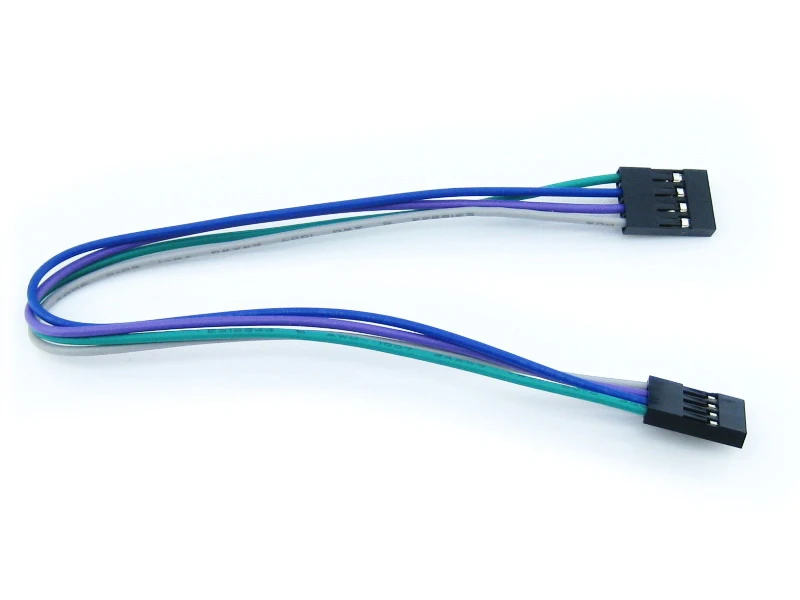

2. 4-pin wire x 2

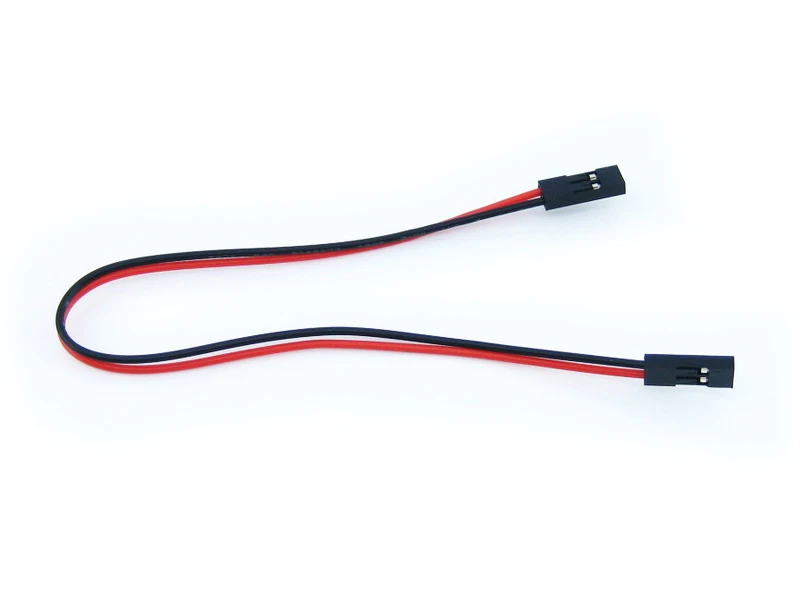

3. 2-pin wire x 2
4. USB power cable x 1
