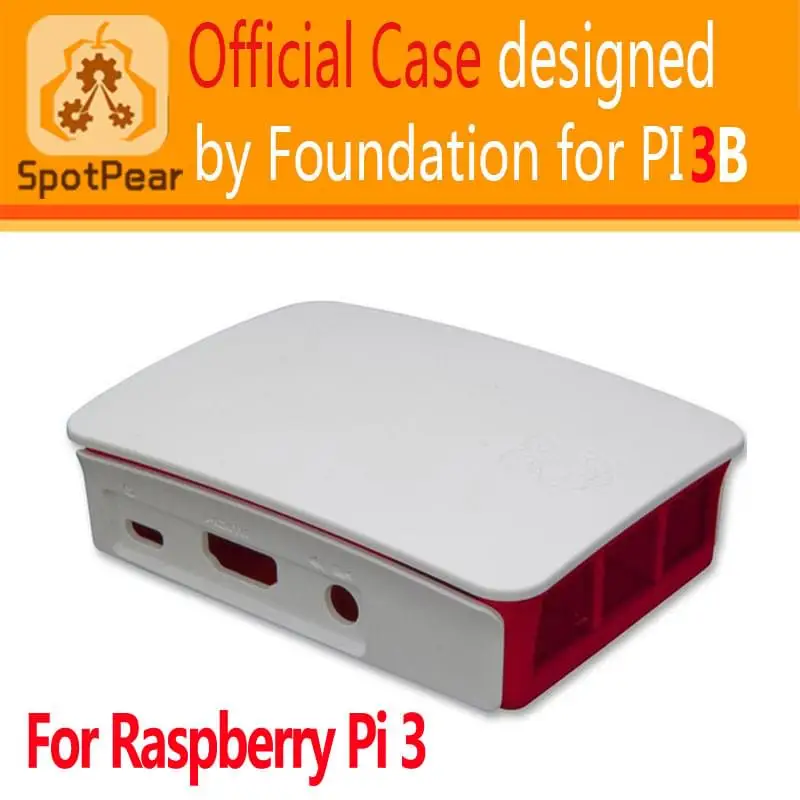

Raspberry Pi case Official ABS enclosure pi 3 box shell from the Foundation | Компьютеры и офис
353,25 руб.
Алюминиевый чехол с двумя вентиляторами для Raspberry Pi 4/3 черный металлический
1 090,63 - 1 676,35 руб.
HX студия мотор умный робот шасси автомобиля Комплект Скорость кодер батарея
Акриловый/прозрачный чехол Banana PI W2 | Компьютеры и офис
1 373,83 руб.
10PCS WQScosea Q8S-89 L3GD20 Replace L3G4200D Triple 3 Axis Triaxial Digital Gyroscope Sensor Angular Velocity Module Board | Компьютеры и
2 970,58 руб. / lot
BIHUADE lingwuba Store
Магазина BIHUADE lingwuba Store работает с 07.03.2019. его рейтинг составлет 92.26 баллов из 100. В избранное добавили 377 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 1789 наименований товаров, успешно доставлено 5516 заказов. 1796 покупателей оставили отзывы о продавце.
Характеристики
Atmel-ICE Basic Kit Comes with Additional Adapter and Cables | Компьютеры и офис
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.82 руб. | 0.8 руб. | 0 руб. |
| Feb-18-2026 | 0.77 руб. | 0.31 руб. | 0 руб. |
| Jan-18-2026 | 0.47 руб. | 0.19 руб. | 0 руб. |
| Dec-18-2025 | 0.70 руб. | 0.35 руб. | 0 руб. |
| Nov-18-2025 | 0.78 руб. | 0.46 руб. | 0 руб. |
| Oct-18-2025 | 0.99 руб. | 0.42 руб. | 0 руб. |
| Sep-18-2025 | 0.28 руб. | 0.2 руб. | 0 руб. |
| Aug-18-2025 | 0.31 руб. | 0.80 руб. | 0 руб. |
| Jul-18-2025 | 0.91 руб. | 0.5 руб. | 0 руб. |
Описание товара
DESCRIPTION
Atmel-ICE Basic Kit, Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers, Comes with additional adapter and cables
Overview
Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.
Key Features
- Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supported Software
- Perfectly supports Atmel Studio 6.2 or higher version
- Directly supports ICC8AVR or higher version
- Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.
Supported Devices
- Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
- Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
- JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
- Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
- Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface
For more details, please visit UC3, Mega, SAM , Tiny, Xmega

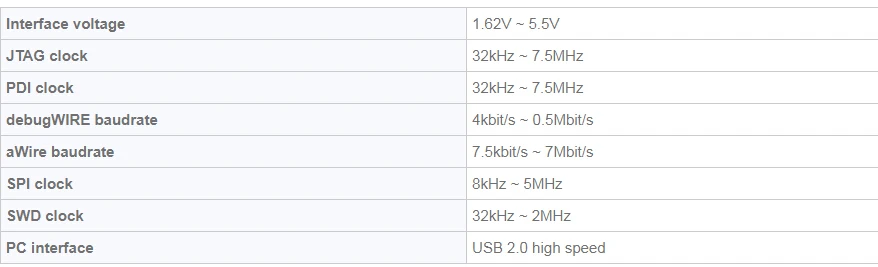

Specifications

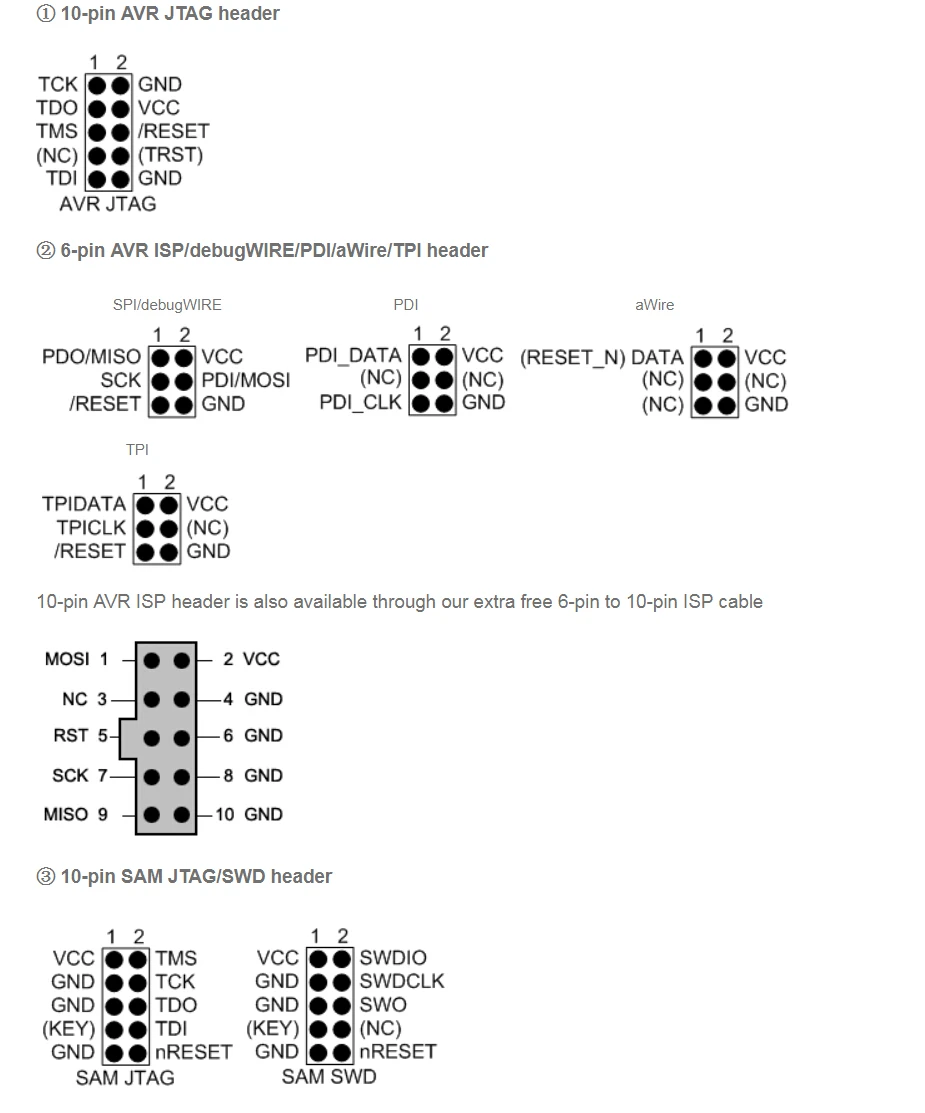

Physical Interfaces

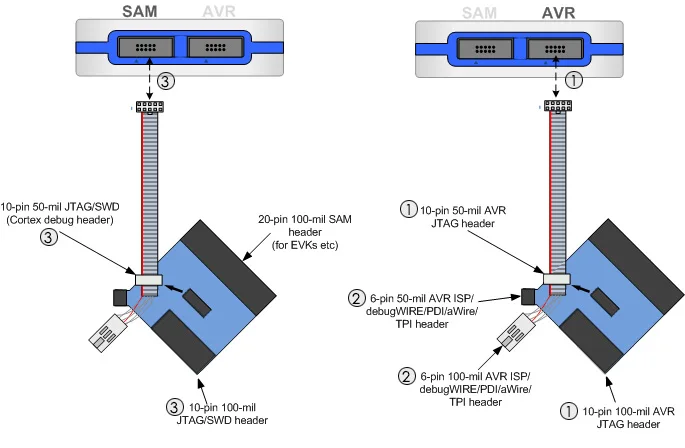

Atmel-ICE Connection Options
Note :
While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-B2 is compatible with the official one in the Atmel-ICE Full Kit.
Development Resources
Wiki : www.waveshare.com/wiki/Atmel-ICE

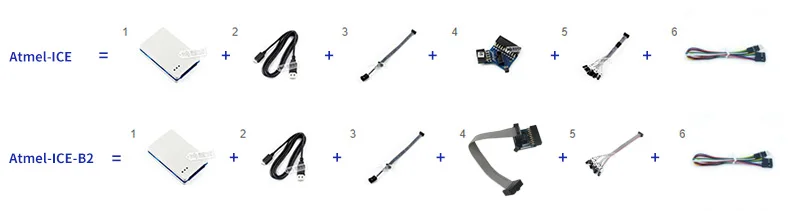

Selection Guide
Atmel-ICE: includes everything in the official Atmel-ICE Full Kit, and an extra free 6-pin to 10-pin ISP cable
Atmel-ICE-B2: includes everything in the official Atmel-ICE Basic Kit, and more adapter and cables from Waveshare, provides the same functions as Atmel-ICE Full Kit in lower price
PACKAGE CONTENT
Weight: 0.178 kg
- Atmel-ICE unit x1
- USB cable (1.8m, high-speed, micro-B) x1
- IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1
- Multi-functional adapter board x1
- 10pin flat cable x1
- 10pin 100mil squid cable x1
- 6-pin to 10-pin ISP cable x1
