Kit for  LP140WH1-TLC2 TV+HDMI+VGA+USB
LCD LED screen Controller Driver BoardNote

Before make the order ,pls make sure your LCD Model Number is
LP140WH1-TLC2
If not ,Pls help to tell me the your LCD Model Number,which is very important ,
the Model Number is on
the back of the LCD ,
then I can send the right controller board to you with thanks



 LCD/LED Controller Driver Board (TV+HDMI+VGA+CVBS+USB) LVDS Reuse
 Laptop

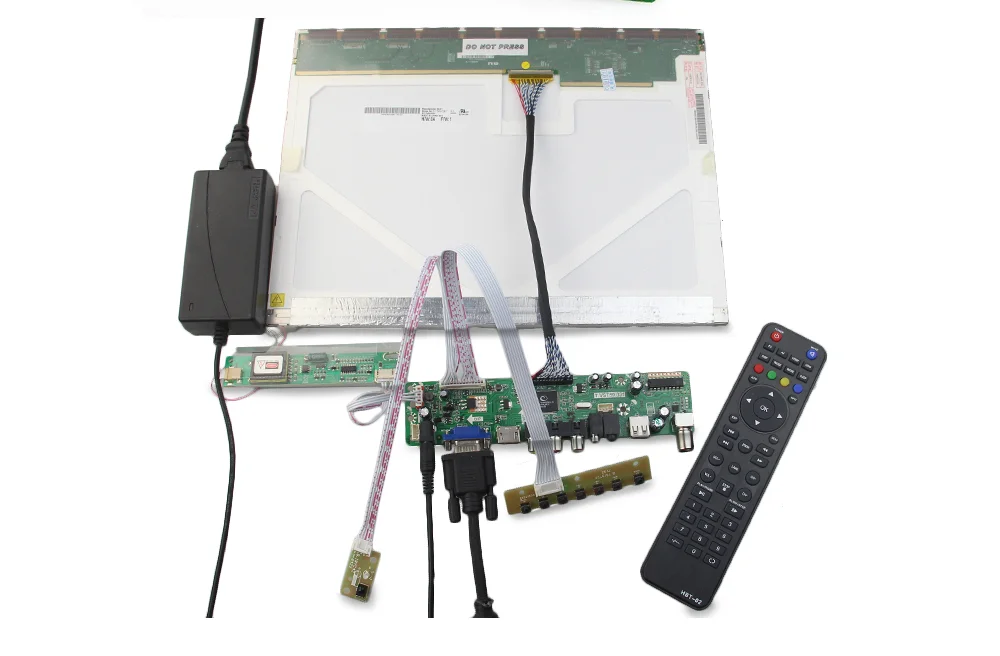

This is a great set of easy-reassembling LCD controller kit which is used to

turn a unused LCD panel into a desktop/PC
monitor. It will be a surprise that your unused LCD will be of good use,

and no longer be a waste.  Or it is a very interesting
things to make a monitor successfully by yourself.  It supports most of the

LCD panel from 12.1" to 55" with a LVDS
interface and a resolution than 2048x1152, plug & play kit, need soldering is

not needed.

 Note:

Before make the order ,pls make sure your LCD Model Number is
LP140WH1-TLC2

Description:

T.V56.03 is analog TV control board,which is suitable for Asia-Pacific and
 Middle-East market.It can support less than

22 inch LCD panels wiich resolution is up to 2048X1152.

T.VST56.03 support six kinds of main chip: TSUMV29LU,
TSUMV29LE, TSUMV39LU, TSUMV39LE,TSUMV59XU, TSUMV59XE,

differences are in the following table.
This specification is only for T.V56.03 with main chip TSUMV59XU
or TSUMV59XE


Parameters:

    Board Language: English, Simplified Chinese, Spanish,French,Geman,Italian,
Portuguese
    Board ports: HDMI, TV(IEC) ,AV,USB, VGA , PC audio
    Speaker support: YES,support 3W/5W/10W speakers excluded, should buy extra
    Speaker Power: 5W , about 3 times more than laptop speakers (1.5Wx2)
    Signal type: LVDS
    Factory setting log in: IR Controller Menu button---Press 1147 --- General setting
    TV color system: PAL
    TV Receive Frequency 49mhz to 863Mhz
    HDMI : 1080P max, decode Range 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Screen Power supply option:3.3V, 5V, 12 V, do voltage cap jumps
    Resolution: Max 1920x1200   60Hz. if you want change driver board at

different resoluton, contact us for reprogramme files
    Note: it is driver board kit for lcd screen, if you need lcd screen together ,

different ,ok for buy together.

Packaging method:

    Customized enhanced pacakge box

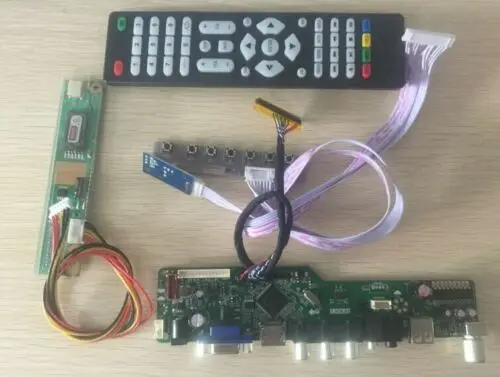

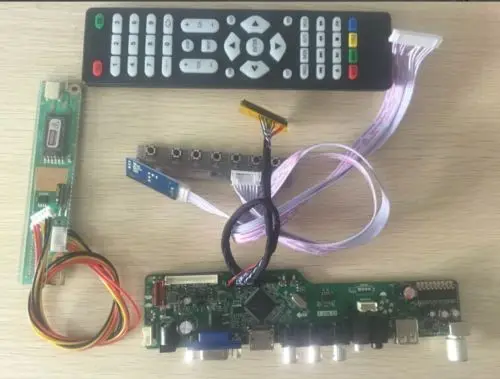

Packaging includes:

    1 x HDMI+USB+AV+VGA board
    1 x 7KEY IR menu board
    1 x IR remote controller
    1 x LCD cable
    0 x 12V 3A power adapter,
    0 x 5W speaker
    0 x U flash disk, buy extra from other seller
    0 x LCD screen, buy extra in store

Description:

* Exactly the same items and pictures.

*   if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.

* Each item has been checked and in good condition before shipping.

*   It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
