1pcs Industrial PH Probe 0 -14PH Electrode Sensor Industrial PH Acid Meter PH Electrode/ 3/4 NPT Pipe Thread Sensor With 5M Cable

Features:

• Molded electrode

• The low impedance glass electrode sensitive film is formed, it can be applied to various conditions PH measurements with fast response, thermal stability and good; good reproducibility, hard to be hydrolyzed to virtually eliminate the alkali error; 0 ~ 14PH within the range of linear potentiometer value, Ag / Agcl salt bridge with the gel electrolyte composition having a stable system of reference half-cell potential and excellent anti-pollution properties, PTFE ring diaphragm clogging, with domestic and foreign species of PH meter so directly supporting

Scope:

• 1, the electrode can be used in conjunction with a variety of pH meter.

• 2,using the electrode terminals mode, with a standard 3/4 inch thread.

• 3,electrode life normal use for one year, due to the harsh environment, or improper maintenance will shorten the life of the electrodes

• maintenance

• 1, the measurements should be first in distilled water (or deionized water) washed with dry filter paper water to prevent impurities into the test solution

• The electrode bulb and the junction is to be completely immersed in the test solution.

• 2, the electrode should not wash, plus a protective sleeve inserted into 3.5M potassium chloride solution, or electrode inserted chloride added 3.5M

• Potassium solution container.

• 3, check the wiring terminals is dry, if the stain, wipe with ethanol, dry after use.

• 4, should avoid prolonged soaking in distilled water or a protein solution, and prevent contact with silicone grease.

• 5, the use of longer electrode which is transparent glass film may become present or be accompanied by sediment washed available at this time, hydrochloric acid, and　Rinse.

• 6, the electrode is recommended to be cleaned once a month as well as with the instrument calibration.

• 7, when you use the above method for electrode maintenance and repair procedures and can not be corrected properly measured, indicating that the electrode is no longer

• Law recovery response, replace the electrode.

• II main technical parameters

• Measuring range: 0-14PH M   easurement accuracy: ≦0.01PH

• Applicable temperature: 0-80°C   Response time: 5sec

• Drift shift: ≦0.02PH/24hours

• Sensitive membrane impedance: ≦200*106Ω

• Slope rate: ≧97 % Equipotential point of the electrode: 7±0.5PH

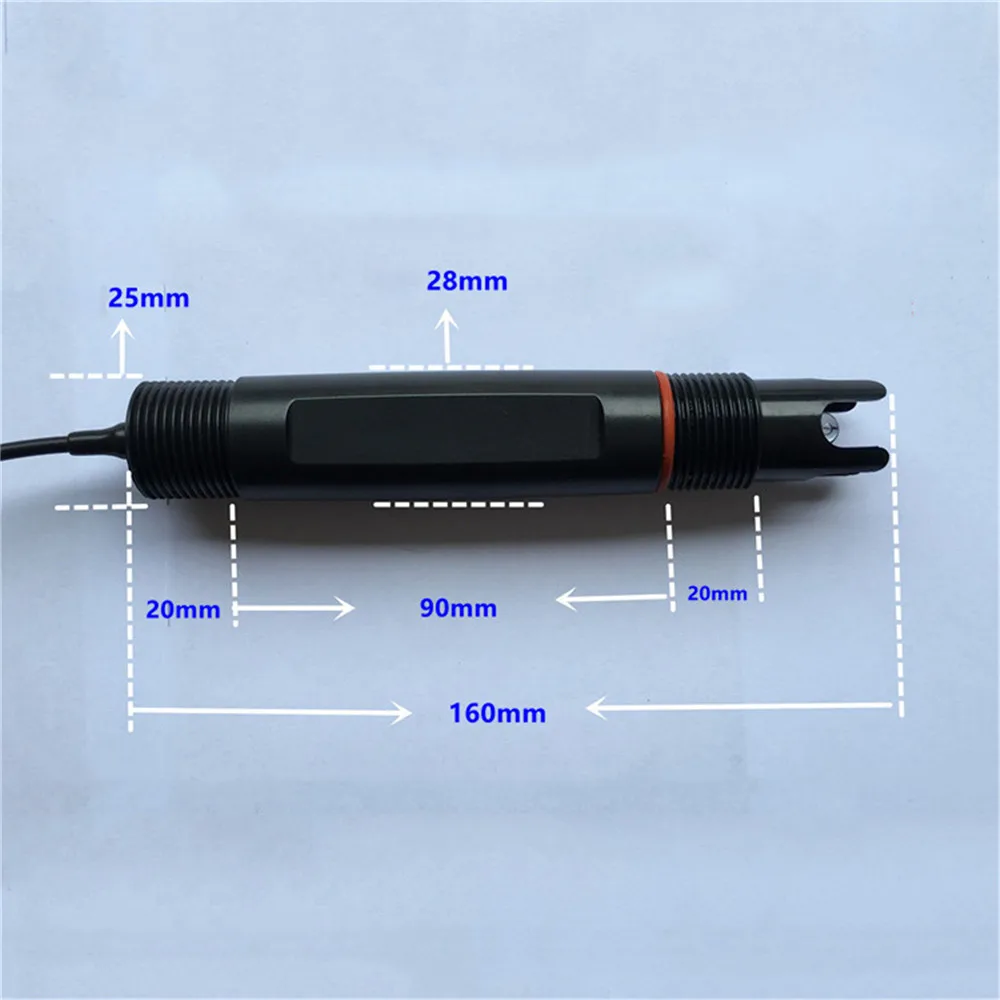

• Pressure: 0.6MP dimensions: up and down 3 / 4NPT pipe thread

• Material: PS connection mode: low-noise cable directly leads

Packing includes:

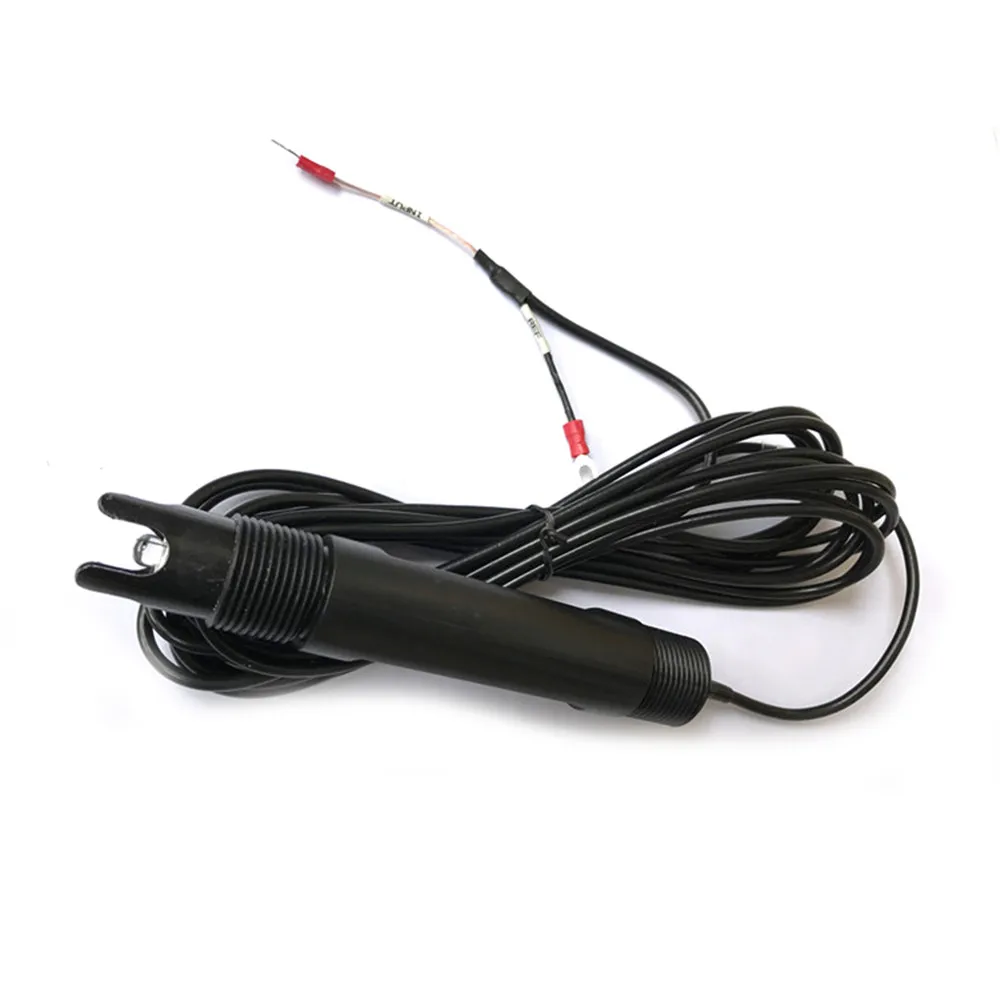

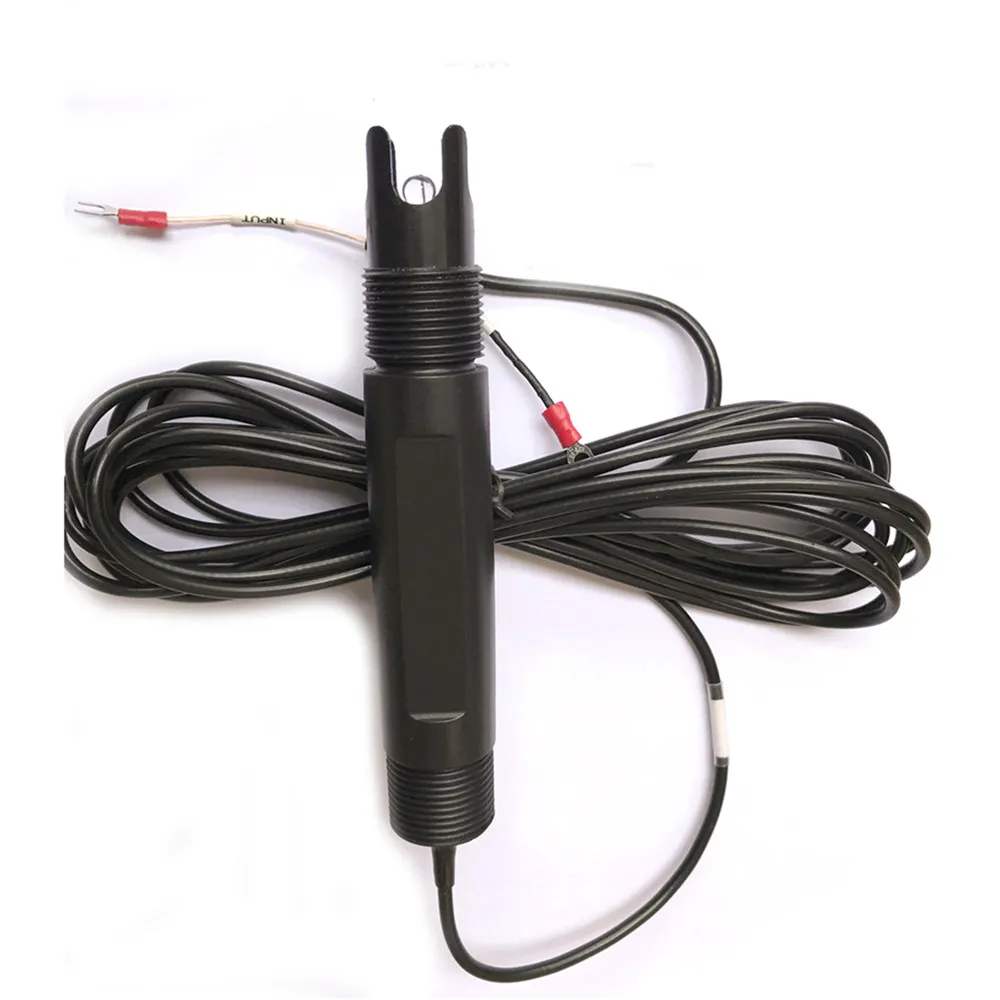

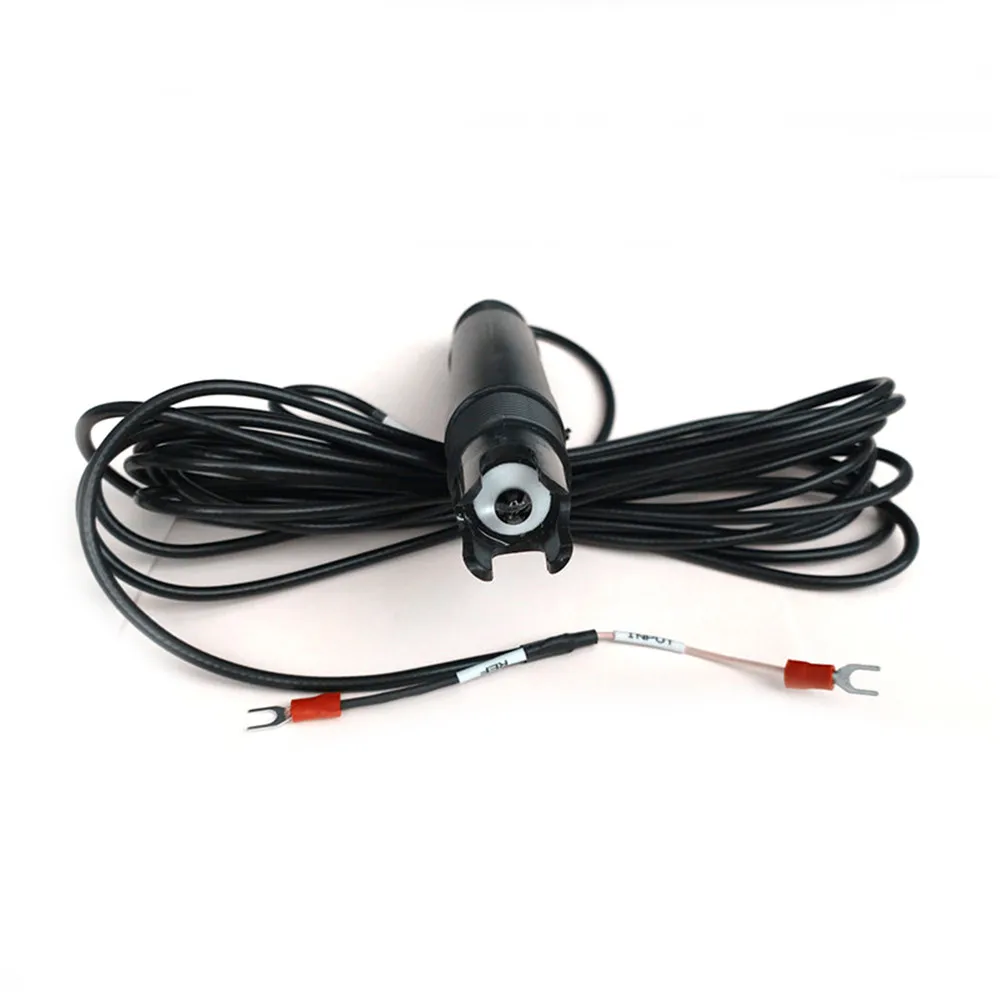

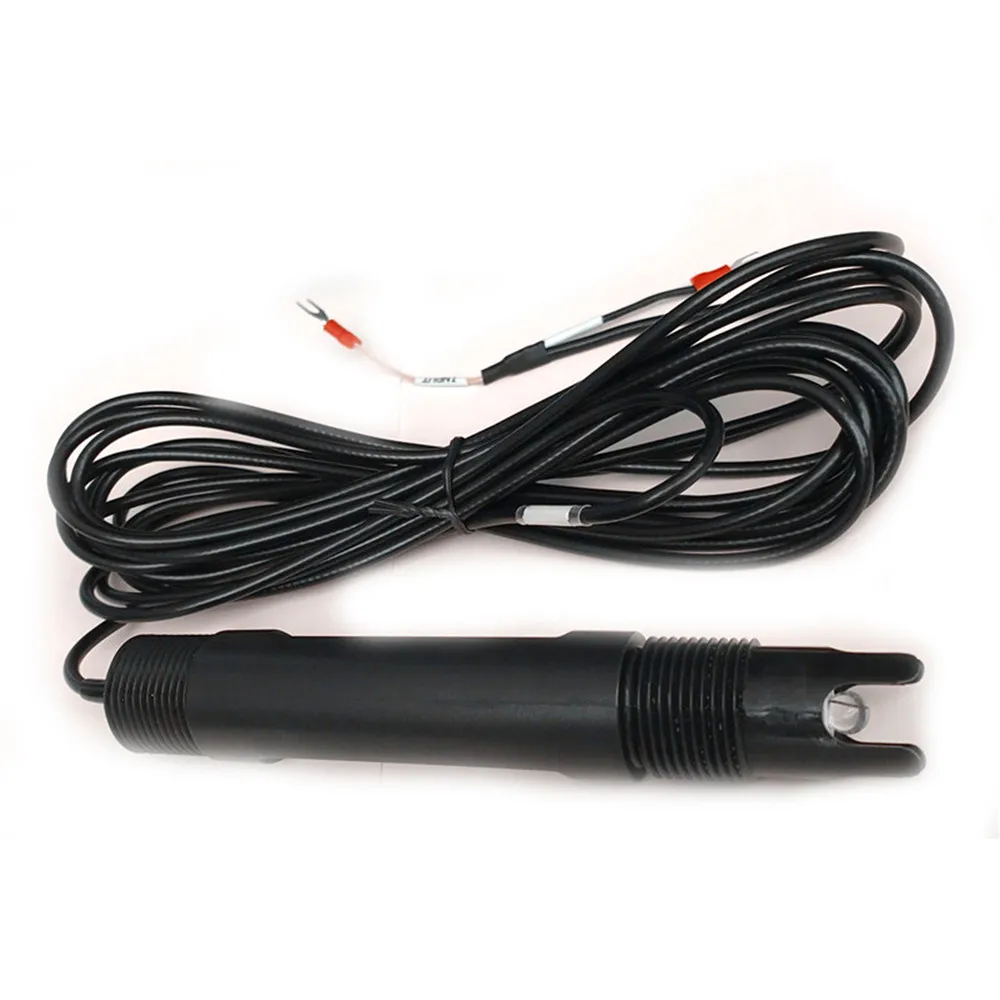

• 1 * Industrial PH Probe with 5M cable
