Upgraded 12V Automative Battery Load Tester CCA 100-2400 Bad Cell Test for Regular Flooded Auto Cranking and Charging System Dia |

---

Upgraded 12V Automative Battery Load Tester CCA 100-2400 Bad Cell Test for Regular Flooded,Auto Cranking and Charging System Dia 12V BATTERY EXPERT: Including 3 main functions: battery test,cranking test,charging test. Battery test aims to analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent.Cranking test aims to test and analyze the starting motor,Charging test is to check and analyze the charging system.
WIDER CCA RANGE: Wide test range from 100 to 2400 CCA cold cranking amps. Test results based on JIS, EN, DIN, SAE, CCA, BCI, GB, CA, MCA and IEC Standard. Even a beginner can detect battery status easily and precisely.Multi-language version including English, Russian, Spanish, French,German,Customized also are available.

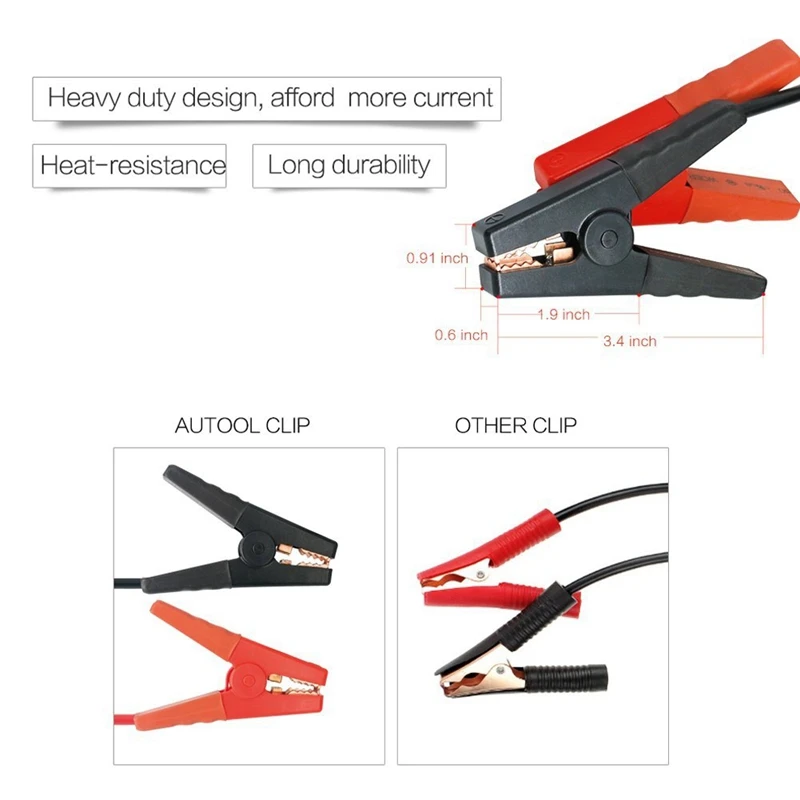

STURDY CLIP: The BT360 clamp made of thickened Oxygen-free copper which is good at conductivity and hard to break off. Whole clip covered by insulative ABS material, no current leak and provide safe working condition in battery test process. QUICK RESULT DISPLAY: Quick read and accurate test result display in just 3 seconds. Necessary device for HOME USER and Economical: Allows you independently verify battery tests performed by others, and avoid costly or annoying auto errors.
COVER ALL 12V VEHICLES: Test all automotive cranking lead acid battery,including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc. 4 simple function buttons for test and large lcd display indicate test result directly, No internal batteries required and powered by the 12V battery.
Able to test condition of discharged battery. Consistent and repeatable results. Provides unique indication of battery conditions. Provides check the Alternator's charging and Starter's cranking conditions. Powers up when connected to the battery posts during testing.
1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result: Good or Replace
6. Large easy to read LCD display.
7. Quick test-input battery volume (AH), then it can show the battery status.
8.Vehicle cranking system test--- cranking time, voltage and status.
9.Vehicle charging system test-load voltage, unloaded voltage, ripple status and charging system status.
10.Store the testing result
Features:
1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
Test Results:
Battery Test Result: 1.Good Battery 2.Good, Recharge 3.Replace 4.Bad Cell, Replace 5.Charge, Retest
Cranking Test Result: 1. Low 2. Normal
Charging Test Result: 1.Normal 2. Low 3. High
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
color: black+yellow
Material: ABS

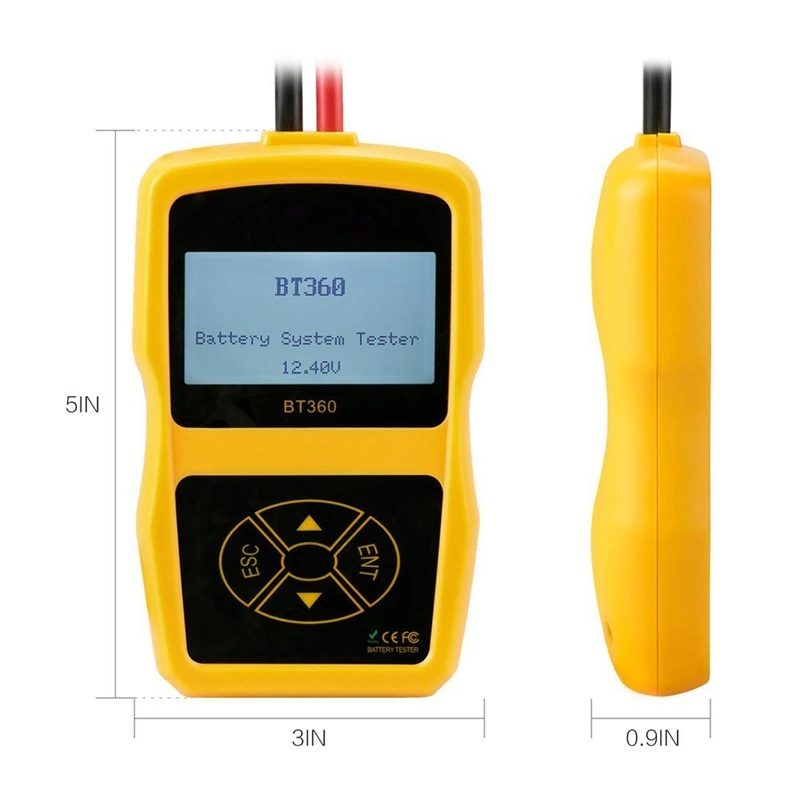

size: 12.6*7.62*2.3CM

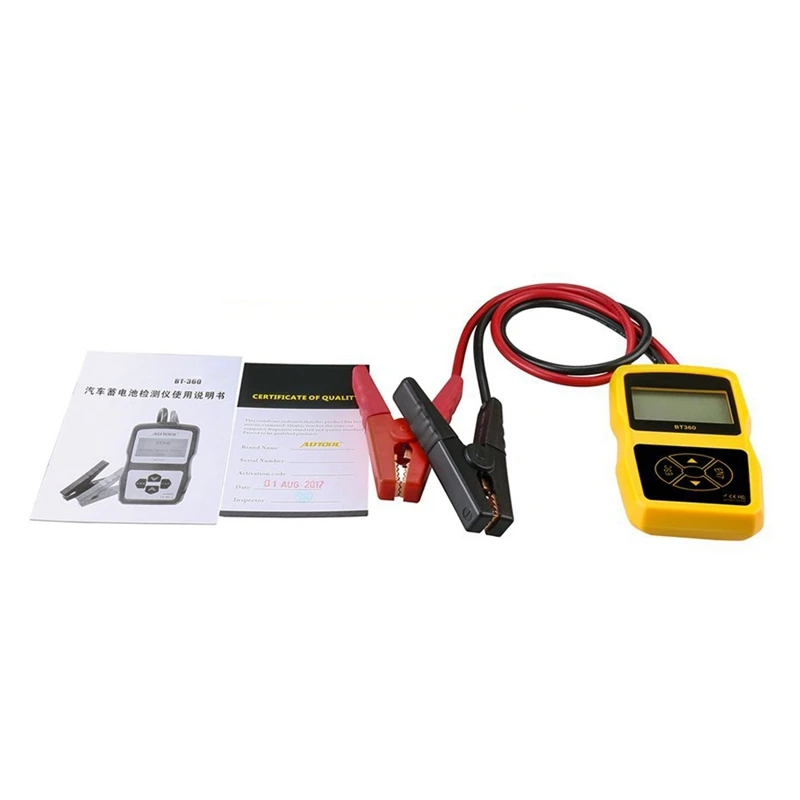

Package includes:
1* Auto Battery Tester
1* User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
