895 Высокий крутящий момент об/мин DC-моторы 12В 24В 3000/6000/10000/12000/20000 об/мин Используется для электрического мотора скутера, режущей машины и электрического шлифовального станка.

895 Высокий крутящий момент об/мин DC-моторы 12В 24В 3000/6000/10000/12000/20000 Используется для электрического мотора скутера режущей машины и шлифовального станка.

Description

Special reminder

When you buy this motor, no matter what speed you choose, after you receive the motor, the power supply current you provide to the motor must be between 12A and 15A, otherwise the current is insufficient and the motor cannot work normally.

12v-24v ; 3000-6000rpm

1. Rated voltage : DC 12V To 24V

2. No load speed : 12v is 3000rpm per minute ; 24v is 6000rpm per minute

3. Maximum torque : 10 KG.CM (It is best not to reach this value when the motor is working.）

4. No load current : 0.5A

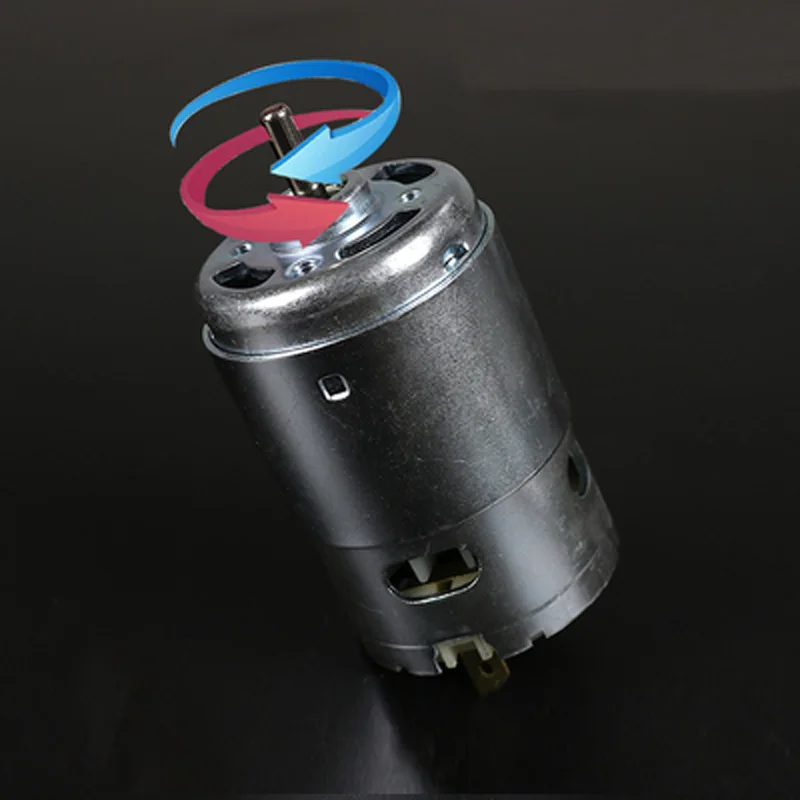

5. Support for forward and reverse rotation

6. The diameter of the motor shaft is 5MM

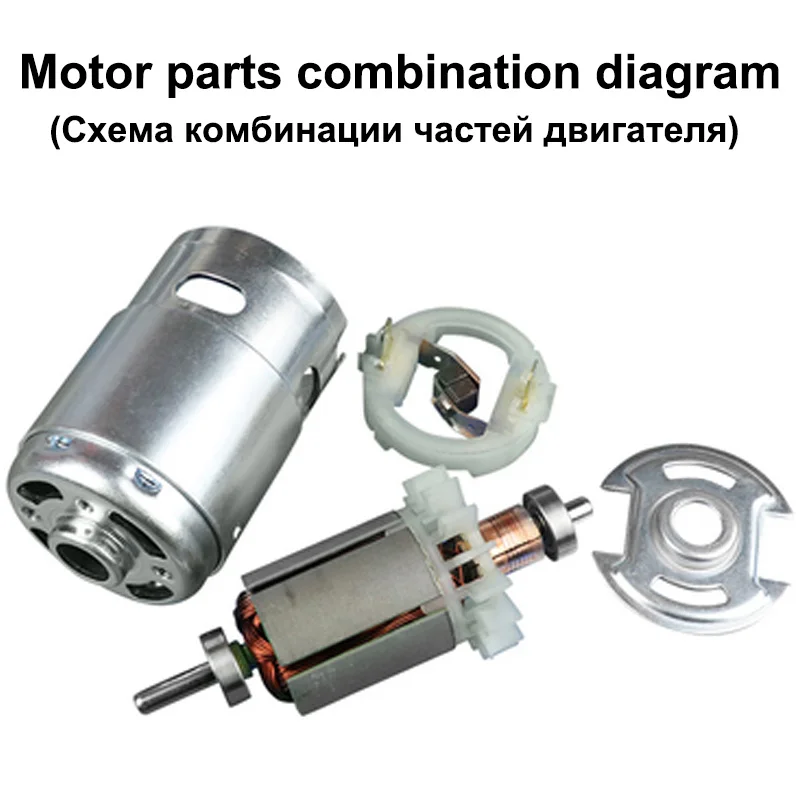

7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.

12v-24v ; 6000rpm-12000rpm

1. Rated voltage : DC 12V To 24V

2. No load speed : 12v is 6000rpm per minute ; 24v is 12000rpm per minute

3. Maximum torque : 8 KG.CM (It is best not to reach this value when the motor is working.）

4. No load current : 0.9A

5. Support for forward and reverse rotation

6. The diameter of the motor shaft is 5MM

7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.

12v-24v ; 10000rpm-20000rpm

1. Rated voltage : DC 12V To 24V

2. No load speed : 12v is 10000rpm per minute ; 24v is 20000rpm per minute

3. Maximum torque : 7.2 KG.CM (It is best not to reach this value when the motor is working.）

4. No load current : 2.1A

5. Support for forward and reverse rotation

6. The diameter of the motor shaft is 5MM

7. Material: The front and rear axles are ball bearings; the motor casing is galvanized and rust-proof; the carbon brush is thickened, the service life of the motor can be extended; the inner rotor uses pure copper coils, the electrical conductivity of the motor is stronger

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, Coffee machine ; blender ; child scooter ; micro cutter, etc.

The following are the dimensions of the 895 motor

The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.

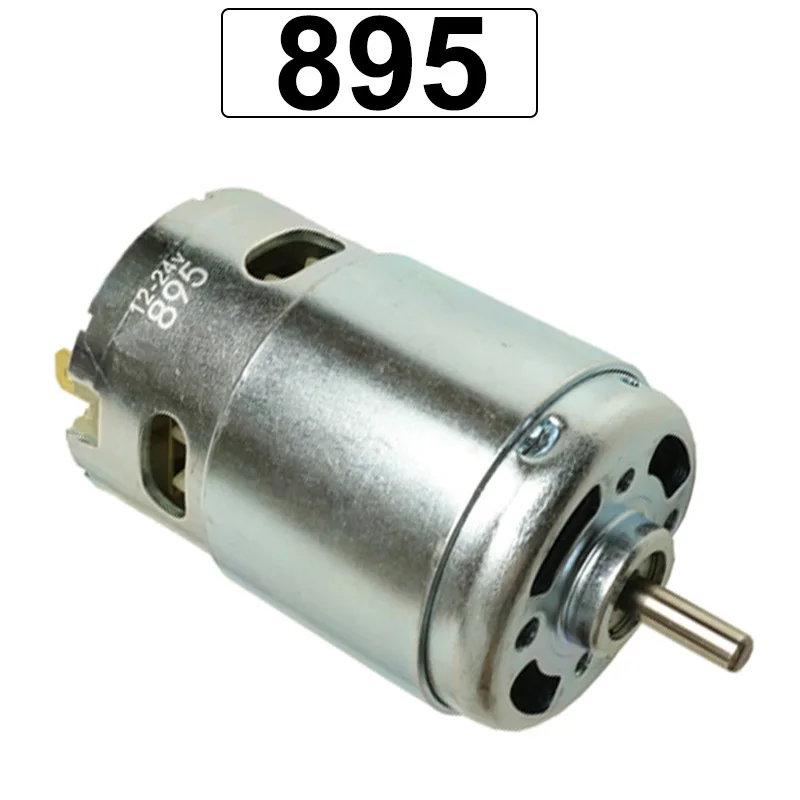

The following are photos of the 895 motor
