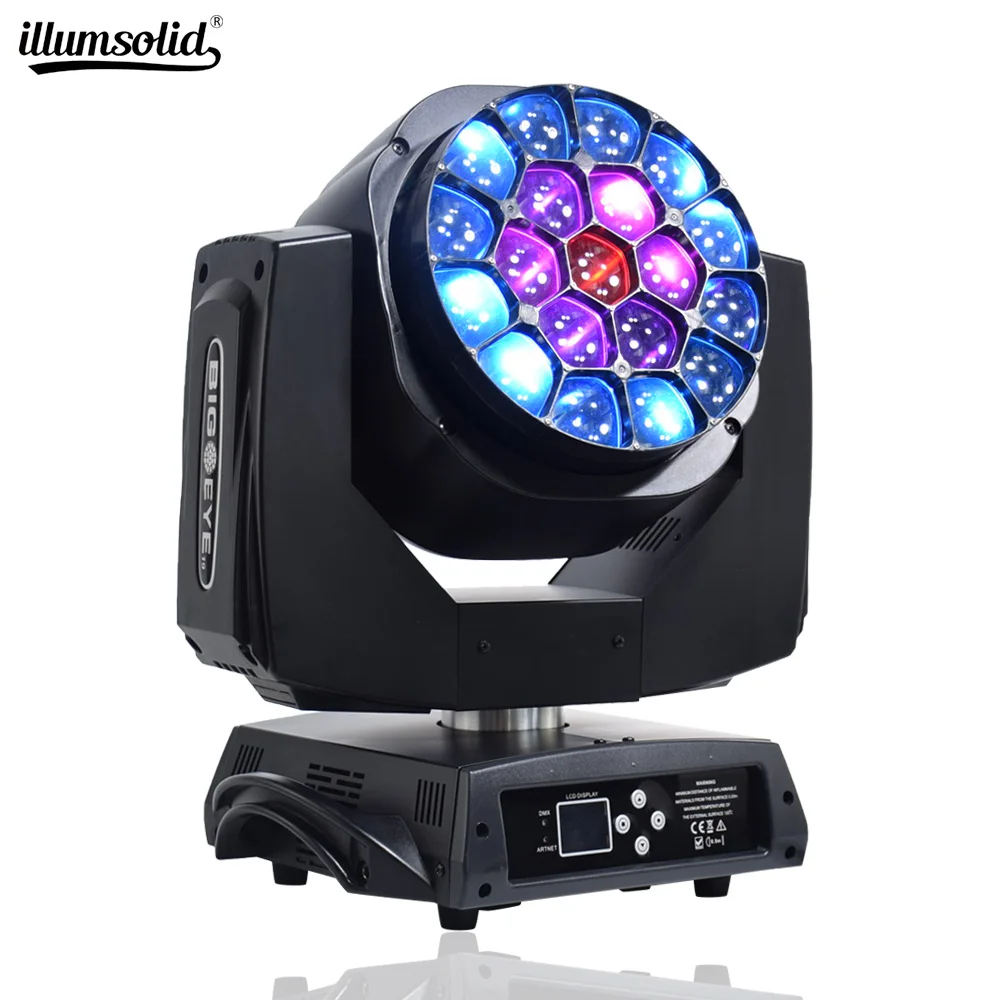

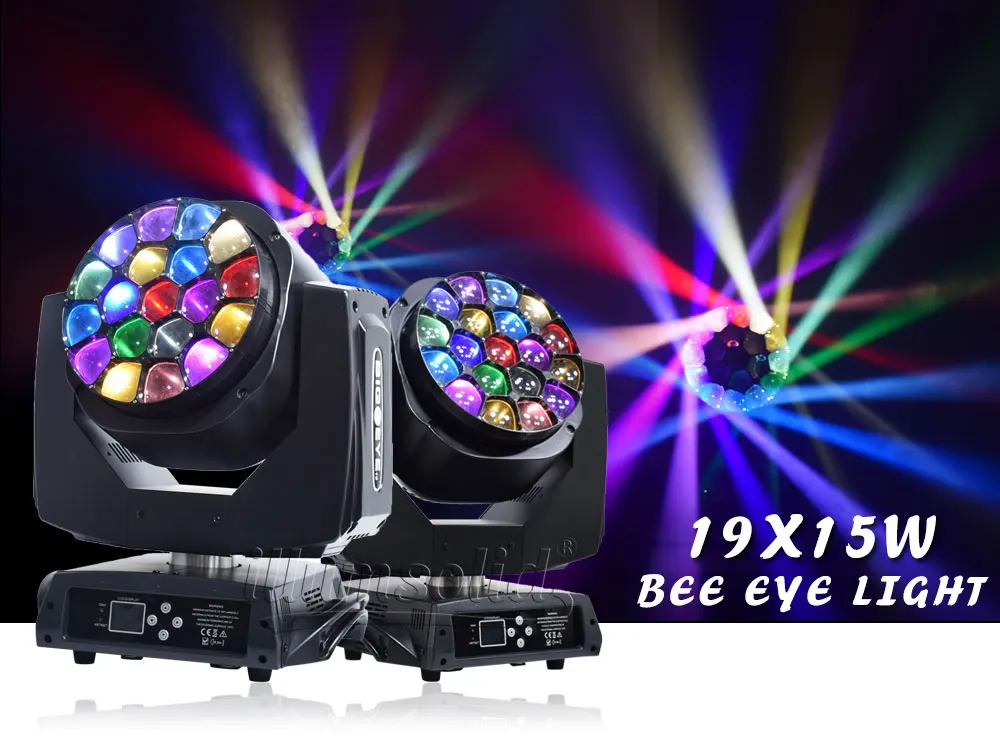

LED Zoom Wash 19x15W Bee Eye Supper Bright Stage Moving Head Light

Ultra-fast built-in shape function change speed; dazzling kaleidoscope, swirl, small waist and other effects; stunning uniform dyeing effect and beautiful beam effect, make stage vision a new upgrade; LED bee-eye moving head light adjustment The focus system is controlled by a microprocessor to automatically reset the light beam angle of the light in the range of 4 ° ～ 60 °. When the lens group is raised above the lamp head, that is, the beam angle is 4 °, the light fixture immediately has a beam 、effect. The kaleidoscope beam effect can be obtained by adding and changing colors to generate a swirling image effect. When the beam angle is 60 °, it immediately changes to the WASH effect.

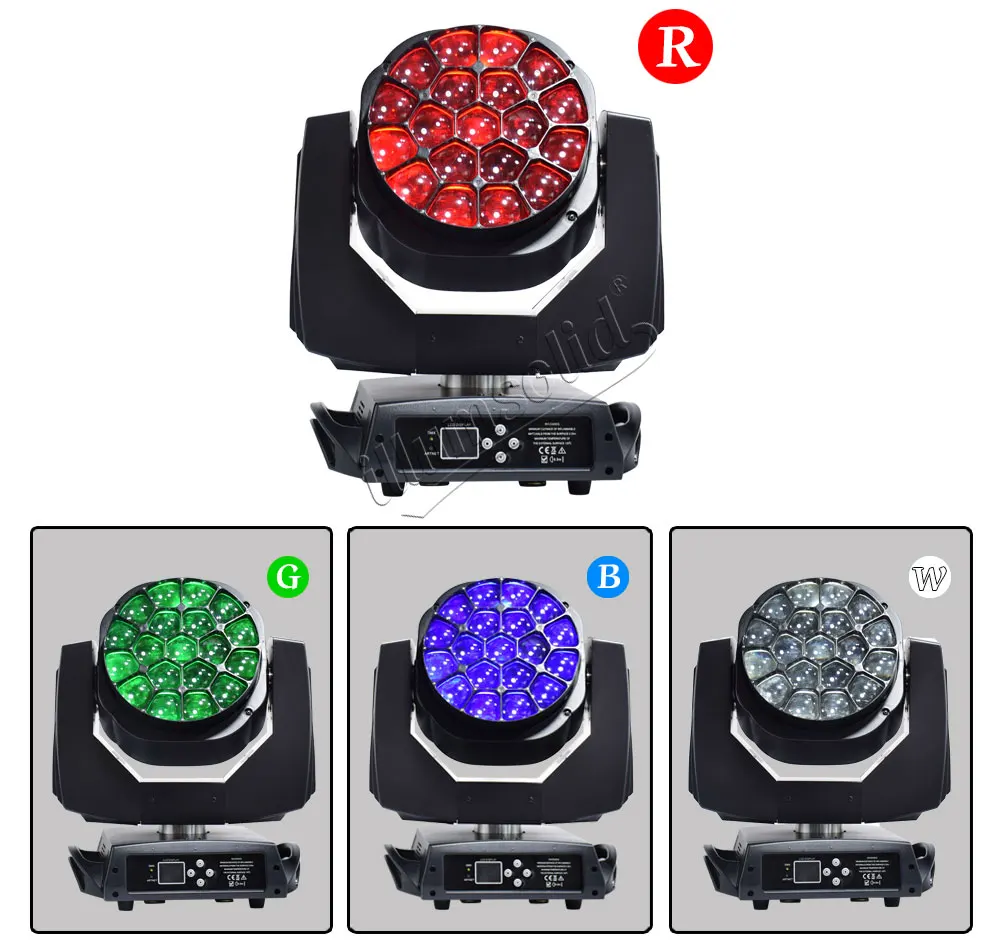

Source Type: RGBW LEDs

LED Nominal Wattage: 15W

Number of LEDs: 19

Versatile, three operating modes: wash, beam, FX effects

Unique optical system, featuring unmatched zoom range (4°-60°) and even light spread

Individual LED control for each parameter

Invisible front grid

Beam edge softening control (in wash mode)

Exclusive parallel beam consisting of an array of individually controllable micro-beams

Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability

Art-Net / RDM

Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use

POWER SUPPLIES

100-240V 50/60Hz

Total power：285

power supply：500

LIGHT SOURCE

19 Osram Ostar RGBW LEDs

LED Nominal Wattage: 15W

LED Average Life: 50,000 h

OPTICS

4°-60° Electronic Zoom Range

EFFECTS SECTION

Three operating modes: wash, beam, FX (Kaleido effects)

Bi-directional Rotating Front Lens

Digital Wash-Beam Framing effect

Beam edge softening control (in Wash mode)

Pixel Patterning Macros with enhanced control

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect, with instantaneous blackout

Dedicated channel for color temperature setting

Slow Strobe: 1 flash/sec

Fast Strobe: 25 flash/sec

CONTROL AND PROGRAMMING

Control channels: 21 in standard mode

Protocol signal: USITT DMX 512

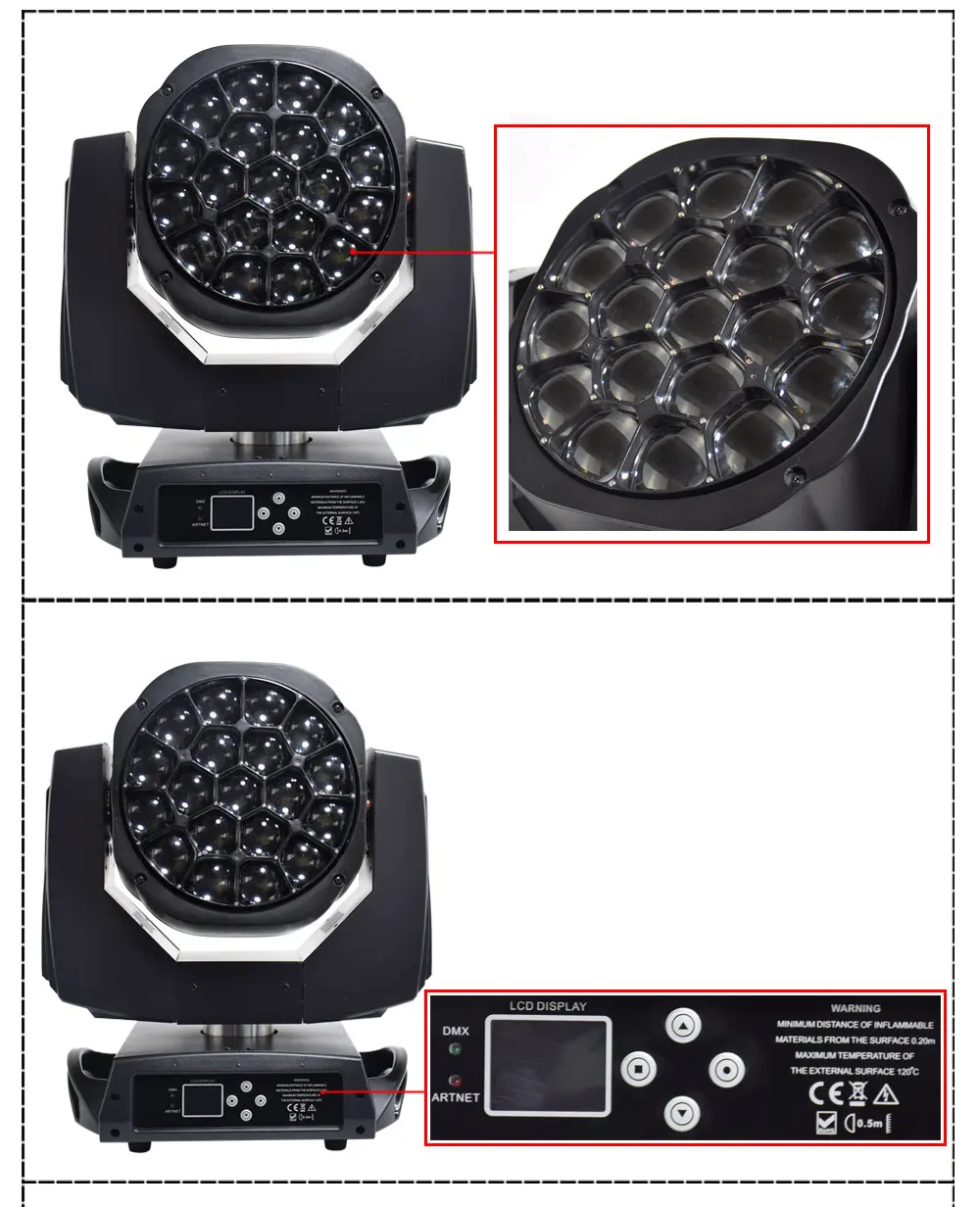

Display: Graphic LCD backlit b/w Display

Pan/Tilt Resolution: 16 bit

Dimmer Resolution: 16 bit

Movement control: vectorial

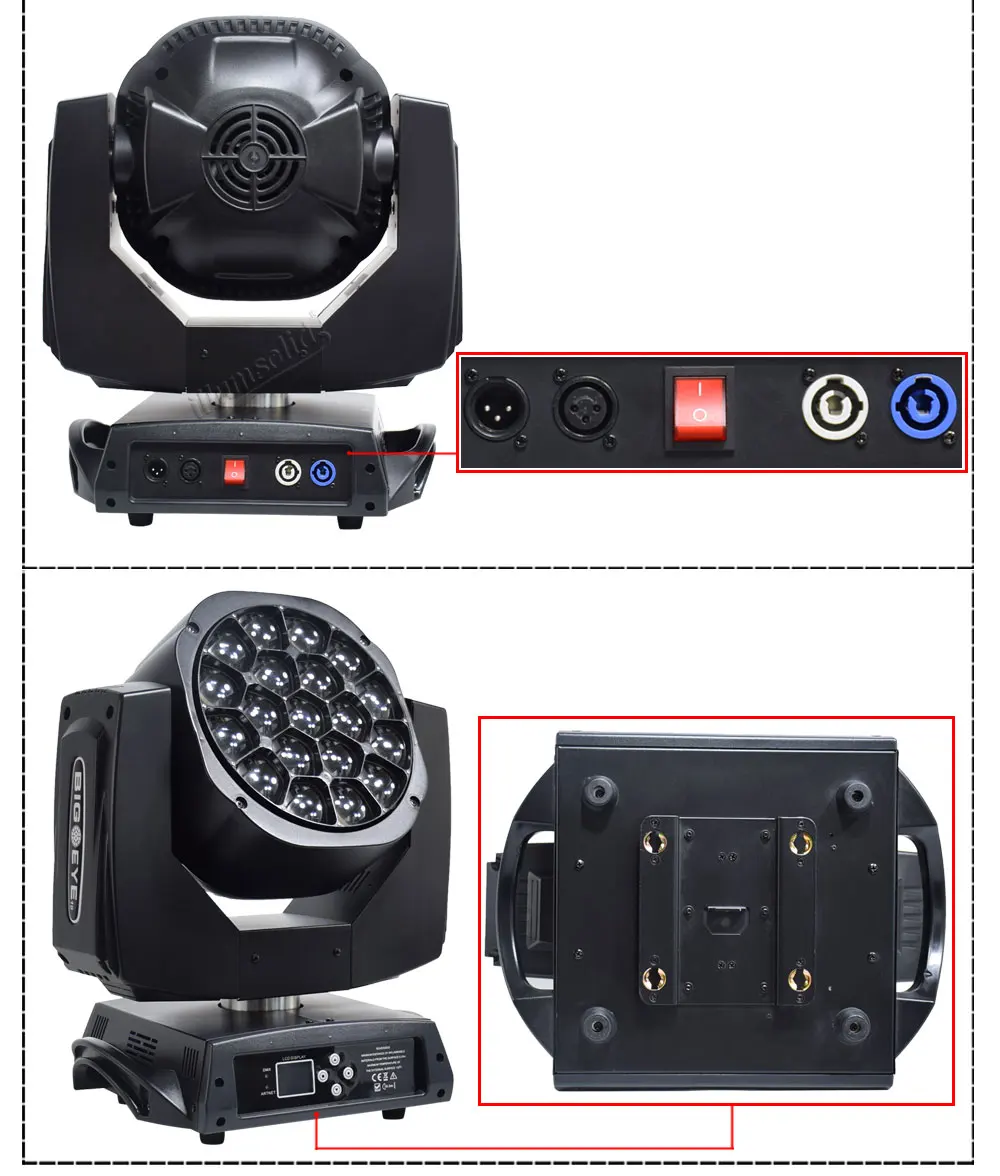

DMX signal connection: 3 pole XLR input and output

Software upload through DMX input

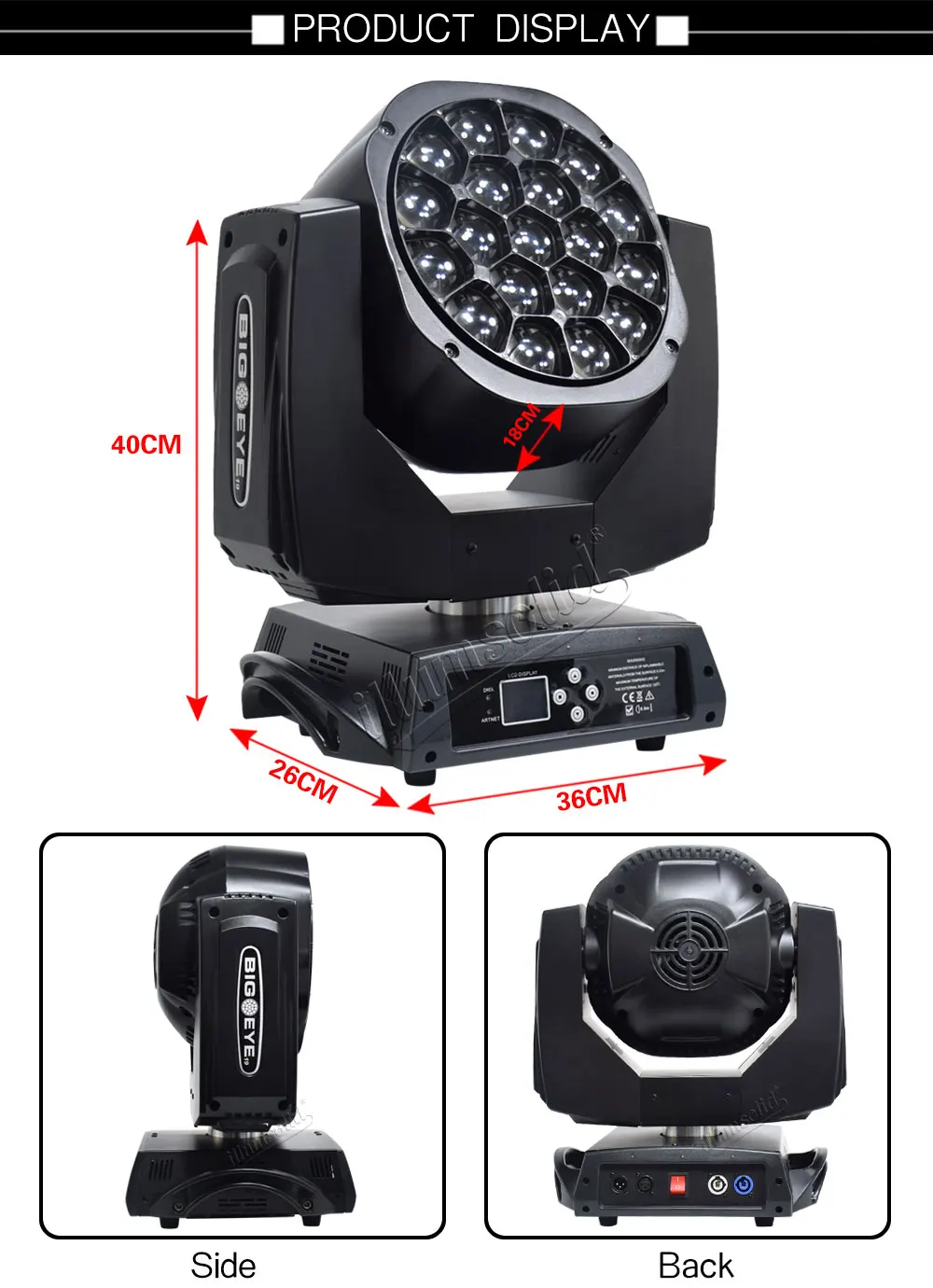

BODY

Aluminium structure with die-cast plastic cover

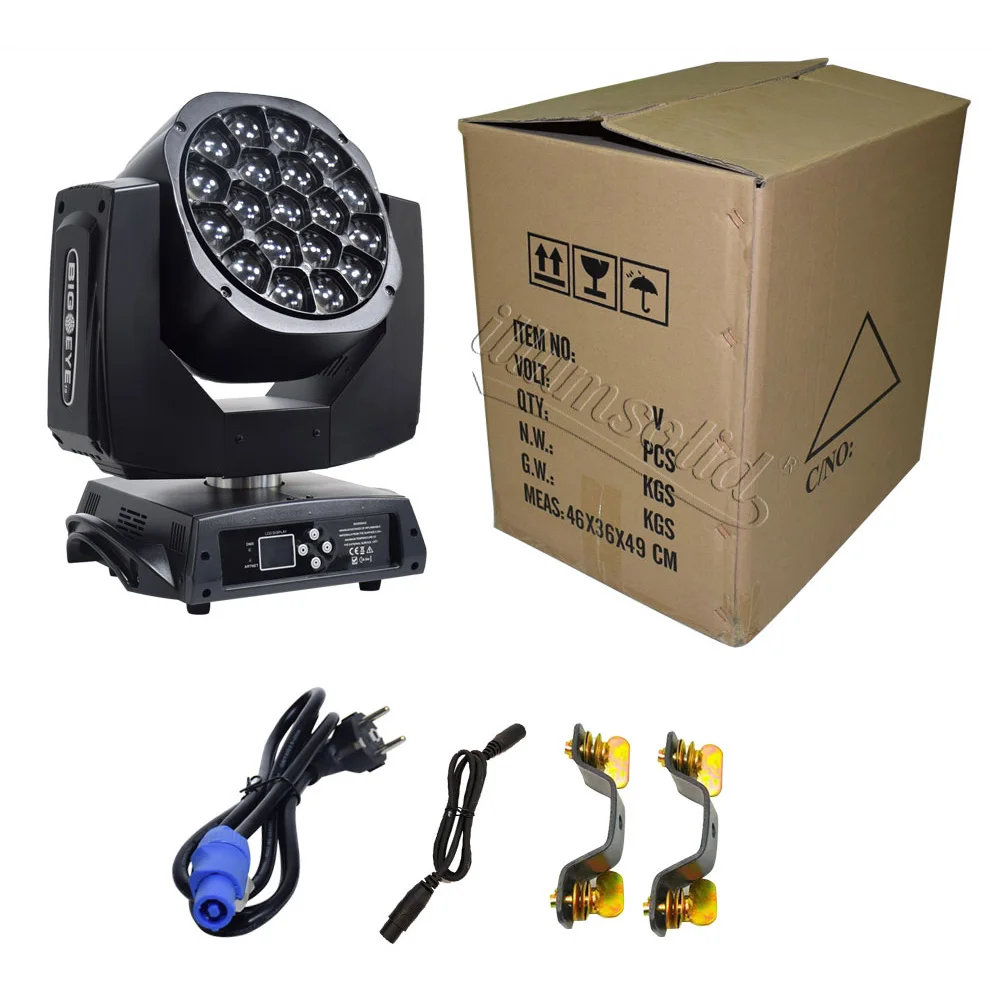

Two side handles for transportation

PAN lock for transport and maintenance

MOVING BODY

Movement by means of two stepper motors, controlled by microprocessor

Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit

Travel:

- PAN = 540°

- TILT = 210°

ELECTRONICS

Long-life auto-charging buffer battery

Preset color and graphic effect macros

Function reset controllable from a central control unit

Menu-driven internal self-test function

Display: backlit black-and-white graphic LCD display

Electronic check-up of every single parameter with error alarm

DMX level monitoring on each channel

Automatic internal data transmission error diagnostics

Firmware upgrade even when the unit is not connected to the power supply

Firmware transfer from one light to another

SAFETY DEVICES

Automatic power safety derating in case of overheat of the LED board

Forced ventilation

WORKING POSITION

Working in any position

Hanging system: with fast-lock omega clamps (1/4 turn) on the base

WEIGHT

15 Kg (33.1 lbs)
