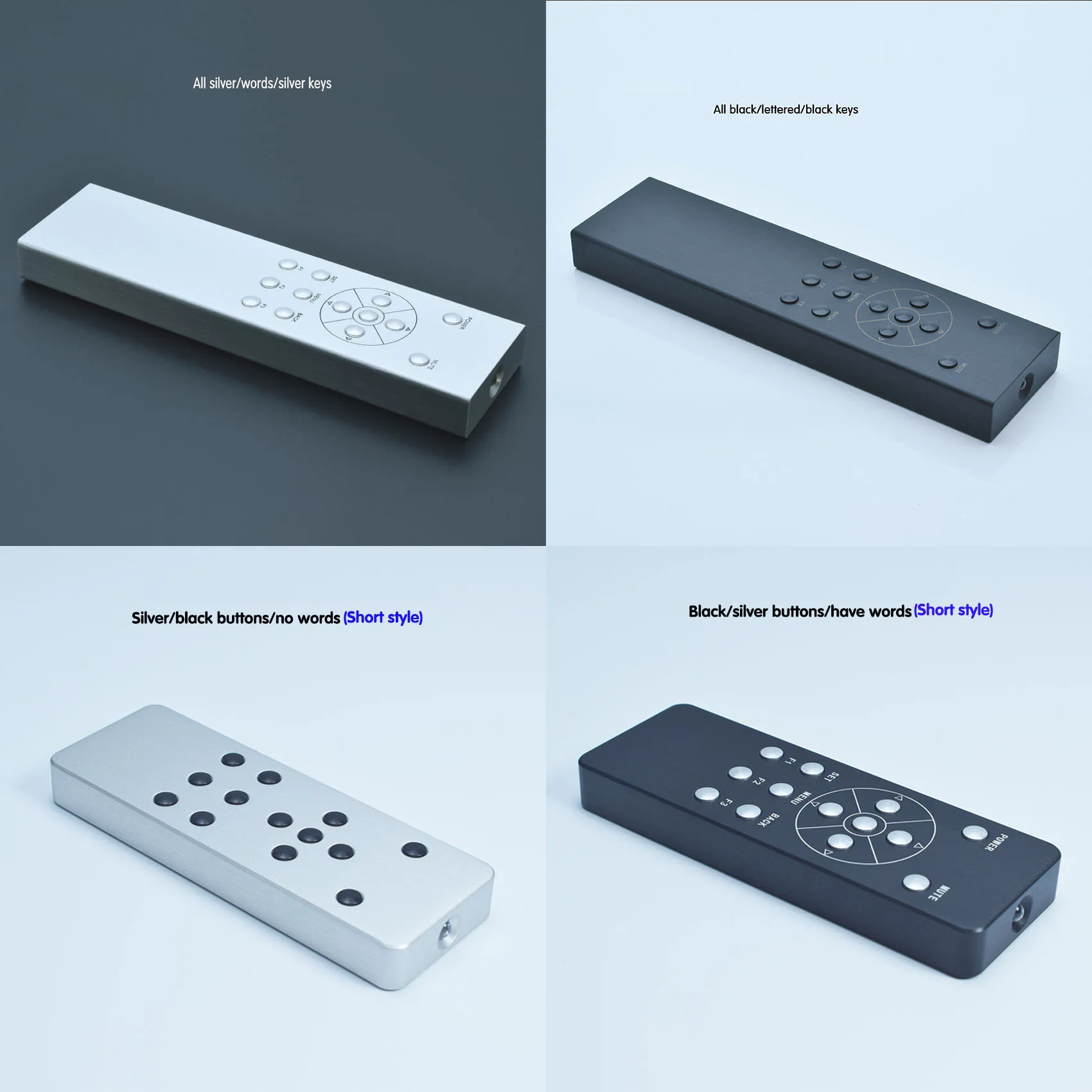

Универсальный пульт дистанционного управления из алюминиевого сплава
5 490,27 - 6 068,53 руб.

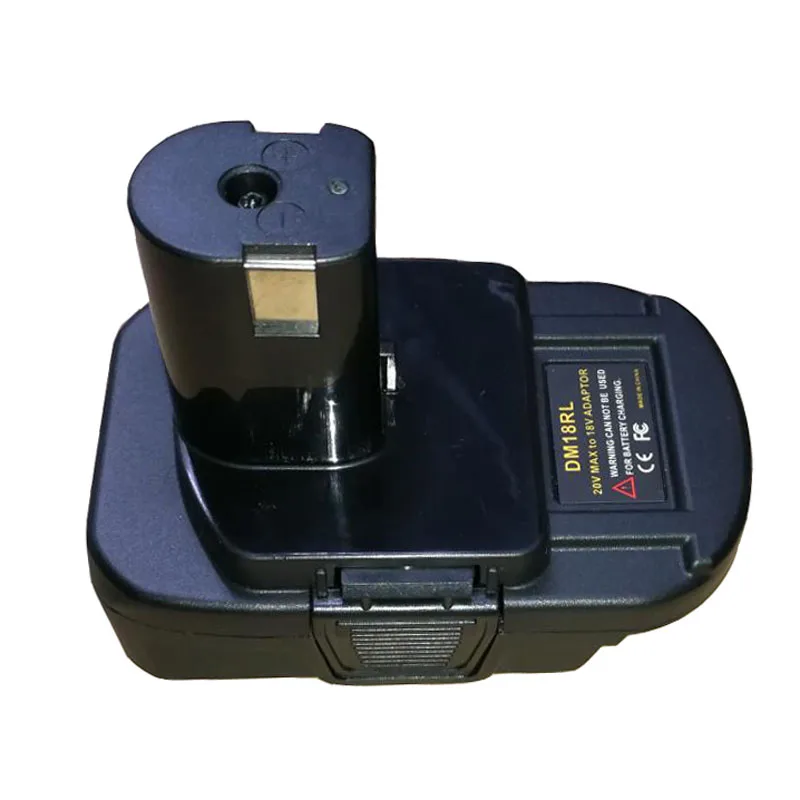

DM18RL Battery Converter Adapter USB DM20ROB For RYOBI Convert DEWALT 20V Milwaukee M18 to 18V NiCad NiMh P108 ABP1801 | Электроника
2 562,86 руб.
Зарядное устройство Usb ЖК-дисплей для 3 7 V Li-Ion 10440 14500 18650 26650 Xtar | Электроника
300A 200A 150A 100A 70A литиевый LTO BMS 10S 13S 14S 24S с Bluetooth баланс APP для LiFePo4 литий-ионный
11 514,98 - 16 696,72 руб.
300A 200A 150A 100A 70A литиевый LTO BMS 10S 13S 14S 24S с Bluetooth баланс APP для LiFePo4 литий-ионный
11 514,98 - 16 696,72 руб.
4S 3.2V Lifepo4 Lithium Iron Phosphate Protection Board 12.8V High Current Inverter Bms Pcm Motorcycle Car Start(200A) | Электроника
Green Store
Магазина Green Store работает с 21.08.2011. его рейтинг составлет 93.6 баллов из 100. В избранное добавили 6122 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 522 наименований товаров, успешно доставлено 3581 заказов. 672 покупателей оставили отзывы о продавце.
Характеристики
Deligreen 16S 250A 60V PCM/PCB/BMS for 3.7V LI ion 18650 Lithion Ion Battery Pack protection board | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-17-2026 | 0.33 руб. | 0.60 руб. | 0 руб. |
| Feb-17-2026 | 0.5 руб. | 0.11 руб. | 0 руб. |
| Jan-17-2026 | 0.52 руб. | 0.84 руб. | 0 руб. |
| Dec-17-2025 | 0.48 руб. | 0.86 руб. | 0 руб. |
| Nov-17-2025 | 0.28 руб. | 0.31 руб. | 0 руб. |
| Oct-17-2025 | 0.0 руб. | 0.54 руб. | 0 руб. |
| Sep-17-2025 | 0.56 руб. | 0.72 руб. | 0 руб. |
| Aug-17-2025 | 0.65 руб. | 0.47 руб. | 0 руб. |
| Jul-17-2025 | 0.99 руб. | 0.21 руб. | 0 руб. |
Описание товара
Notes: Please see table as below to find right models.
|
3S 10A-200A |
8S 10A-200A |
14S10A-200A |
20S10A-200A |
|
4S 10A-200A |
10S10A-200A |
15S10A-200A |
21S10A-200A |
|
6S 10A-200A |
12S10A-200A |
16S10A-200A |
24S10A-200A |
|
7S10A-200A |
13S10A-200A |
17S10A-200A |
LTO BMS |
About temperature monitor,If you need pls tell us
80% buyers also order balancer
Model: SY16S250A for 3.7V rated NCM battery
We can customize any PCB from 2S to 24S lithium batteries with different current.
Welcome retail and wholesale both. More discount for volume order!
1.Overview
DG 16S 250A PCB is used for 16series battery pack.
We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection,
temperature protection etc.
2 Custmers' feedback

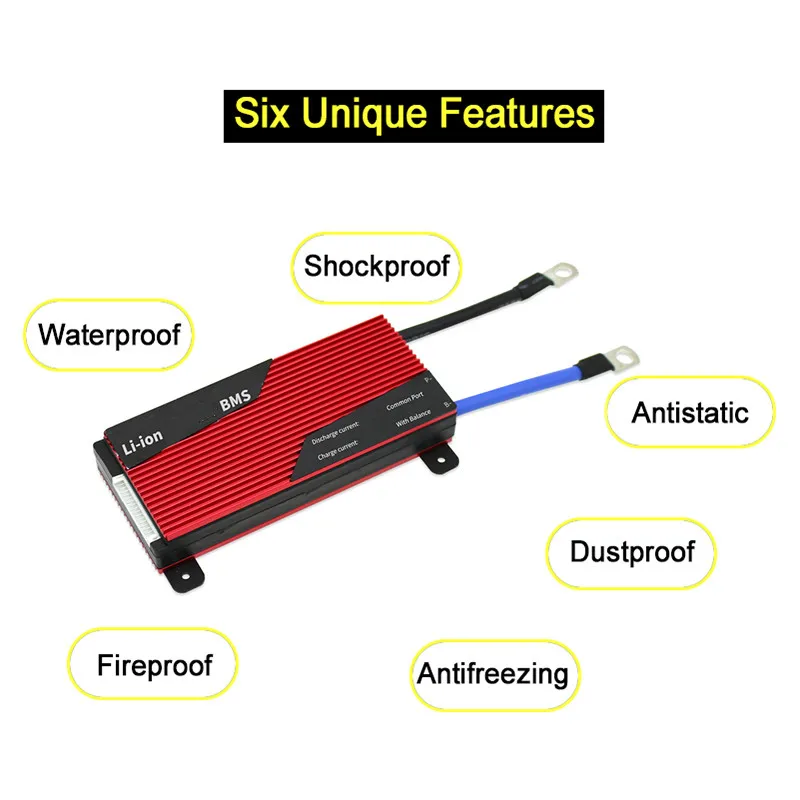

3. Advantage
4.Technical parameter（The following is an example for 3.7V rated LiFePO4 battery.
If your battery is 3.7V rated LiNCM, we will set the parameters for LiNCM batteries）
|
|
Content |
Spec |
Unit |
Remarks |
|
Discharge |
constant discharge current |
250 |
A |
|
|
peak discharge current |
625 |
A |
|
|
|
charge |
charge voltage |
67.2 |
V |
|
|
charge current |
250(MAX) |
A |
|
|
|
Over charge protection |
over charge volt |
4.25±0.05 |
V |
|
|
over charge volt protect delay |
0.5 |
S |
|
|
|
Over charge volt release |
4.15±0.05 |
V |
|
|
|
Power balancing
|
Power balance volt |
4.18 |
V |
|
|
balance release volt |
4.18 |
V |
|
|
|
balance current |
35 |
mA |
|
|
|
Over discharge protection |
Over discharge detect volt |
2.7±0.05 |
V |
|
|
Over discharge detect delay |
0.5 |
S |
|
|
|
Over discharge volt release |
3.0±0.05 |
V |
|
|
|
Over current protection |
Over current detect volt |
150 |
mV |
|
|
Over current detect delay |
9 |
MS |
|
|
|
Over current protection |
200 |
A |
|
|
|
Over current protect release |
disconnect load |
|
|
|
|
Short circuit protection |
Short circuit protection |
External load short circuit |
|
|
|
Short circuit detect delay |
250 |
uS |
|
|
|
Short circuit detect release |
Disconnect load |
|
|
|
|
Temperature protection |
Temp protection |
none |
℃ |
Can be customized |
|
resistance |
Main circuit resistor |
≤10 |
mΩ |
|
|
Self- consumption |
Working current |
≤50 |
uA |
|
|
Sleepy current(when battery is over discharged ) |
≤12 |
uA |
|
|
|
Working temp
|
temp range |
-30/+80 |
℃ |
|

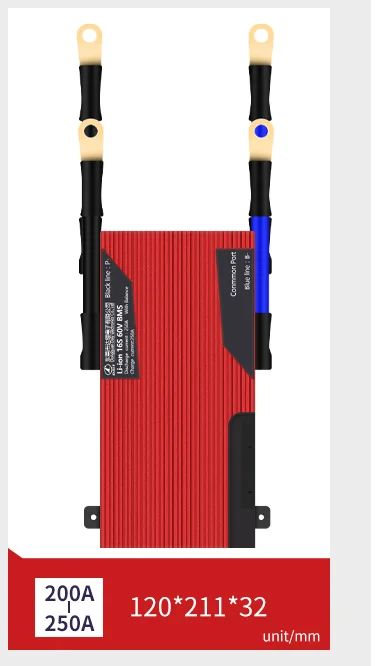

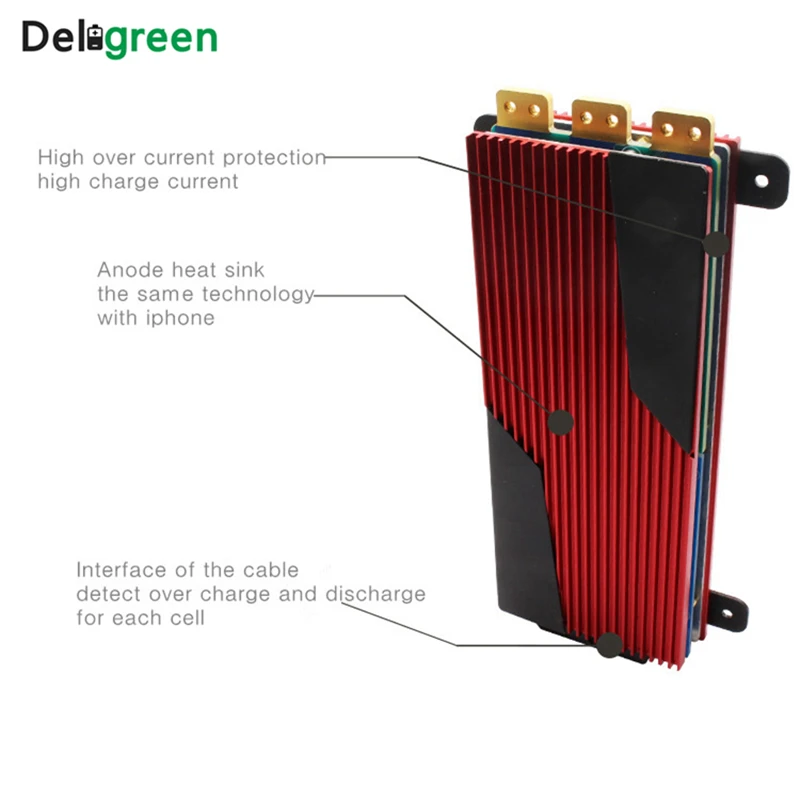

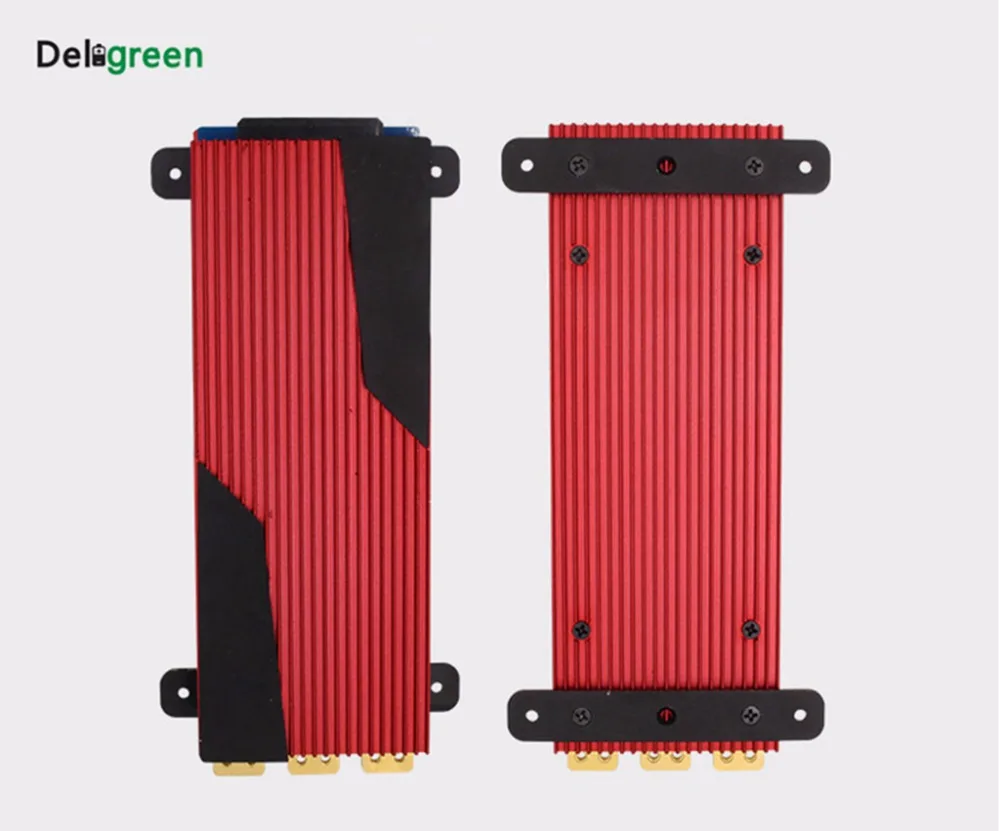

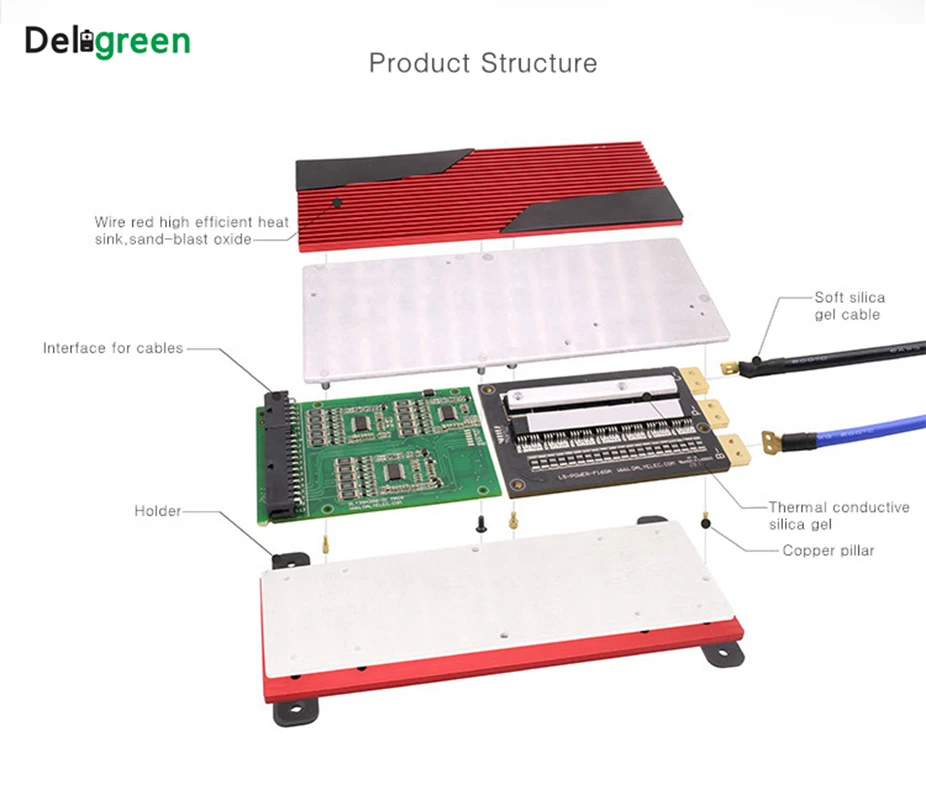

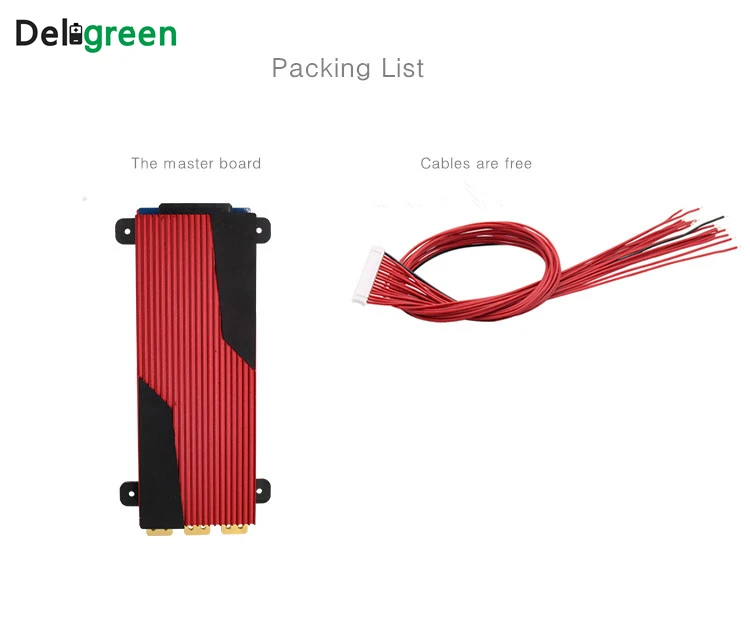

5. Product Photo
6. Wiring instruction
7. FAQ
1) Which current of the PCB should i choose?
Take 13S 48V pack as an example: Which PCB you should choose depends on the power of your motor or the current limitation of your controller. Below 350W ,you can choose 16A.Below 500W, you can choose 18A, Below 800W, you can choose 35A,Below 1KW, you can choose 60A. Above 1200W, the same. If you are not sure, please contact us freely.
2) Can I use bigger size of PCB than it should?
Suppose you need 60A PCB but you chose 80A, that is OK.
80A allows higher current.Nothing bad but a bit higher price.
But if you choose 50A, sorry it is too small. So you can choose higher spec but can’t choose lower one than it should have been.
3) What kind of charger should i choose?
Lithium battery must be charged by lithium battery charger. You can’t charge it with a lead acid battery charger. The lead acid battery charger might damage MOS pipe of the PCB.
4) If i have PCB, do i need any balancers?
Yes if you can add QNBBM balancers, that would be perfect.
The Main function of PCB is to prevent batteries from over charged or over discharged,over heated etc.
All the PCB /BMS in the world balance performance is not satisfactory.
With balancers added, the batteries lifespan will be longer and the capacity will be fully used.
5) How to judge if my PCB is broken or not ?
If you’d like to judge if the PCB is fine or not, please use a multi-meter and see if the voltage of each cell is close to each other or not.when the volt difference is 1V, the battery will have such performance:driving distance is short, cut off when started, charging time is very short.under such situation , some battery is defective. When the PCB is broken, the battery can’t be discharged when you measured the battery volt is normal.
