kebidu Bluetooth 5V 12V MP3 WMA Decoder Board Car Kit MP3 Player Decoder Board FM Radio TF USB 3.5 Mm AUX Audio Receiver Adapter

Feature:

* Support signal switch directly. Support USB, TF

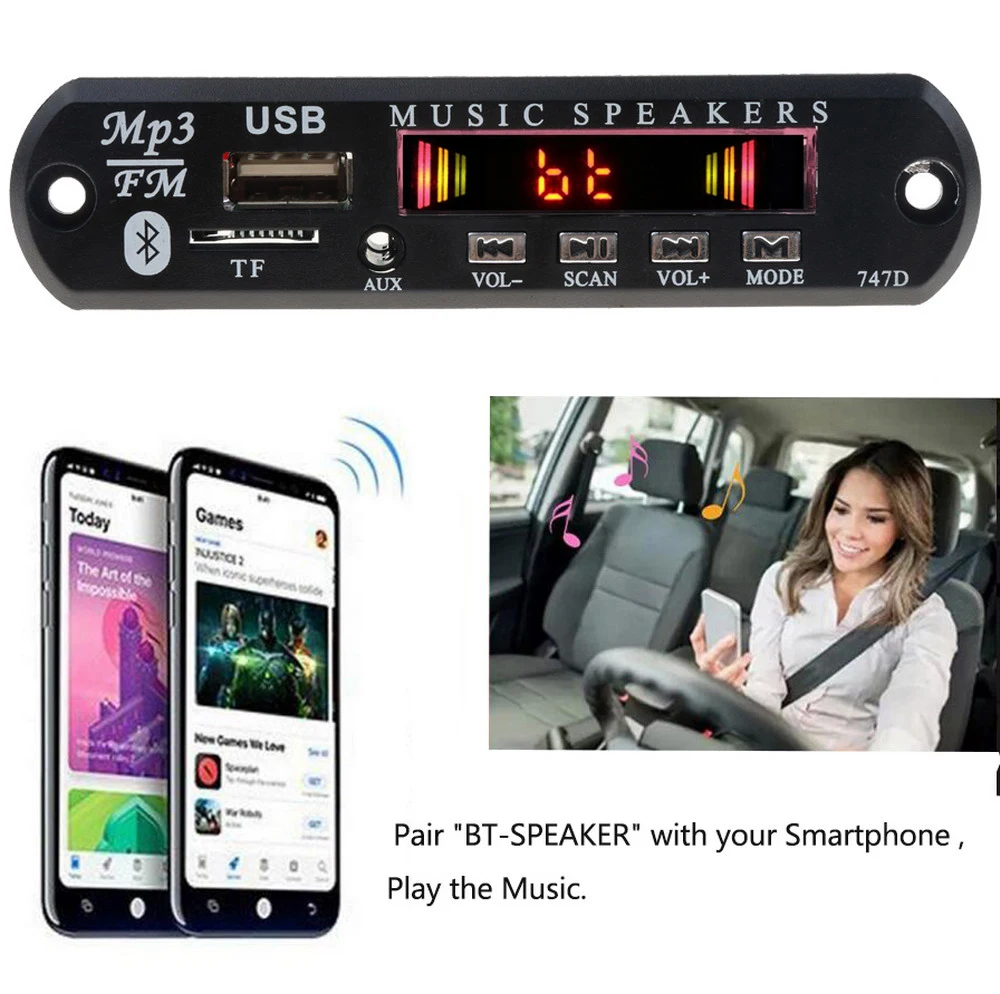

* Support bluetooth (Bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play)

* Support USB / TF / Bluetooth/FM / LINE switch. MP3 / WMA, WAV lossless music decoding chip.

* Support USB / TF card switch, PREV, NEXT, fast forward, fast rewind, volume, EQ, play / pause, stop, single repeat, mute, shutdown and direct election.

* Support Bluetoot PREV, NEXT, volume, EQ, play/pause, mute, turn it off.

* Support FAT16, FAT32 file system. Support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.

* Support power off memory function: memory play songs and volume before power off.

Note:

Non-smart phones (android) have to enter the password - 0000

Decoding board play mode instruction:

Decoding board in the absence of memory card or U disk,boot default to //'//'audio input//'//' mode,the screen display LINE

Press //'//'MODE//'//' key on the panel or the remote control switch to bluetooth MODE,the screen shows //'//'BLUE//'//',can open bluetooth search contion at this time

Press //'//'MODE//'//' key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press //'//'PLAY//'//' button automatic searching channel

Press //'//'MODE//'//' key on the panel or the remote control switch to the U disk or memory card //'//'play MODE//'//',the screen displays the time schedule of the song

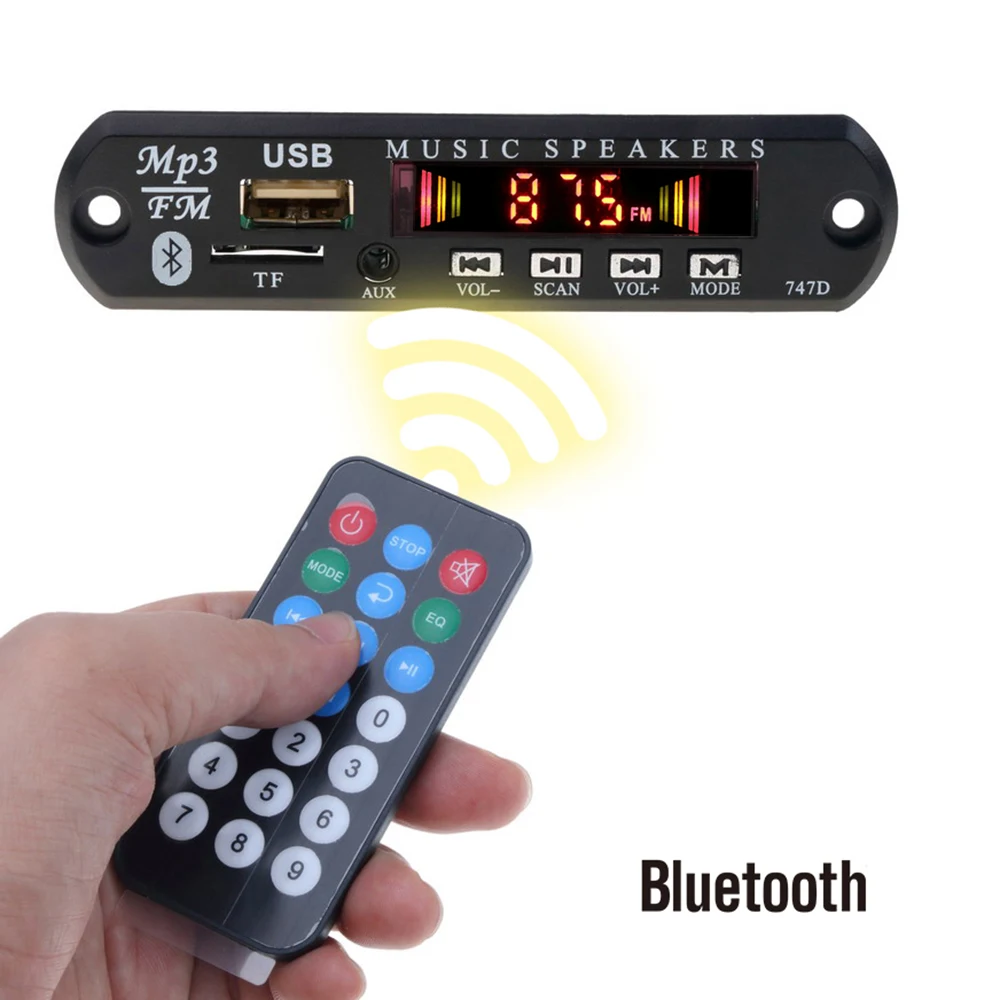

The remote control instruction:

1. POWER: STANDBY button cannot switch.

2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;

Only U disk: switching sequence for USB→Bluetooth→FM→AUX;

Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;

There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.

3. PREV: In USB/TF / Bluetooth MODE,short press for PREV;

In the USB / SD MODE, long press for fast rewind;In FM MODE, short press for last channel, long press for scan search last channel.

NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;

In USB / TF MODE,long press for fast forward;

In FM MODE,short press for next channel,long press for scan search the next channel.

4. VOL + : short / long press for music.  VOL - : short/long press for music.

5. REP:In USB / TF MODE,is the switch key between single repeat and whole cycle when play music,boot for all cycle.

6. STOP: In the USB / TF MODE,short press to STOP the music play.

7. MUTE: MUTE,press for MUTE,press again for relieve(also can relieve by VOL- /VOL+).

8. EQ: Acoustic field MODE.The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL

9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE;In the FM MODE,long press for searching all channels and save.

Specification:

Installation pitch: 92 mm wide

Installation hole:  83 x 20 x 38 mm

Overall dimensions: 107 x 25 x 38 mm

(W x H x D)

Input  voltage: 5-12V

Package Included:

1 X decoding board

1 X remote controls((Not Bring the Battery)

No retail box will be included, but we'll pack well before shipping.
