2MP 7inch thermal security camara temperature recognition human body temperature detection camera face recognition temperature

1.Can be controlled by VMS; 2. Broadcast language: support English, Japanese, Italian, Spanish, German, French, Portuguese, Russian, Korean, Turkish; 3.App language: English

Product Features

1. Built-in non-contact high-precision thermal imaging module + live detection in one 2. Temperature detection range 35℃~42℃，Precision±0.3℃ 3. Support human body temperature overlay、picture overlay 4. Support body temperature detection 5. Supports detection 6. Built-in FACE ++ deep learning face recognition algorithm，Stable and reliable 7. Support 50,000 face database 8. 100 ms fast identification 9. 7inch HD LCD display 10. Local alarm output after abnormal temperature 11. Face recognition, temperature detection, and recognition, Freely configure multiple usage modes 12. ultra-thin metal shell. 13. Can record identification information and temperature information, save traceability 14. Excellent environmental adaptability, adapt to low light and strong backlight, support automatic face exposure 15. Support Wigan protocol, can directly drive access control and control various gates 16. Rich hardware interface, integrated 100M Ethernet interface, audio interface, Wiegand interface, relay interface, TF card, USB and other interfaces 17. Support 2D, 3D digital noise reduction 18. Low power consumption, main board power consumption is as low as 5 watts 19. Support the secondary development of device-side application software 20. Support various software and hardware customize.

Facial Recognition Camera thermal infrared HD camera 2MP Human Body Temperature Detector Access Control Face Recognition

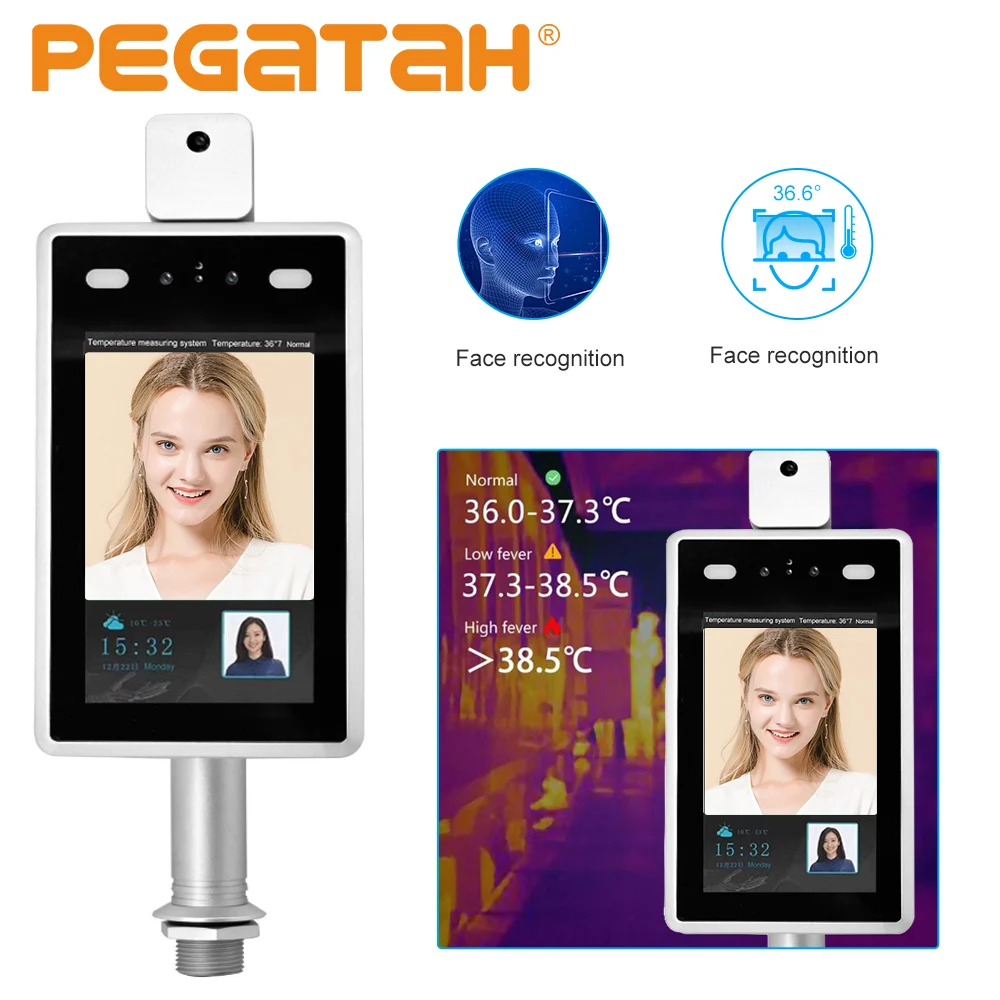

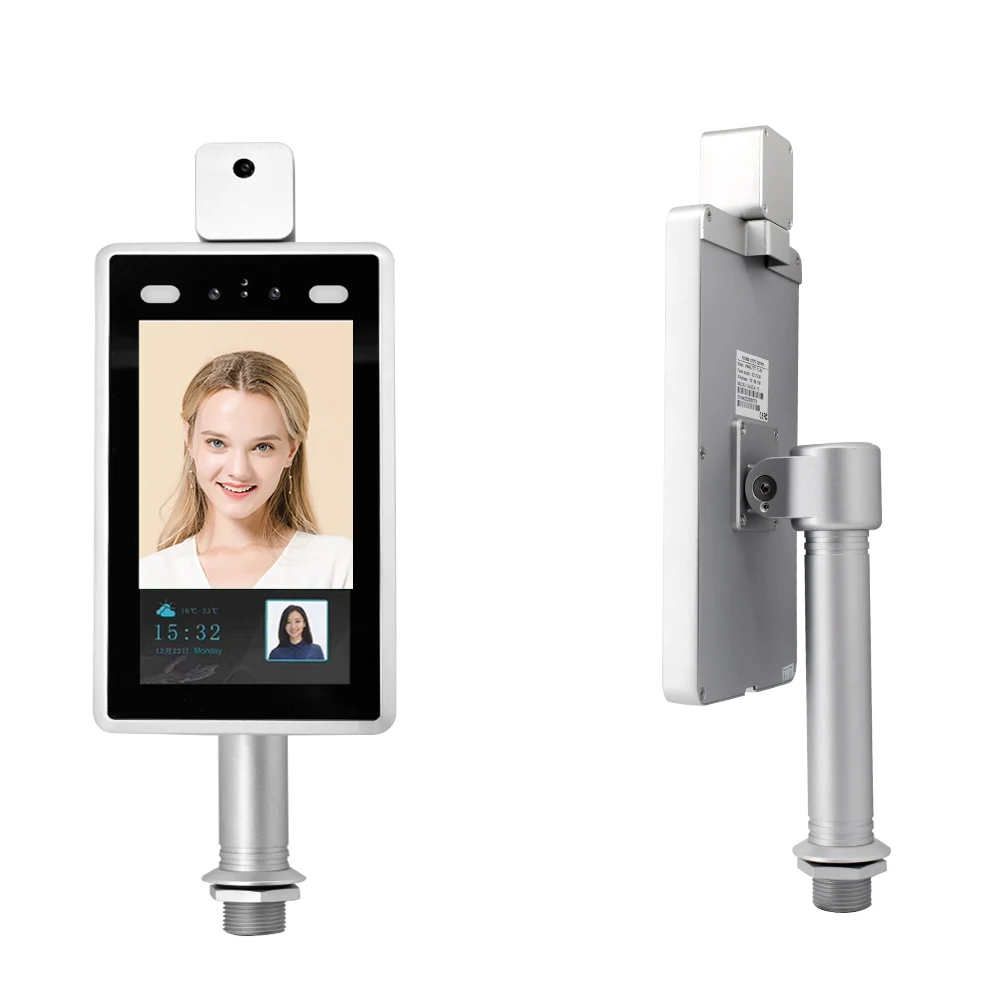

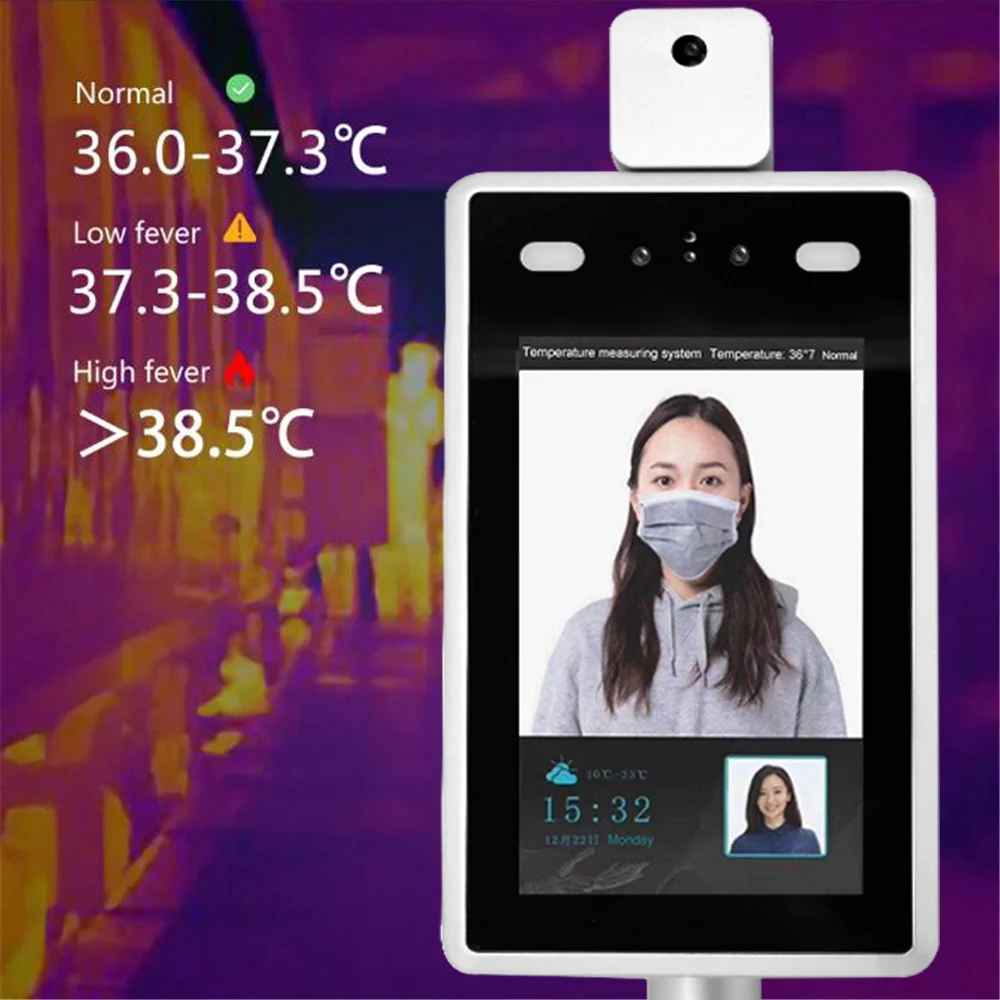

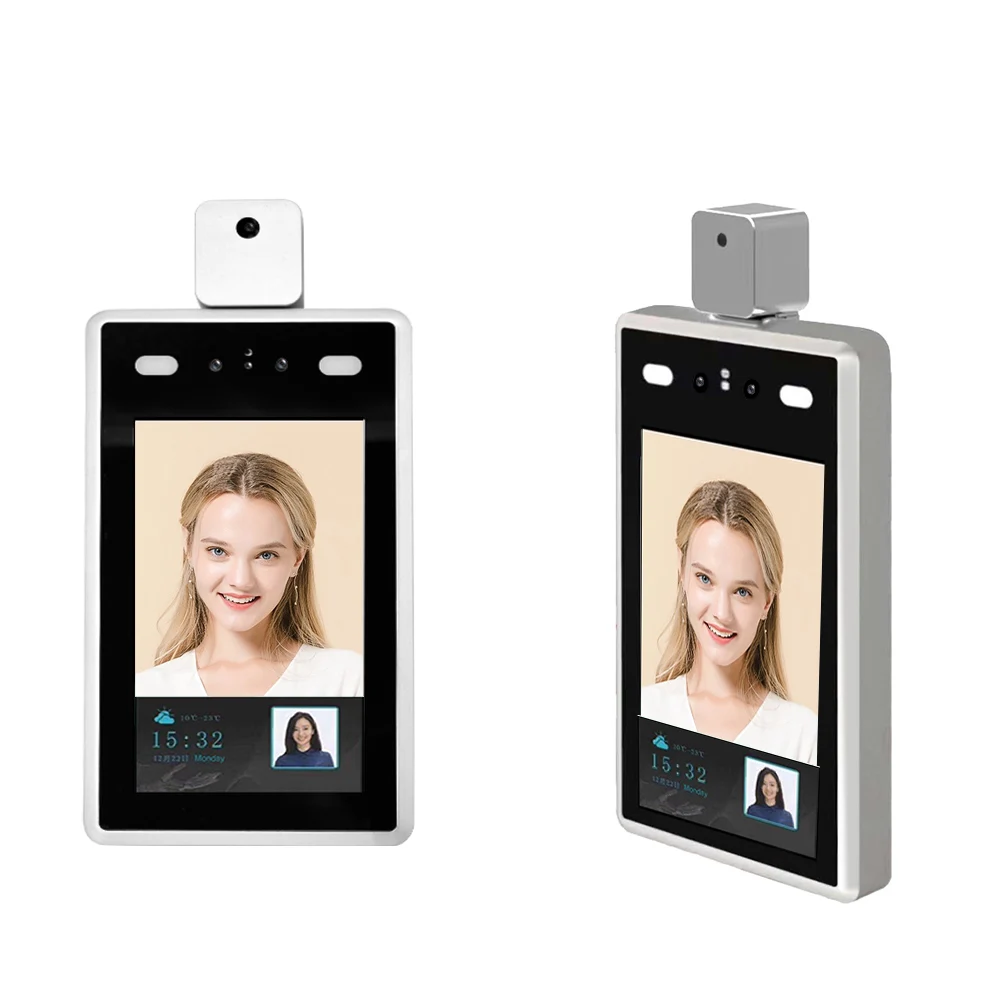

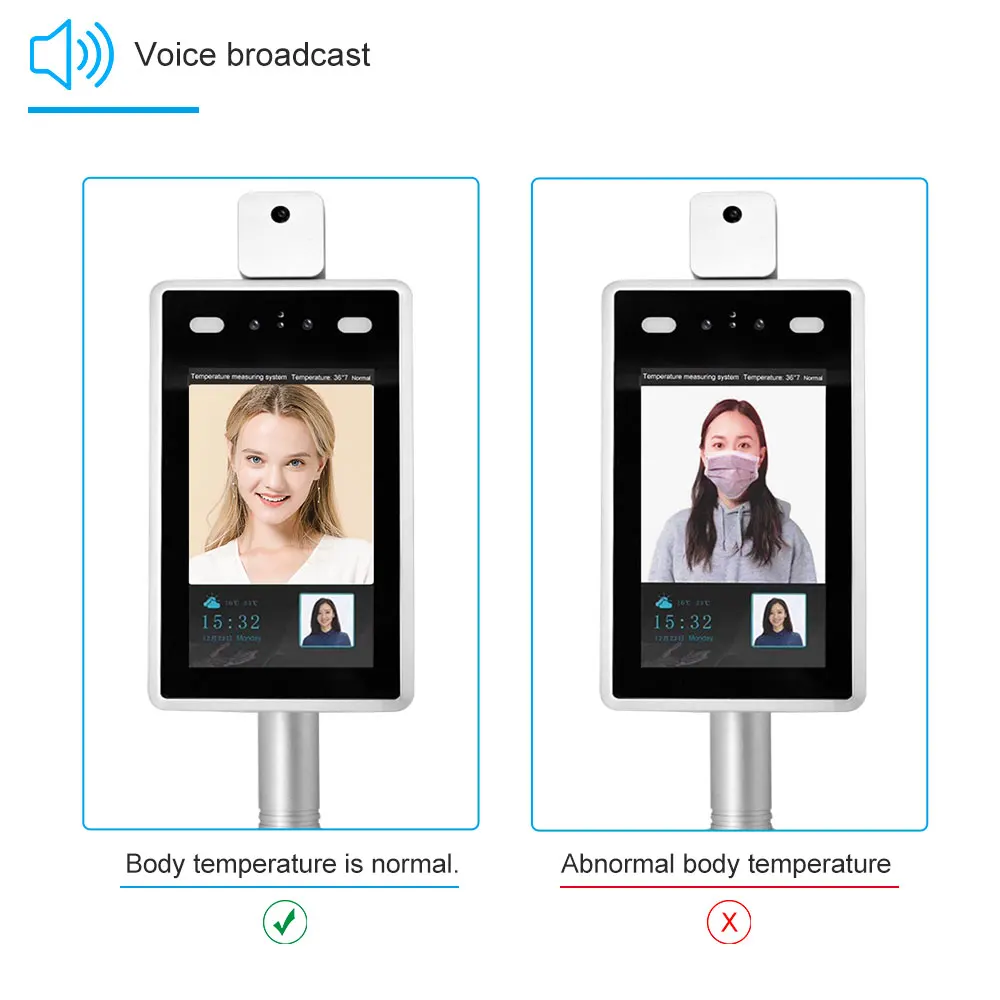

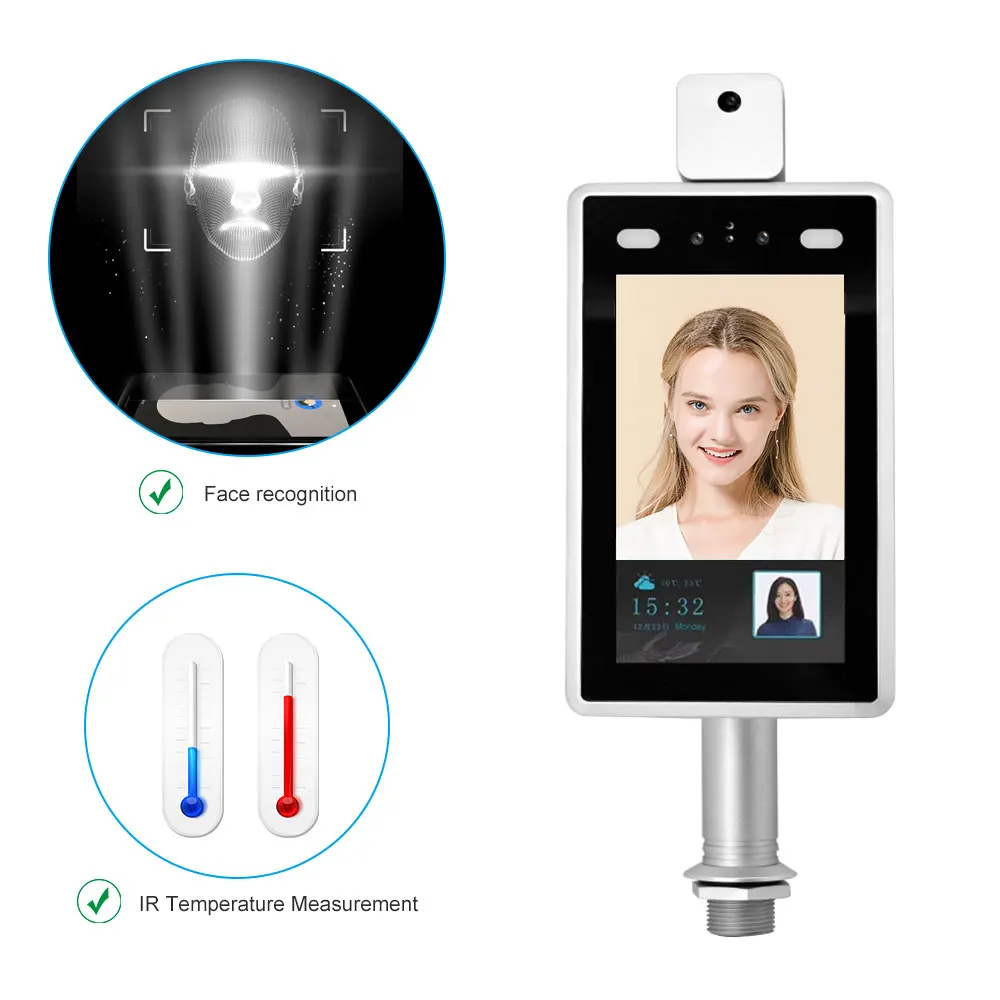

Picture Shows

Face temperature test camera

Physical Characteristics

Audio： Built-in 2ch audio output Working Humidity：-10°C ~50°C Working Humidity：0%-90% RH Power Consumption：5W size ：215x125x20mm

Thermal

Sensor: Thermal imaging infrared temperature sensor Range：35~42℃， Precision： ±0.3℃ Detect distance: 0.4m~0.7m White balance:Auto, indoor, outdoor, sodium lamp mode, manual Digital noise reduction:Support DNR,3DNR Day and night mode: Fixed color

AI

Number of face bases: 50,000 sheets Recognition speed: ≤300ms Live detection: support Mask detection: support Body temperature alarm: support

Visible parameters

Lens: focal length 1.8mm， Field of View：118° Dynamic Range: ≥120dB S/N Ratio: ≥46dB（AGC OFF） Exposure mode: Program mode (customizable shutter interval), shutter mode（1/5 - 1/20,000s）support for slow shutter

Video

Video Format: H.265 Main Profile / H.264 High profile / M-JPEG Bit rate: Fixed code stream (CBR) or variable code rate (VBR), code stream can be set from 32Kbps to 10Mbps Video size: 1920x1080@30fps Frame rate: 25fps Video settings:Exposure (shutter), gain, contrast, saturation, face exposure compensation Video overlay :Time, Position point name BLC: :Support

Recognition characteristics

Working Mode: Online, Offline, Automatic Identifying content:Portrait, Optional (gender, age, helmet) Recognition type: 1：N, 1：1 Detection type :Live detection Recognition speed: ≤100ms Recognition rate: ≥99% Recognition distance: 0.3-0.5m Faces Base: 2W-5W Faces: Single image, batch image, real-time snapshot image import

Interface

power: DC12V network: 1ch10/100BaseT Ethernet RJ45 interface Wiegand： 1ch Wiegand output interface Switch： 1ch relay output SD card： Up to 128G MIC： Built-in
