Описание товара




Brand NameNoEnName_NullOriginMainland ChinaTypeBluetoothCertificationNONECompatible Audio & Video Equipment StyleEarphones & HeadphonesCompatible Audio & Video Equipment StyleSpeakersCompatible Audio & Video Equipment StyleAmplifierCompatible Audio & Video Equipment StyleProfessional Audio EquipmentMeasurement unitpiece/piecesEach pack1
Unavailable in
Description

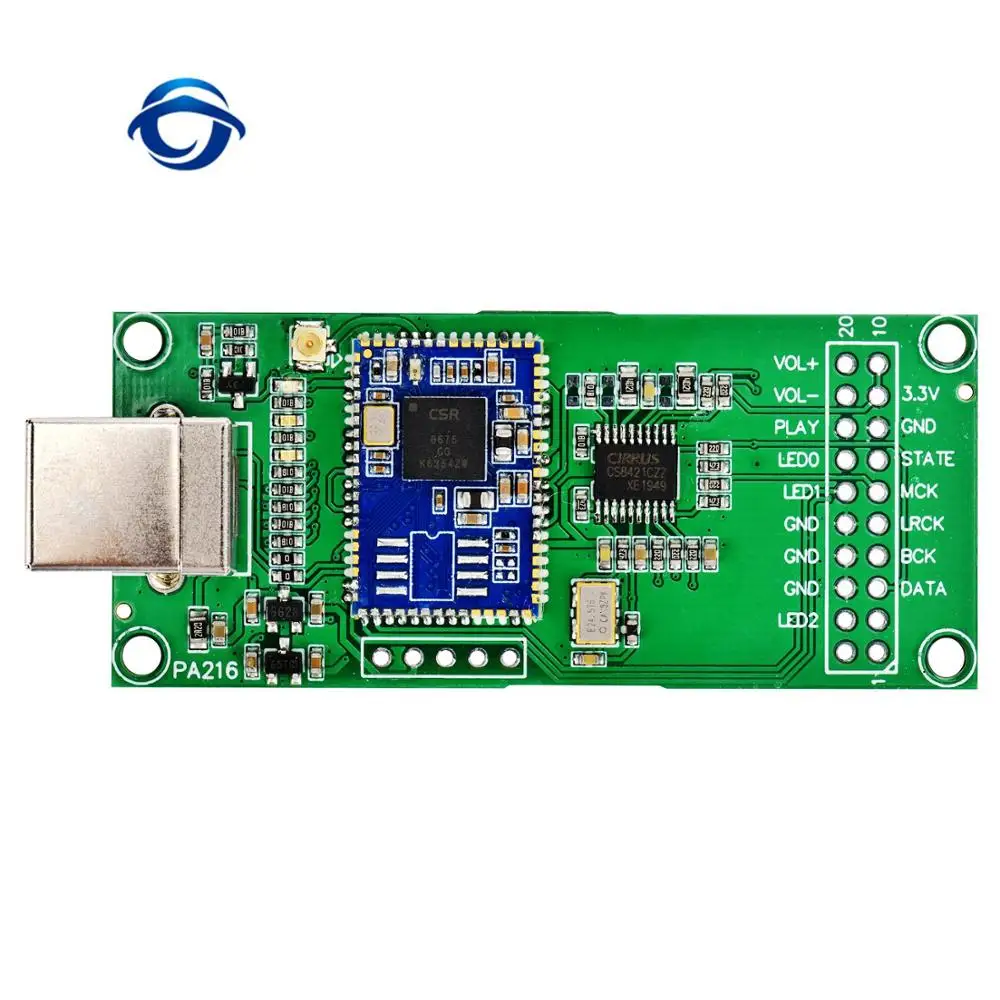

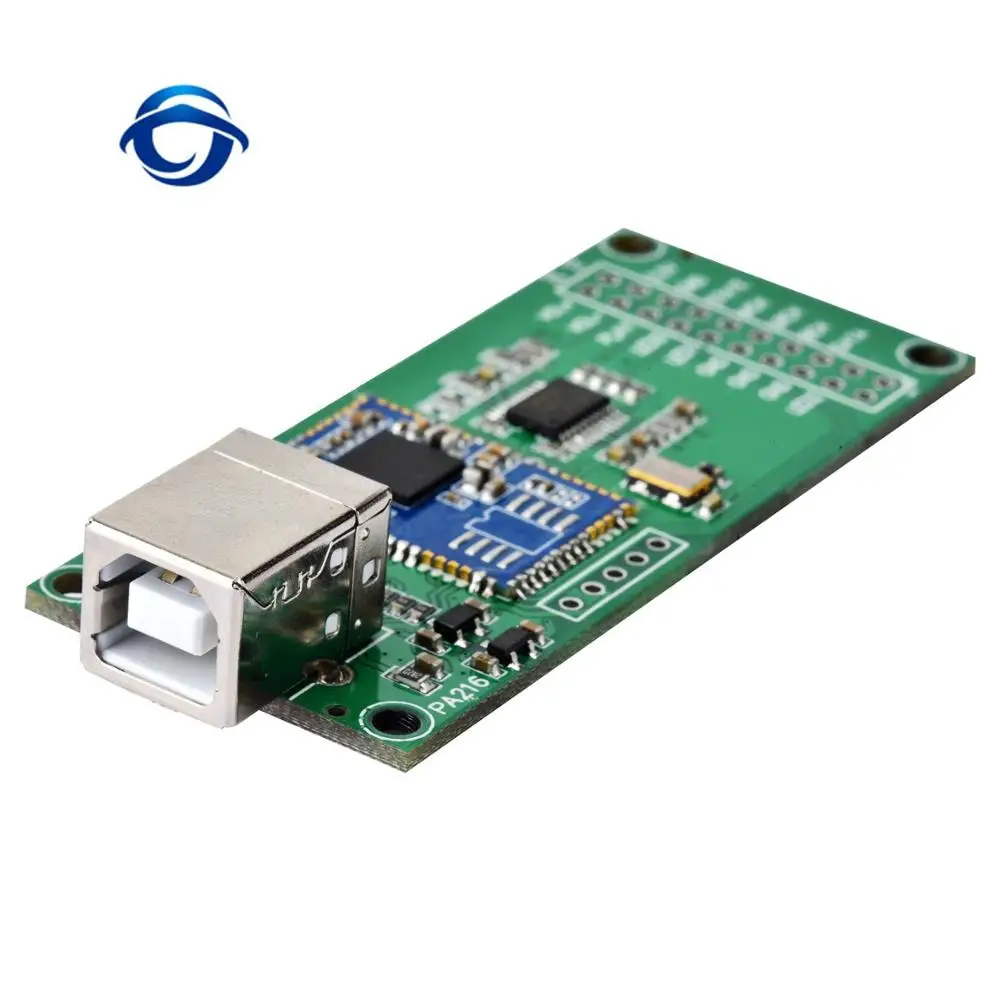

PA216 Bluetooth receiving board adopts BTM875-B Bluetooth module of our store,
supports optical fiber and coaxial digital audio output, supports SBC / AAC / aptx /
aptx-ll / aptx HD / LDAC encoding and decoding, and LDAC supports up to 24bit /
96k.
Note: at the same time support USB sound card, USB sound card and Bluetooth switching mode for Bluetooth priority! The parameters of USB sound card are 16bit / 48Khz.
Function Description:
1. Use BTM875-B Bluetooth module (CSR8675 Bluetooth chip)
2. The USB power supply is type-B interface, with the current greater than 500ma, and supports USB sound card
3. Support I2S output, pin to pin definition and Italian digital interface, I2S output parameters: 96k (fixed parameters)
4. The board has integrated three-color indicator light, which can indicate different codec states
5. On board standard IPEX antenna base is convenient for external antenna, and the antenna needs to be prepared by itself
6. LED0 LED1 LED2 can be connected with external led, and led negative pole can be connected with this product (onboard, not required)
7. Play vol - Vol + can be connected with an external key. The public terminal of the key is 3.3V, which can realize playback pause, up and down music / volume adjustment (not required)
8. Board size: same as Italian digital interface
