Din Rail Multi Function Digital Meter Ammeter Voltmeter LED Display Amp Voltage Current Power Monitor AC 80-300V 200-450V | Инструменты

---

73169

Digital 100% brand new and high quality
Features:
Built-in precision micro current transformer, effectively achieved the transformation of current.

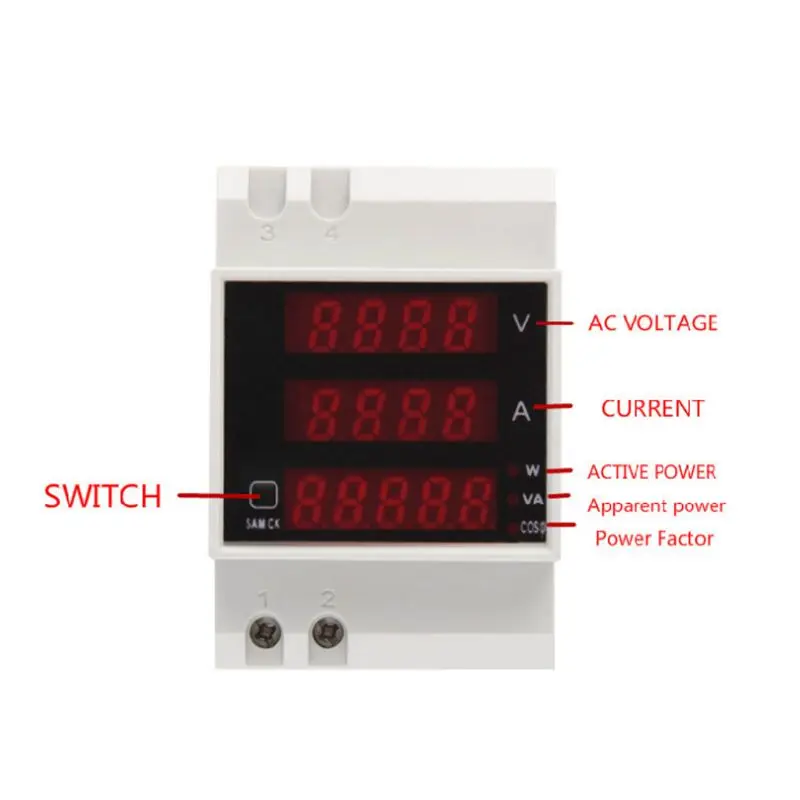

Can display the measured AC voltage, AC current, active power, apparent power and power factor on the meter simultaneously.
Widely used in power systems, homes, distribution boxes, and electromechanical equipment to monitor grid and power usage parameters.
The instrument adopts the same rail-type mounting method as the air switch, making it easy to install and install.
Fit for electric power systems, home, power distribution box, electrical machinery and equipment monitoring the power grid and power parameters.
Easy to install and convenient to use.

Specification:
Material: ABS

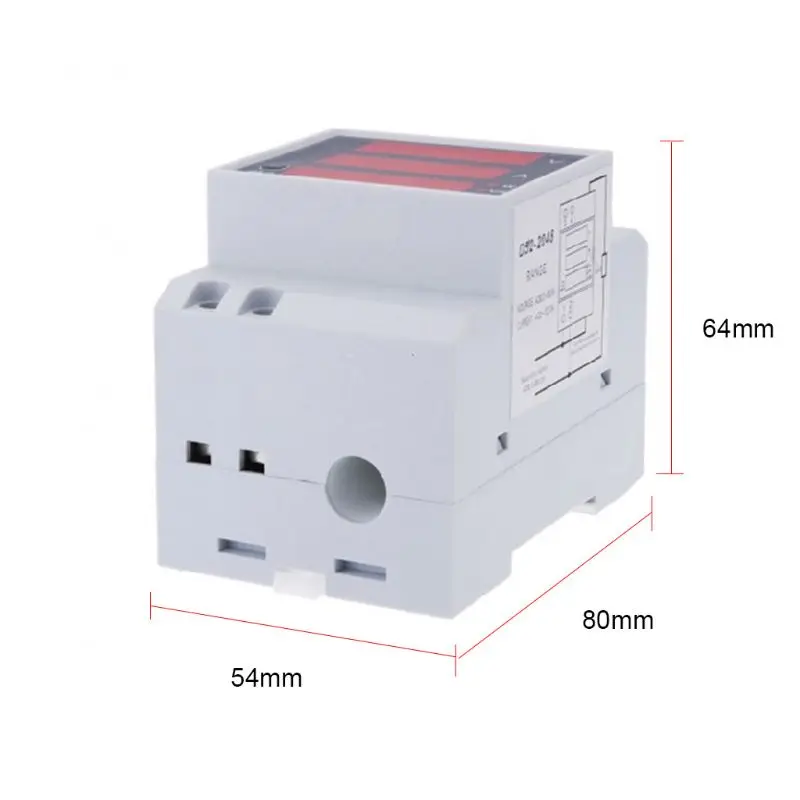

Size: app.54 x 80 x 64mm/2.13 x 3.15 x 2.52in

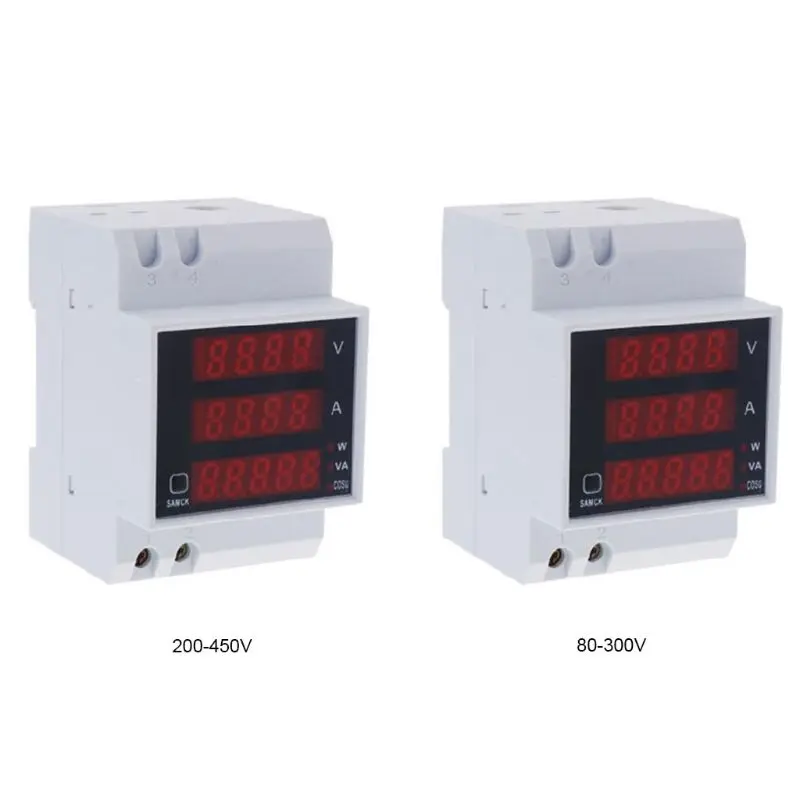

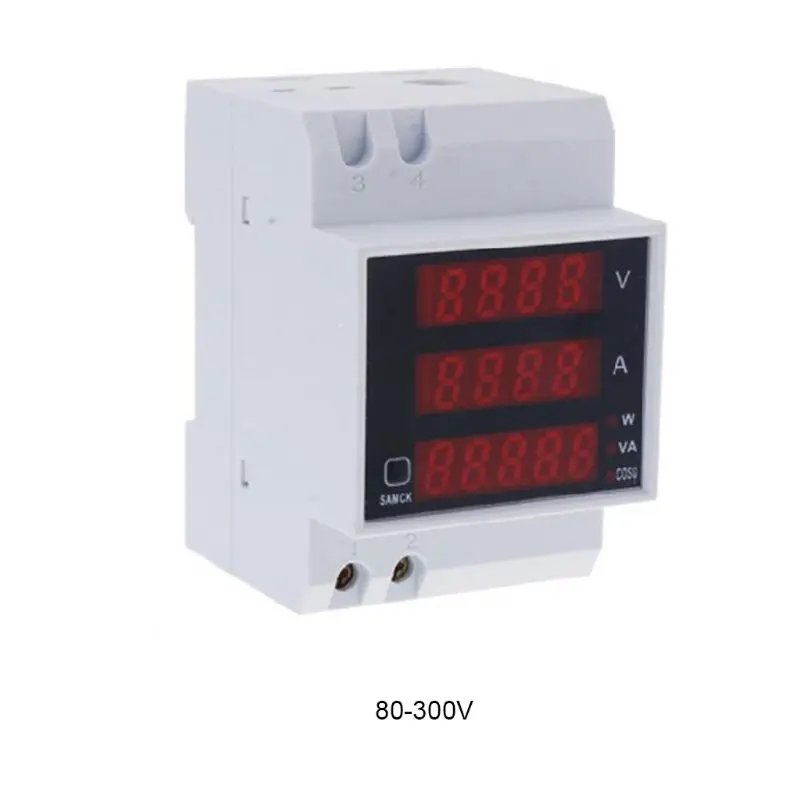

Type: 01#: 80-300V
02#: 200-450V
Color: White
Quantity: 1 Pc

Technical indicators:
1. Accuracy: 1%±2 words
2. Display Mode:
Voltage and current use 4 red LED of 0.31 inch;
Active power, apparent power and power factors use 5 red LED of0.31 inch.
3. Range:
AC voltage : AC 80.0-300V / AC 200-450V
AC Current : AC 0.0-100.0A (10A, resolution: 0.1A, range converse automatically)
Active power: 0.0-30000W (80.0-300V); 0.0-45000W (200-450V)
Apparent power: 80.0-300.0V) 0-30000VA (measuring voltage AC200.0-450.0V45000VA)
Power factor: COSφ=1.000-0.000
4. Speed: 2 times per second
6. Installation: Din-Rail
7. Phase: Single Phase (AC 80-300V) / Three Phase (AC 200-450V)

Application methods:
1. Connect the measured voltage to the 1 and 2 terminals on the lower left side of the meter.
2. Connections of meter with external current as graph 1. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminals.

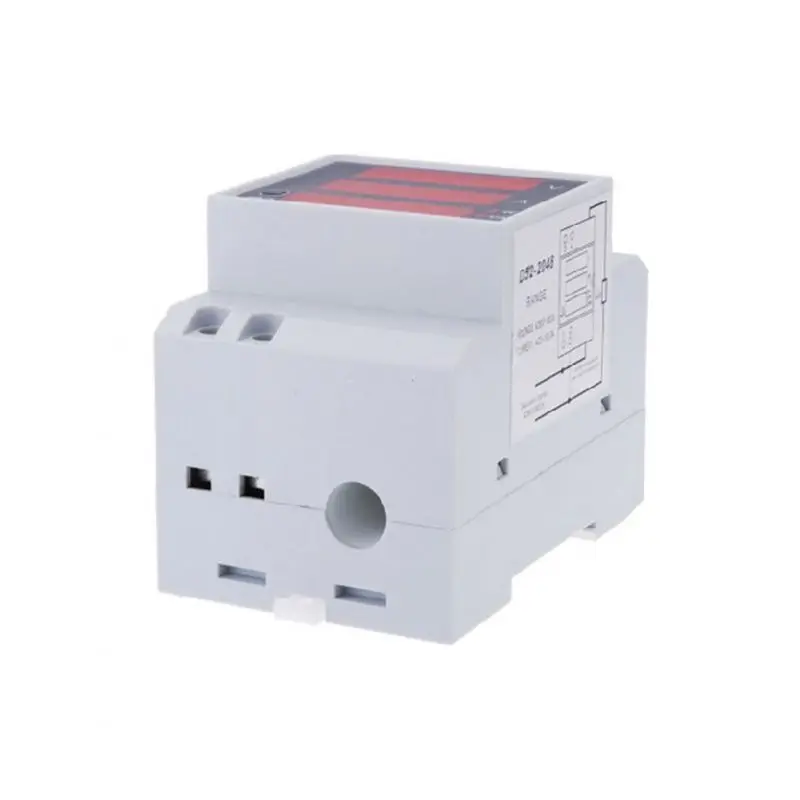

3. Connections of meter with internal current transformer as graph 2. Make the wire through the round hole in the right of the meter and the direction chose arbitrarily, which will not affect the measurement result.

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

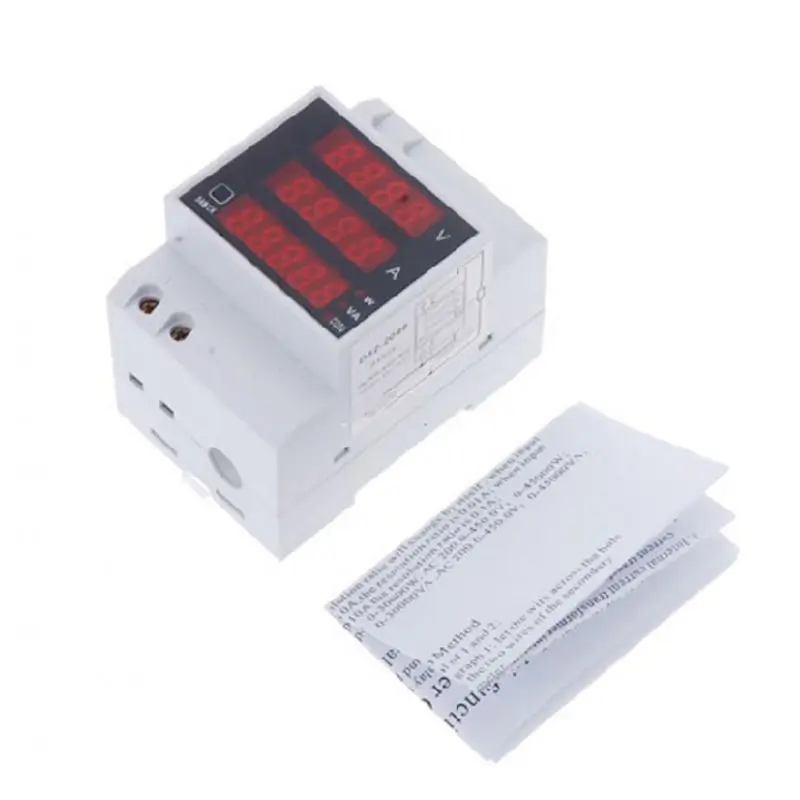

Package includes:
1 x Digital Meter
1x User Manuel
