Specification:

1.Transmitter

Operating Voltage: DC 12V (23A battery)

Operating Current: 30MA

Operating Frequency:   315MHz

Frequency Distance: 50 meter(open/ideal) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box)

Encode: Fixed code, Soldering

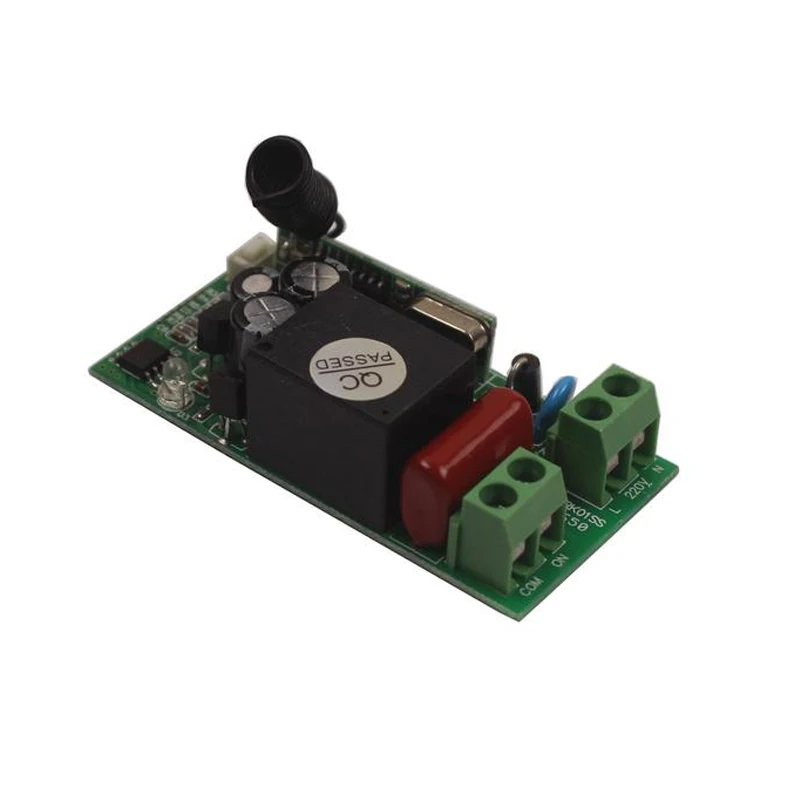

2.Receiver

Channel: 1CH

Decode: Learning code

Working Voltage: 220V (180V-240V)

Output way: Momentary Toggle Latched Adjustable

Maximum Load Current: 10A

Rated load:10A 220V

Receiver Sensitivity: -105dBm

Working temperature :  -40\'C - +80\'C

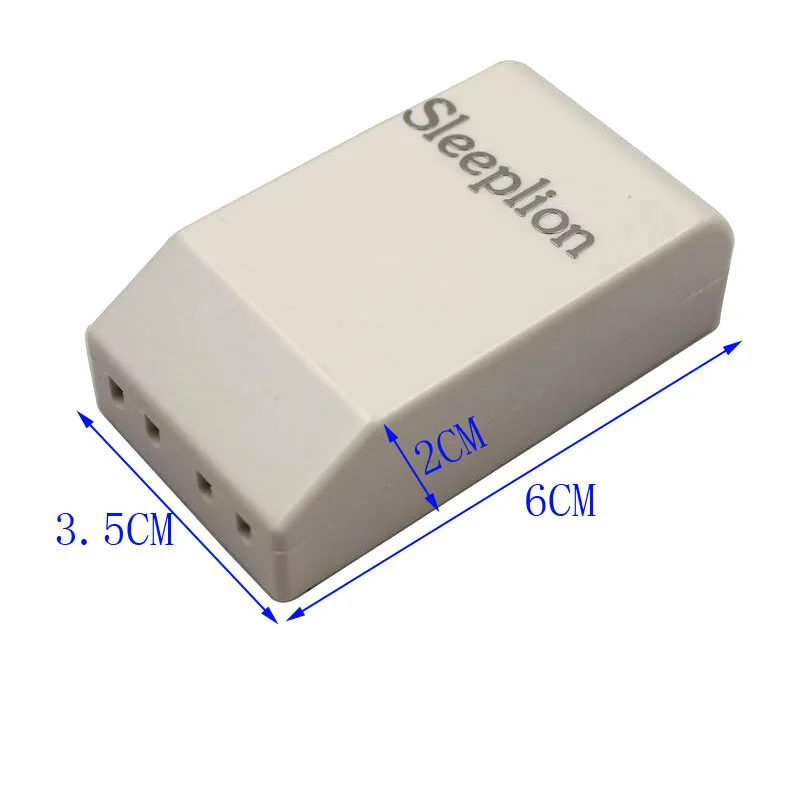

Size : 55*30*18mm

Working/output way:

 The work model you can change it in work pin.

 Jog/Non-Latched:  Press one button is Working /ON.  Loosen your finger on the same button is   Stop/OFF.  One channel switch need one buttons remote control.

 Self -lock/Self-Latched:  Press one button for one time is working/ON.  Press the same button again   is stop/OFF.  One channel switch need one buttons remote control.

 Inter-lock /Latched:  Press one button is working/ON, press another button is stop/OFF.  One channel   switch need 2 buttons remote control.

 Work model Set:(through the welding switch)

  1. Self -lock/Self-Latched: P2+P3 Connect to the Pin

  2.Inter-lock /Latched:P1+P2 connect to the Pin

   3.Jog/(momentary): P1 P2 P3 all not connect

Learning method(we have compatible it after send to you) :

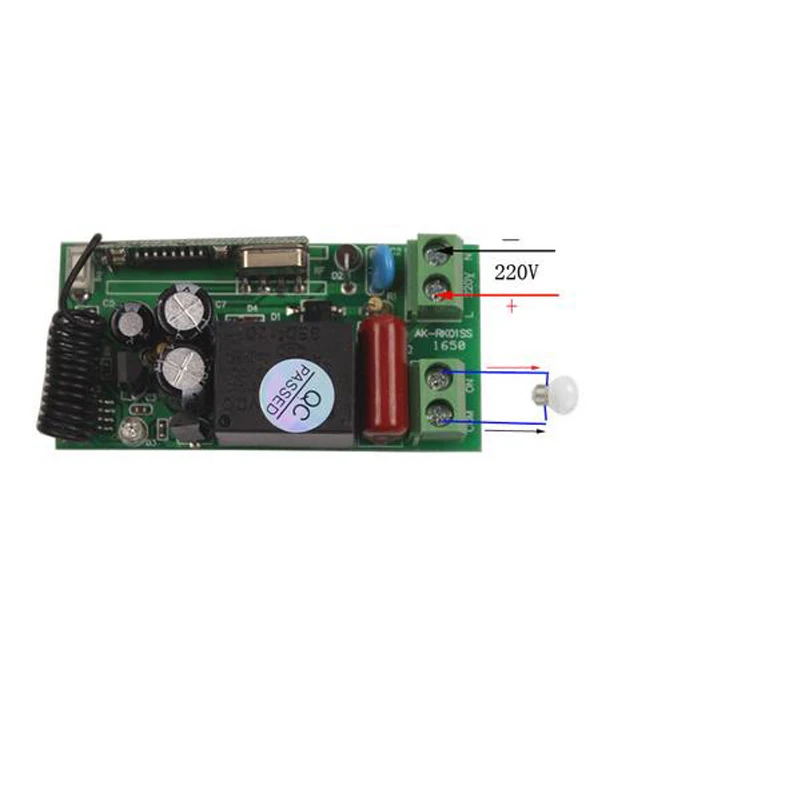

Input AC220/110V for the Receiver. press the Learning Button until the Led indicator ON. Then press transmitter(controller button) , the Led indicator flash fast, it mean learning successfully.Test the relay. press the remote control button,on or off,the relay will be on and off,you can listen it.

Clearing Code:

Keeping press the learning Button on the receiver until the Led indicator ON and flash fast(about 4-5 seconds), it mean the code have been cleared successfully.

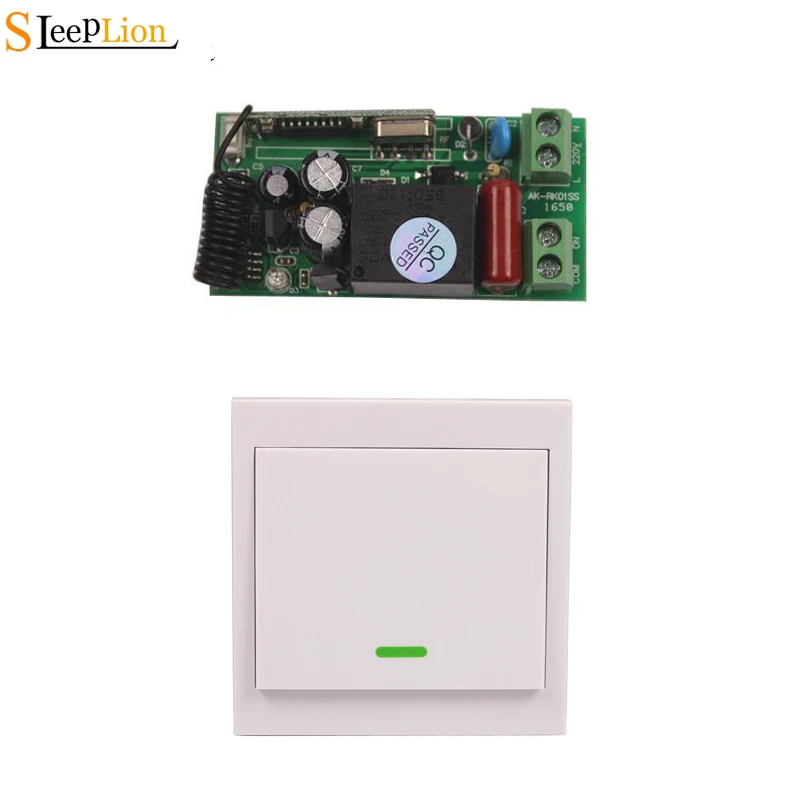

Packing list:

1 x Receiver (Self -lock set Default)

1 x Wall Control Transmitter    (Battery  include)
