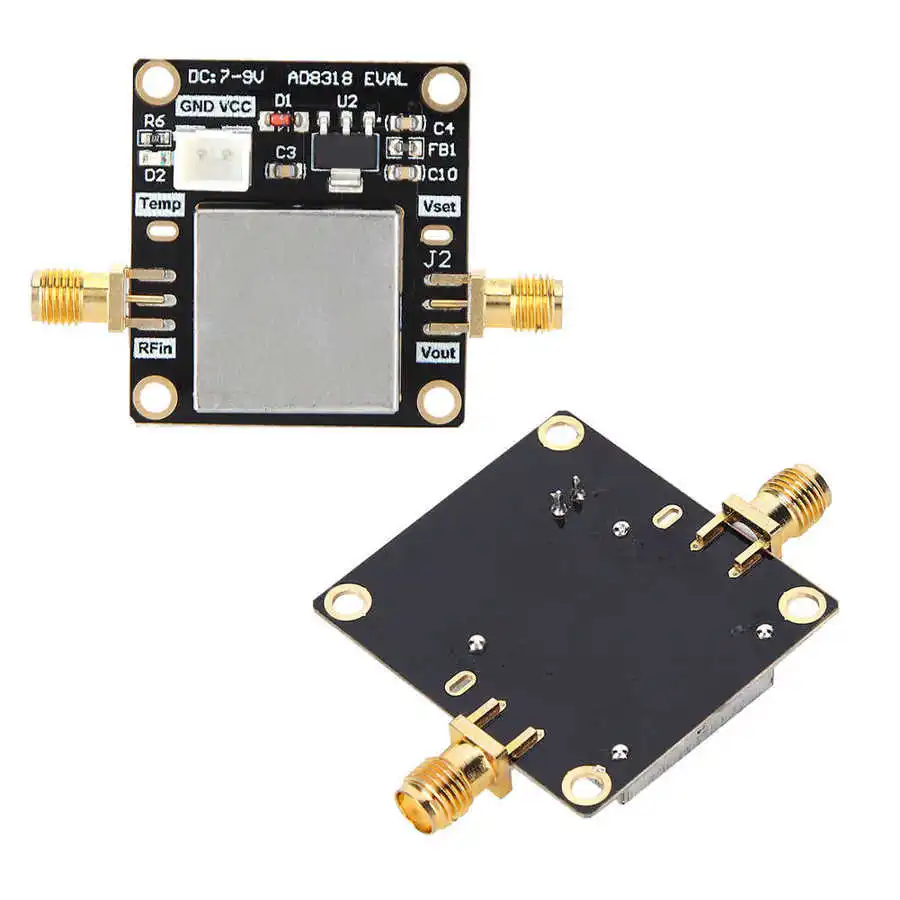

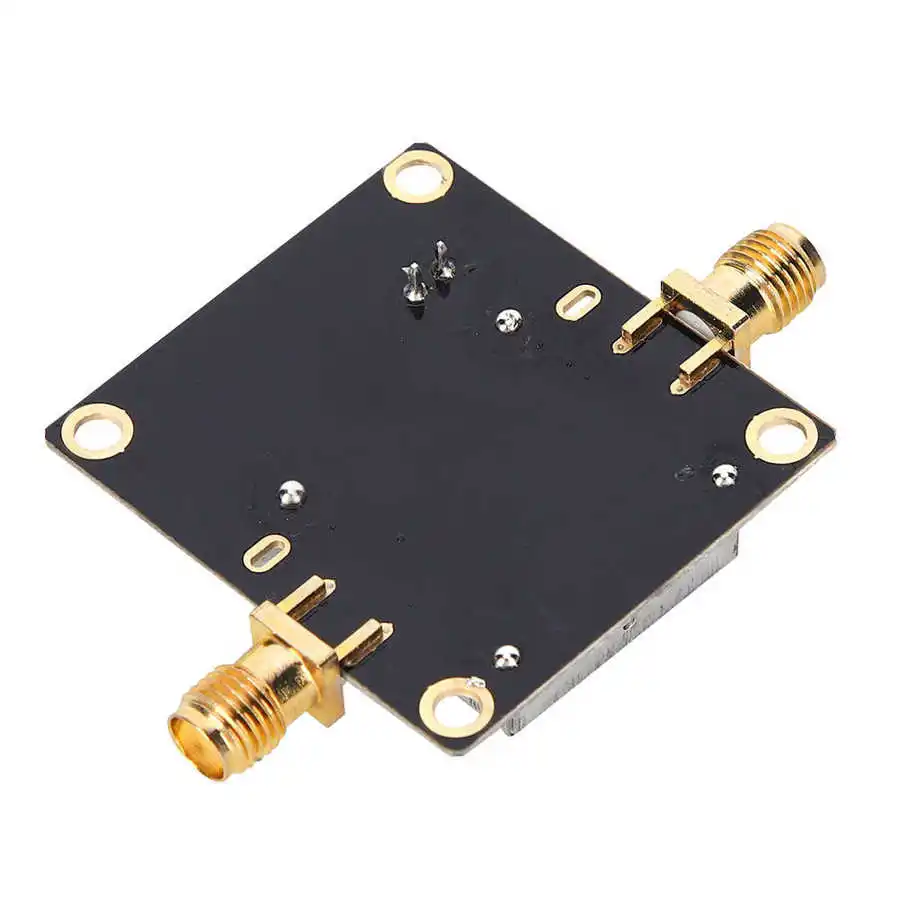

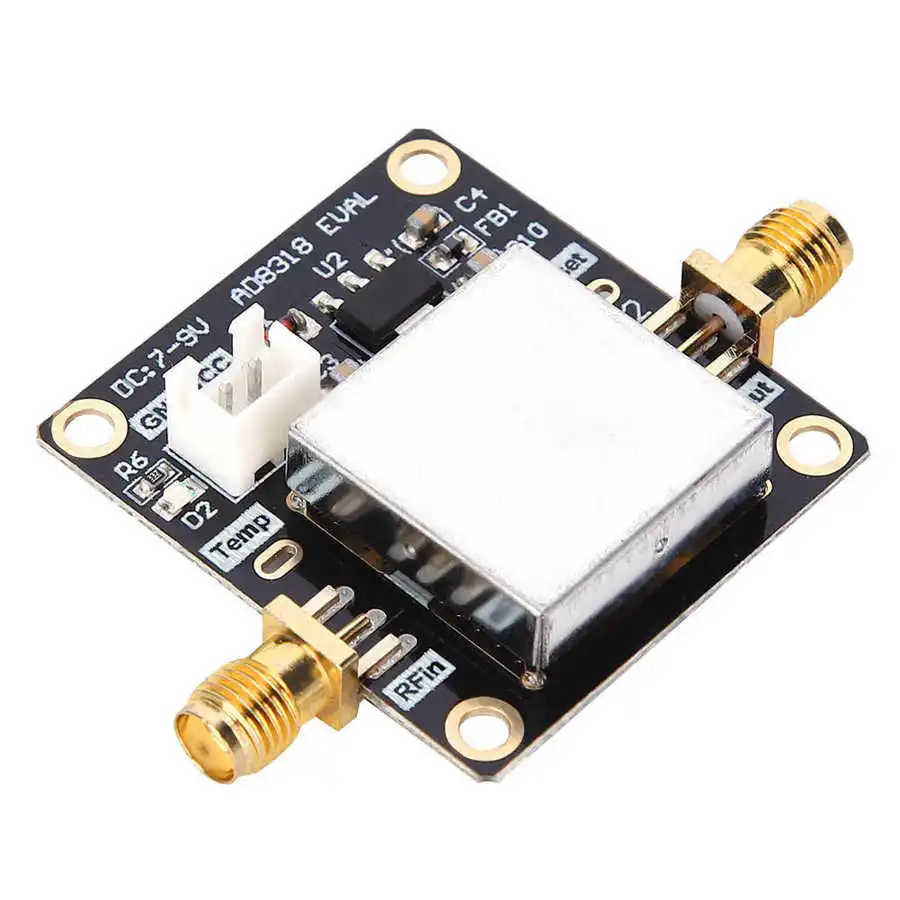

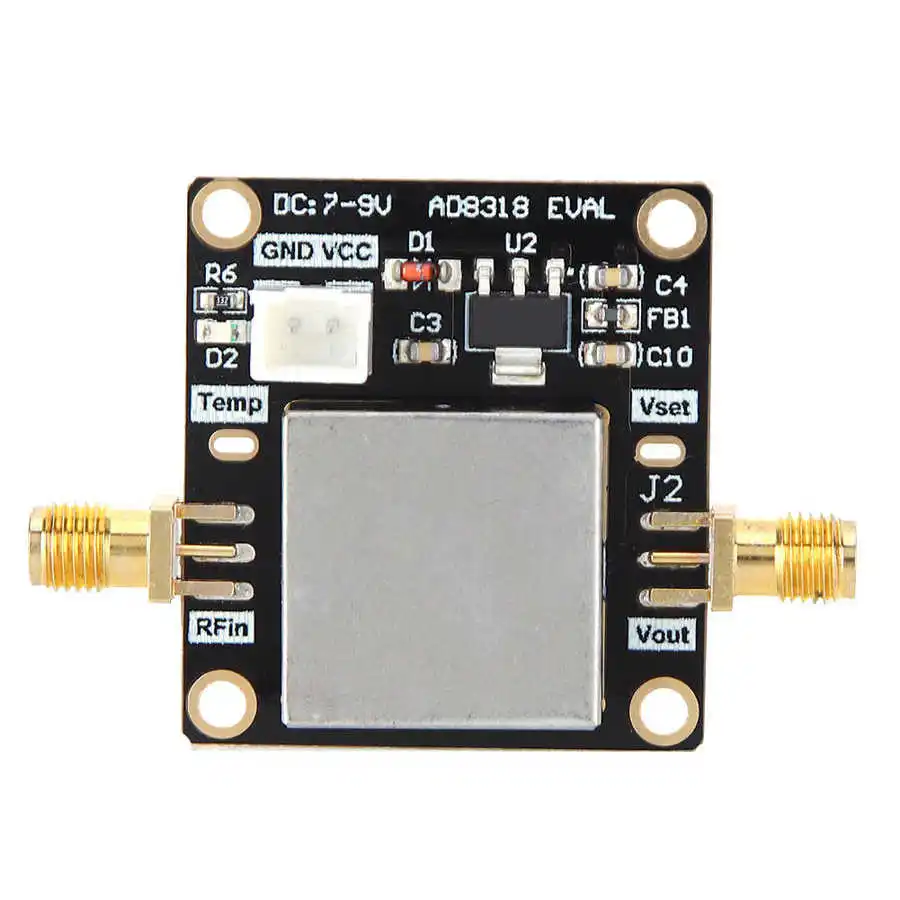

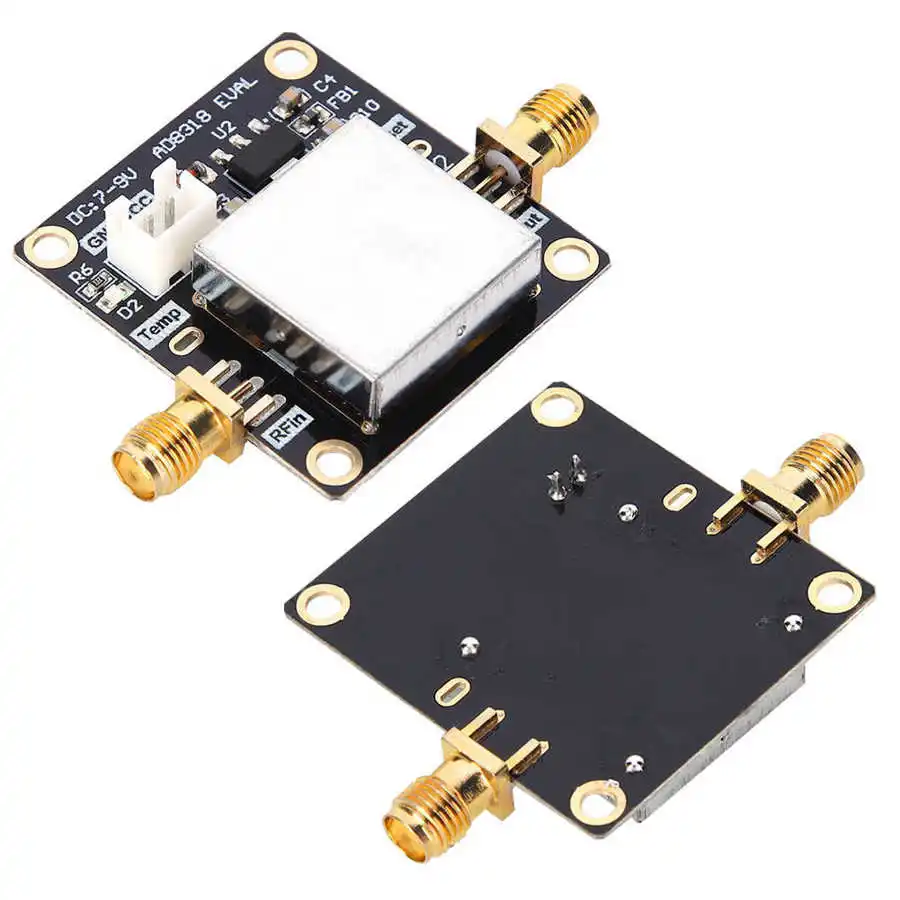

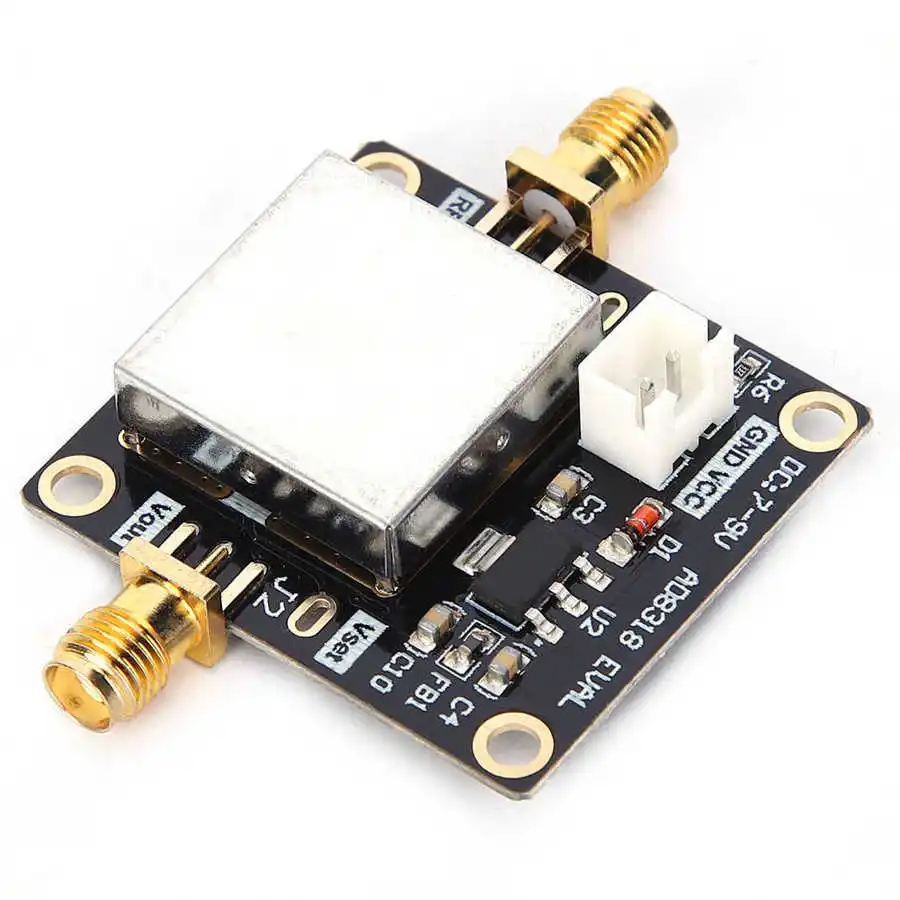

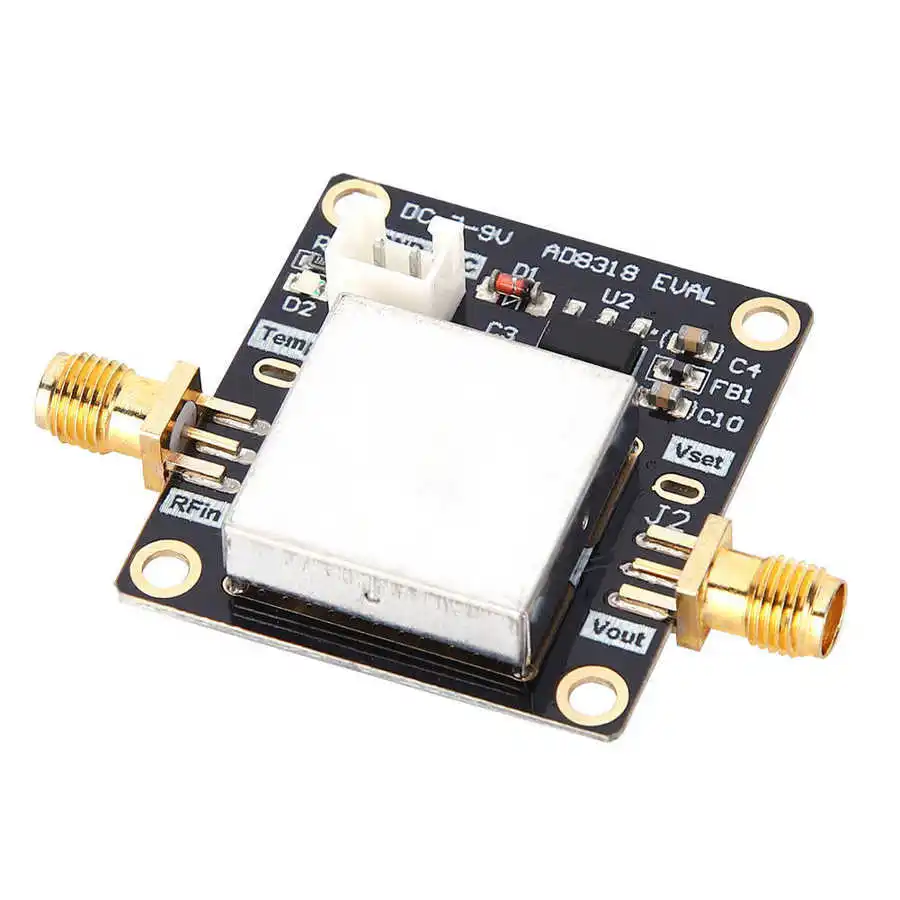

Модуль радиочастотной сигнальной платы логарифмический детектор чип AD8318 1 м-ГГц

RF Module Signal Board Logarithmic Detector AD8318 Chip 1M‑8GHz 70dB Dynamic AGC Control

Feature:

1. Detector module uses the AD8318 chip design for RF signal strength detection.
2. Power module can be widely used for RF signal detection, signal power measurement and environmental field strength detection.
3. The higher the amplitude or power of the RF signal, the higher the output voltage, which is proportional to the logarithm of the amplitude of the input signal, thereby expanding the dynamic range of the detection signal.
4. RF board installation is simple, which not requires particularly complicated operations.
5. Guaranteed quality helps you can use detector module with confidence, improved for more durability.

Specification:

Item Type: Detector module
Input Impedance: 50Ω
Output Impedance: 50Ω
Working Frequency: 1MHz~10GHz
Output Voltage Range: 1.6 V to 0.4V
Input and Output Ratio: ± -22mV/dBm
Input Dynamic Range: -60 to +5dBm
Power Supply Voltage: ±3.3~5V. DC 20mA

Package List:

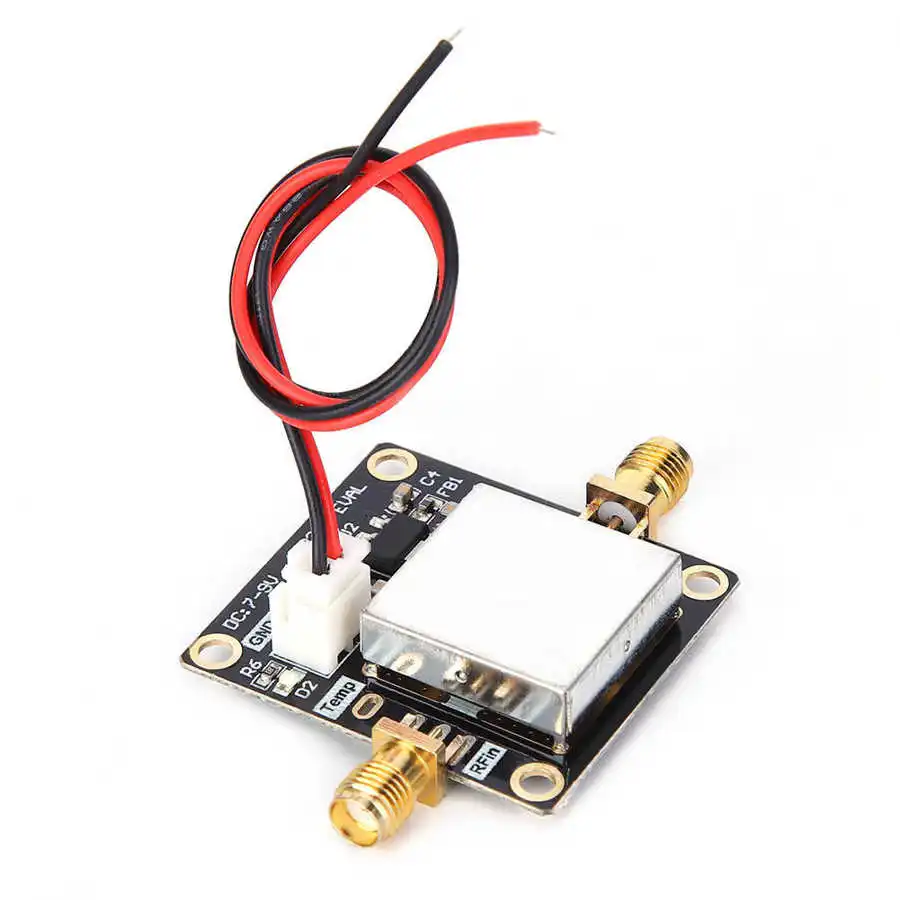

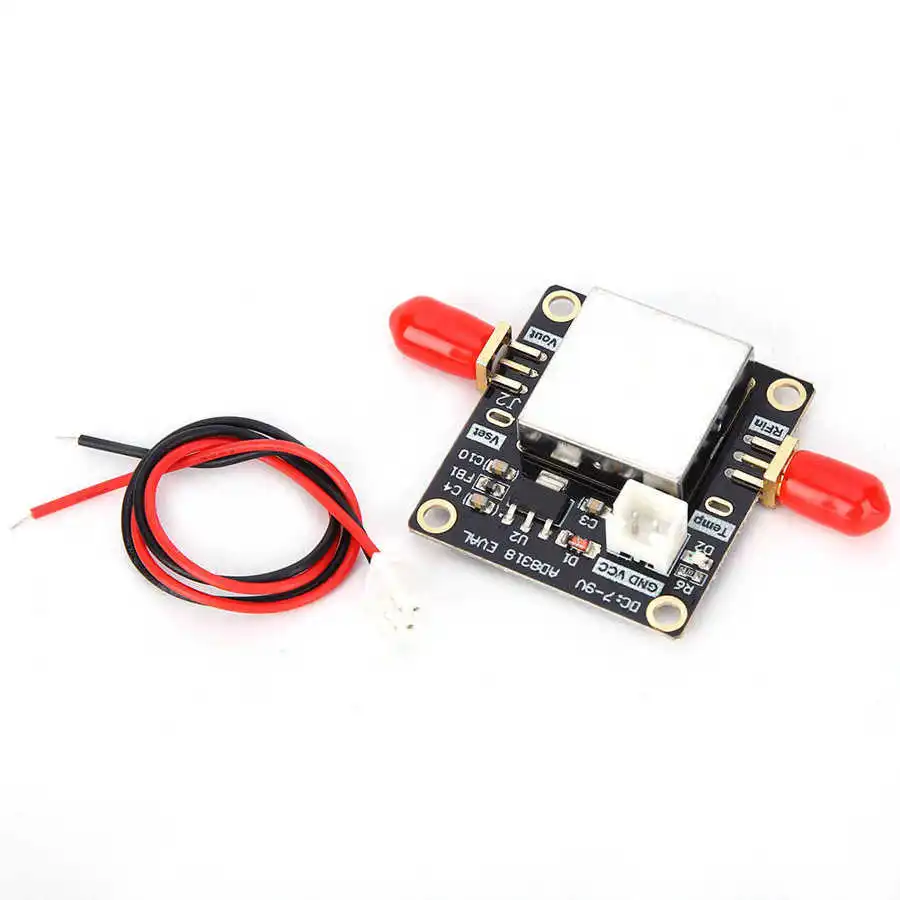

1 x Detector Module 1 x Cable
