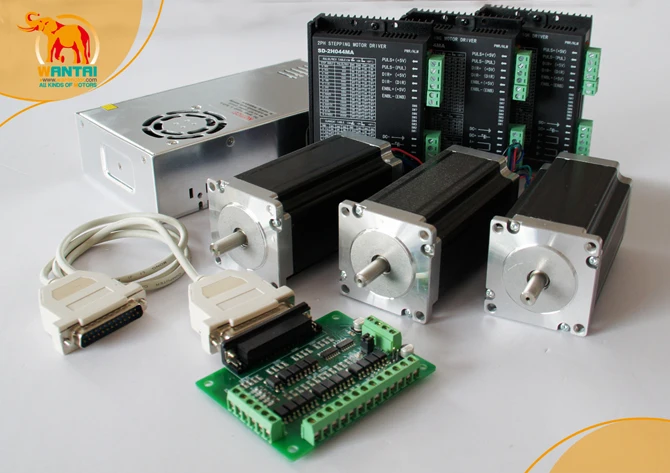

ЕС Бесплатная доставка! 3 оси CNC Nema 23 шаговый двигатель 425oz-in 3N. m 4.2A WT57STH115-4204A +
23 365,45 руб.
5/1 Planetary Gearbox Stepper Motor Nema 17 Gear DIY CNC Robot 3D Printer | Обустройство дома

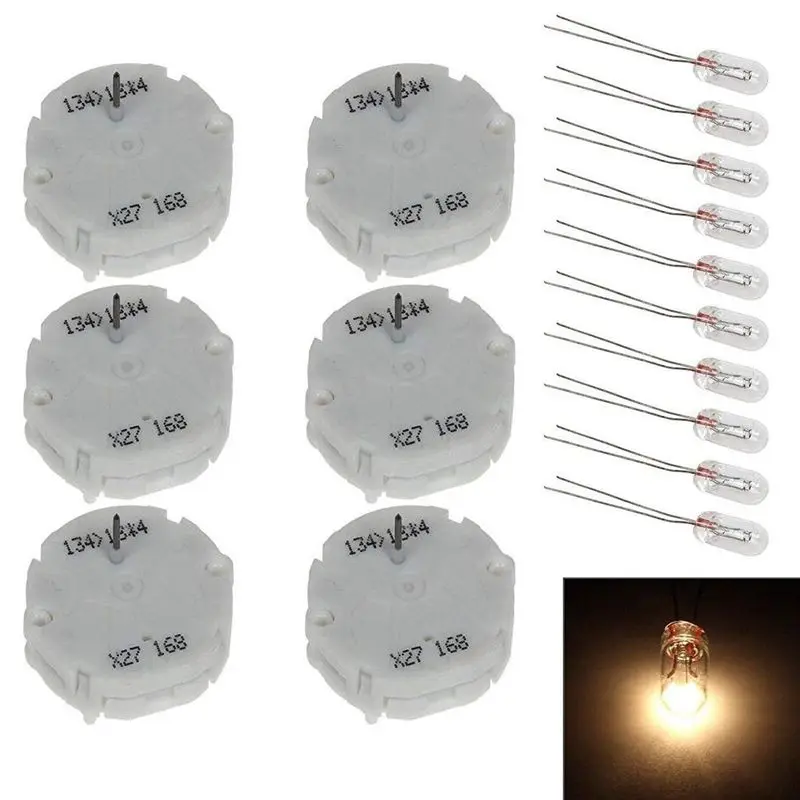

GM Stepper Motor Repair Kit - X27 168 (6 + 10pcs Bulbs) Fits All 03-06 Chevy Silverados Tahoes Yukons Suburbans | Обустройство дома
1 908,20 руб.

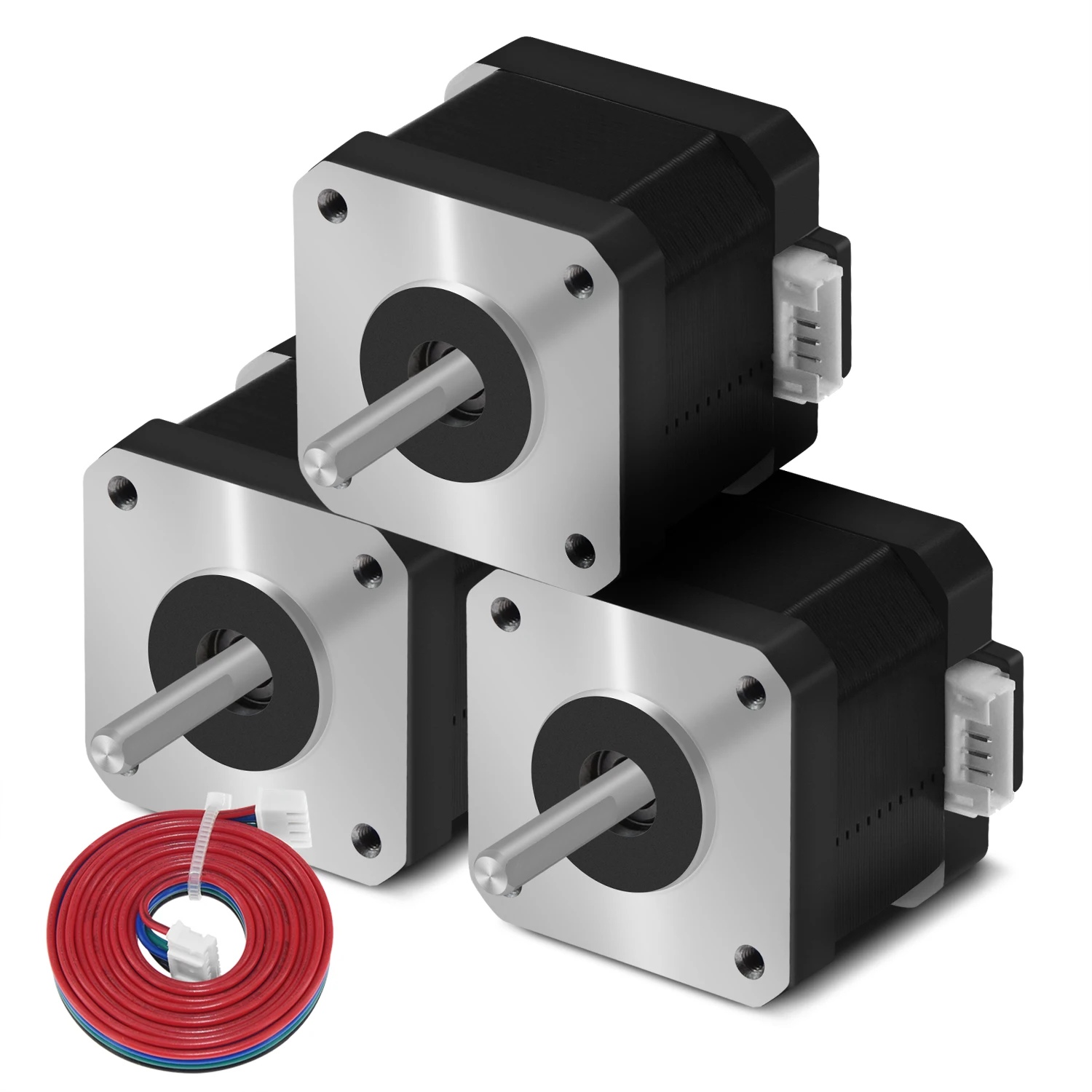

3pcs Nema17 Stepper Motor 17HS4401S 1.5A Nema 17 42BYGH 2 Phase 4 Lead For 3D Printer CNC Laser Engraving Machine Fast Delivery |
2 332,91 - 3 189,61 руб.
Stroke 8.5mm Ultra-miniature linear actuator 5mm planetary reduction stepper motor precision screw lifting DC Motor | Обустройство
176,66 руб.
Nema23 Stepper Motor 3.5NM(500oz-in) with brake and worm Gearbox 5:1/7.5:1/10:1/20:1/25:1/30:1/40:1/50:1/60:1/80:1 output shaft |
9 002,53 руб.
Shop103343 Store
Магазина Shop103343 Store работает с 11.08.2010. его рейтинг составлет 100 баллов из 100. В избранное добавили 277 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 506 наименований товаров, успешно доставлено 195 заказов. 5 покупателей оставили отзывы о продавце.
Характеристики

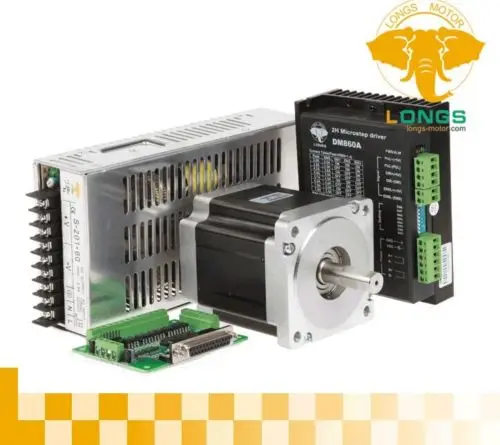

3Axis Nema34 Stepper Motor 880OZ-In(2pcs )&1232oz-in(1pc) stepper motor driver DM860A for Control CNC Mill | Обустройство дома
История изменения цены
*Текущая стоимость 44 165,66 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 56090.86 руб. | 57212.12 руб. | 56651 руб. |
| Jan-18-2026 | 45490.85 руб. | 46400.82 руб. | 45945 руб. |
| Dec-18-2025 | 55206.43 руб. | 56310.65 руб. | 55758 руб. |
| Nov-18-2025 | 54765.19 руб. | 55860.99 руб. | 55312.5 руб. |
| Oct-18-2025 | 43723.63 руб. | 44597.27 руб. | 44160 руб. |
| Sep-18-2025 | 53881.44 руб. | 54959.37 руб. | 54420 руб. |
| Aug-18-2025 | 53440.88 руб. | 54509.89 руб. | 53974.5 руб. |
| Jul-18-2025 | 52998.85 руб. | 54058.86 руб. | 53528 руб. |
Описание товара
What's in Box?
1. 2pcs Nema 34 stepper motor 878 oz.in bipolar
2. 1pcs Nema34 stepper motor 1232oz-in,4 wires
3. 3 pcs Stepper motor driver, High Perfermance Stepper Driver DM860A Up to7.8A, 24-80VDC
4. 1pcs Power Supply 350W-48VDC/7.3A for 1232oz-in stepper motor
5.1pc Power Supply 200W-48VDC/4.1A for 880oz-in stepper motor
6. 1 pc Breakout Board
More quatities, More discounts!!
1.STEPPER MOTOR
NEMA34 880OZ-INSTEPPER MOTOR
Nema34 1232oz-in stepper motor
Part No.: 34HS1456
Frame Size: NEMA34
Step Angle: 1.8 degree
Voltage: 3.08V
Current: 5.6A/phase
Resistance: 0.55 Ohm/phase
Inductance: 5.5 mH/phase
Holding torque: 8.4N.m 1200oz-in
Rotor inertia: 2700g-cm2
Number of wire leads: 4
Weight: 3.8 kg
Length: 116mm
The shaft of the stepper motor is 14MM,the length of the shaft is 37MM.
If you need the detailed mechanical dimensions ,you can contact with the me any time.
RED A+
GREEN A-
YELLOW B+
BLUE B-
3.Stepper motor driver:

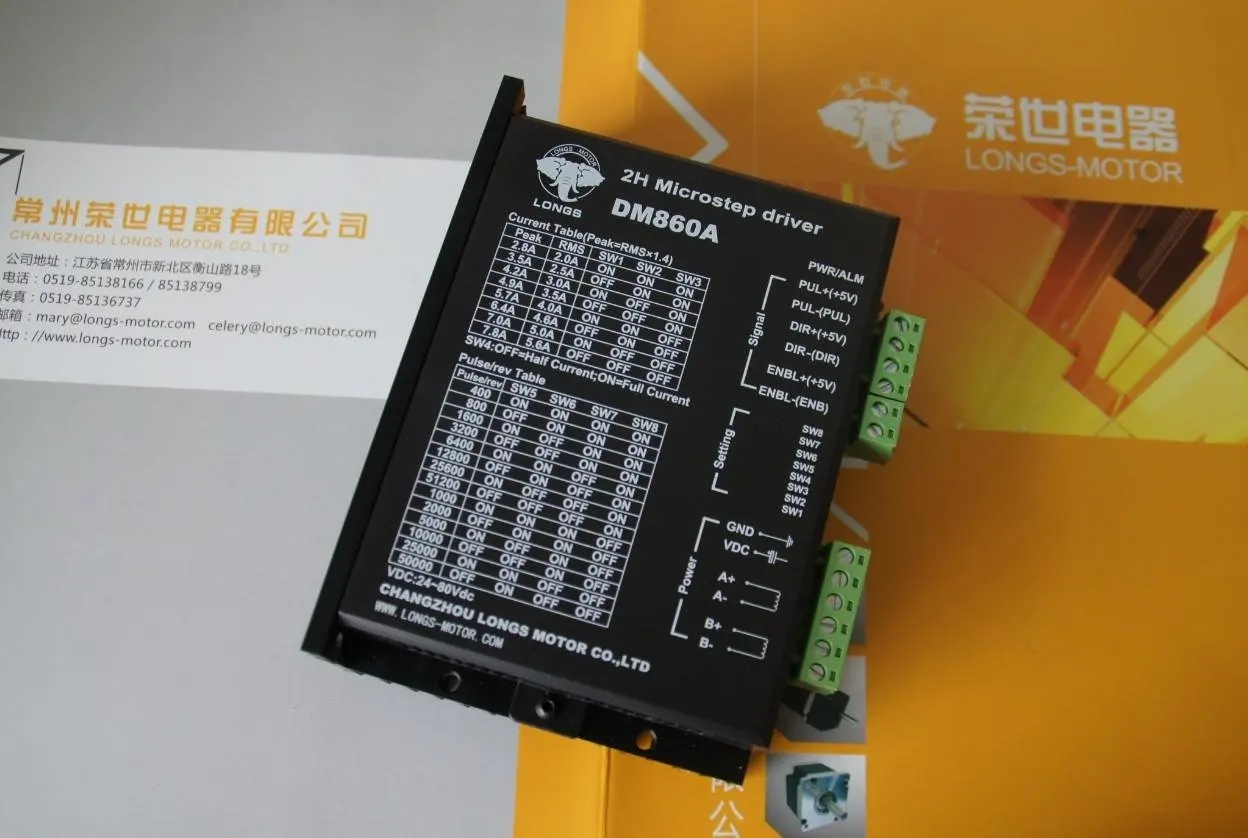

Stepper motor driver DM860A:
Introduction: DM860A is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 8.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM860A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Features: l High performance, low price l Average current control, 2-phase sinusoidal output current drive l Supply voltage from 24VDC to 80VDC l Opto-isolated signal I/O l Overvoltage, under voltage, overcorrect, phase short circuit protection l 14 channels subdivision and automatic idle-current reduction l 8 channels output phase current setting l Offline command input terminal l Motor torque is related with speed, but not related with step/revolution l High start speed l High hording torque under high speed 4. Power Supply: The power is 350W/200W, the output voltage/current is 48VDC. 5. Breakout Board:- Built in DB25 male connector.
- DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
- DB25 Input Pin: P10,P11,P12,P13,P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
-
![DM860A]()
![JIEKOUBAN]()
Our Stepper Motors are used on small to mid-sized CNC mills & milling machines, CNC lathes, Pick-n-place machines, Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. These motors have been used in precision telescope positioning systems and robots.
