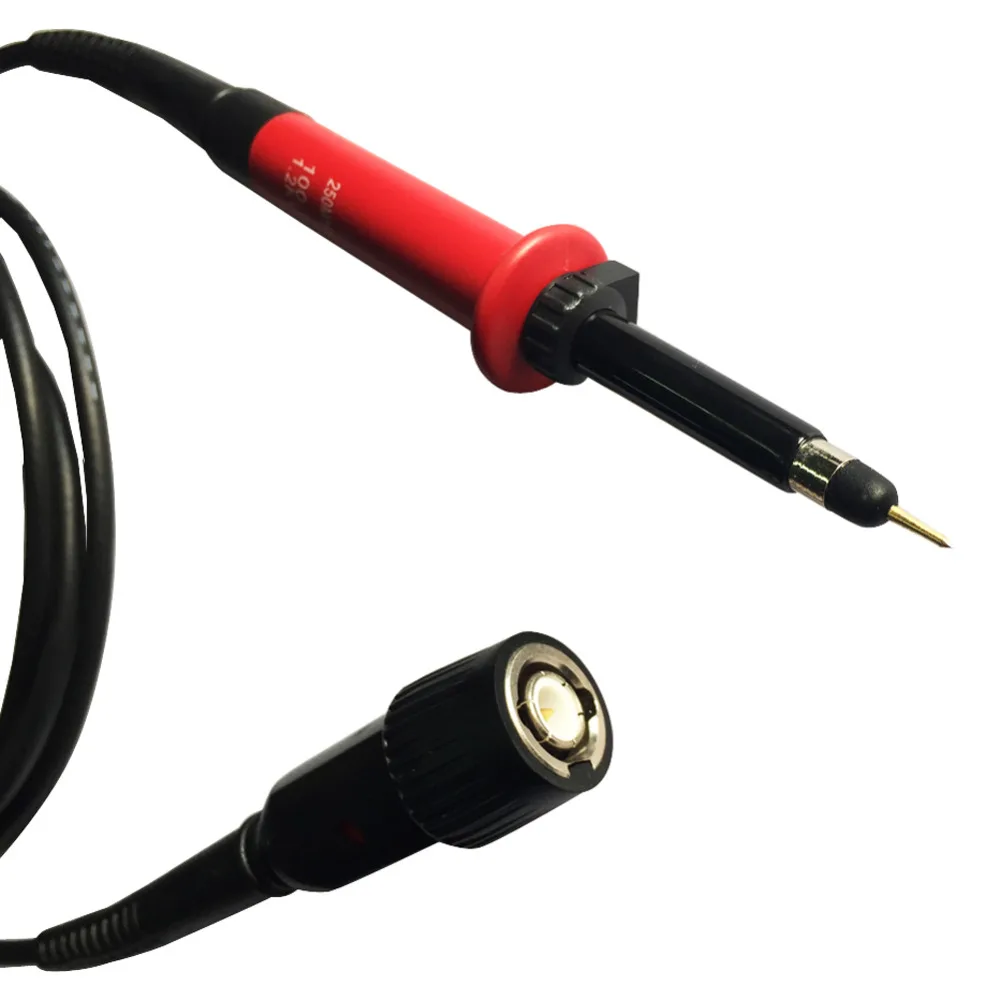

New Two 100X X100 250MHz Oscilloscope probes 1200V fit

Features:

The new A3100 series of passive probe has excellent price performance value, handle double absolutely. Increase safety creep age distance. Bandwidth up to 250MHz, mini-box designed. Full set accessories are included with each probe. All probes meet IEC1010-2-031,1200VDC, CATII

The A3100 series is a passive high impedance high-voltage oscilloscope probe designed and calibrated for use on instruments having an input impedance of 1Mohm shunted by 15pF.

A3100 Series Probes

• General Purpose, Bench or Field
• Economical, Yet High Quality
• High Input Impedance (X100 range)
• Compensation (X100 range)

• Useable with scopes having Bandwidth DC to250 MHz
• Rise time: 1.4ns
• Interchangeable Probe Tip
• Modular Construction
• Compensation range: 10 to50 pF
• Input Capacitance: 6.5pF
• Input Resistance: 100Mohm
• Bandwidth: 100X: 250MHz
• Net Weight: 55g
• Cable Length: 120cm
• Operating Temp: -10C-50C
• Operating Humidity: <=80%
• Maximum Input Voltage:1200 VDC (DC+peak AC)

Specification:

Low Frequency Compensation Adjustment:

• Low frequency response can be matched to the oscilloscope by adjusting the compensation trimmer on the head of the probe.
• Connect the probe to the oscilloscope and to a 1Khz square waveform source
• Set the oscilloscope to display two to the three cycles and two to six vertical divisions.
• Carefully adjust the trimmer tool to obtain the flattest tops to the square waves displayed on this oscilloscope,
• High Frequency compensation adjustment

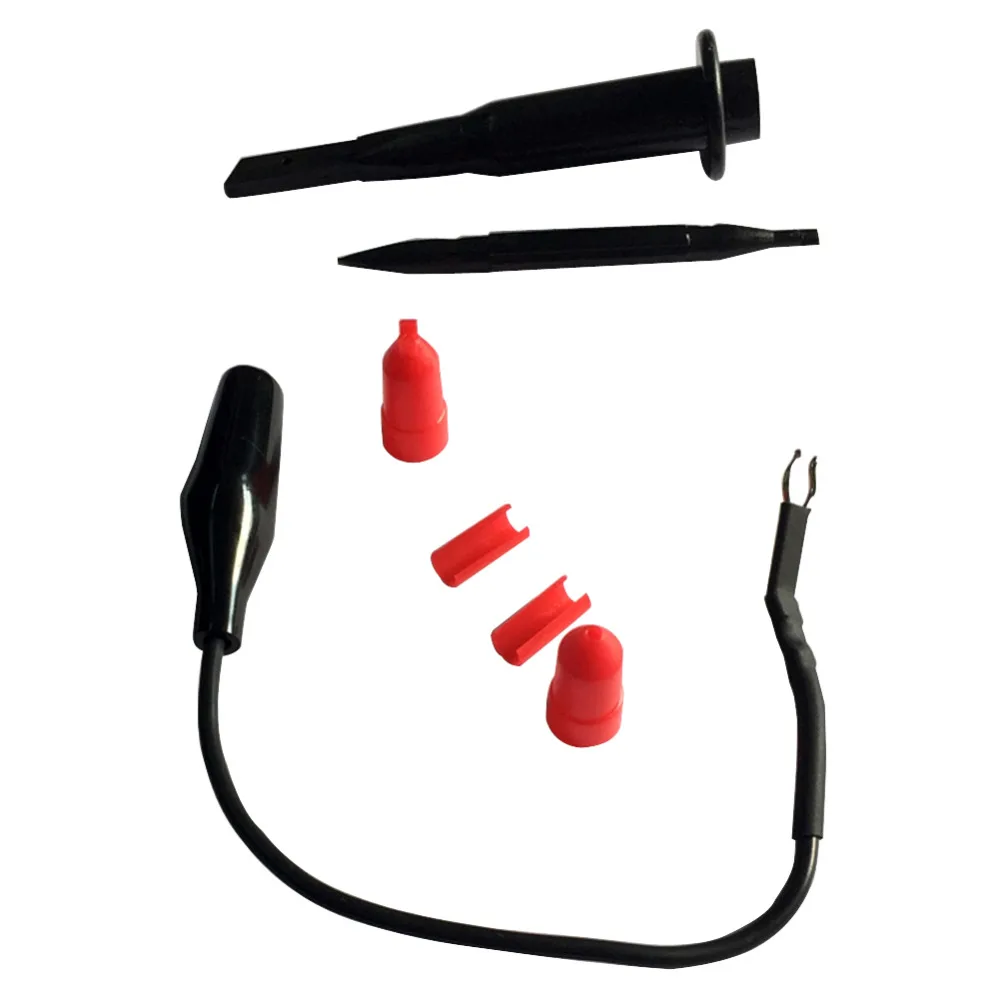

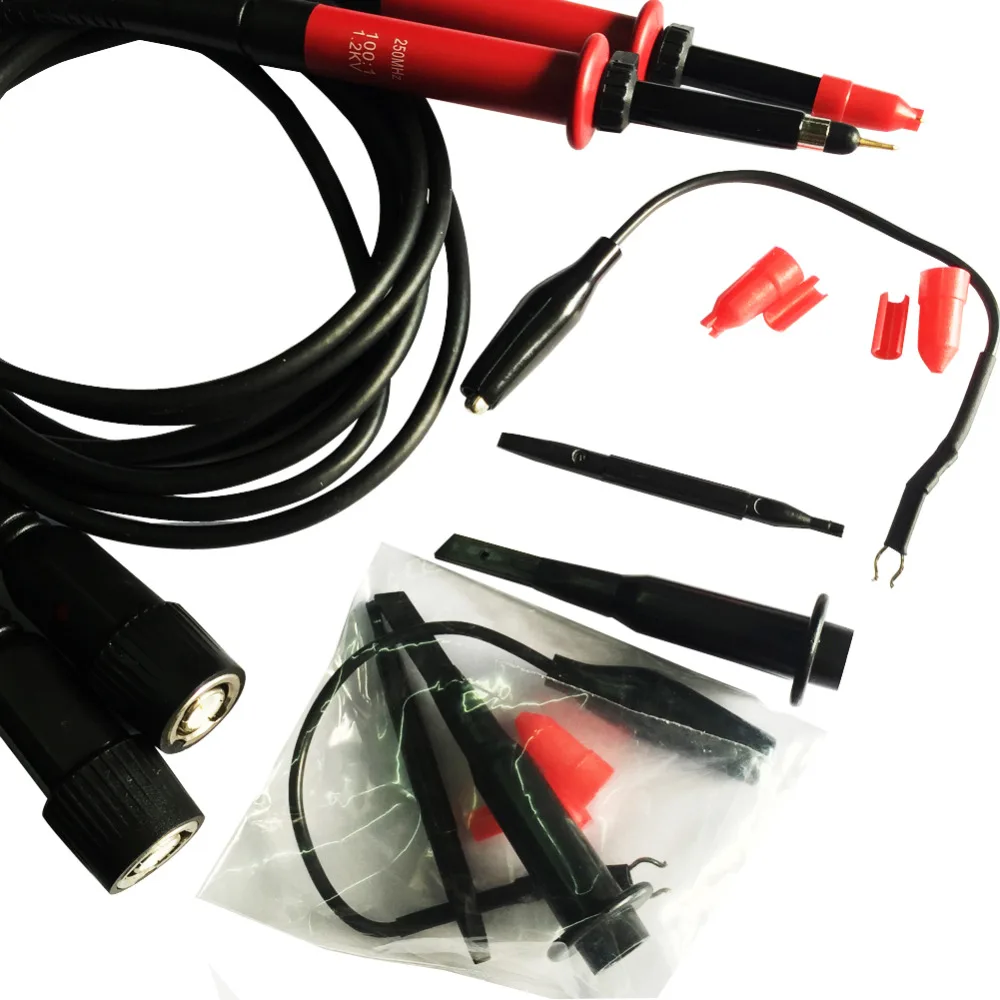

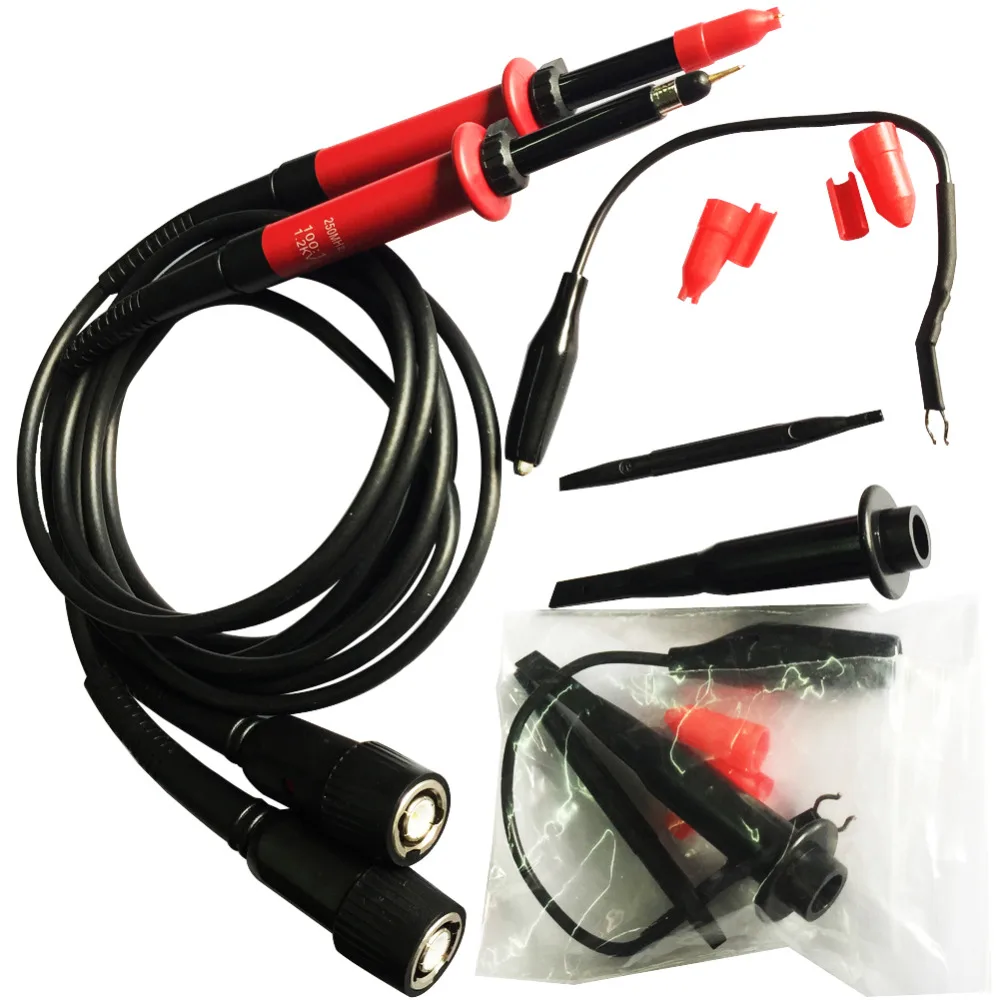

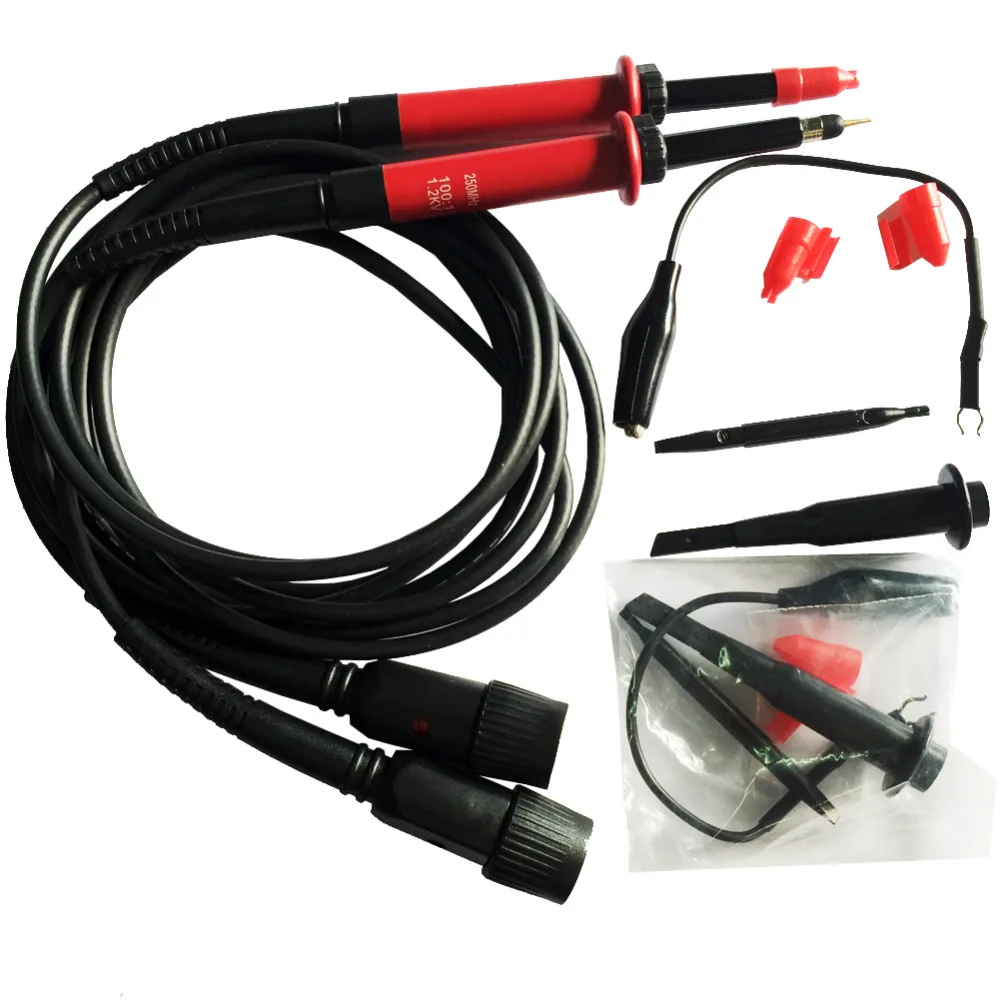

Accessories:

1) Two 250MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;

2)2 Screwdrivers;

3)4 marker bands;

4)2 tip locating sleeves.
