Описание товара

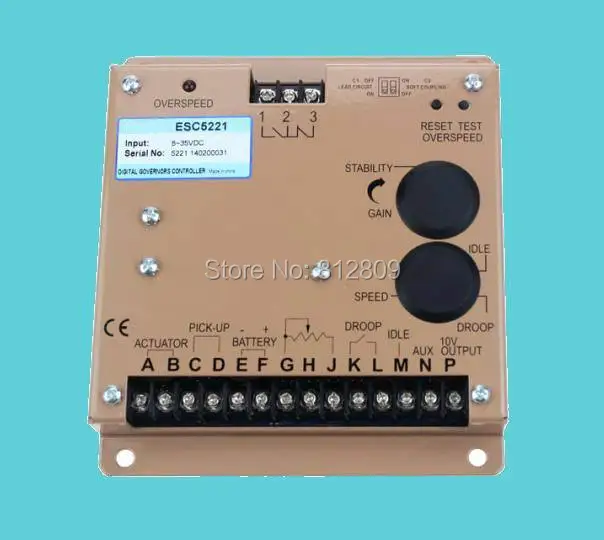

ESD5221E Generator Speed Control Unit
Product Description
1)Description The ESD5221E series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
2)Isochronous Operation/Steady Stability: +/-0.25% or better
3)Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
4)Power Consumption: 50 ma continuous plus acutator current
5)Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
6)Weight: 0.8kg
We are able to refund your money without shipping cost.
Contact us
For anything about product, price, shipping or order status, please fell free to contact with us!
Technical Data
| Input | Supply | 12 or 24 VDC Battery System (Transient and Reverse Voltage) |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 50 ma continuous plus actuator current | |
| Actuator Current Range @77°F (25 °C) - (Inductive Load) | Min.2.5 Amps; Max. 10Amps continuous | |
| Speed Sensor Signal | 0.5-120 Volts RMS | |
| Speed switch Relay contacts(N.O.and N.C) | 10 Amps | |
| Performance | Isochronous Operation/Steady State Stability | ±0.25% or better |
| Speed Range/Governor | 1K to 7.5K Hz continuous | |
| Speed Drift with Temperature | ±1% Max | |
| Idle Adjust CW | 60% of set speed | |
| Idle Adjust CCW | Less than 1200 Hz. | |
| Droop Range | 1-5% regulation | |
| Droop Adj. Max. (K-L Jumpered) | 400 Hz., ±75Hz. Per 1.0A change | |
| Droop Adj. Min. (K-L Jumpered) | 15Hz., ±6Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz | |
| Remote Variable Speed Range | 500 - 7.5 Hz. Or any part there of Terminal Sensitivity | |
| Terminal Sensitivity J | 100 Hz., ± 15Hz / Volt @ 5.0 K Impedance | |
| Terminal Sensitivity L | 735 Hz., ±60 Hz / Volt @ 65 K Impedance | |
| Terminal Sensitivity N | 148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance | |
| Terminal Sensitivity P | 10 VDC Supply @ 20 ma Max | |
| Speed witch adjustment range | 1000-10000HZ | |
| Environmental | Ambient Operating Temperature Range | -40 to +180°F(-40°+85 °C) |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 1G @ 20 to 100 Hz. |
| Testing | 100% Functionally Tested | |
| physical | Dimensions | See outline (FIGURE 1) |
| Weigh1 | 1.8 lbs.(820 grams) | |
| Mounting | Any position, Vertical Preferred |
