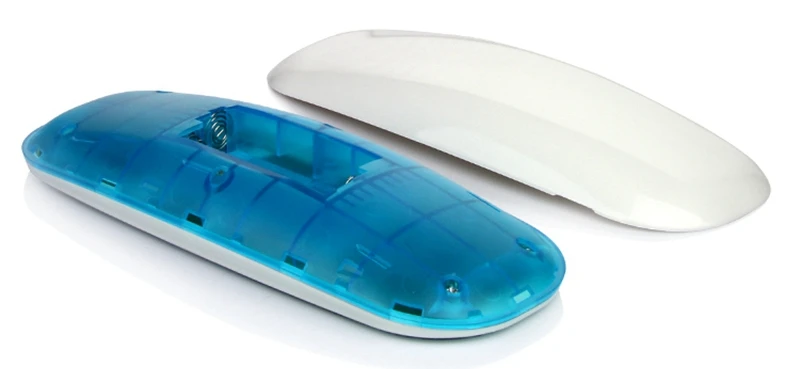

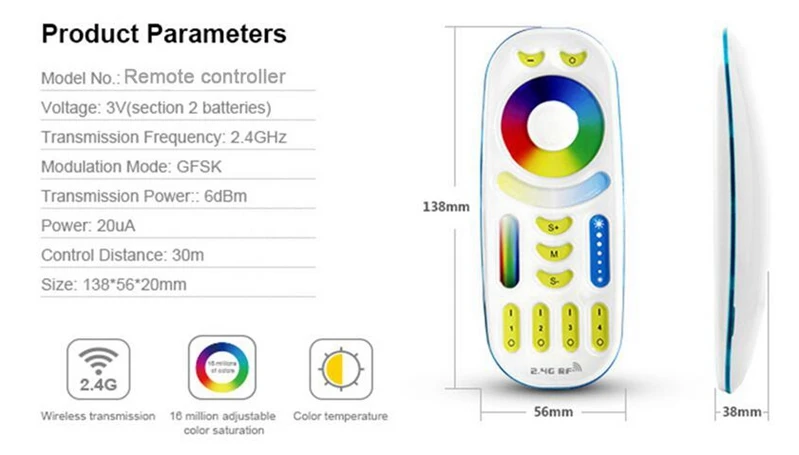

Remote power supply: 2 x AAA battery (not included)

Telecontrol distance:30 meters

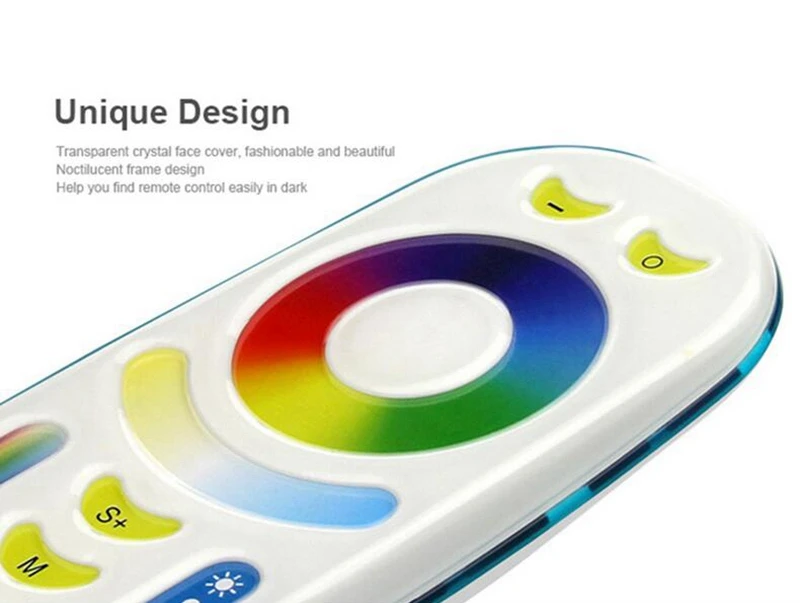

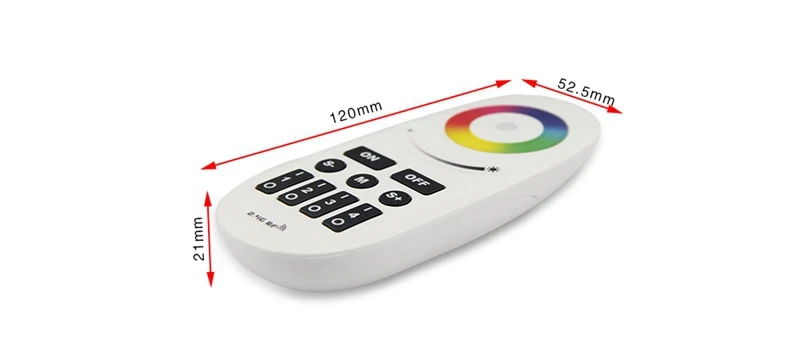

Remote : With the technology of the 2.4G high frequency wireless remote control, it has the characteristics

of low power consumption, long distance transmission, and strong anti-interference ability, high speed

telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of

color changing and brightness dimming, the capacity touch screen design makes the remote easy to use

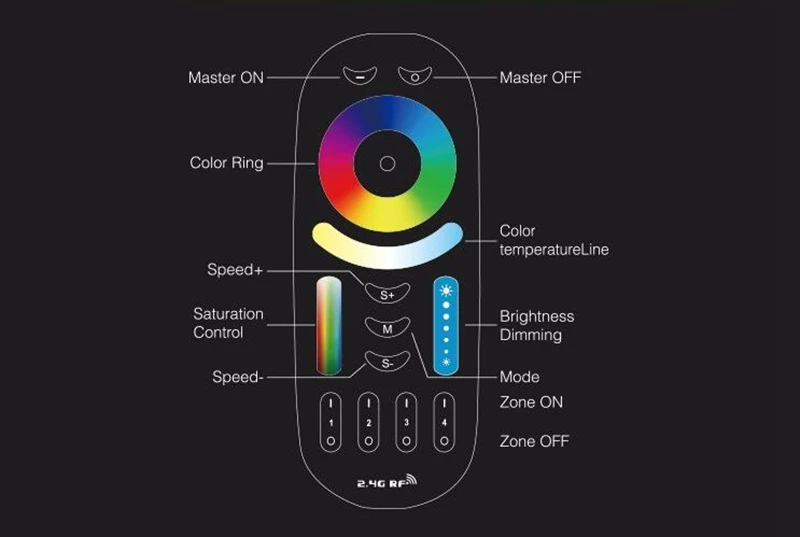

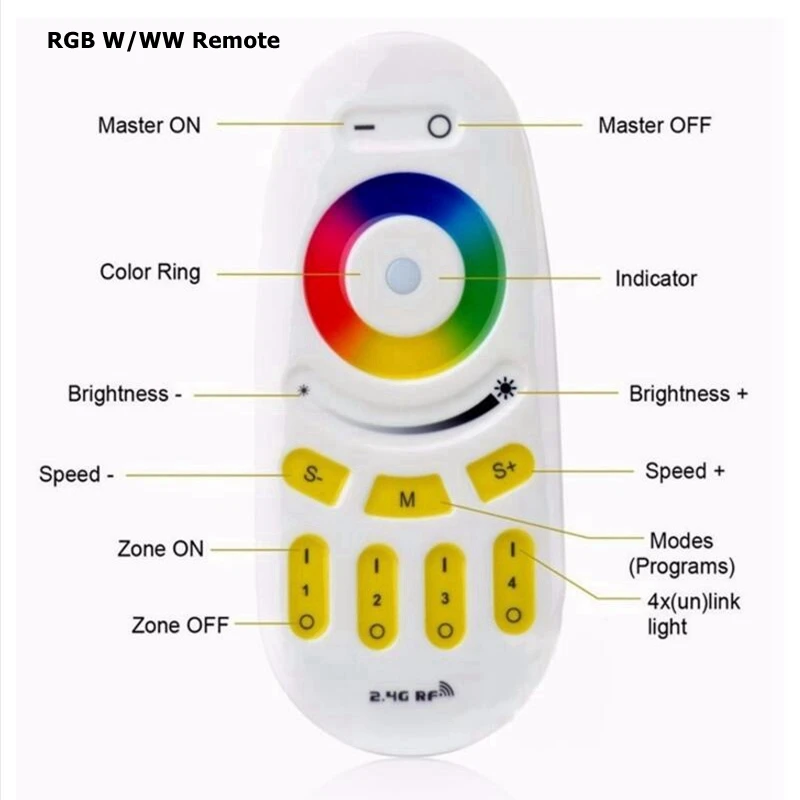

How to operate the 2.4G RF Wireless Remote:

1.Brightness & color temperature adjusting:To adjusting all controllers, first press "Master ON" or to

adjusting individual controllers, then press "Zone ON"; secondly set the adjustment for color temperature or

brightness.

2.Night light mode: for individual controllers, press and hold the "Zone OFF" from one of the 4 zones, For all

controllers, press and hold "Master OFF", The lights now consume only 0.4watts.

3.Resume function: The previous setting will be resumed while power on again!

4.Matching Code:Press one of the "Zone ON" buttons one time within 3 seconds when power on again, the

light will blink 3 times if matching is successful;

5.Clearing Code:Press one of the "Zone ON" buttons five times within 3 seconds when power on again, the

light will blink ten times if clearing is successful;

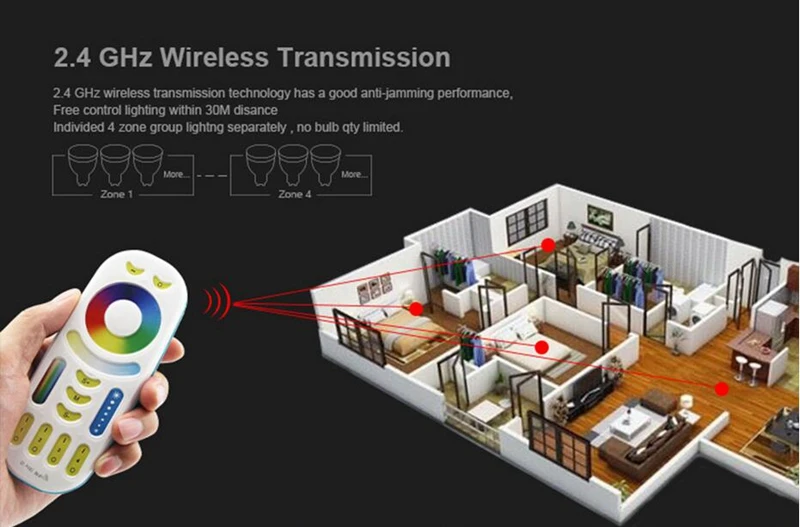

6.Grouping:You can add an endless numbers of controllers t a zone on the 4 channel remote by code-

matching to different zones.This way you are completely flexible in creating different group

combinations.Below you can see some grouping examples

1 x Remote Controller

1 x User Manual

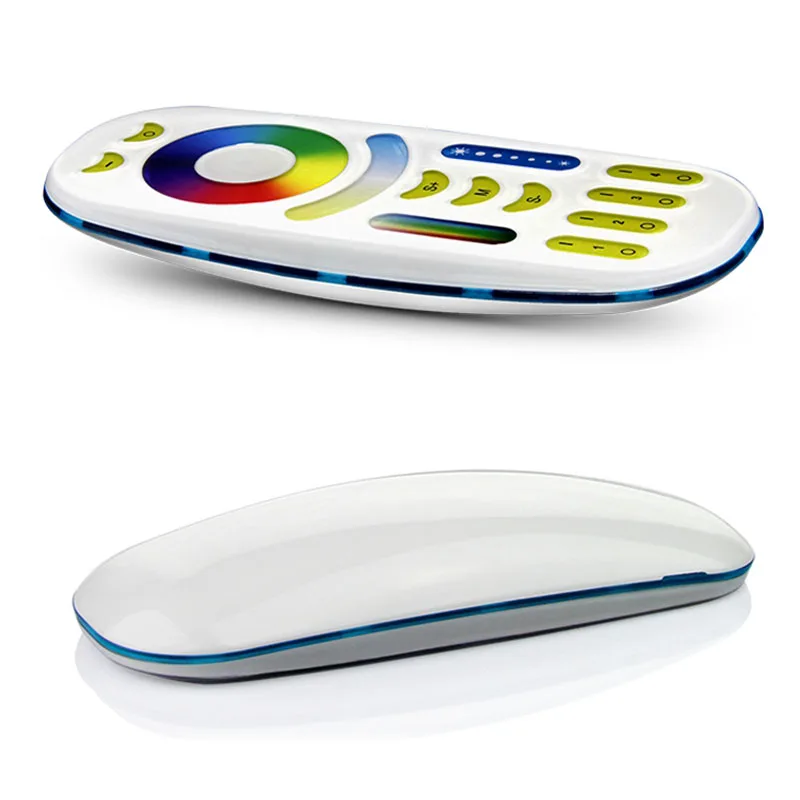

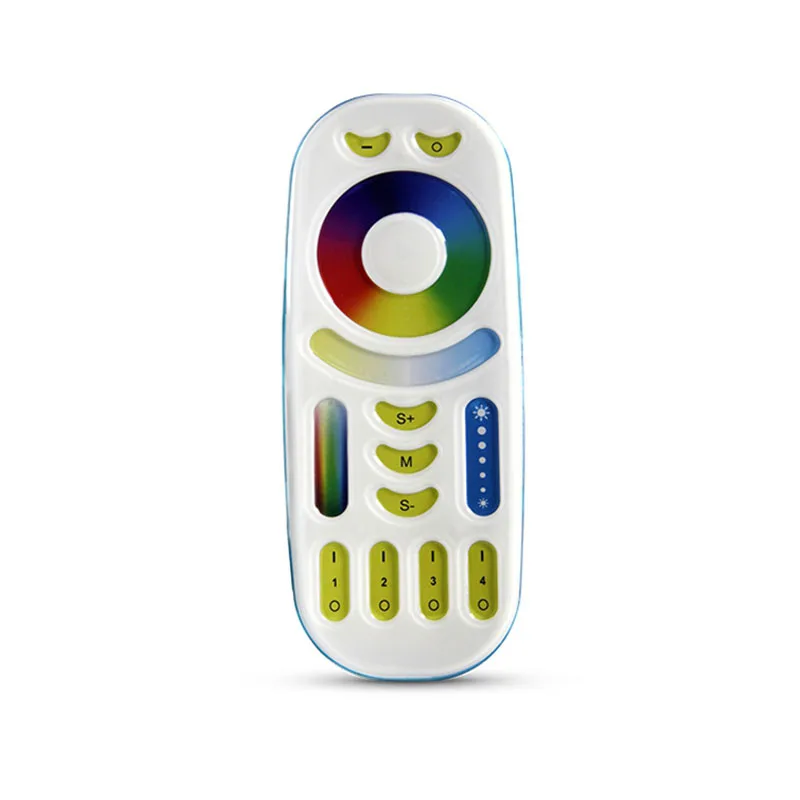

RGBCCT Remote
