Описание товара

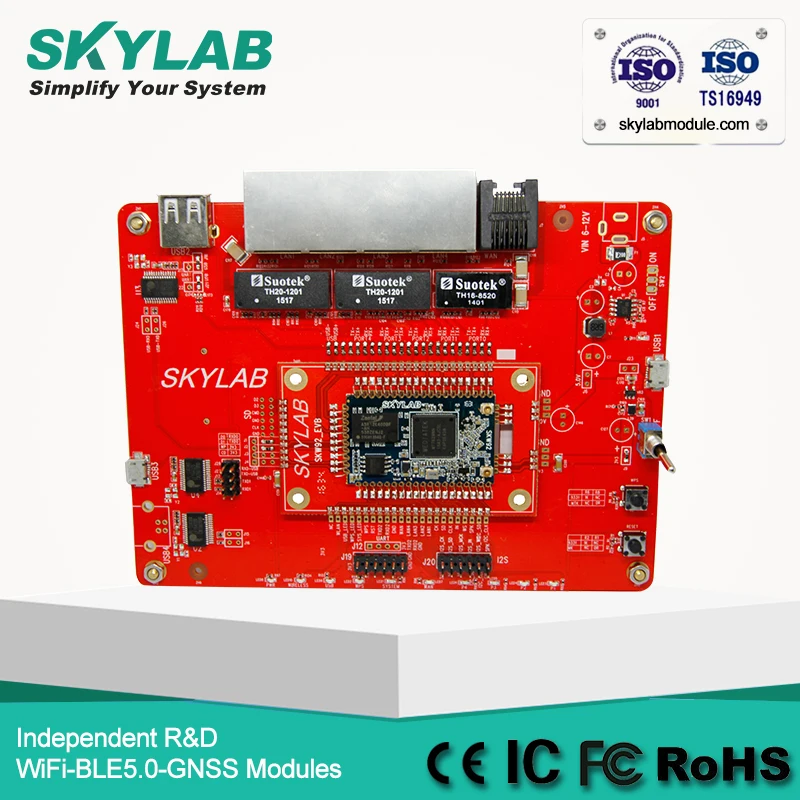

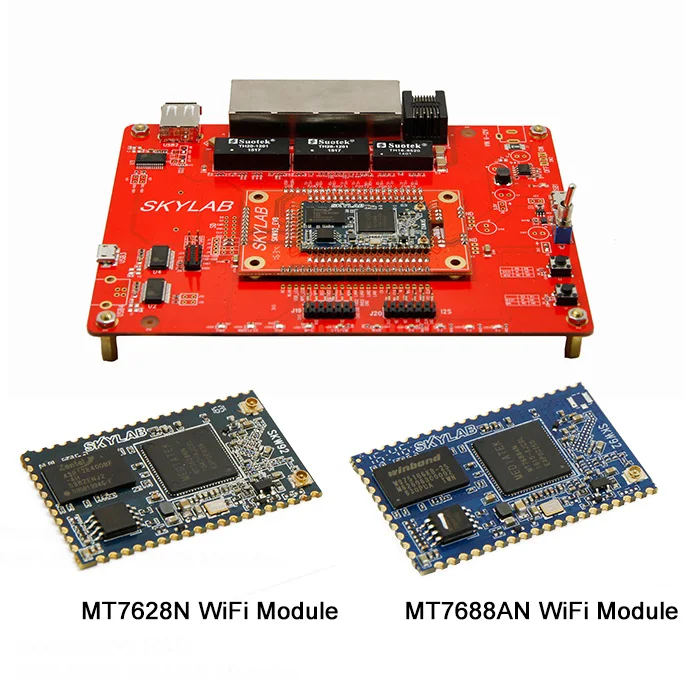

Name: IoT wireless OpenWRT MT7628an mt7628nn mt7628n mt7628 wifi module for wifi doorbell
Model No:SKW92A
The module SKW92A compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply .
The module based on the single chip MT7628N which integrates an 802.11n MAC/BB/radio with internal PA and LNA. It
supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.
The module support AP mode and client mode and router mode. Especially in the IOT, a wide range of applications.
| Hardware Features |
|||
| Model |
SKW92A |
||
| Antenna Type |
IPEX |
||
| Chipset solution |
MT7628N |
||
| Voltage |
3.3V+/-10% |
||
| Dimension(L×W) |
40.5mm*25.0mm |
||
| Wireless Features |
|||
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
||
| Frequency Range |
2.400GHz---2.500GHz |
||
| Data Rates |
IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps |
||
| IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps |
|||
| IEEE 802.11n : 144Mbps @ HT20 |
|||
| 300Mbps @ HT40 |
|||
| Receiver Sensitivity |
HT40 MCS7 : -67dBm@10% PER(MCS7) |
||
| HT20 MCS7 : -73dBm@10% PER(MCS7) |
|||
| 54M: -76dBm@10% PER |
|||
| 11M: -91dBm@ 8% PER |
|||
| Modulation Technique |
802.11 Legacy b/g |
||
| DSSS (DBPSK, DQPSK, CCK) |
|||
| OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
|||
| Wireless Security |
WPA/WPA2, WEP, TKIP, and AES |
||
| Transmit Power |
IEEE 802.11n: 15dBm @HT40 MCS7 |
||
| 15dBm@HT20 MCS7 |
|||
| IEEE 802.11g: 16dBm |
|||
| IEEE 802.11b: 18dBm |
|||
| Work Mode |
Router/AP/Repeater |
||
| Others |
|||
| Certification |
RoHS |
||
| Power Consumption@25°C |
Status |
Average/mA |
|
| Continuous Tx |
230 |
||
| Power Saving |
60 |
||
| Note: The maximum current consumption would be impacted by radiation environment and the driver mechanism |
|||
| Environment |
Operating Temperature: -20℃~70℃ |
||
| Storage Temperature: -40℃~125℃ |
|||
| Operating Humidity: 10%~90% non-condensing |
|||
| Storage Humidity: 5%~90% non-condensing |
|||
Compliant to IEEE 802.11b/g/n
2T2R Mode with support for a 300Mbps PHY data rate.
DDR2 memory up to 1024Mb
Flash memory up to 256Mb
4LAN ports and 1WAN port
Support USB 2.0 host device
Support USB disk.
Support AP/Client/Router mode
Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI
RoHS compliance meets
50(L) x 25(W) x 3.0(H) mm small dimension
40.5(L) x 25(W) x 3.0(H) mm
